Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

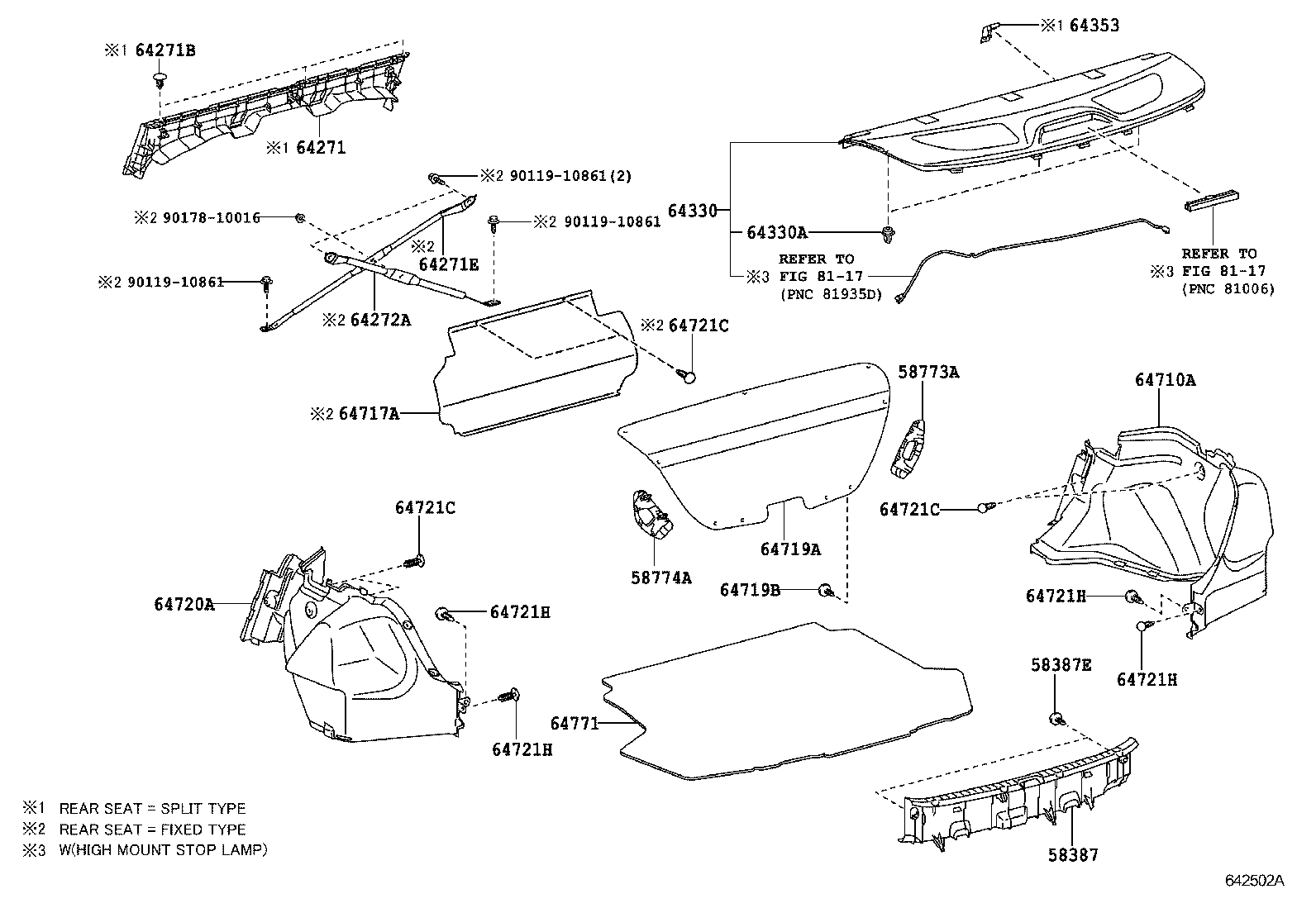

Package Tray Panel & Luggage Compartment Mat
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58773A | Cover, Luggage Compartment Side, RH |
| 58774A | Cover, Luggage Compartment Side, LH |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64272A | Panel, Room Partition, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64353 | Cover, Package Tray Trim Belt Hole |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64771 | Cover, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
