Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

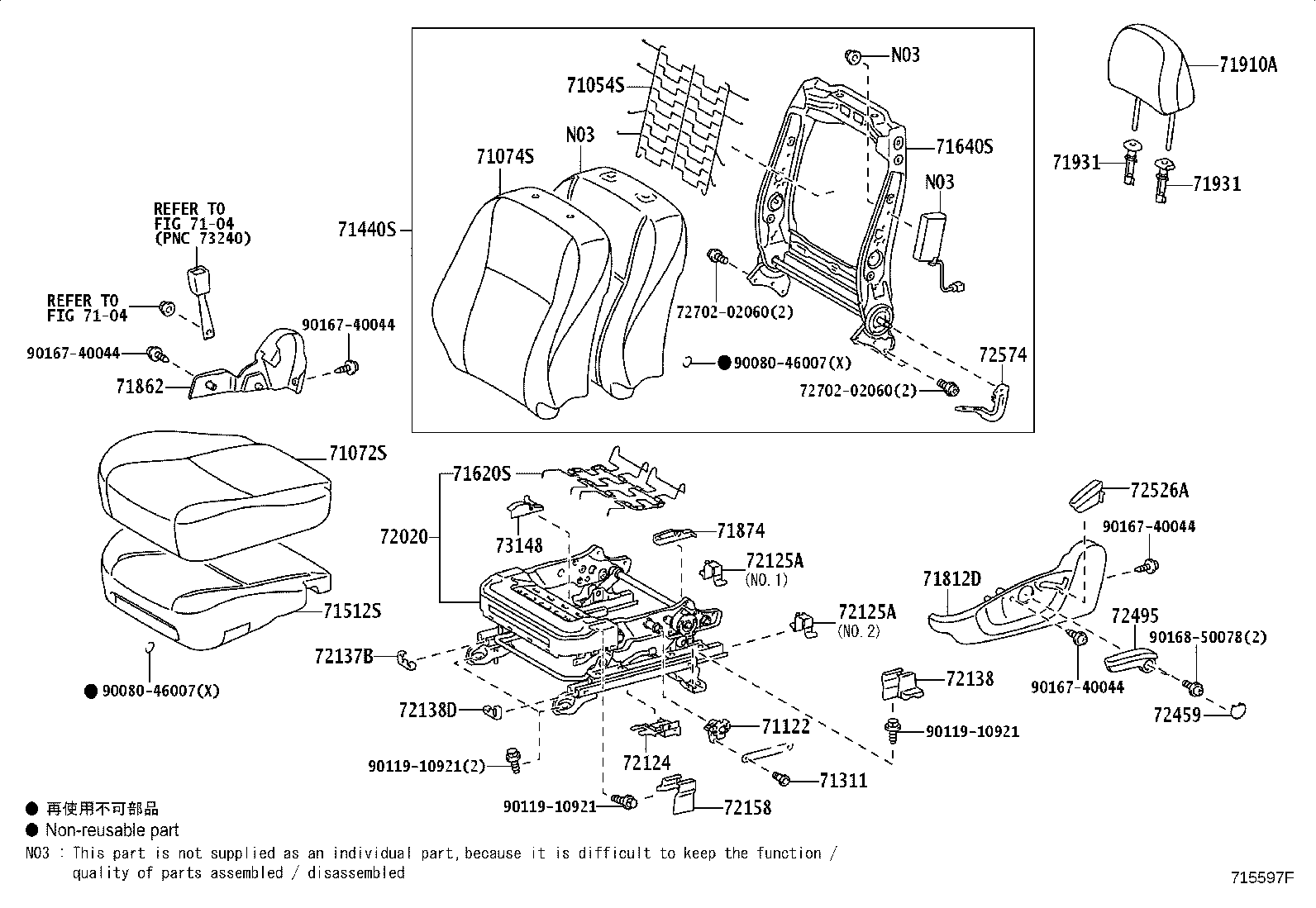

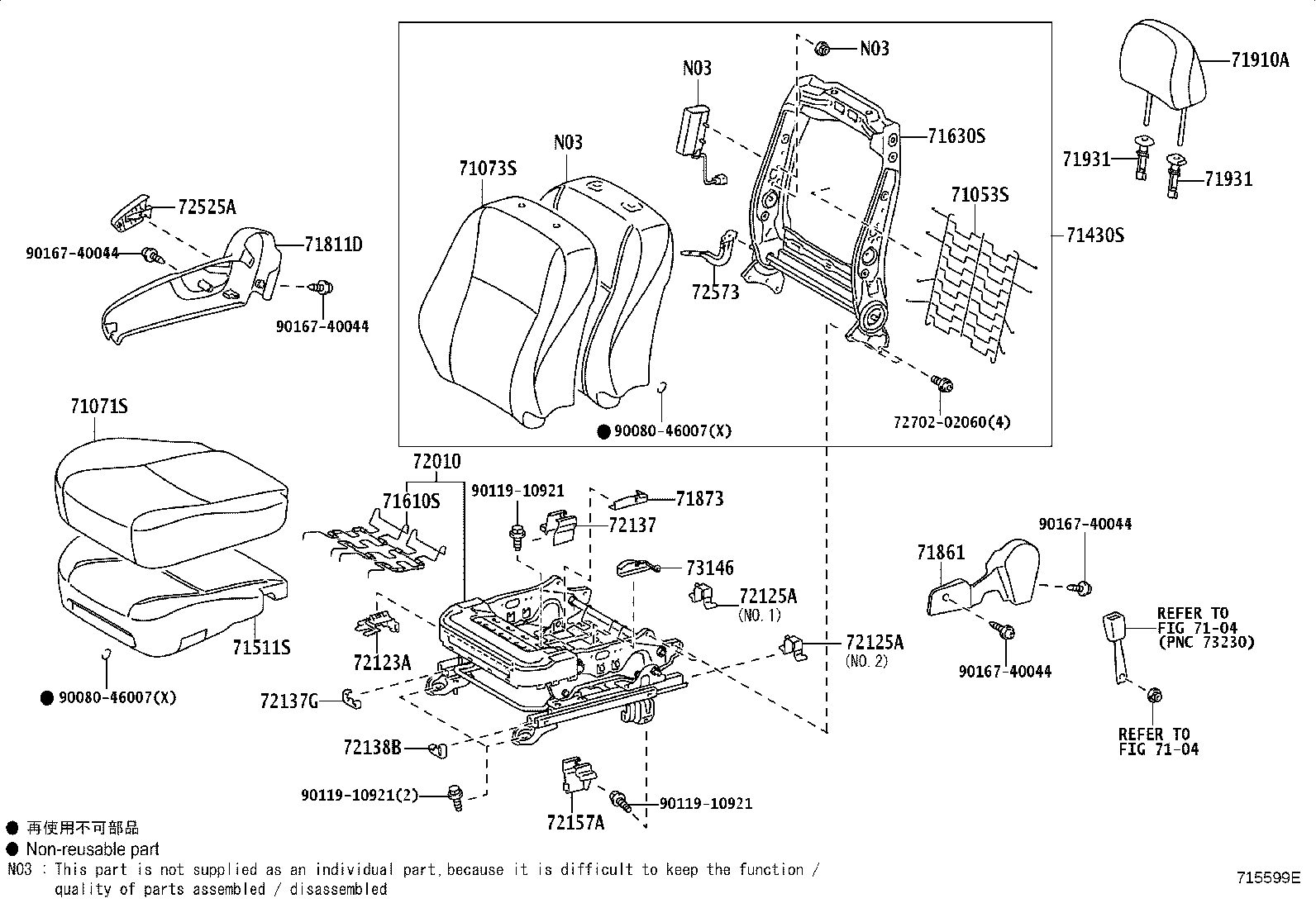

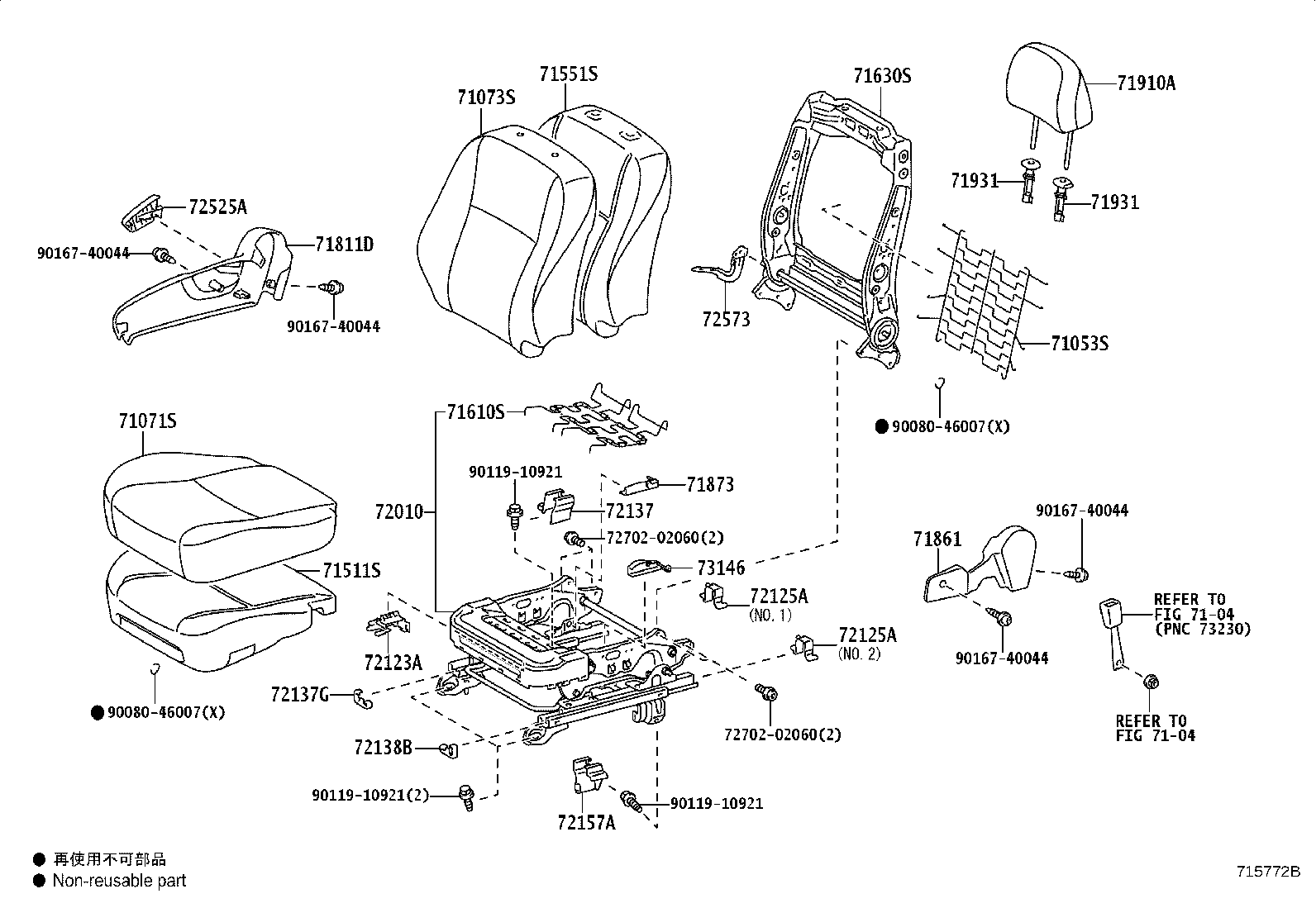

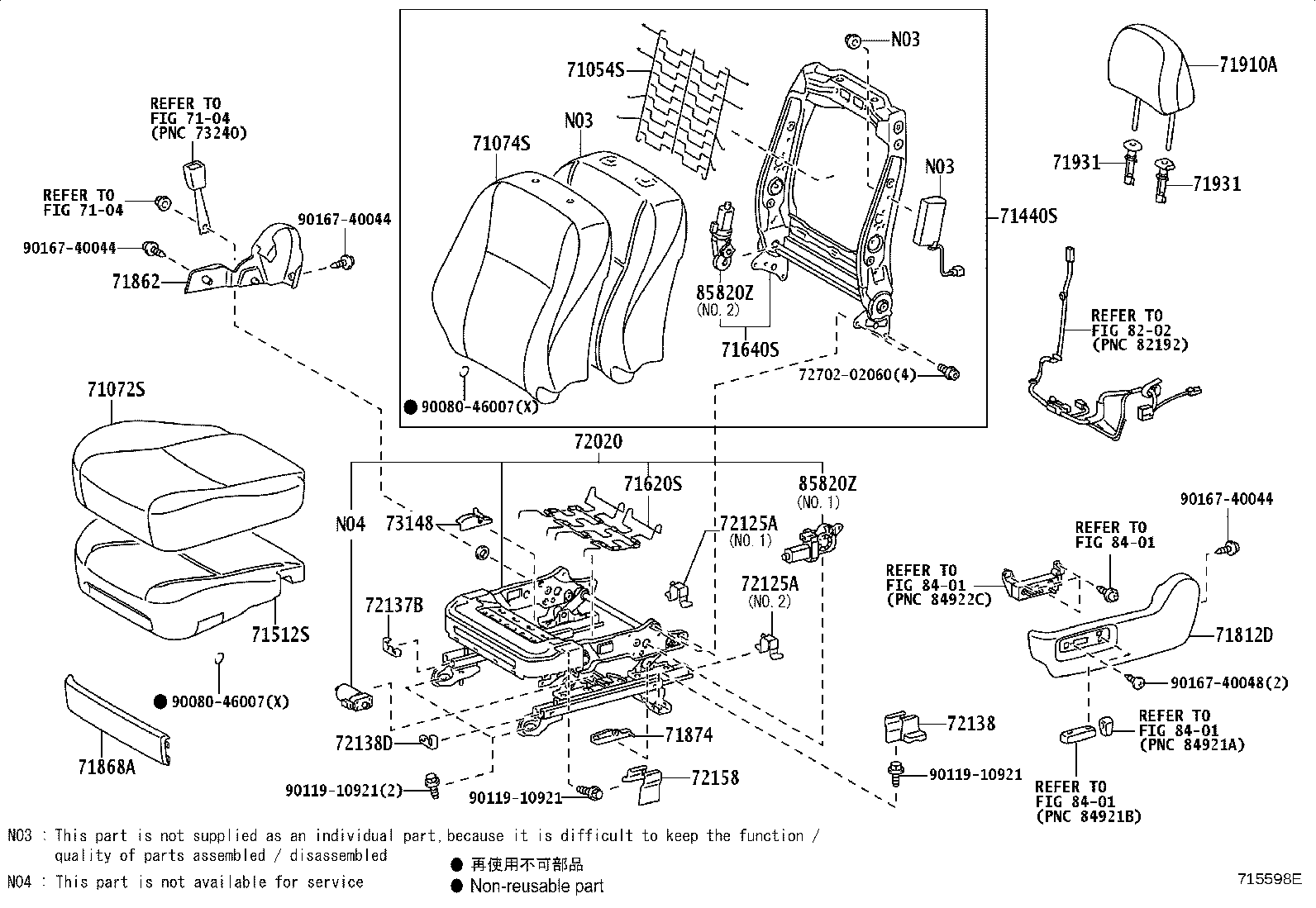

Front Seat & Seat Track
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71122 | Bracket, Front Seat Cushion, LH |
| 71311 | Pin, Front Seat Hinge |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72137 | Cover, Seat Track, Outer RH |
| 72137B | Cover, Seat Track, RH |
| 72137G | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72138B | Cover, Seat Track, LH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72459 | Cap, Vertical Seat Adjuster Knob |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72573 | Lever, Reclining Control, RH |
| 72574 | Lever, Reclining Control, LH |
| 73146 | Cover, Front Seat Belt Inner Anchor Bracket, RH |
| 73148 | Cover, Front Seat Belt Inner Anchor Bracket, LH |
| 85820Z | Motor Assy, Power Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
