Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

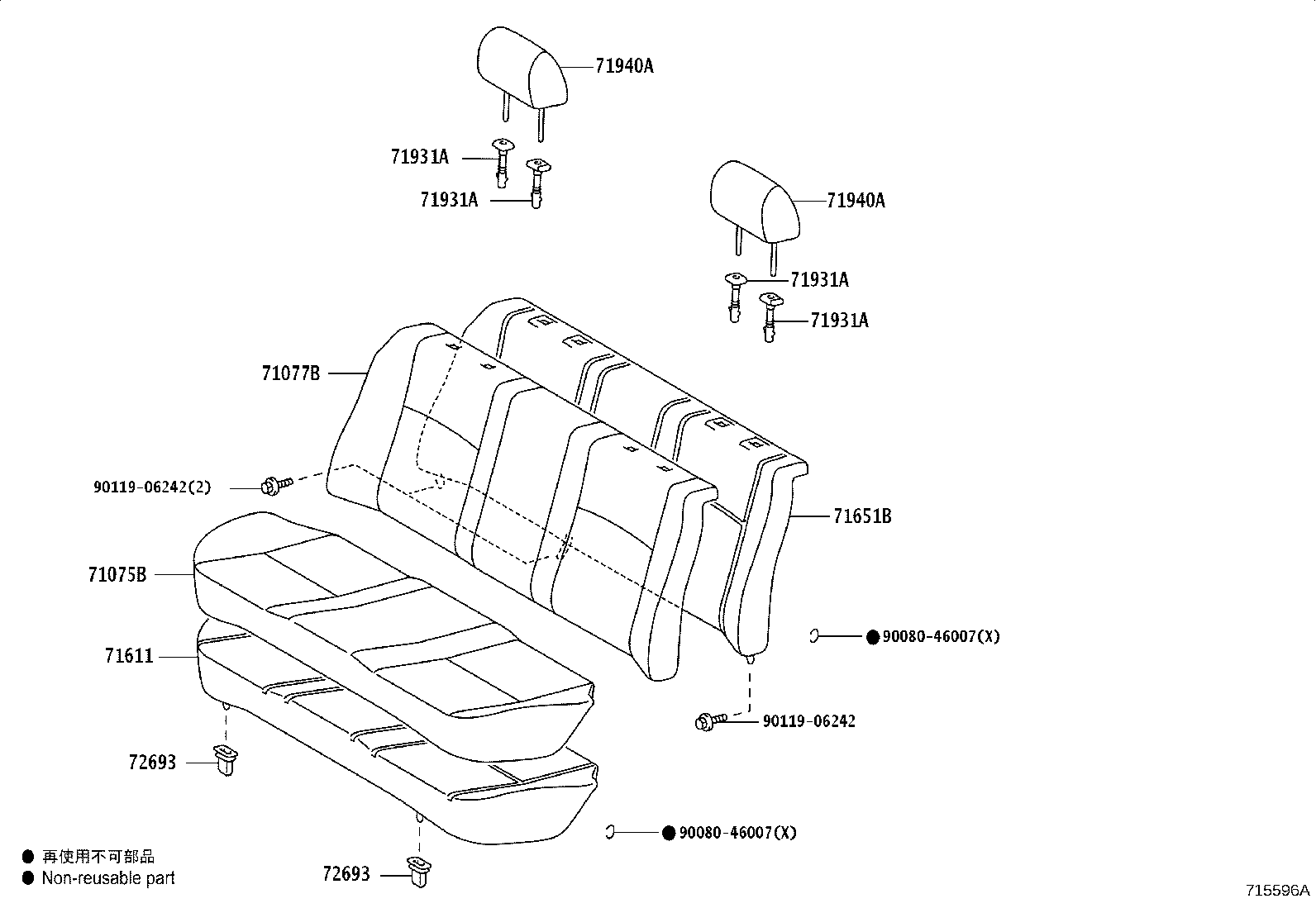

Rear Seat & Seat Track
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075E | Clip(FOR REAR SEAT) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71088A | Cover Sub-assy, Rear Side Seatback, RH |
| 71089A | Cover Sub-assy, Rear Side Seatback, LH |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71665 | Pad, Rear Seatback Side, RH |
| 71666 | Pad, Rear Seatback Side, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72661C | Button, Rear Seatback Lock Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72868B | Cover, Center Armrest Hinge |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
