Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 5 illustrations

Illustrations

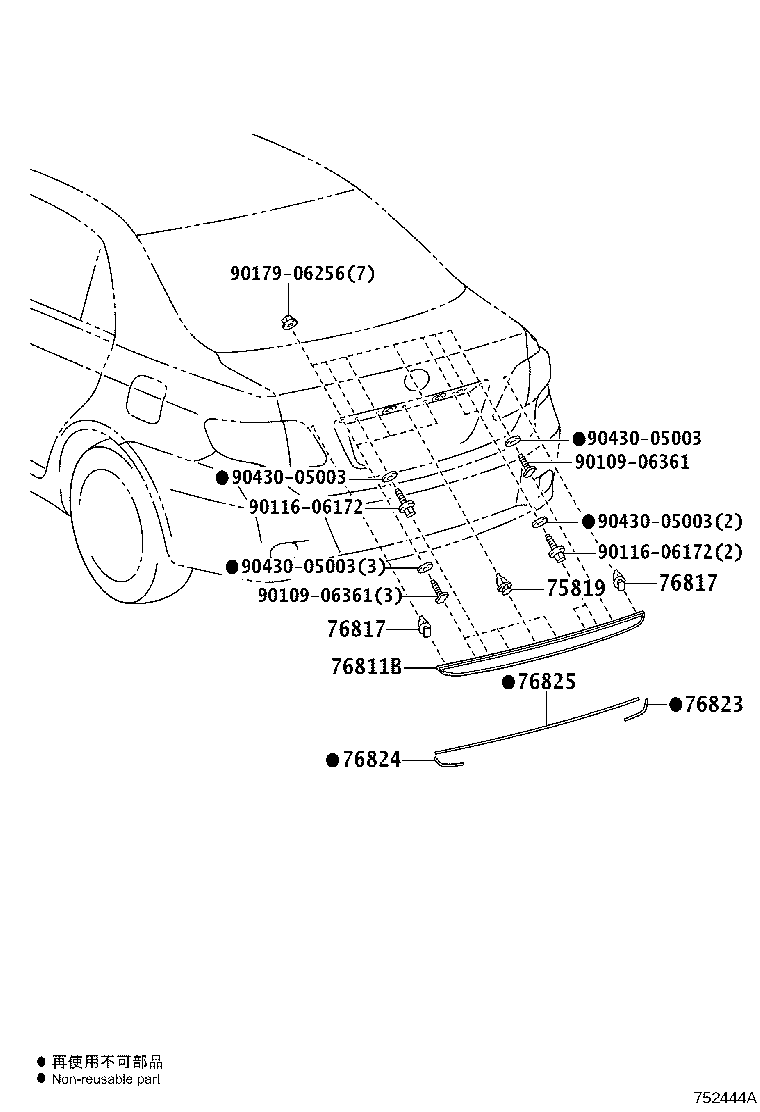

Figure 752051A 752051A 2008-03 → — Figure 752051A 752051A 2009-06 → 2011-05 Figure 752051A 752051A 2010-03 → 2011-03 Figure 752444A 752444A 2011-03 → — Figure 752444A 752444A 2011-05 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
