Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01
Mudguard & Spoiler

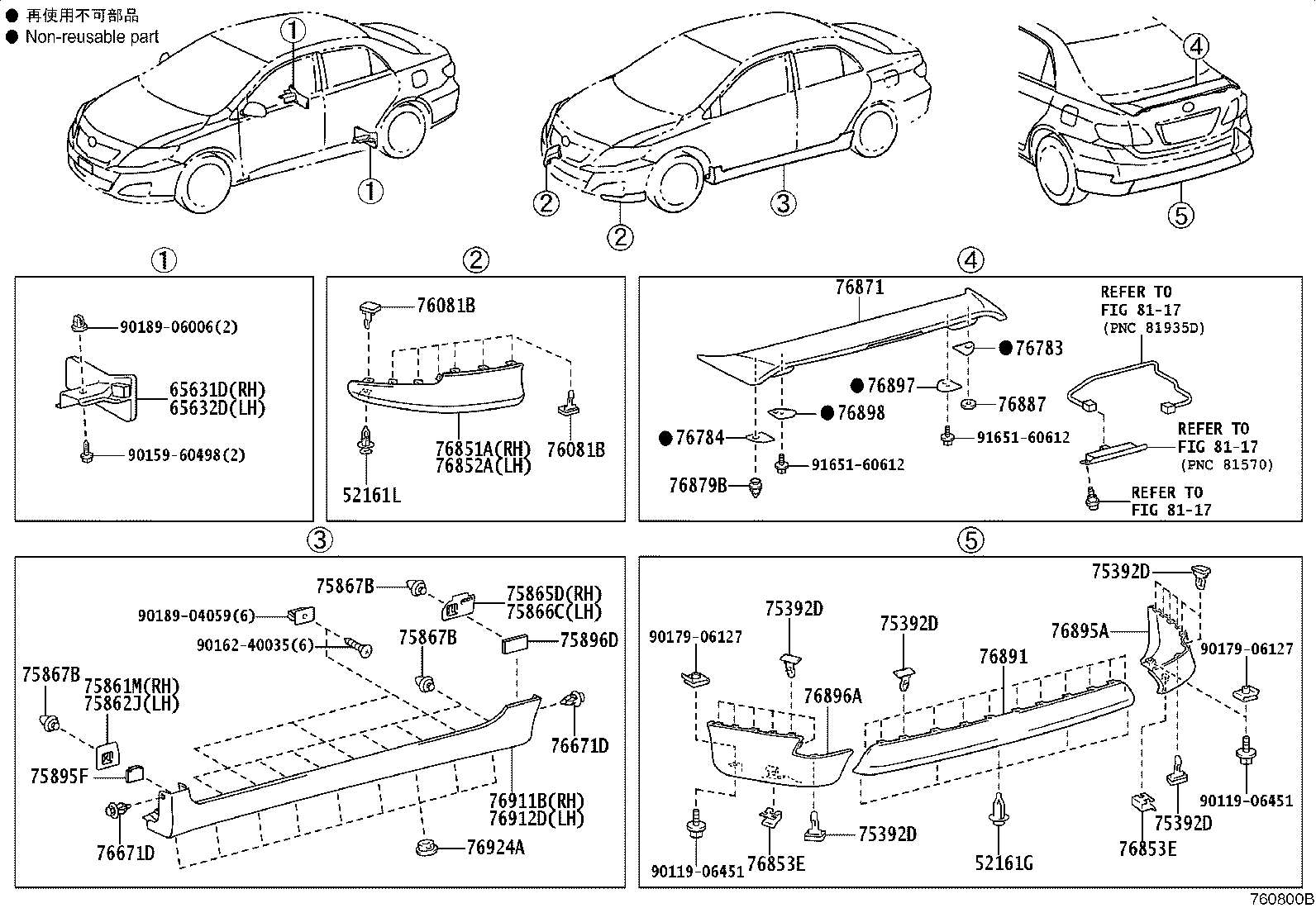

30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 52161L | Piece, Front Spoiler |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75392D | Retainer, Outside Moulding |
| 75861M | Retainer, Rocker Panel Moulding, RH |
| 75862J | Retainer, Rocker Panel Moulding, LH |
| 75865D | Retainer, Rocker Panel Moulding, RH |
| 75866C | Retainer, Rocker Panel Moulding, LH |
| 75867B | Clip, Rocker Panel Moulding |
| 75895F | Tape, Moulding, NO.1 |
| 75896D | Tape, Moulding, NO.2 |
| 76081B | Retainer, Front Spoiler |
| 76671D | Clip, Side Mudguard |
| 76783 | Tape, Rear Spoiler, Lower RH |
| 76784 | Tape, Rear Spoiler, Lower LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76871 | Spoiler, Rear |
| 76879B | Clip, Rear Spoiler, NO.2 |
| 76887 | Seal, Rear Spoiler |
| 76891 | Spoiler, Rear NO.1 |
| 76895A | Spoiler, Rear Bumper, RH |
| 76896A | Spoiler, Rear Bumper, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76911B | Mudguard, Side, RH |
| 76912D | Mudguard, Side, LH |
| 76924A | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
