Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

2 part groups · 5 illustrations

Illustrations

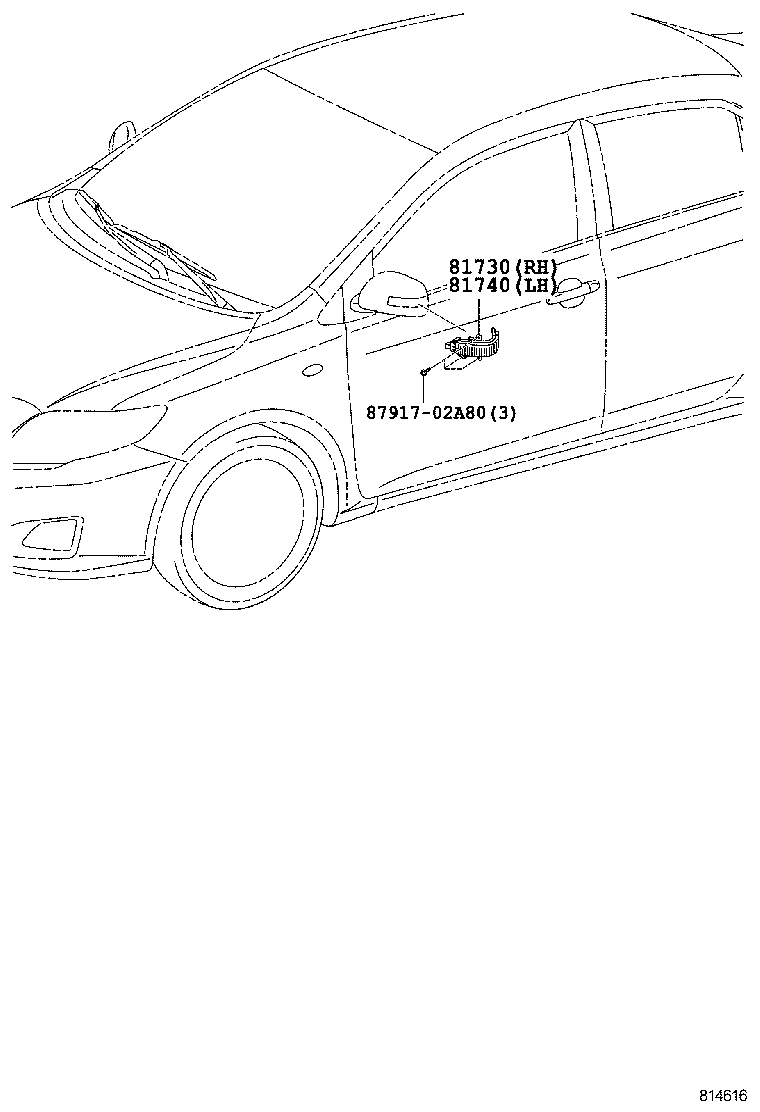

Figure 814615 814615 2008-03 → — Figure 814616 814616 2008-03 → — Figure 814616 814616 2010-03 → — Figure 814616 814616 2011-03 → — Figure 814616 814616 2012-03 → 2014-03

Part groups

PNCDescription
81730 Lamp Assy, Side Turn Signal, RH
81740 Lamp Assy, Side Turn Signal, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
