Rear Combination Lamp

19 part groups · 7 illustrations

Illustrations

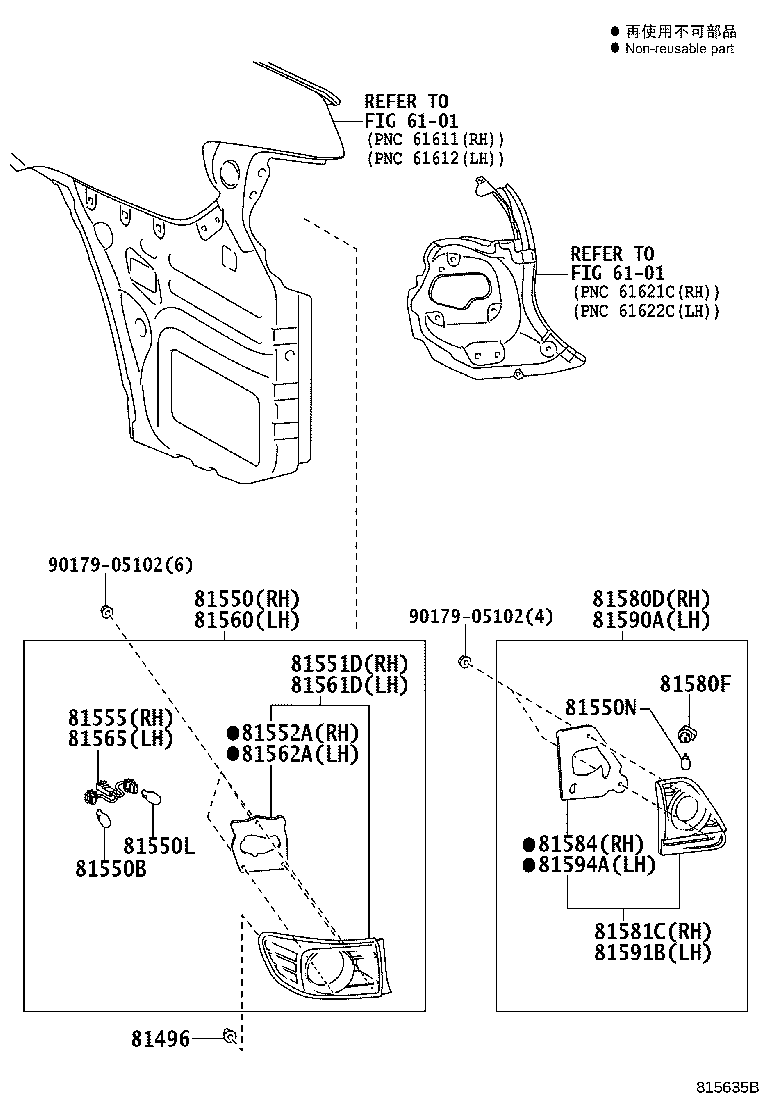

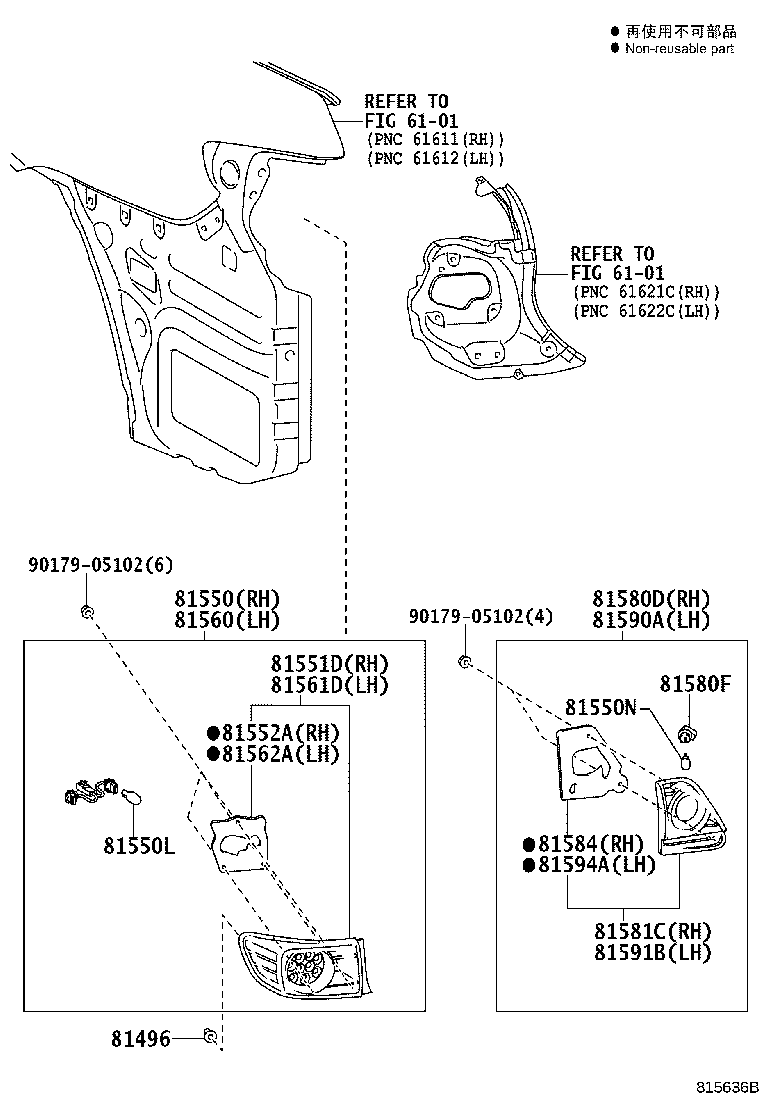

Figure 814617B 814617B 2008-03 → 2010-03 Figure 814617B 814617B 2008-03 → — Figure 814617B 814617B 2009-06 → 2011-05 Figure 814617B 814617B 2010-03 → 2011-03 Figure 815635B 815635B 2011-03 → — Figure 815635B 815635B 2011-05 → — Figure 815636B 815636B 2011-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81580F Socket Plug, Rear Lamp
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
