Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

13 part groups · 6 illustrations

Illustrations

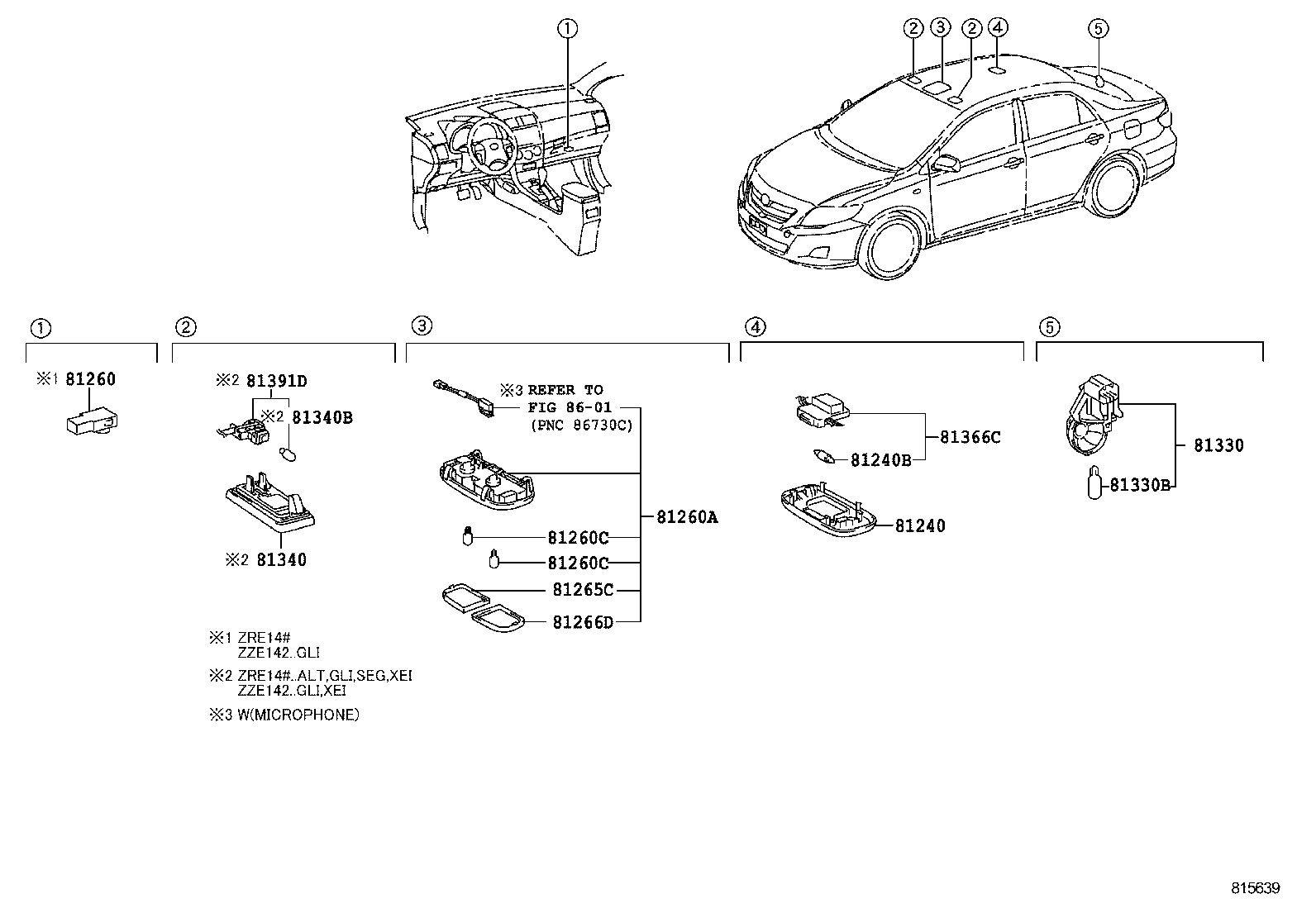

Figure 814621B 814621B 2008-03 → 2010-03 Figure 814621B 814621B 2008-03 → — Figure 814621B 814621B 2009-06 → 2011-05 Figure 814621B 814621B 2010-03 → 2011-03 Figure 815639 815639 2011-03 → — Figure 815639 815639 2011-05 → —

Part groups

PNCDescription
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81366C Base, Room Lamp Switch
81391D Holder, Lamp Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
