Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

55 part groups · 29 illustrations

Illustrations

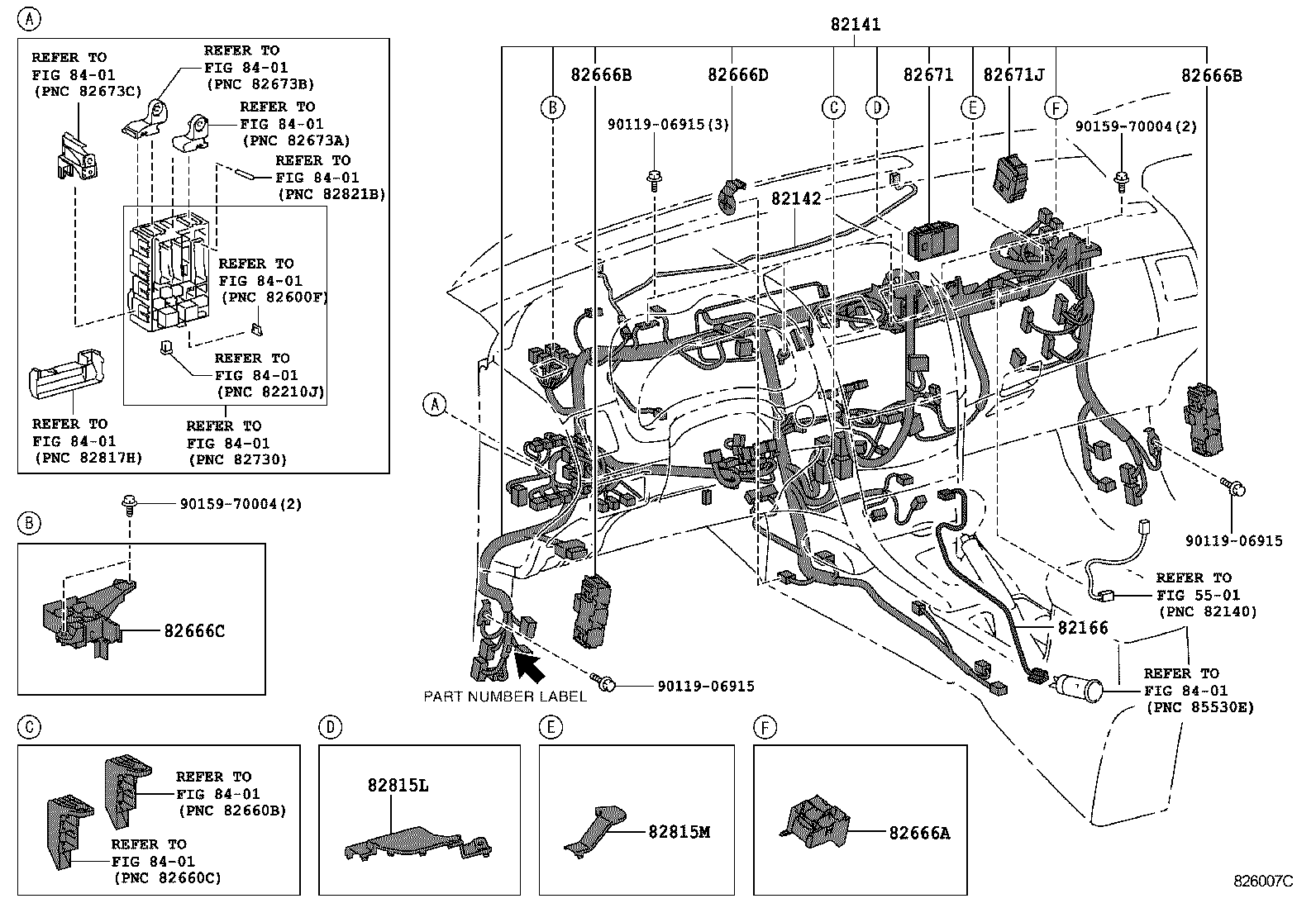

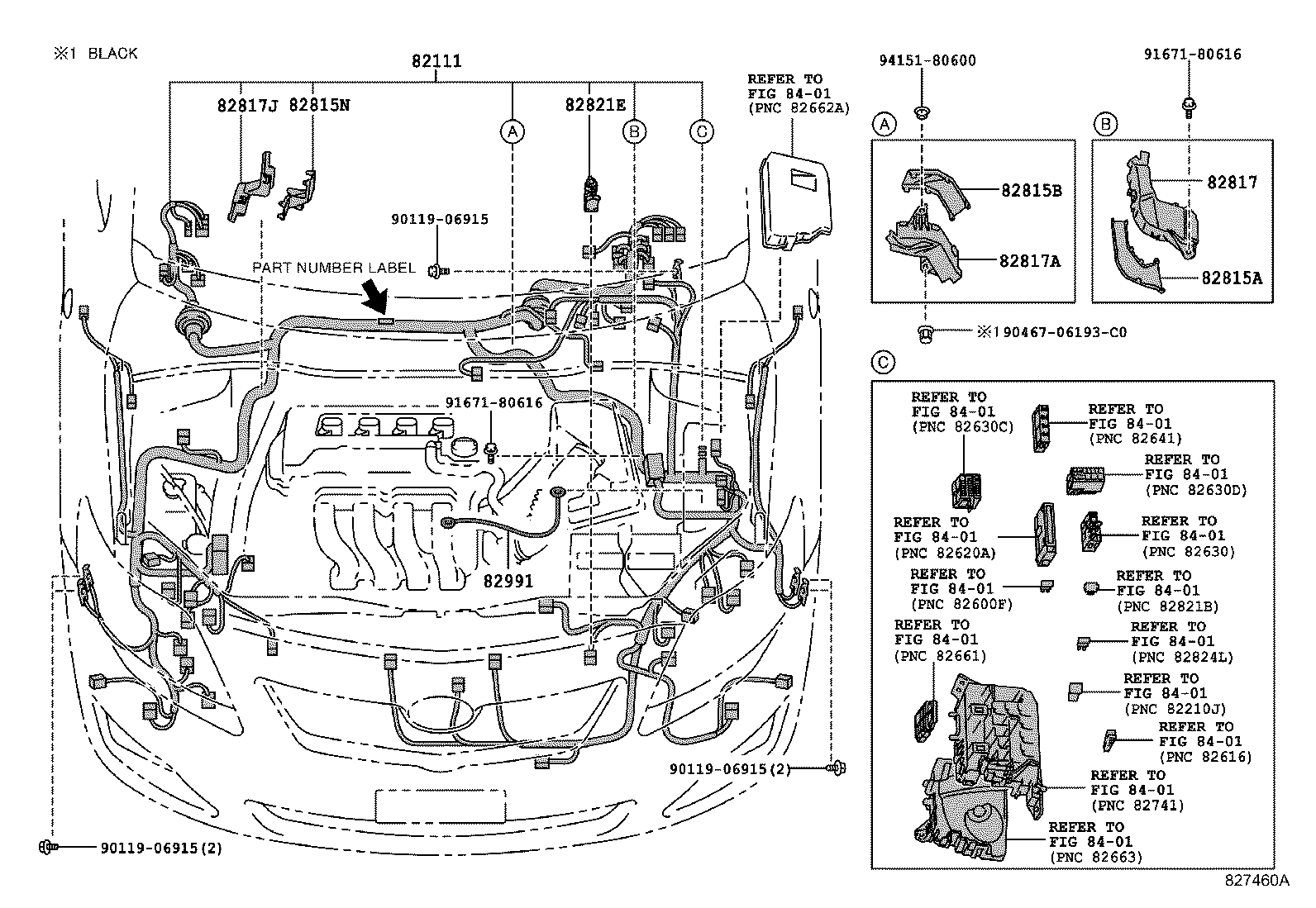

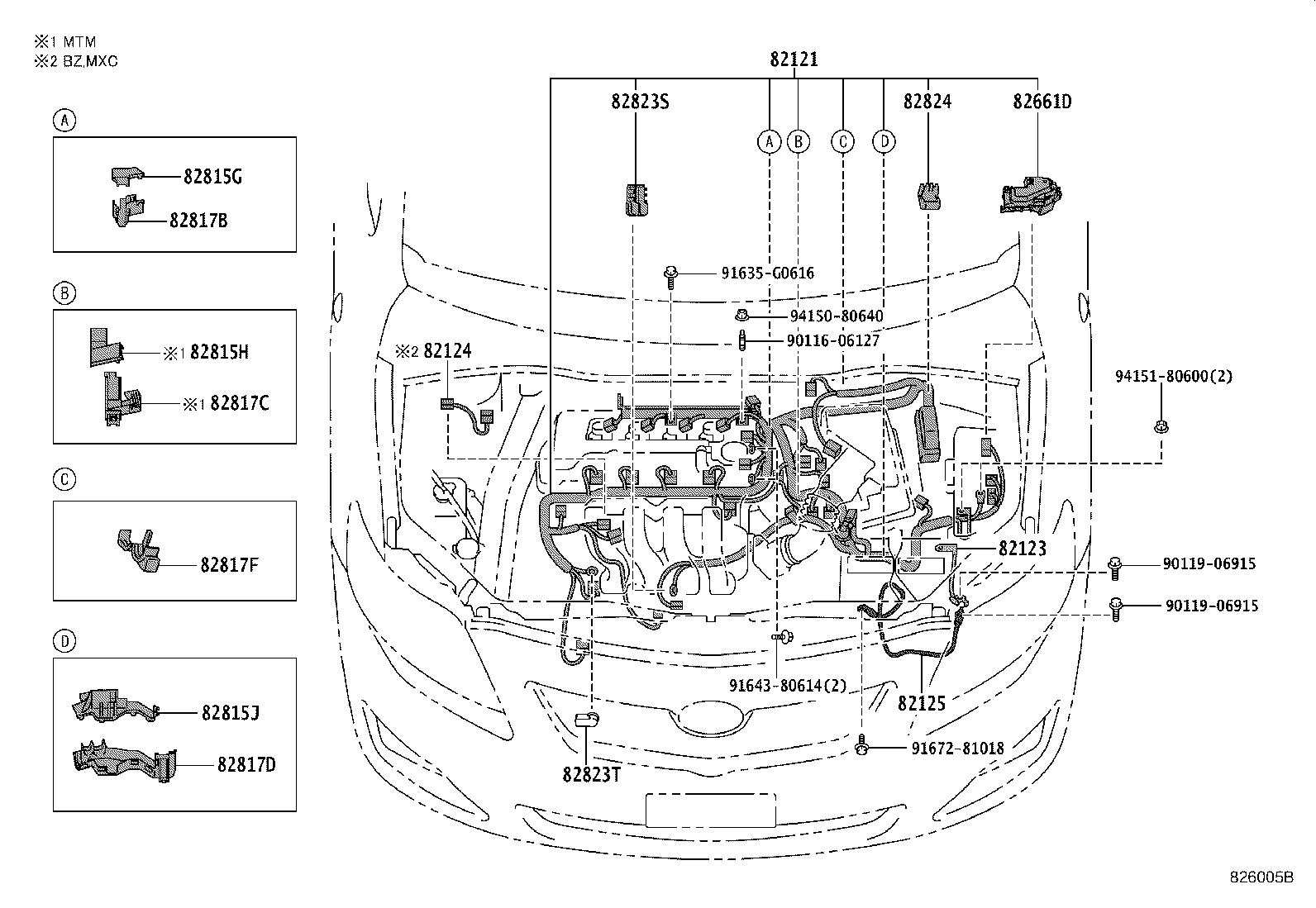

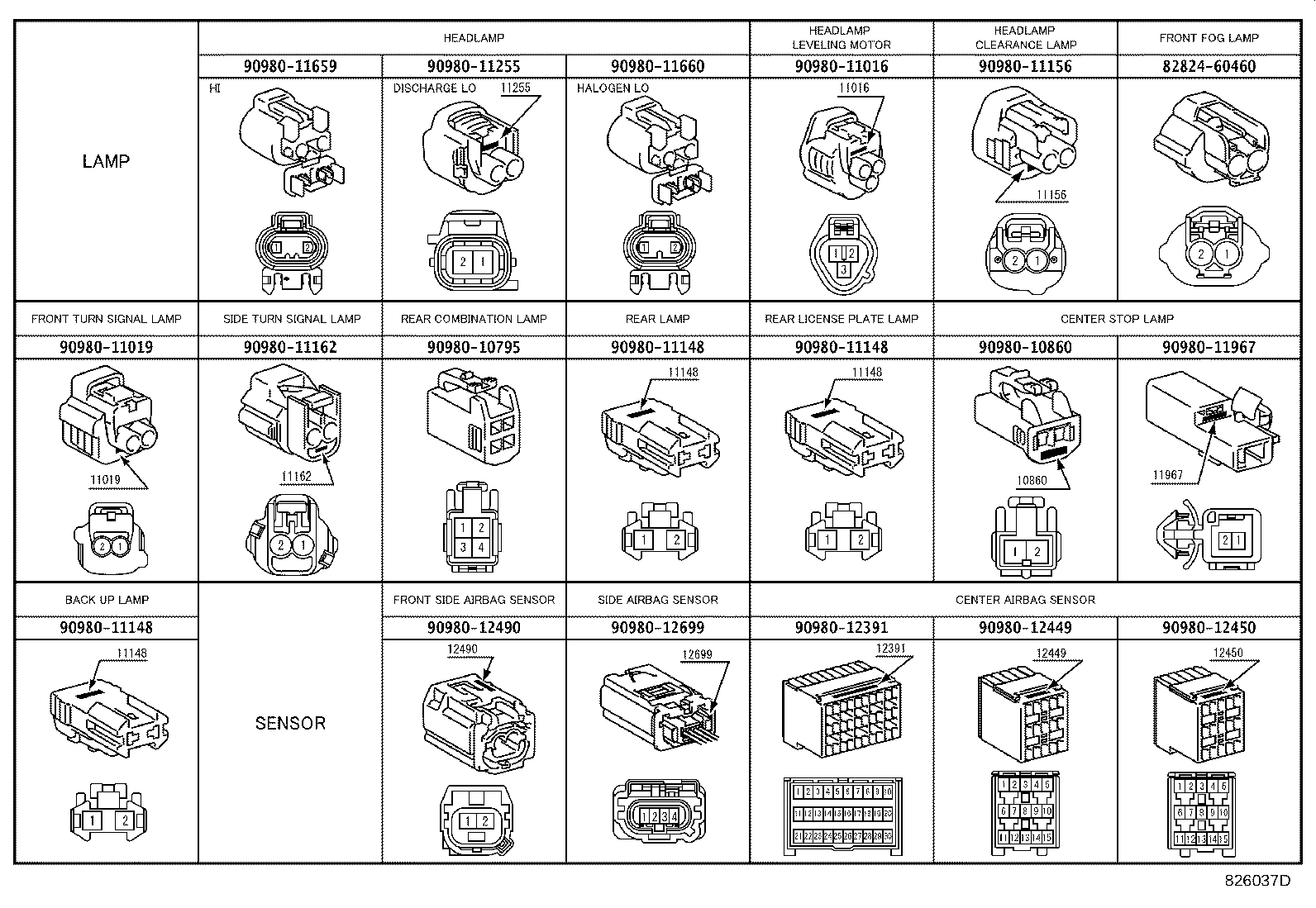

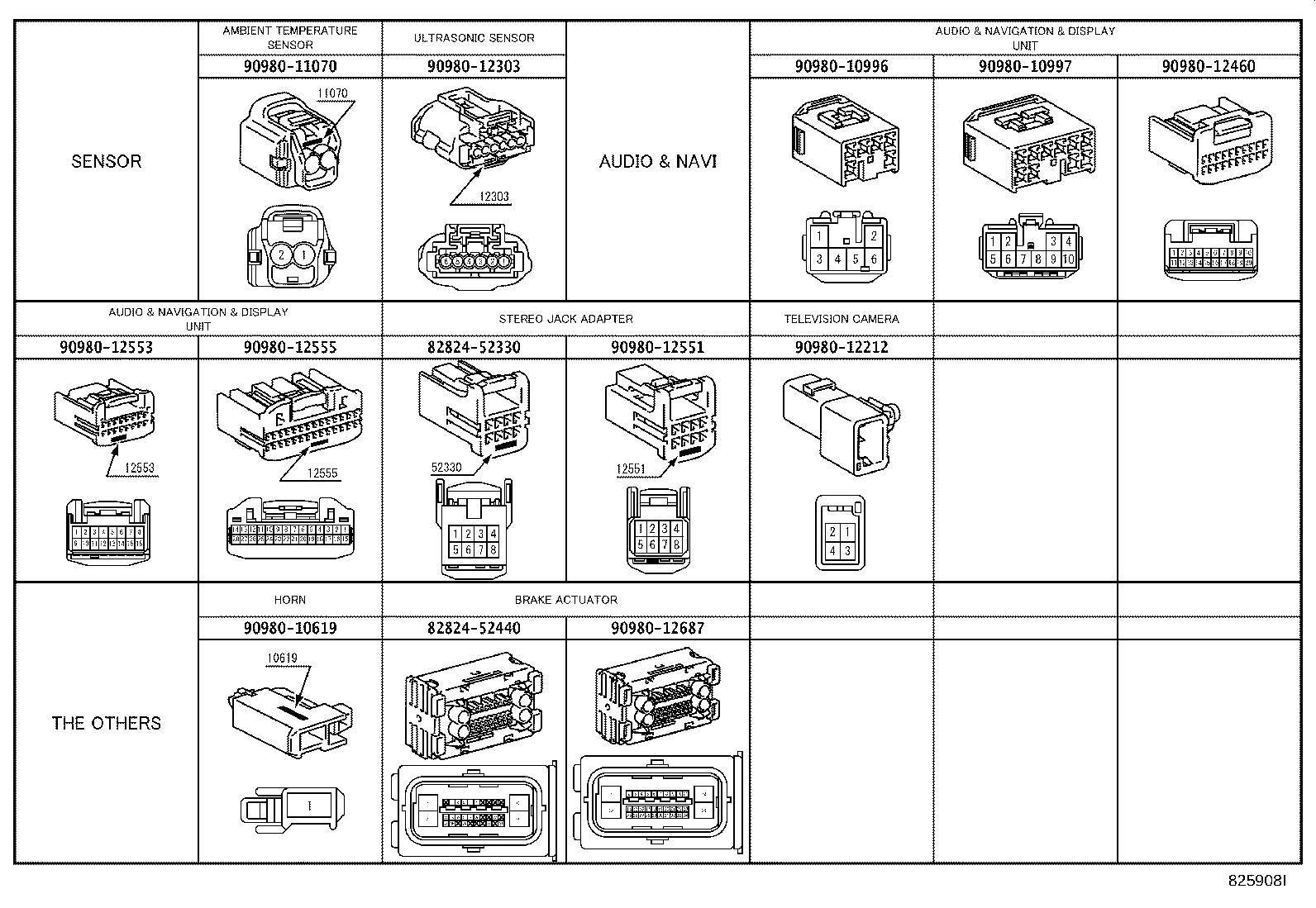

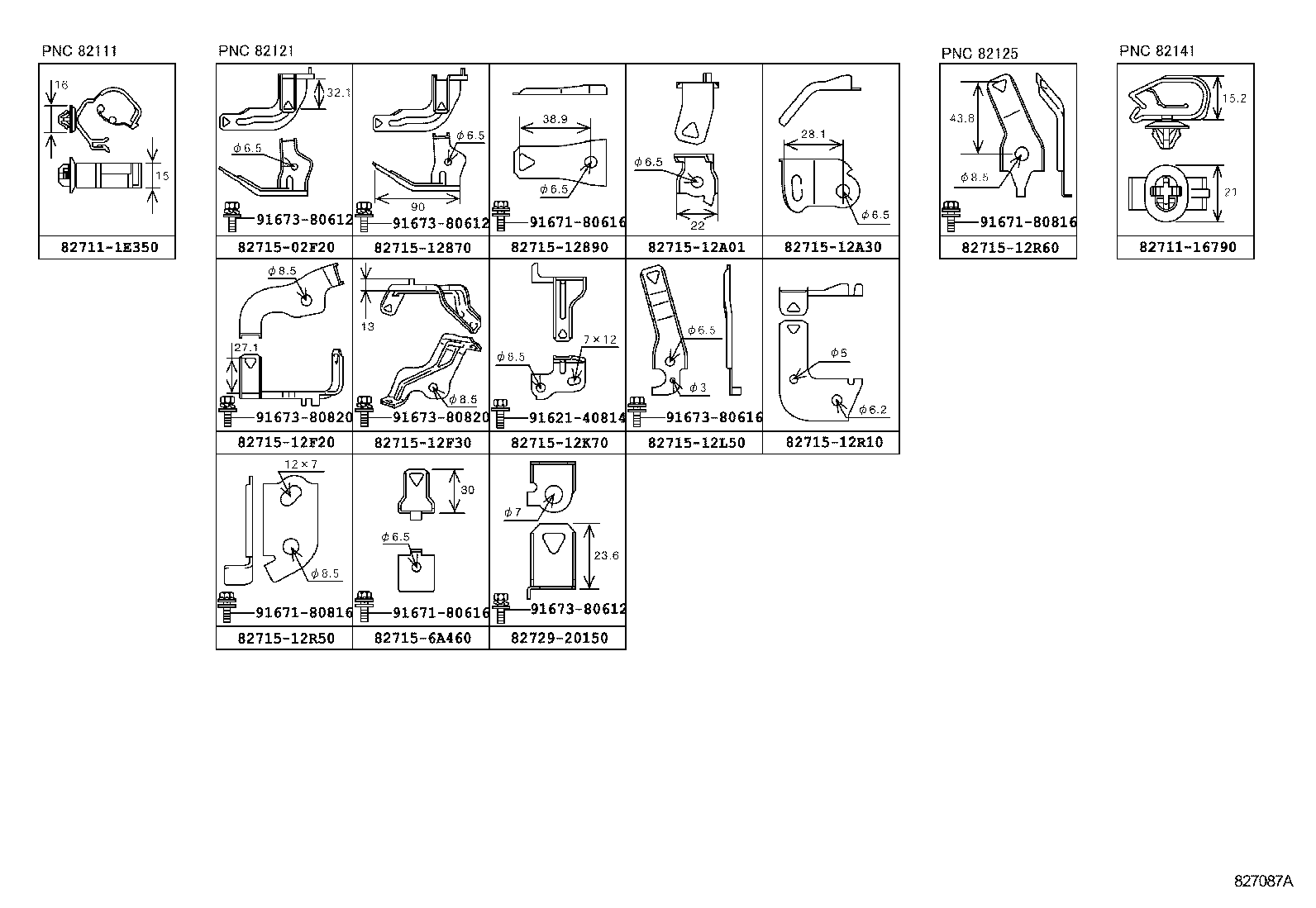

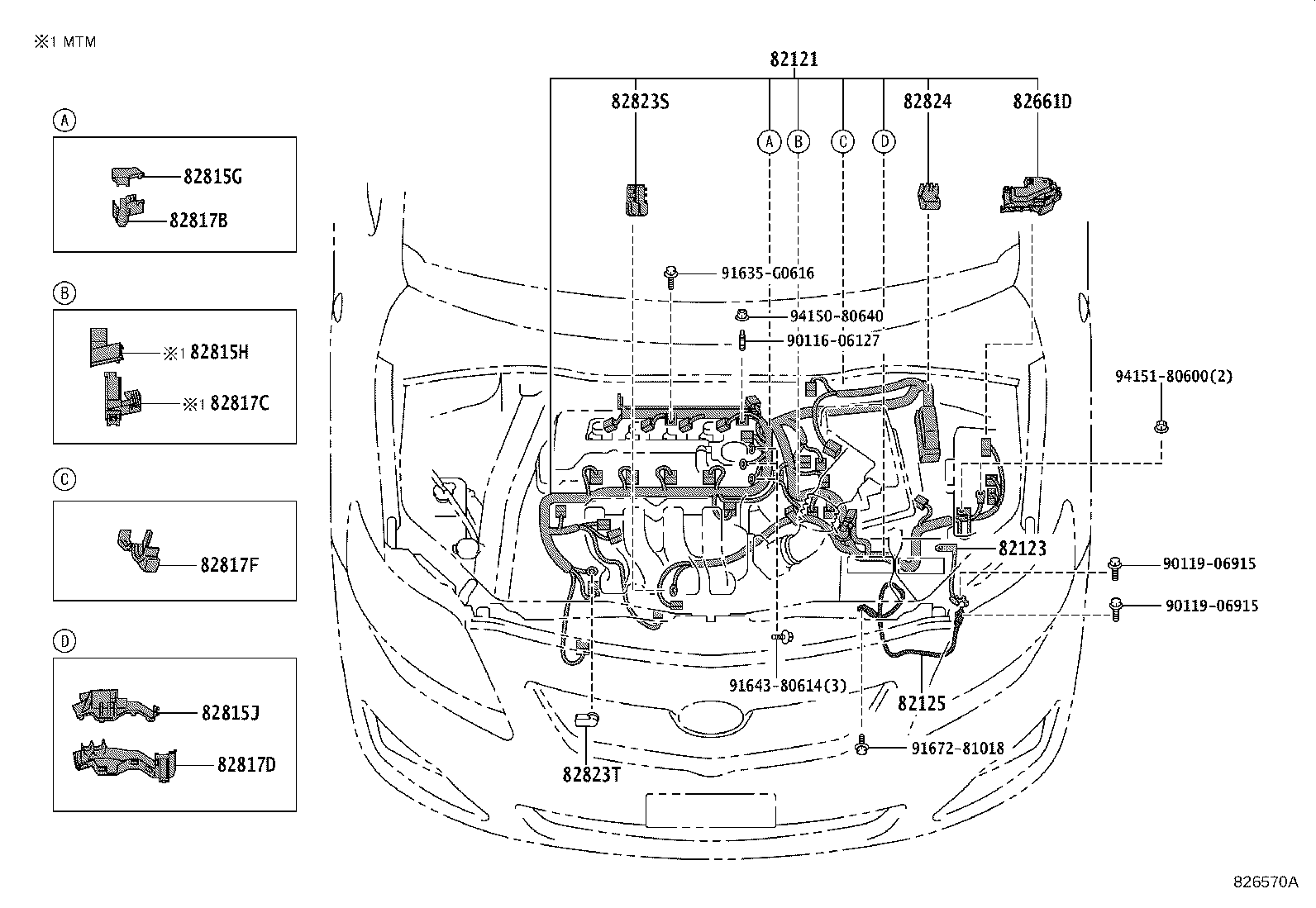

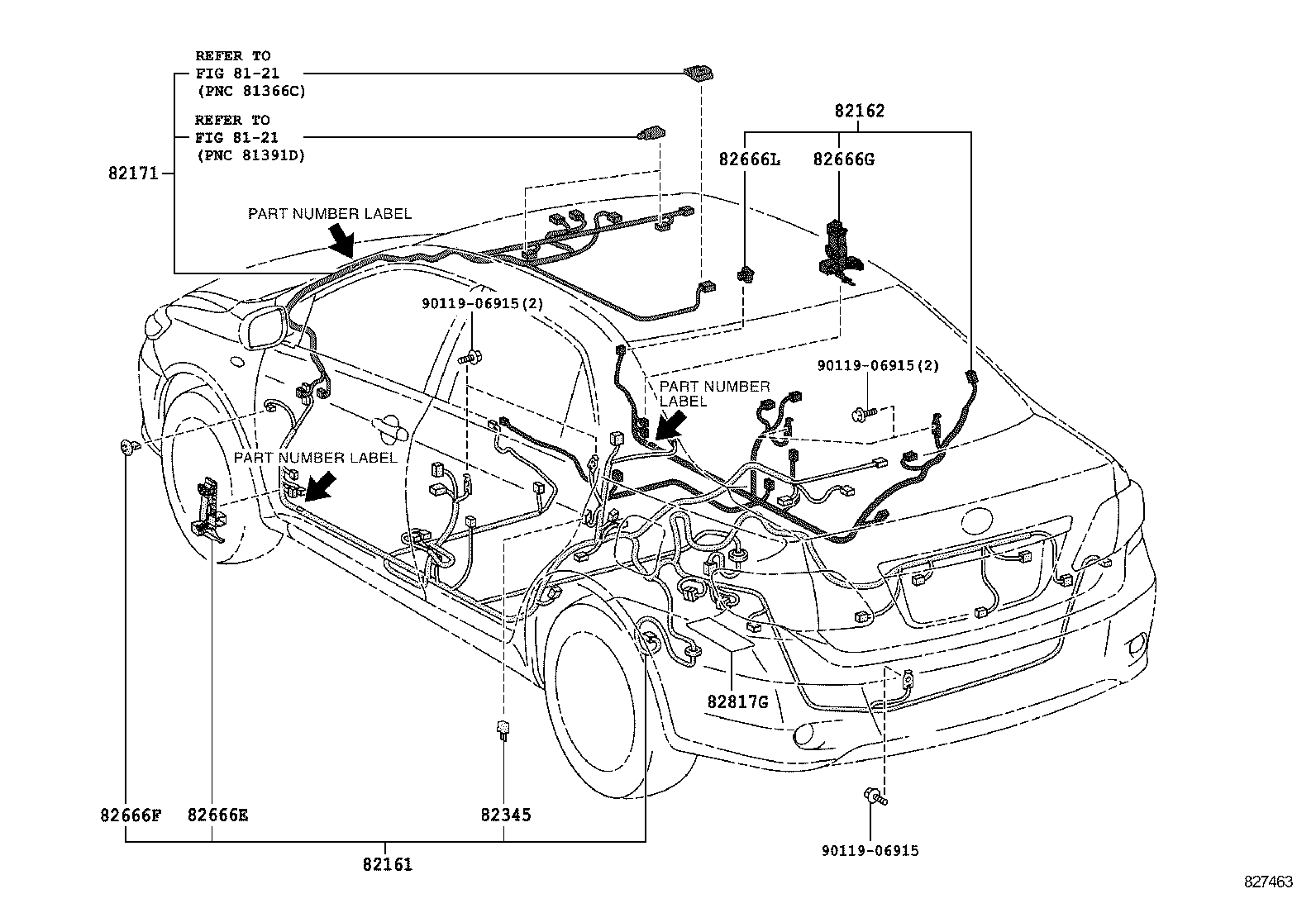

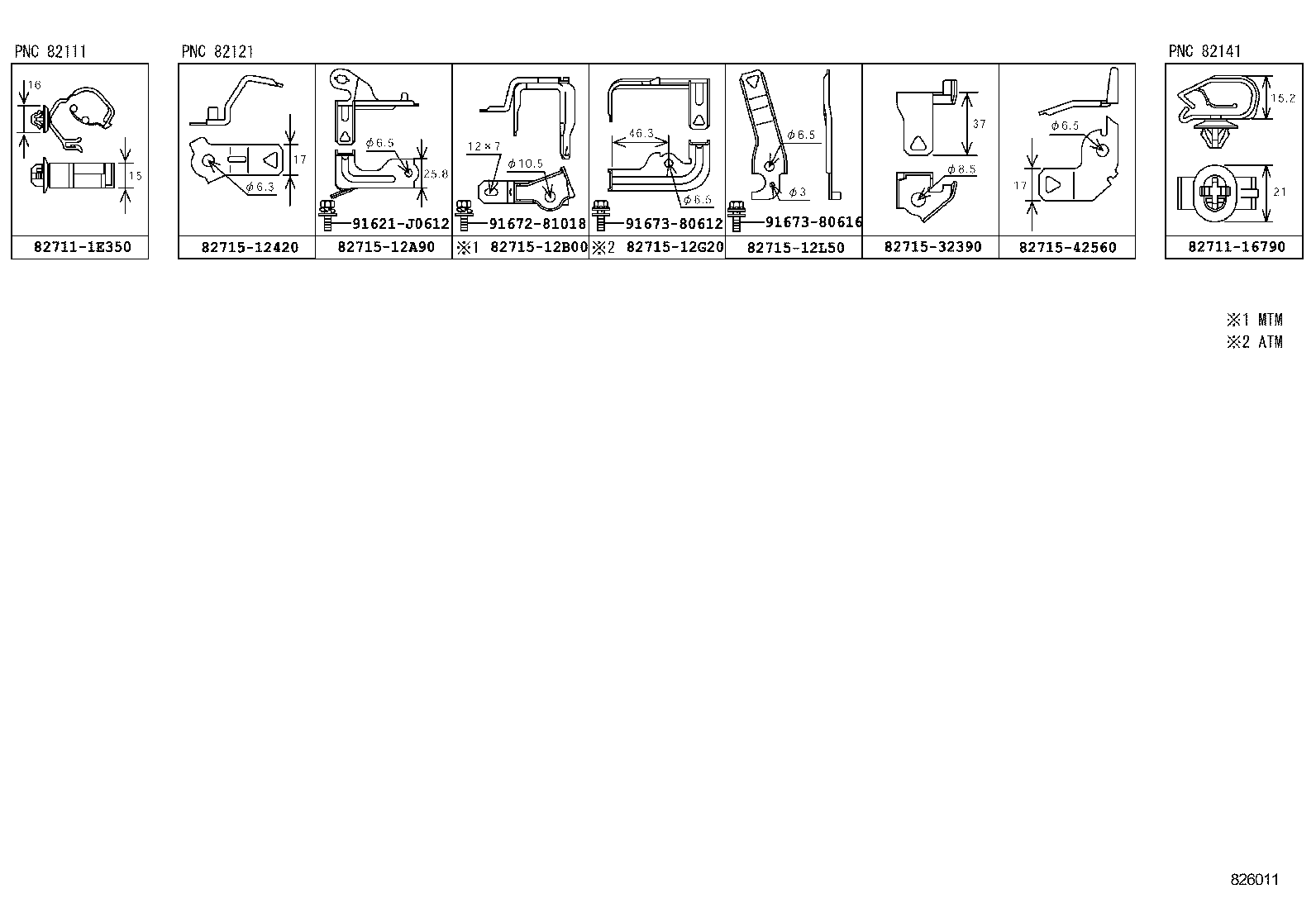

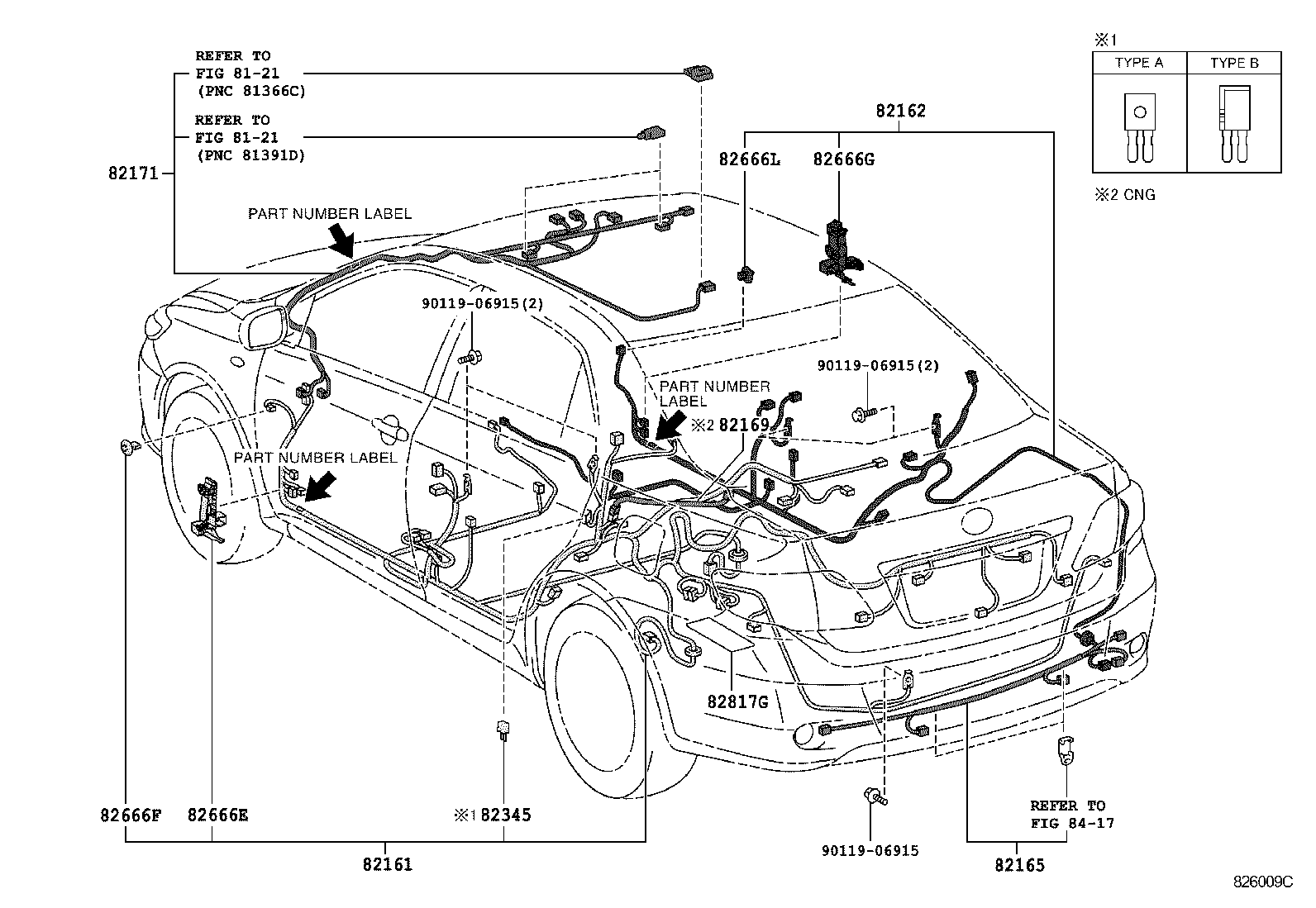

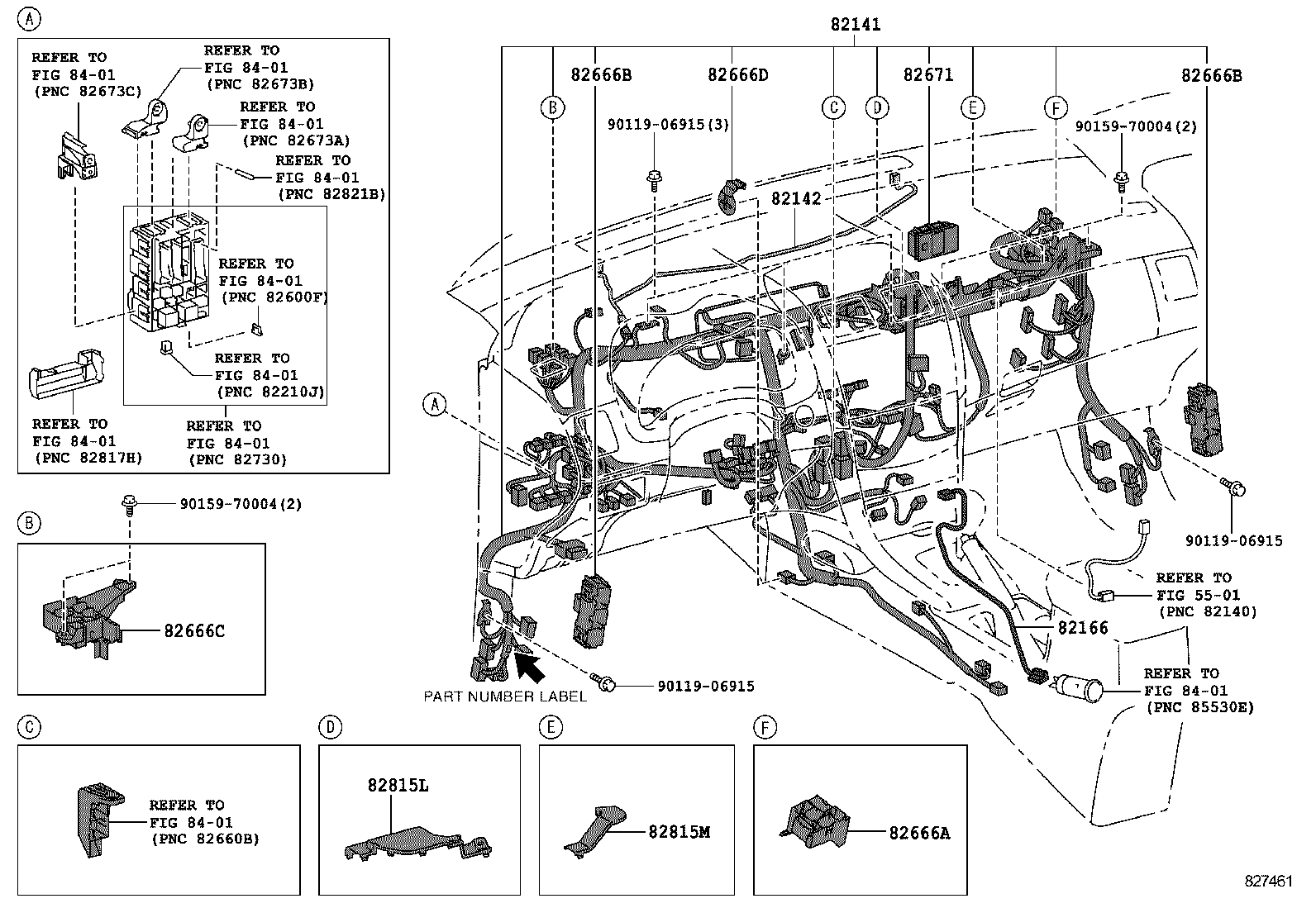

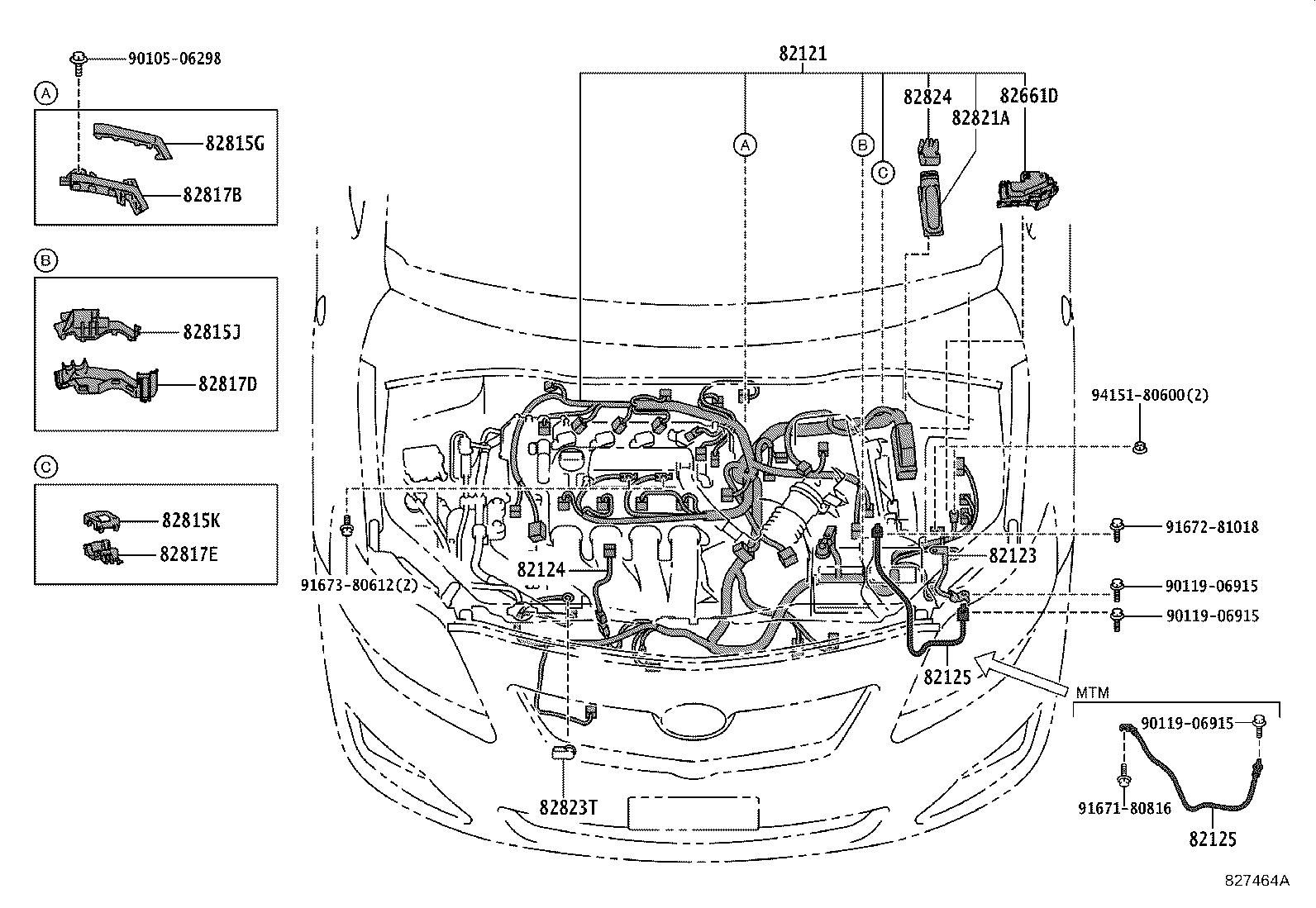

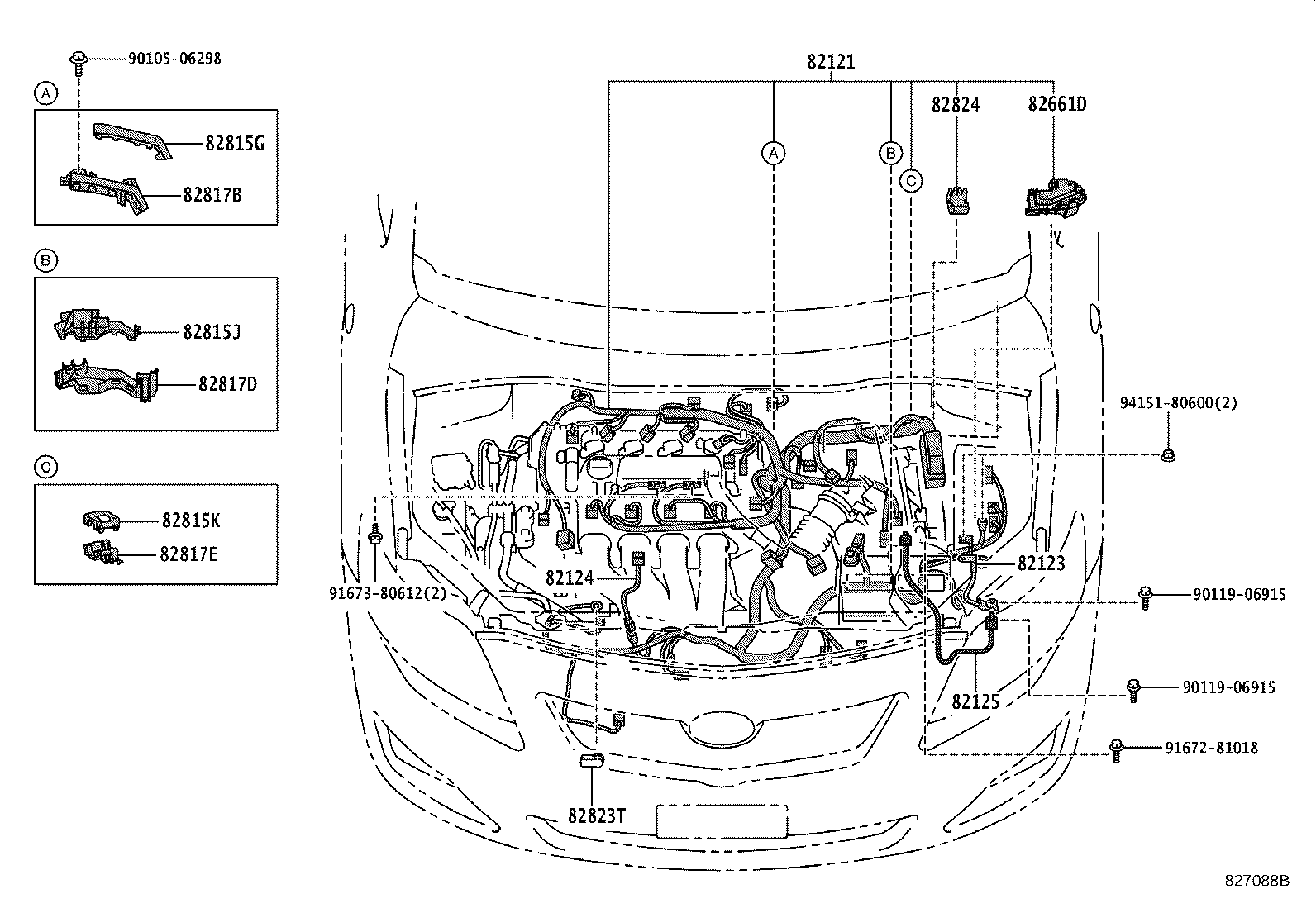

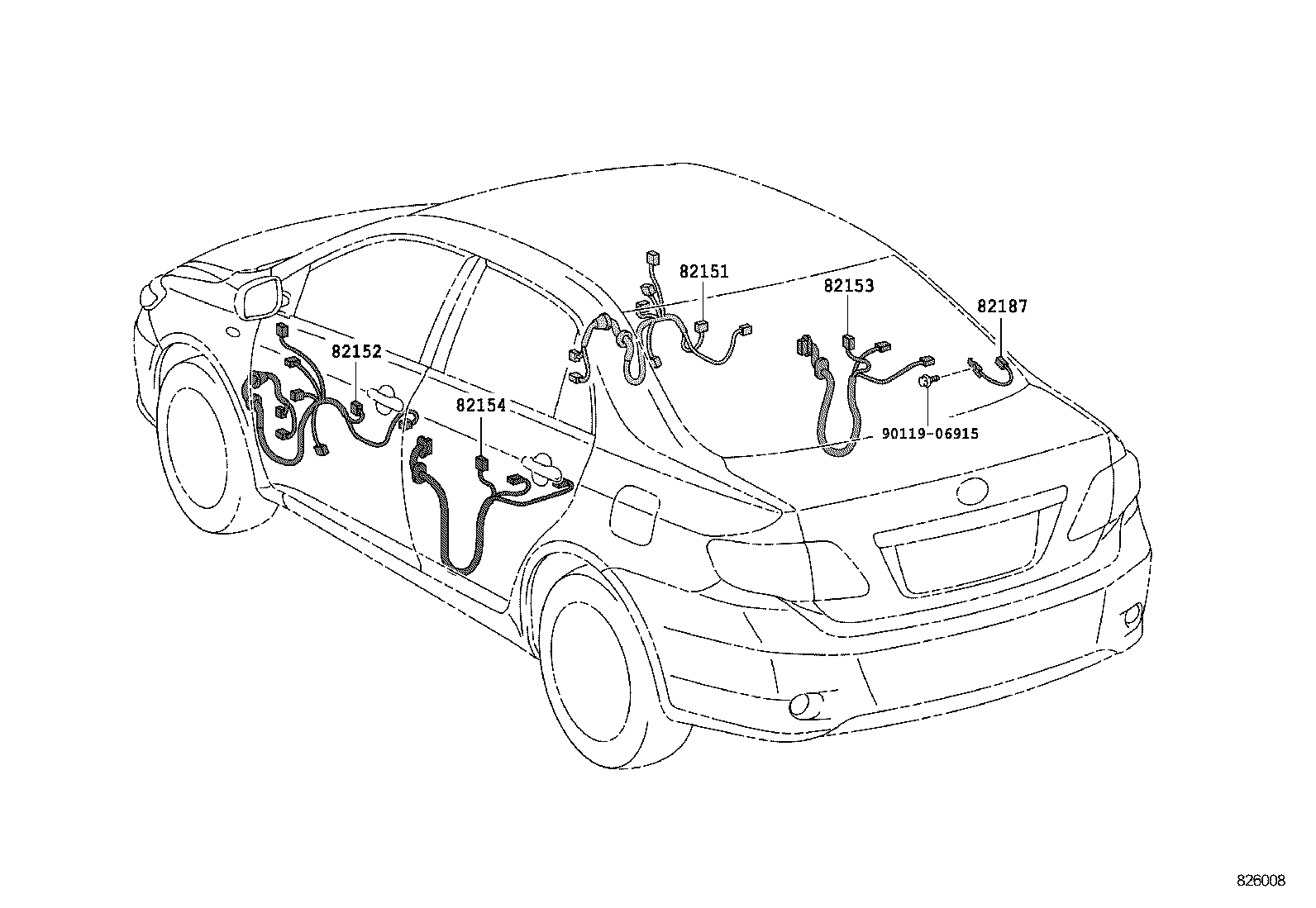

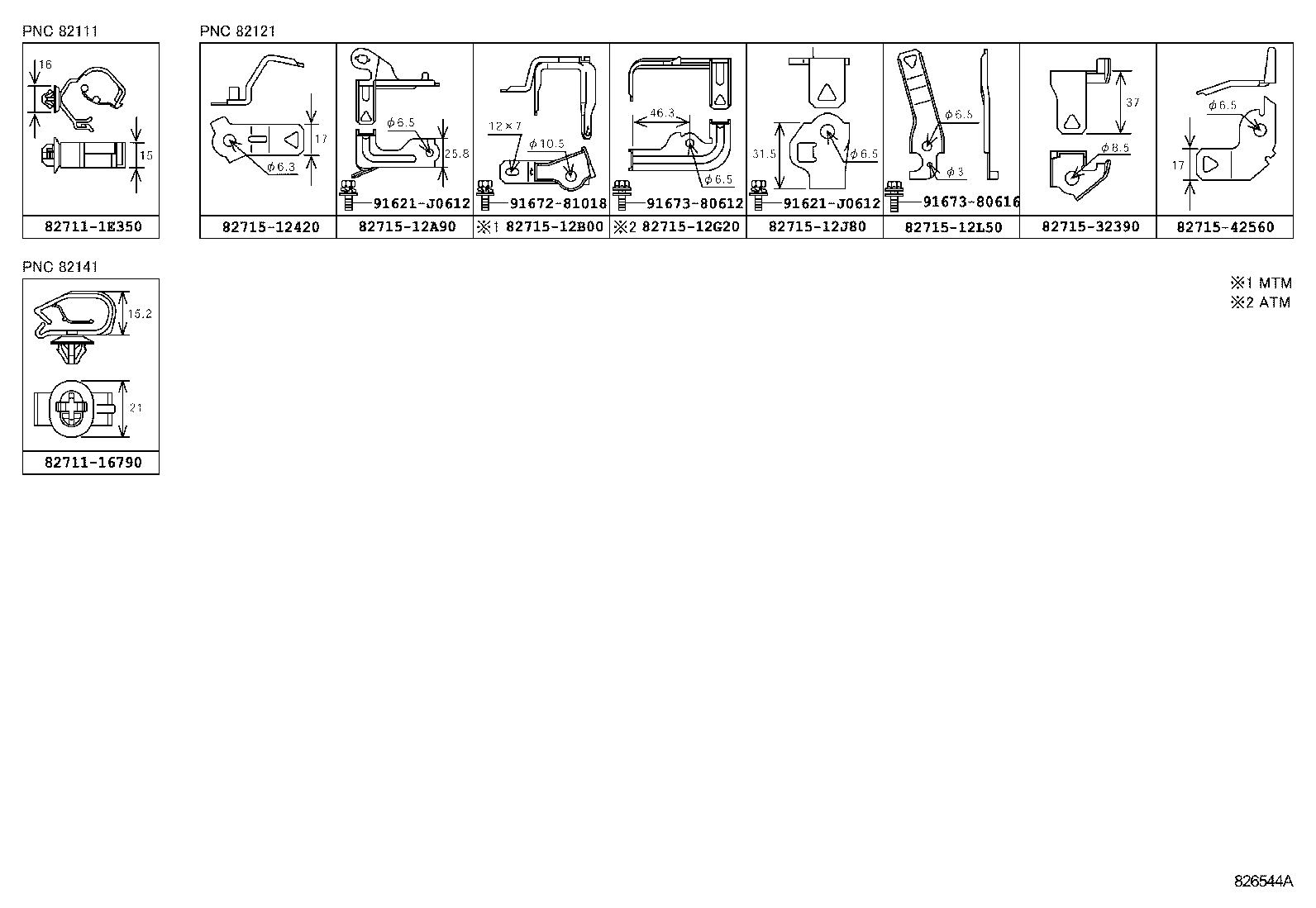

Figure 826004A 826004A 2008-03 → — Figure 826004A 826004A 2009-06 → 2011-05 Figure 826004A 826004A 2010-03 → 2011-03 Figure 827460A 827460A 2011-03 → — Figure 827460A 827460A 2011-05 → — Figure 826005B 826005B 2008-03 → — Figure 826006A 826006A 2008-03 → — Figure 826570A 826570A 2009-03 → 2011-05 Figure 827088B 827088B 2010-03 → 2011-03 Figure 827464A 827464A 2011-03 → — Figure 827462A 827462A 2011-05 → — Figure 826007C 826007C 2008-03 → — Figure 826007C 826007C 2009-06 → 2011-05 Figure 826007C 826007C 2010-03 → 2011-03 Figure 827461 827461 2011-03 → — Figure 827461 827461 2011-05 → — Figure 826008 826008 2008-03 → — Figure 826009C 826009C 2008-03 → — Figure 826009C 826009C 2009-06 → 2011-05 Figure 826009C 826009C 2010-03 → 2011-03 Figure 827463 827463 2011-03 → — Figure 827463 827463 2011-05 → — Figure 826010 826010 2008-03 → — Figure 826011 826011 2008-03 → — Figure 826012 826012 2008-03 → — Figure 826544A 826544A 2009-06 → — Figure 827087A 827087A 2010-03 → — Figure 826037D 826037D 2008-03 → — Figure 825908I 825908I 2008-03 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82192 Wire, Front Seat, LH
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
