Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01
Switch & Relay & Computer
89 part groups · 11 illustrations
Illustrations
Part groups

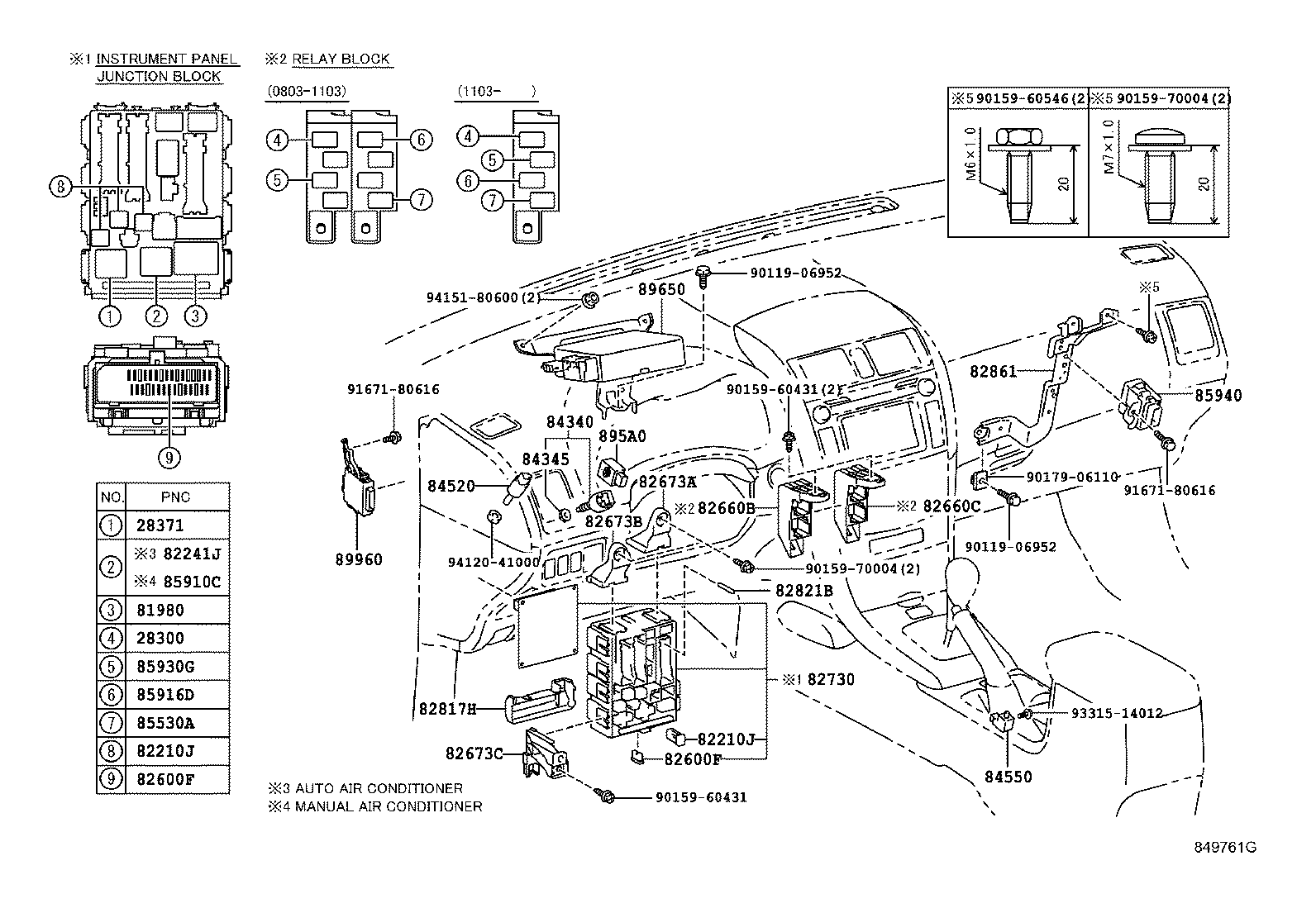

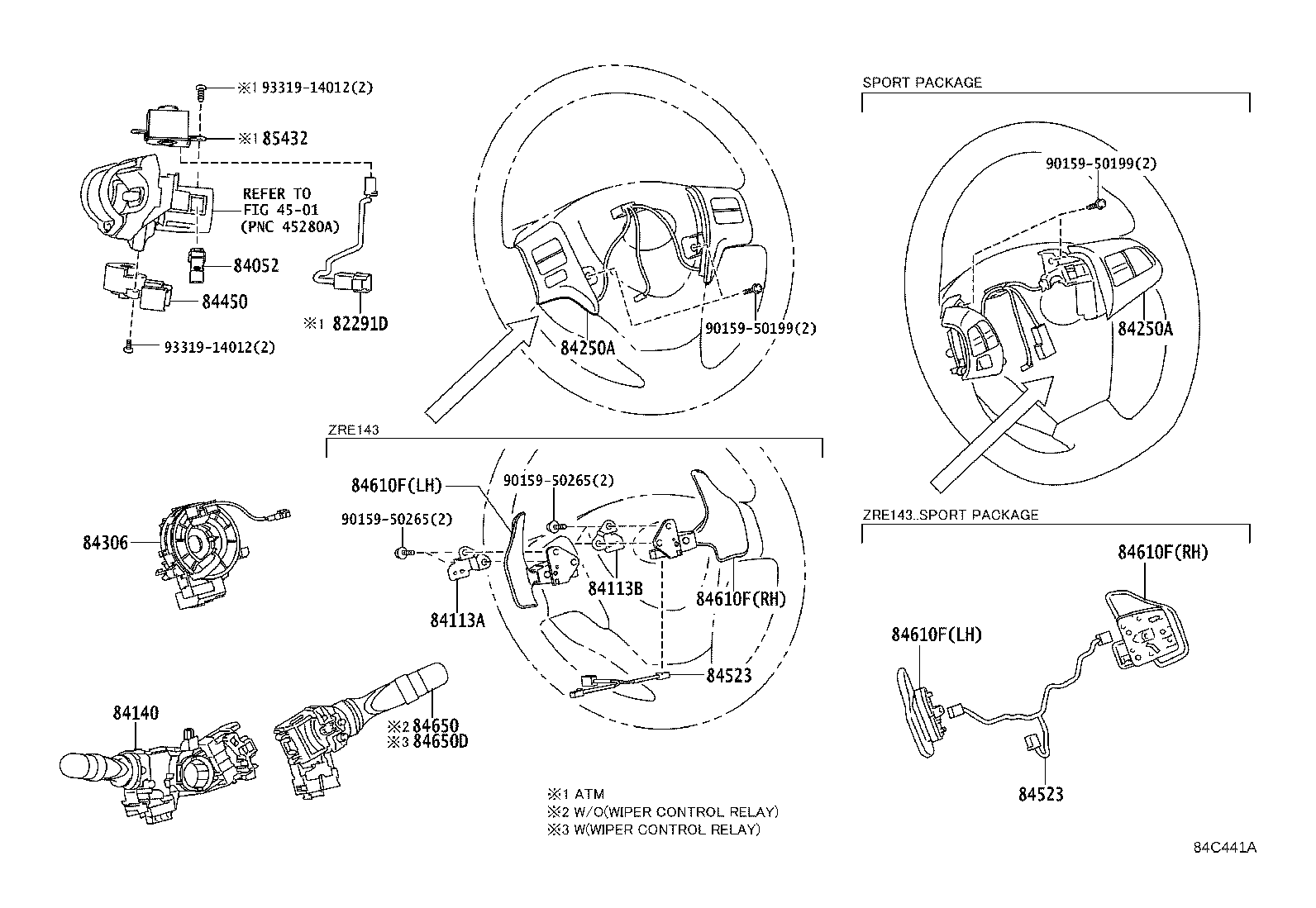

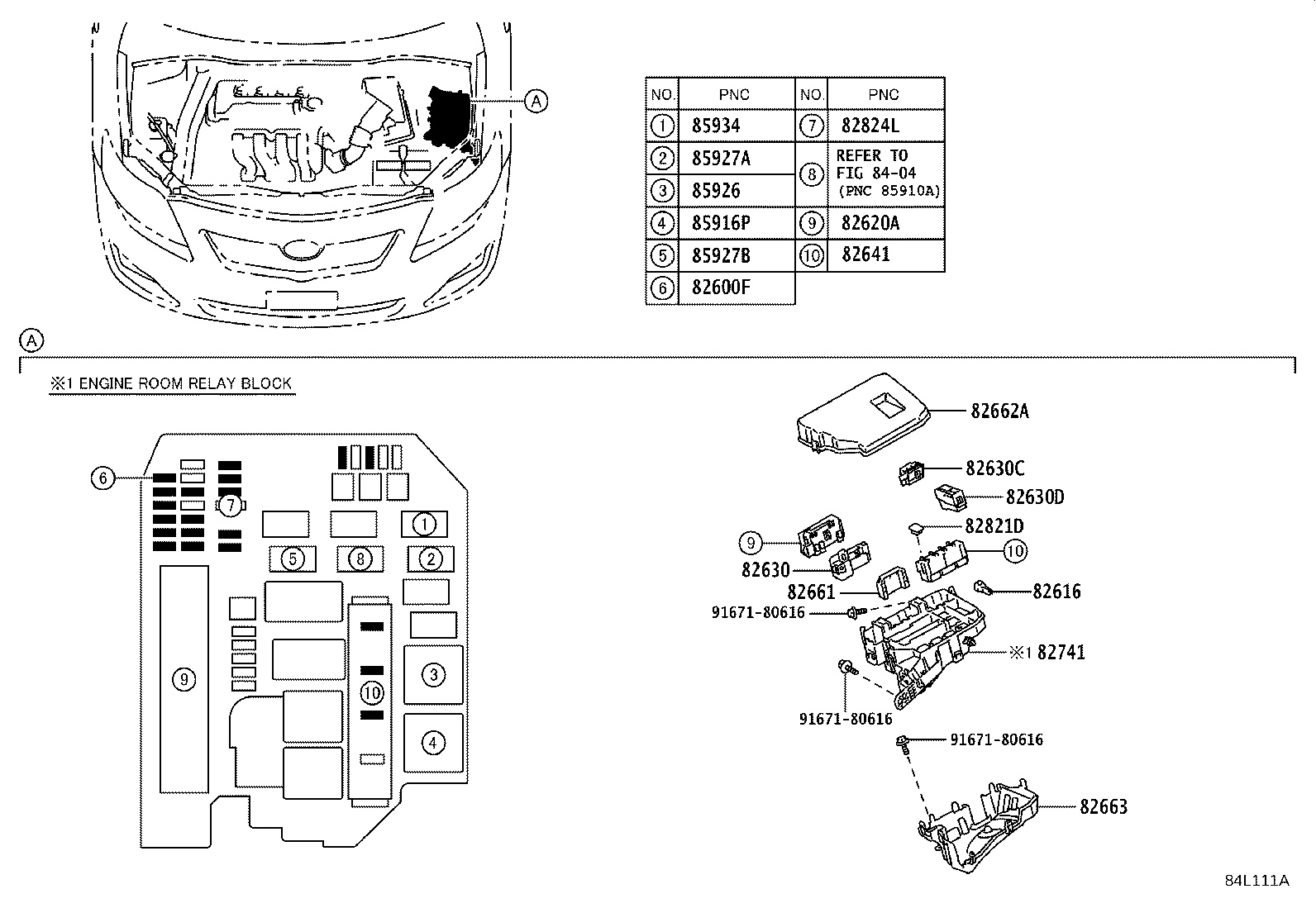

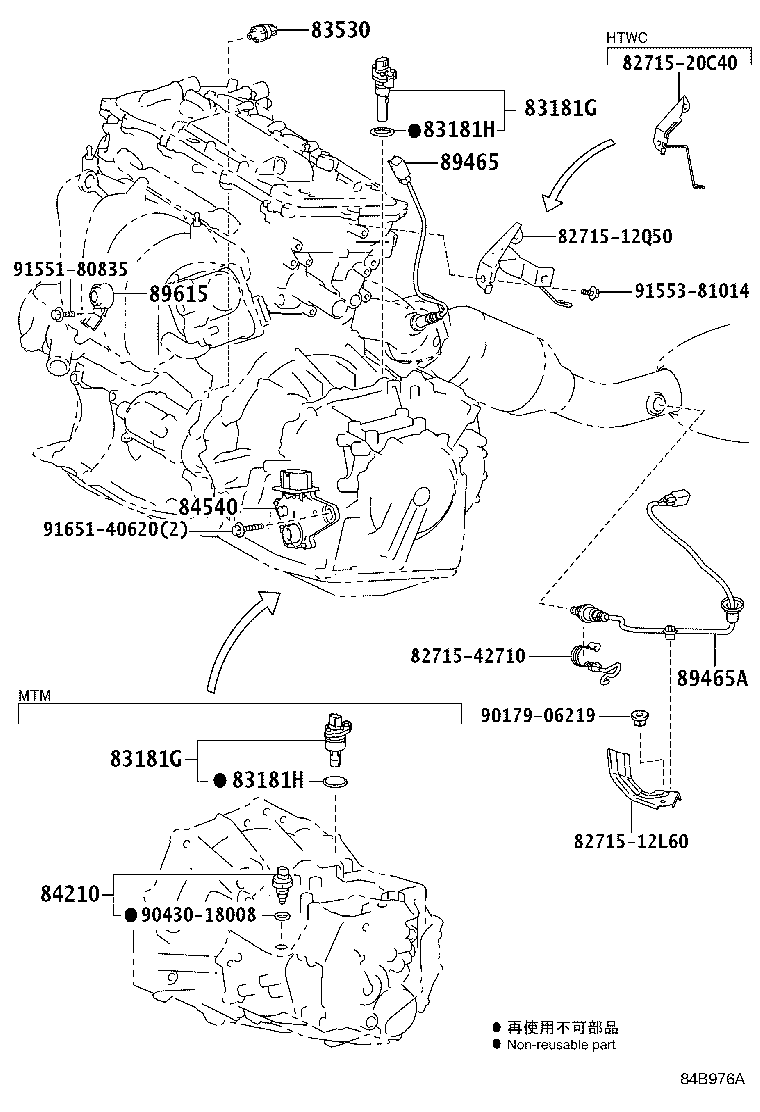

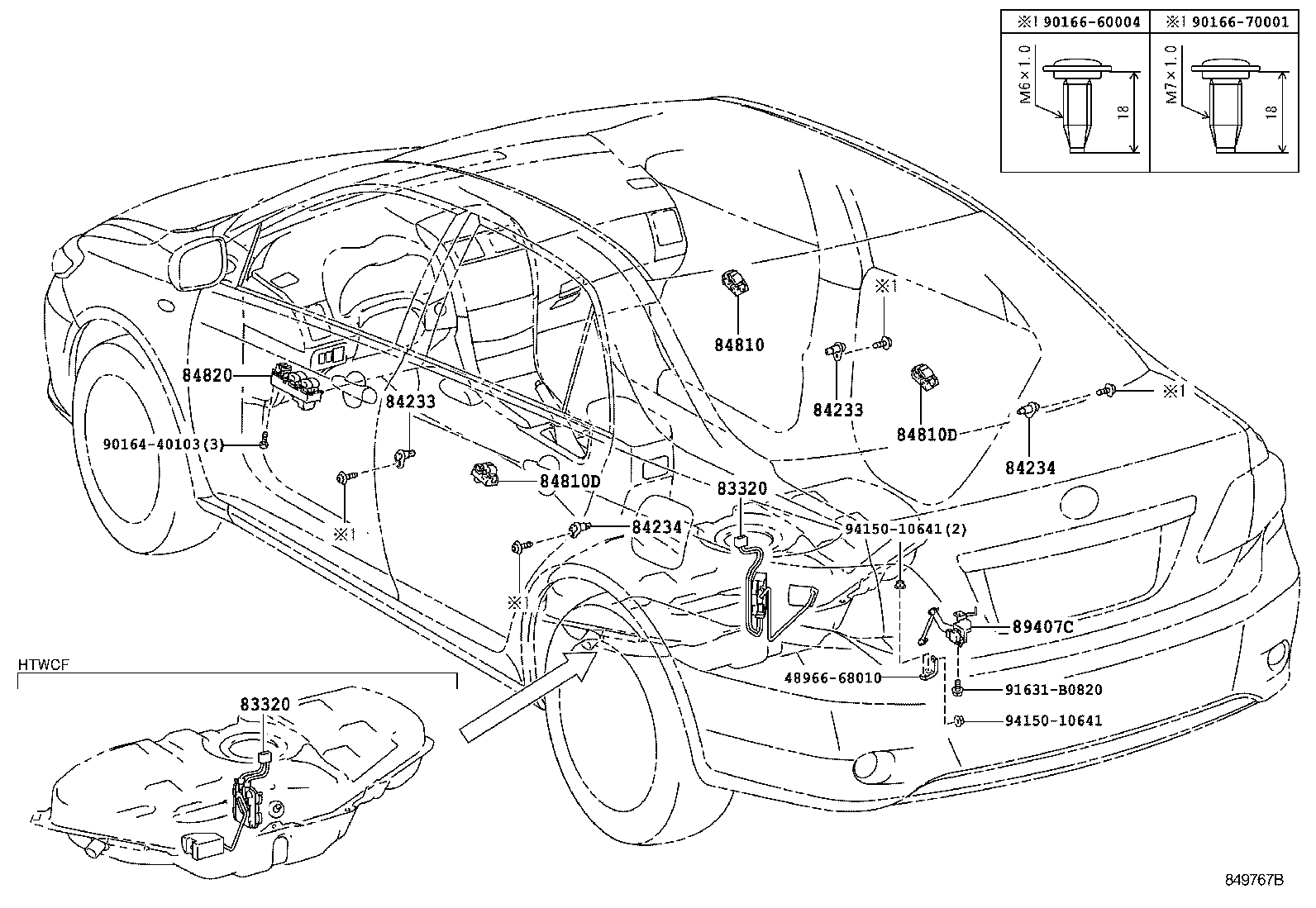

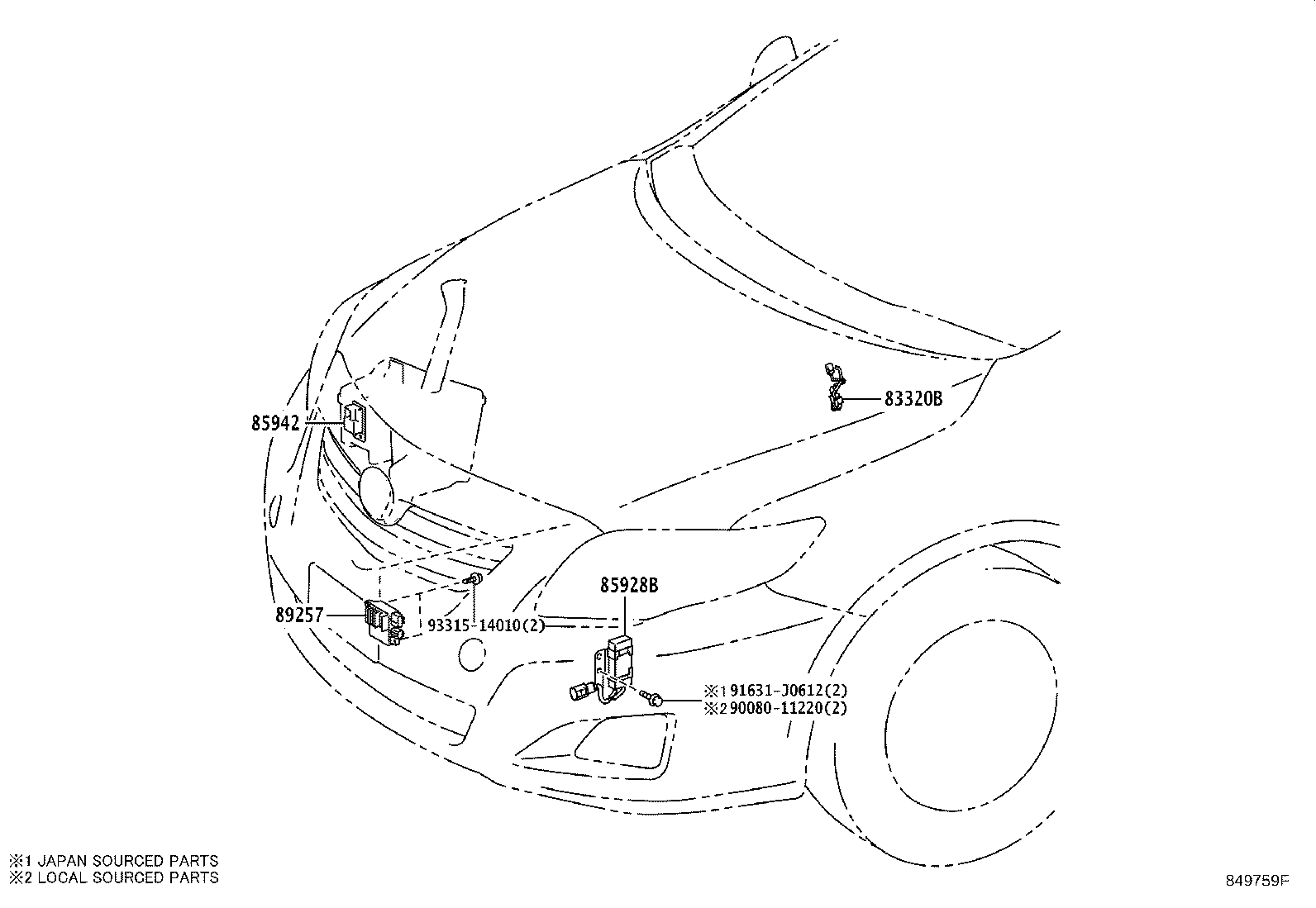

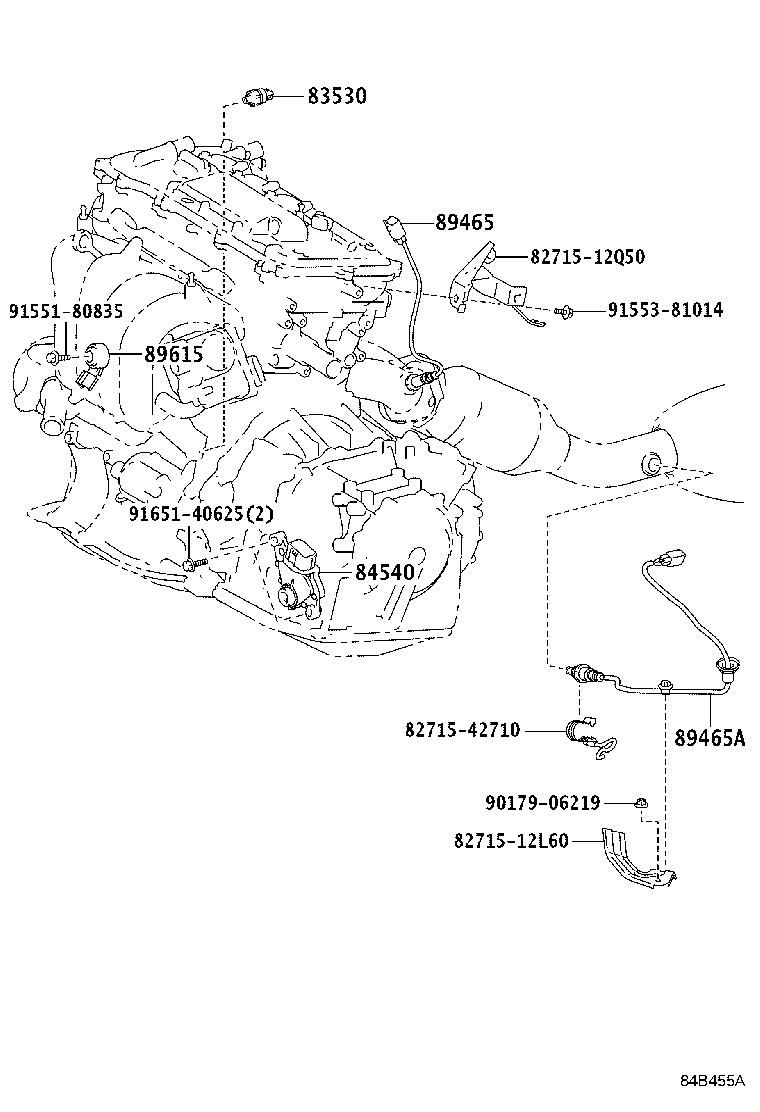

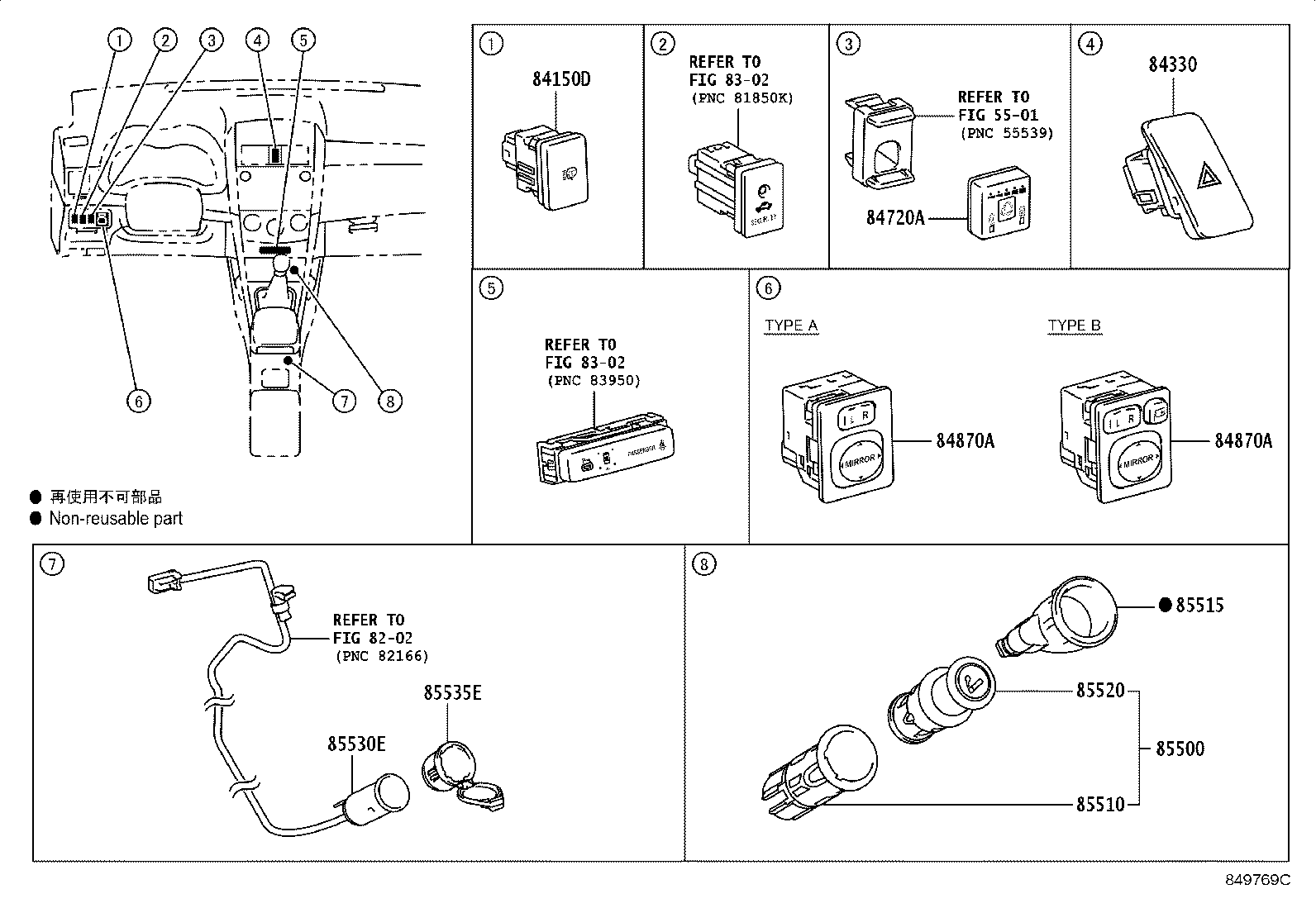

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82241J | Pin, Short |
| 82291D | Wire, TO Solenoid |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82817H | Protector, Wiring Harness |
| 82821B | Cover, Connector |
| 82821D | Cover, Connector |
| 82824L | Pin, Short |
| 82861 | Bracket, Computer Integration, NO.1 |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84113A | Bracket, Switch, NO.1 |
| 84113B | Bracket, Switch, NO.2 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922C | Switch, Front Power Seat, LH |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530A | Relay, Power Outlet Socket |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85928B | Resistor, Cooling Fan |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 85940 | Relay Assy, Windshield Wiper |
| 85942 | Relay, Headlamp Cleaner Control |
| 89257 | Computer, Cooling Fan |
| 89407C | Sensor Sub-assy, Height Control, Rear |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
