Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 5 illustrations

Illustrations

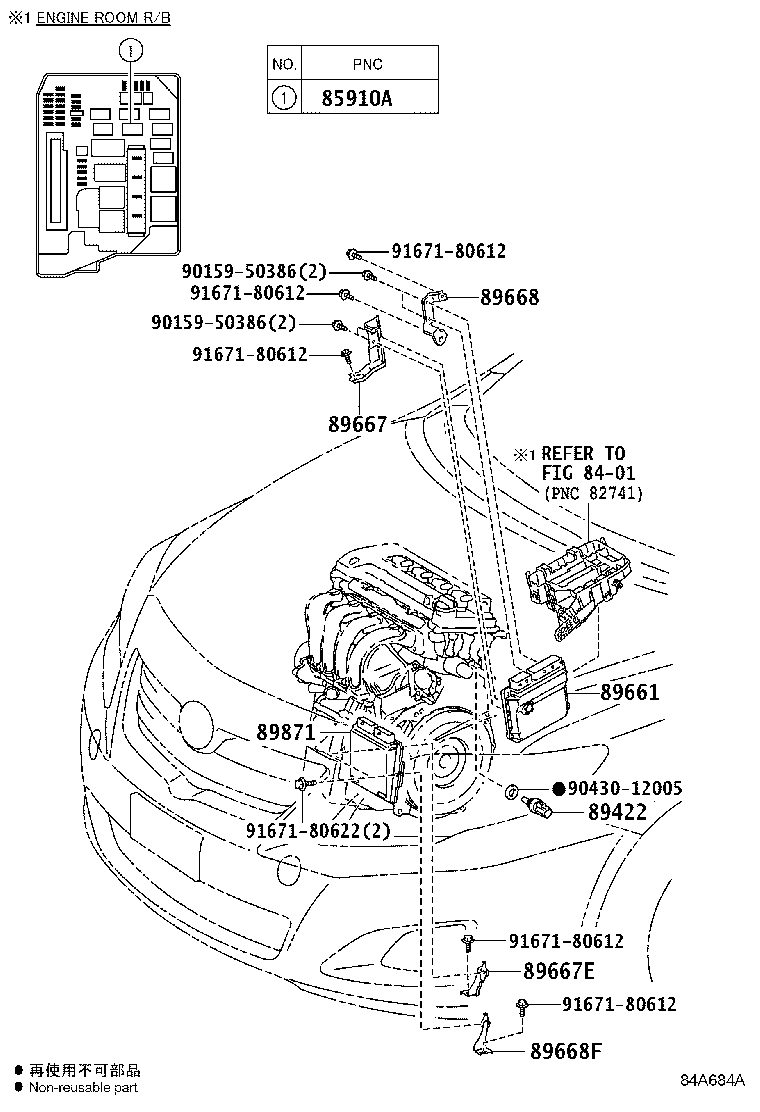

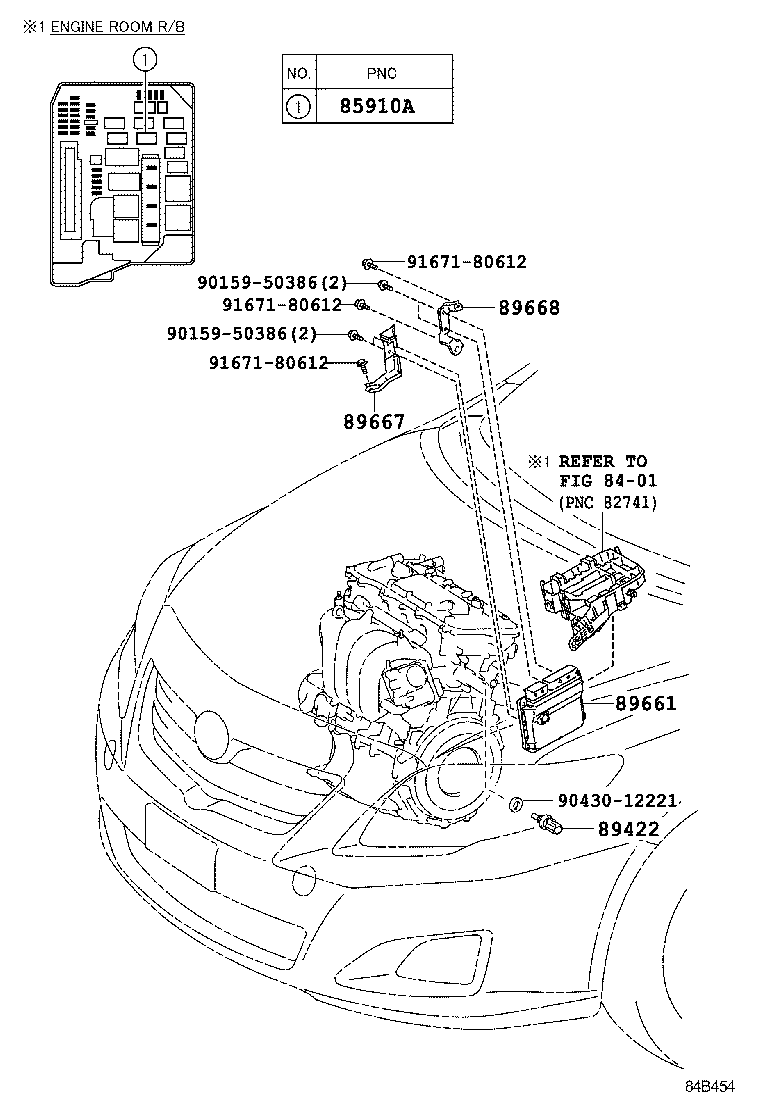

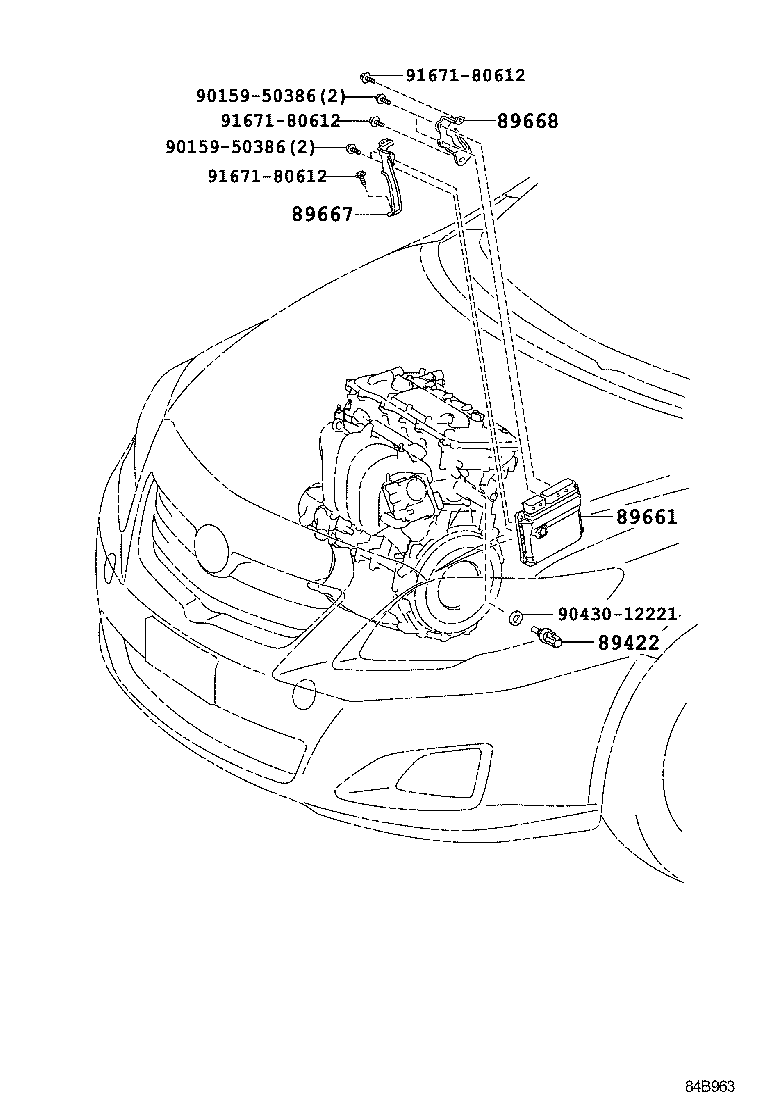

Figure 849756C 849756C 2008-03 → — Figure 84A684A 84A684A 2009-06 → — Figure 84B454 84B454 2010-03 → — Figure 84B454 84B454 2011-03 → — Figure 84B963 84B963 2011-03 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89668F Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
