Toyota Corolla (S.AMERICA)

2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 8 illustrations

Illustrations

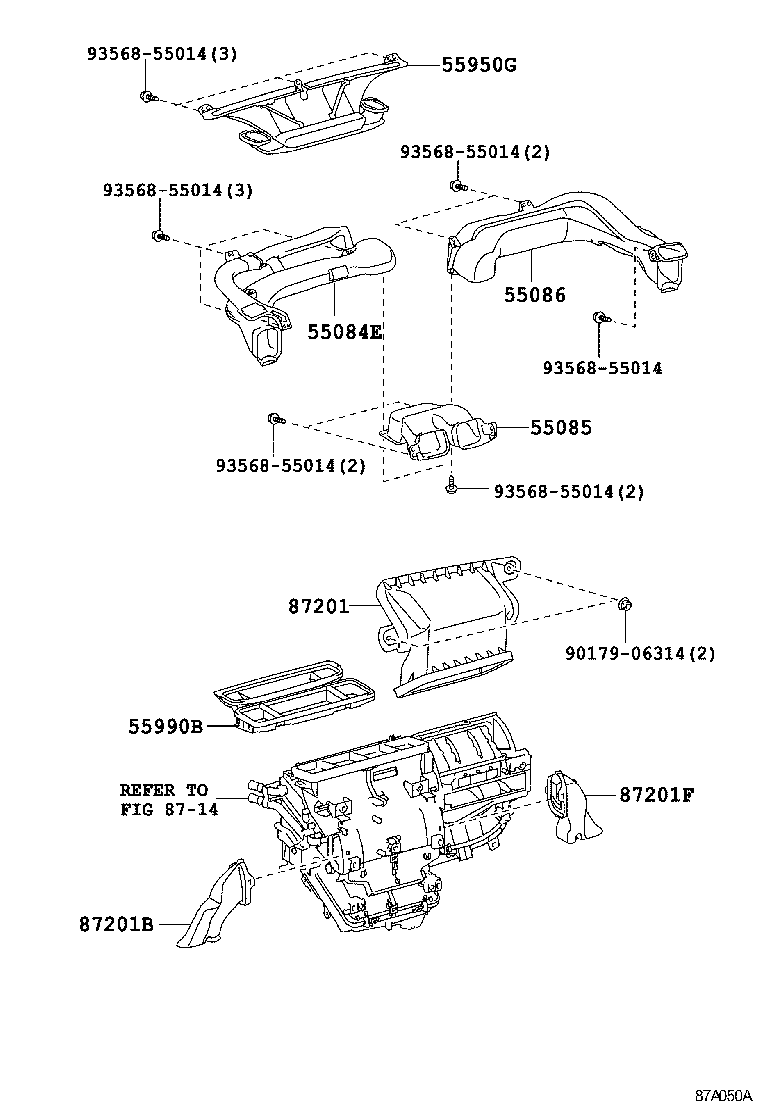

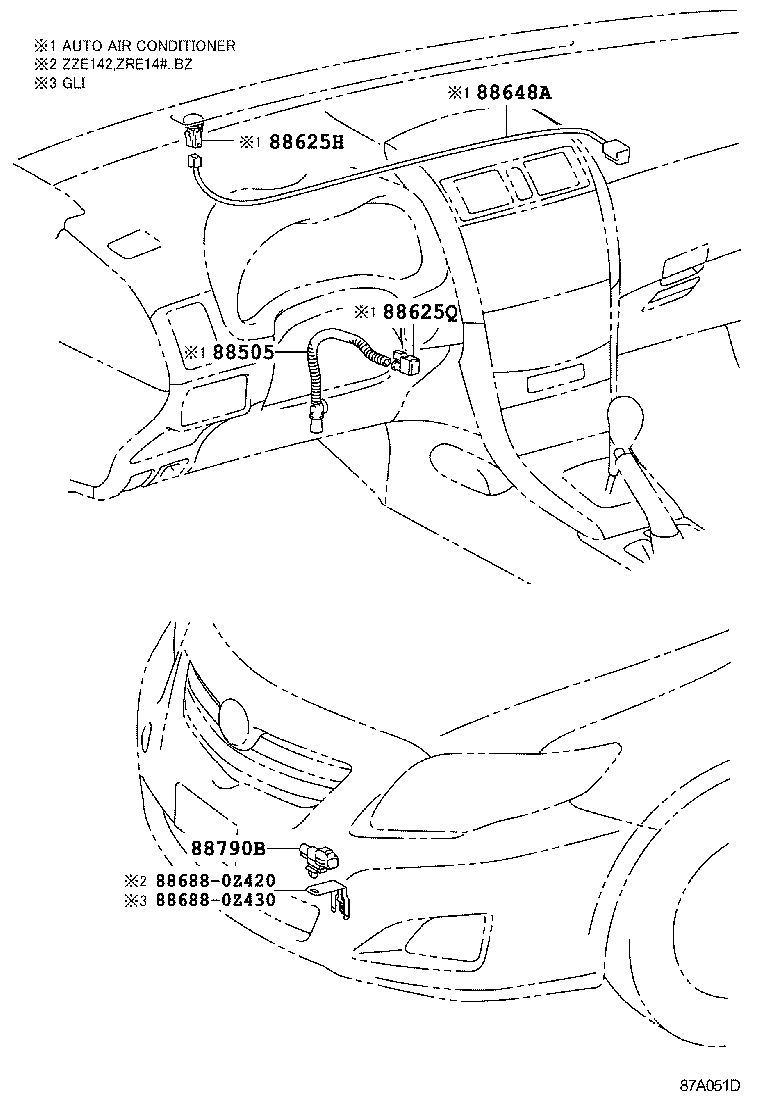

Figure 87A048A 87A048A 2008-03 → — Figure 87A049A 87A049A 2008-03 → — Figure 87A049A 87A049A 2008-09 → — Figure 87A049A 87A049A 2010-03 → — Figure 87A050A 87A050A 2008-03 → — Figure 87A051D 87A051D 2008-03 → — Figure 87A051D 87A051D 2008-09 → — Figure 87A051D 87A051D 2010-03 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
