Toyota Corolla (S.AMERICA)
2008-03 → 2014-11 · chassis ZRE14#,ZZE14# · catalogue 157360 · United States
Supported model
Data version 2015-01

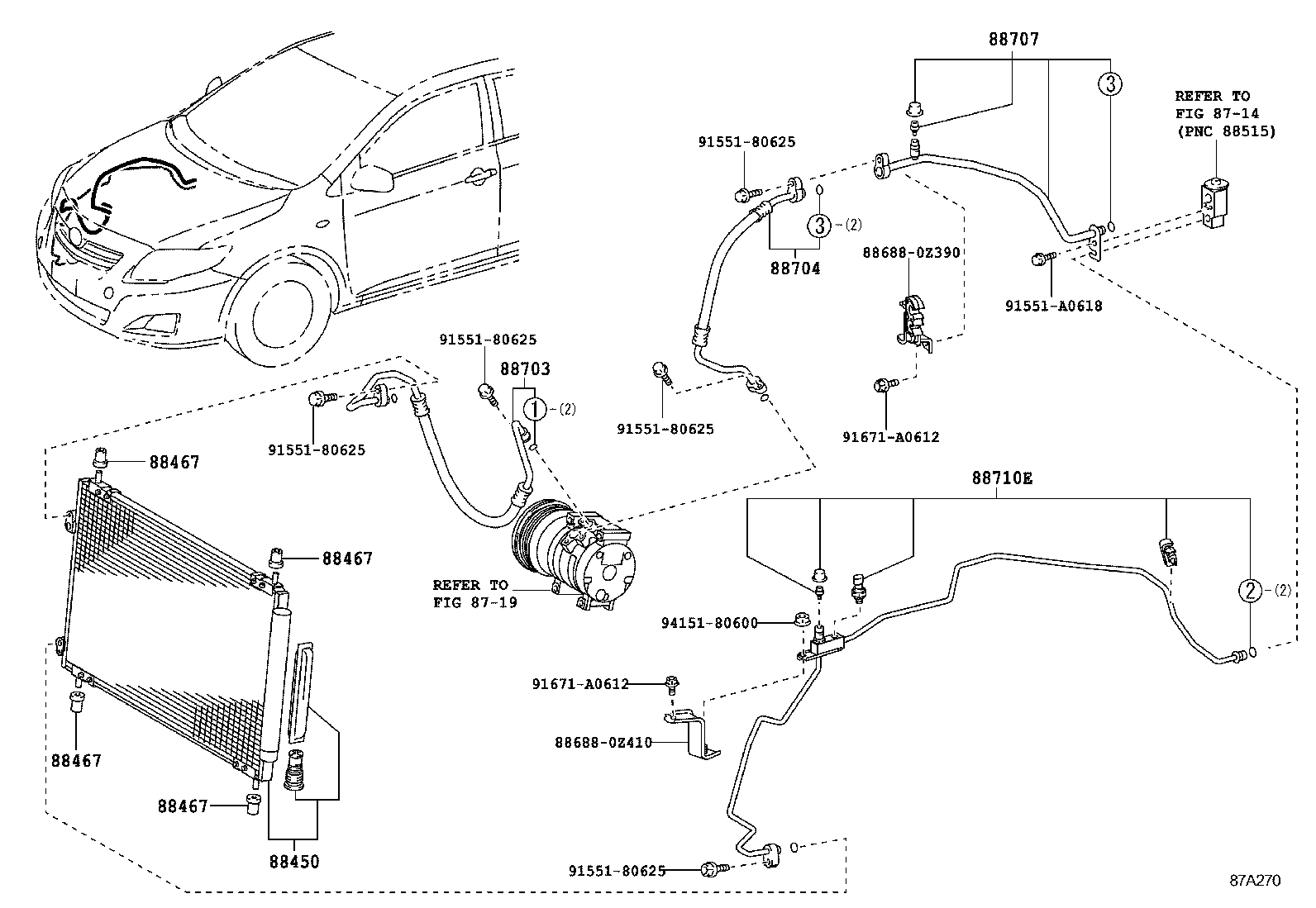

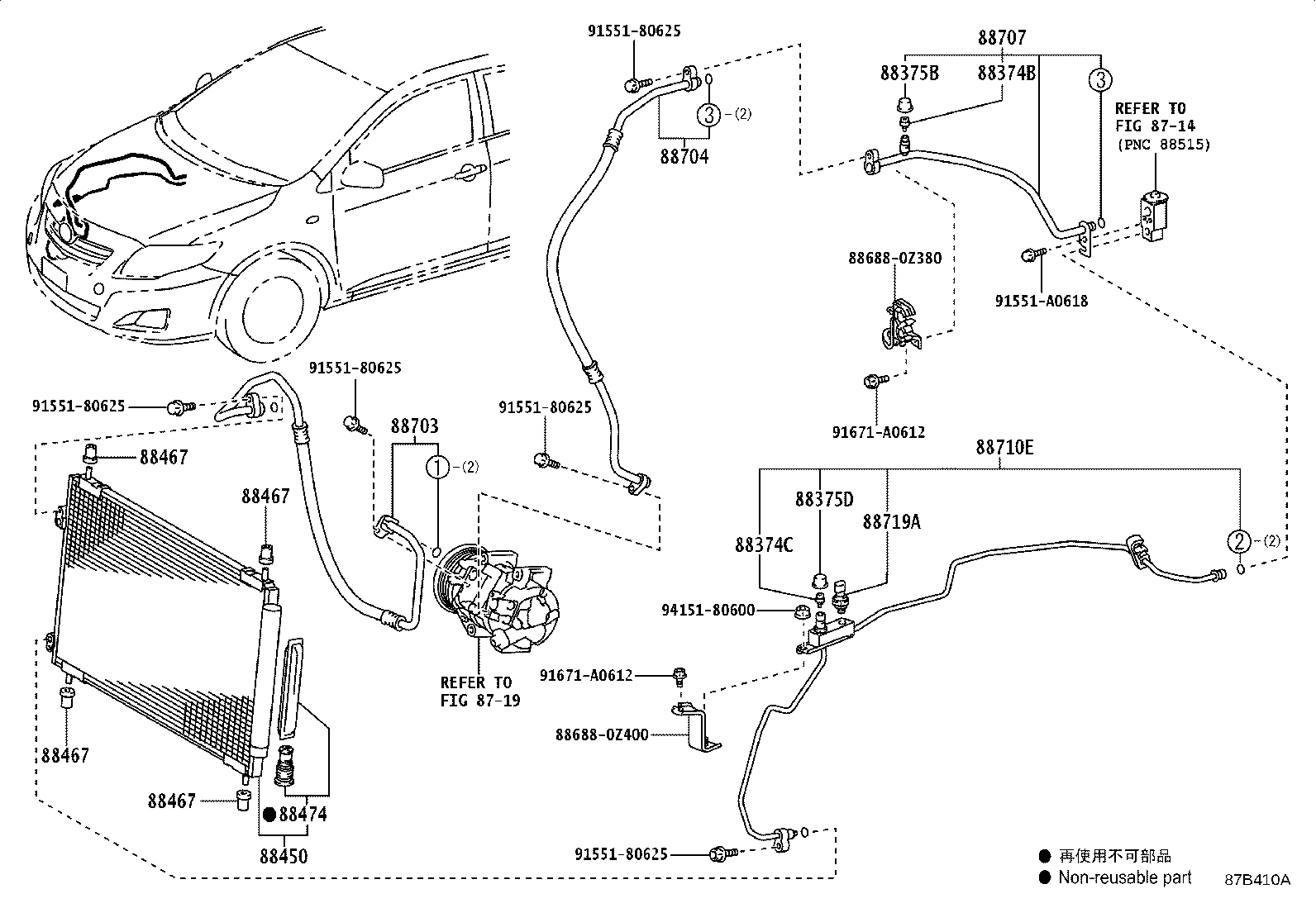

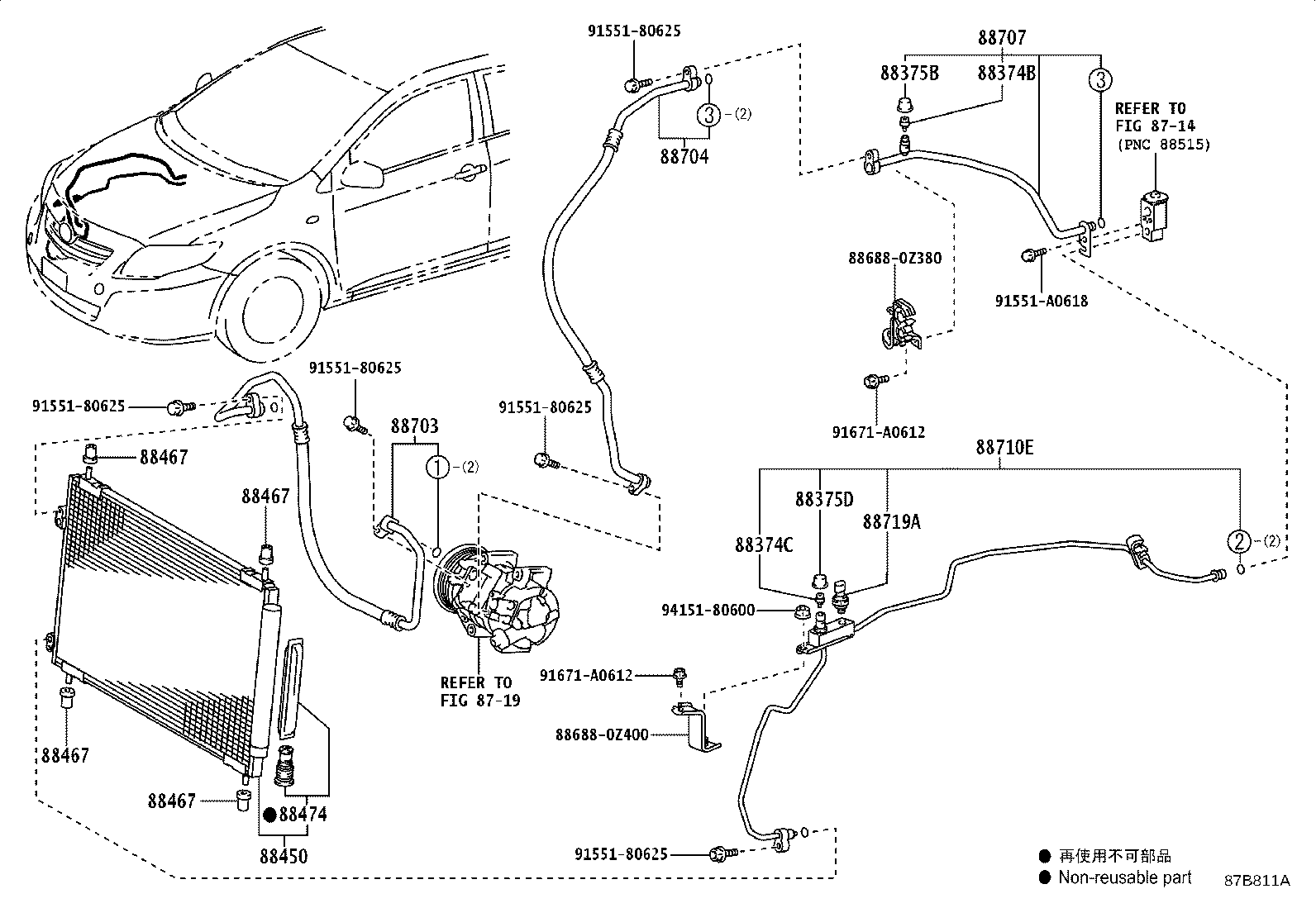

Heating & Air Conditioning - Cooler Piping
13 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88450 | Condenser Assy, W/Receiver |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88645P | Switch, Pressure, NO.3 |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
