Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

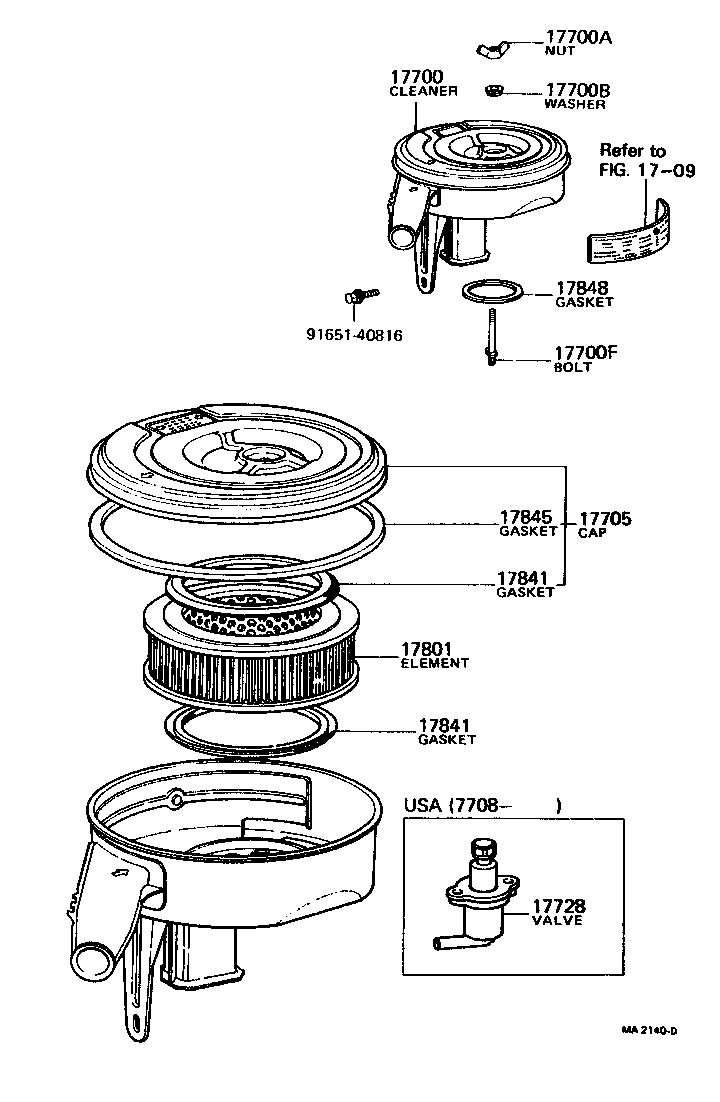

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-24201 |
Cleaner Assy, Air
1974-08 → 1975-11
ended
|
3KC KE3# | — | |
| 17700-24332 |
Cleaner Assy, Air
1975-11 → 1977-08
ended
|
3KC KE3# | — | |
| 17700-24470 note |
Cleaner Assy, Air
1976-09 → 1977-08
ended
|
3KC KE3#,50 | — | |
| 17700-24470 |
Cleaner Assy, Air
1977-08 → 1978-04
ended
|
3KC KE30,50 CND | — | |
| 17700-24490 |
Cleaner Assy, Air
1977-08 → 1978-04
ended
|
3KC KE30 USA | — | |
| 17700-24540 |
Cleaner Assy, Air
1978-04 → 1979-08
ended
|
3KC KE30 USA | — | |
| 17700-24550 |
Cleaner Assy, Air
1978-04 → 1978-11
ended
|
3KC KE30,50 CND | — | |
| 17700-24551 |
Cleaner Assy, Air
1978-11 → 1979-08
ended
|
3KC KE30,50 CND | — | |
| 17700-26080 |
Cleaner Assy, Air
1974-08 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 17700-26081 note |
Cleaner Assy, Air
1977-08 → 1978-08
ended
|
2TC TE3#,51 USA | — | |
| 17700-26082 note |
Cleaner Assy, Air
1978-08 → 1979-08
ended
|
2TC TE3#,51 USA | — | |
| 17700-26090 note |
Cleaner Assy, Air
1974-08 → 1977-01
ended
|
2TC TE3#,51 | — | |
| 17700-26150 note |
Cleaner Assy, Air
1977-01 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 17700-26151 |
Cleaner Assy, Air
1977-08 → 1978-08
ended
|
2TC TE3#,51 CND | — | |
| 17700-26152 |
Cleaner Assy, Air
1978-08 → 1979-08
ended
|
2TC TE3#,51 CND | — | |
| 17700-26230 |
Cleaner Assy, Air
1977-08 → 1978-08
ended
|
2TC TE3#,51 USA | — | |
| 17700-26231 |
Cleaner Assy, Air
1978-08 → 1979-08
ended
|
2TC TE3#,51 USA | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1974-08 → 1977-08
ended
|
3KC KE3#,50 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1974-08 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1979-08
ended
|
3KC KE30,50 | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1974-08 → 1977-08
ended
|
3KC KE3#,50 | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1974-08 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1977-08 → 1979-08
ended
|
3KC KE30,50 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06099 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-08 → 1975-10
ended
|
2TC TE3# | — | |
| 90116-06131 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-08 → 1979-08
ended
|
3KC KE3#,50 | — | |
| 90116-06142 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1975-10 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-24170 |
Cap Sub-assy, Air Cleaner
1974-08 → 1978-04
ended
|
3KC KE3#,50 | — | |
| 17705-24270 |
Cap Sub-assy, Air Cleaner
1978-04 → 1978-08
ended
|
3KC KE30,50 | — | |
| 17705-24270 |
Cap Sub-assy, Air Cleaner
1978-08 → 1979-08
ended
|
3KC KE30 USA | — | |
| 17705-24300 |
Cap Sub-assy, Air Cleaner
1978-08 → 1979-08
ended
|
3KC KE30,50 CND | — | |
| 17705-25011 |
Cap Sub-assy, Air Cleaner
1974-08 → 1975-08
ended
|
2TC TE3# | — | |
| 17705-25030 |
Cap Sub-assy, Air Cleaner
1975-08 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 17705-25031 |
Cap Sub-assy, Air Cleaner
1977-08 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24020 |
Valve, Thermostatic
1977-08 → 1978-04
ended
|
3KC KE30 USA | — | |
| 17728-24030 |
Valve, Thermostatic
1978-04 → 1979-08
ended
|
3KC KE30 USA | — | |
| 17728-26010 |
Valve, Thermostatic
1978-08 → 1979-08
ended
|
2TC TE3#,51 CND | — | |
| 17728-26010 |
Valve, Thermostatic
1975-11 → 1978-08
ended
|
2TC TE3#,51 | — | |
| 17728-26020 |
Valve, Thermostatic
1978-08 → 1979-08
ended
|
2TC TE3#,51 USA | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-24010 |
Element Sub-assy, Air Cleaner Filter
1974-08 → 1979-08
ended
|
3KC KE3#,50 | — | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 17801-31010 |
Element Sub-assy, Air Cleaner Filter
1974-08 → 1977-08
ended
|
2TC TE3#,51 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-24020 |
Gasket, Filter Element
1974-08 → 1979-08
ended
|
3KC KE3#,50 | — | |
| 17841-25010 |
Gasket, Filter Element
1974-08 → 1976-09
ended
|
2TC TE3#,51 | — | |
| 17841-31020 |
Gasket, Filter Element
1976-09 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-24010 |
Gasket, Air Cleaner Cap
1974-08 → 1979-08
ended
|
3KC KE3#,50 | — | |
| 17845-25010 |
Gasket, Air Cleaner Cap
1974-08 → 1979-08
ended
|
2TC TE3#,51 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1974-08 → 1979-08
ended
|
3KC KE3#,50 | — | |
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1974-08 → 1979-08
ended
|
2TC TE3#,51 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
