Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

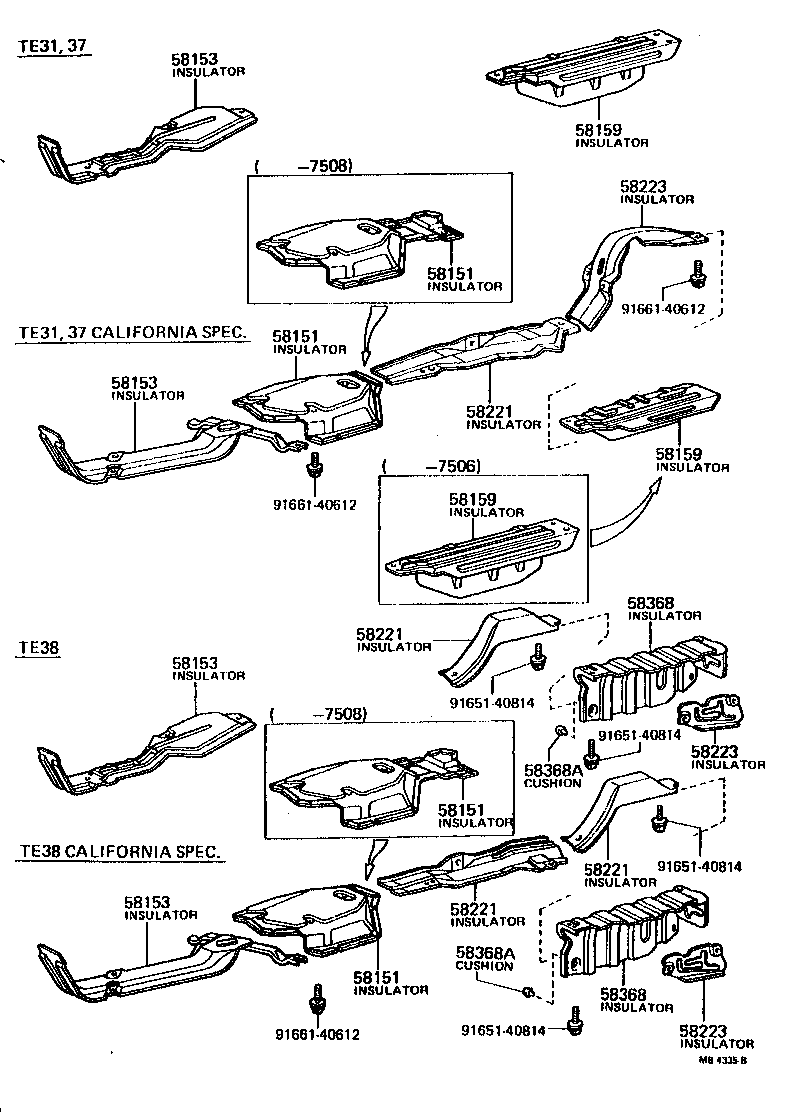

Exploded illustration MB4335B 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (4 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (5 parts) 58223 — INSULATOR, CENTER FLOOR HEAT, NO.2 (8 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (12 parts) 9166140612 — not listed in this catalogue 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (12 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (4 parts) 58221 — INSULATOR, CENTER FLOOR HEAT, NO.1 (20 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (5 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (5 parts) 9166140612 — not listed in this catalogue 58368 — INSULATOR, HEAT (2 parts) 58221 — INSULATOR, CENTER FLOOR HEAT, NO.1 (20 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (4 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 58223 — INSULATOR, CENTER FLOOR HEAT, NO.2 (8 parts) 58368A — CUSHION(FOR INSULATOR HEAT) (2 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (12 parts) 9165140814 — not listed in this catalogue 58221 — INSULATOR, CENTER FLOOR HEAT, NO.1 (20 parts) 58153 — INSULATOR, FRONT FLOOR HEAT, NO.2 (4 parts) 58221 — INSULATOR, CENTER FLOOR HEAT, NO.1 (20 parts) 58368A — CUSHION(FOR INSULATOR HEAT) (2 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (12 parts) 58368 — INSULATOR, HEAT (2 parts) 9165140814 — not listed in this catalogue 58223 — INSULATOR, CENTER FLOOR HEAT, NO.2 (8 parts) 9166140612 — not listed in this catalogue
MB4335B · 22 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58041-12020 note Insulator, Front Floor Heat, NO.1
1974-08 → 1975-08 ended
TE3# —
58041-12030 note Insulator, Front Floor Heat, NO.1
1976-08 → 1976-12 ended
TE31,37 DLX,STD —
58041-12030 note Insulator, Front Floor Heat, NO.1
1976-08 → 1976-12 ended
KE30 USA —
58041-12040 note Insulator, Front Floor Heat, NO.1
1975-08 → 1976-08 ended
TE3#,51 —
58041-12040 note Insulator, Front Floor Heat, NO.1
1976-08 → 1976-12 ended
TE37,38,51;TE31 MTM USA;TE31 A40 +1 —
58041-12050 note Insulator, Front Floor Heat, NO.1
1976-12 → 1977-01 ended
TE31,37 DLX,STD —
58041-12050 note Insulator, Front Floor Heat, NO.1
1976-12 → 1977-08 ended
KE30 USA —
58041-12050 Insulator, Front Floor Heat, NO.1
1977-08 → 1978-08 ended
TE31 A40 SPL USA;TE3#,51 +2 —
58041-12050 Insulator, Front Floor Heat, NO.1
1977-08 → 1979-08 ended
KE30 USA —
58041-12060 note Insulator, Front Floor Heat, NO.1
1976-12 → 1977-08 ended
TE37,38,51;TE31 MTM USA;TE31 A40 +4 —
58041-12060 note Insulator, Front Floor Heat, NO.1
1977-08 → 1978-08 ended
TE38,51 USA;TE31,37 MTM USA;TE31 +3 —
58041-12070 Insulator, Front Floor Heat, NO.1
1978-08 → 1979-08 ended
TE3#,51 USA —
58153 — Insulator, Front Floor Heat, NO.2
58042-12010 note Insulator, Front Floor Heat, NO.2
1974-08 → 1975-02 ended
TE3# —
58153-12010 note Insulator, Front Floor Heat, NO.2
1979-01 → 1979-08 ended
TE38,51 USA —
58153-12010 note Insulator, Front Floor Heat, NO.2
1979-01 → 1979-08 ended
TE31 DLX USA;TE31 A40 +2 —
58153-12020 Insulator, Front Floor Heat, NO.2
1974-08 → 1975-04 ended
TE3# —
58159 — Insulator, Main Mafflar Heat
58031-12010 Insulator, Main Mafflar Heat
1974-08 → 1974-10 ended
TE31,37 —
58031-12020 note Insulator, Main Mafflar Heat
1974-08 → 1975-06 ended
TE31,37 —
58031-12060 note Insulator, Main Mafflar Heat
1976-08 → 1977-08 ended
KE30 USA —
58031-12060 Insulator, Main Mafflar Heat
1975-06 → 1979-08 ended
TE31,37,51 CP,HT,SED —
58031-12060 Insulator, Main Mafflar Heat
1977-08 → 1979-08 ended
KE30 USA —
58221 — Insulator, Center Floor Heat, NO.1
58044-13010 note Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
TE38 USA —
58044-13010 Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
TE38 CND —
58044-13010 note Insulator, Center Floor Heat, NO.1
1974-08 → 1977-08 ended
TE38 —
58221-12020 note Insulator, Center Floor Heat, NO.1
1976-08 → 1977-01 ended
TE31,37,51 —
58221-12020 note Insulator, Center Floor Heat, NO.1
1975-08 → 1976-08 ended
TE31,37,51 —
58221-12020 note Insulator, Center Floor Heat, NO.1
1976-08 → 1977-01 ended
TE31,37 DLX,STD —
58221-12040 note Insulator, Center Floor Heat, NO.1
1976-08 → 1976-10 ended
KE30 USA —
58221-12041 note Insulator, Center Floor Heat, NO.1
1976-10 → 1979-08 ended
KE30 SPL —
58221-12041 Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
KE30 USA —
58221-12041 Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
TE31 A40 SPL USA —
58221-12050 note Insulator, Center Floor Heat, NO.1
1977-01 → 1977-08 ended
TE31 MTM SPL —
58221-12050 Insulator, Center Floor Heat, NO.1
1978-08 → 1979-08 ended
TE31 SPL USA —
58221-12050 Insulator, Center Floor Heat, NO.1
1977-08 → 1978-08 ended
TE31 MTM SPL USA —
58221-12060 note Insulator, Center Floor Heat, NO.1
1977-01 → 1977-08 ended
TE31,37,51 DLX,SR5 —
58221-12060 Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
TE31,37,51 (DLX,SR5) USA —
58221-13020 note Insulator, Center Floor Heat, NO.1
1975-08 → 1975-11 ended
TE38 —
58221-13021 note Insulator, Center Floor Heat, NO.1
1976-08 → 1977-01 ended
TE38 —
58221-13021 note Insulator, Center Floor Heat, NO.1
1975-11 → 1976-08 ended
TE38 —
58221-13022 note Insulator, Center Floor Heat, NO.1
1977-08 → 1979-08 ended
TE38 USA —
58221-13022 note Insulator, Center Floor Heat, NO.1
1977-01 → 1977-08 ended
TE38 —
58223 — Insulator, Center Floor Heat, NO.2
52189-13010 Insulator, Center Floor Heat, NO.2
1974-08 → 1979-08 ended
TE38 —
58223-12020 note Insulator, Center Floor Heat, NO.2
1974-08 → 1976-08 ended
TE31,37,51 CP,HT,SED —
58223-12020 note Insulator, Center Floor Heat, NO.2
1976-08 → 1977-01 ended
TE31,37 DLX,STD —
58223-12020 note Insulator, Center Floor Heat, NO.2
1976-08 → 1977-08 ended
TE31,37,51 CP,HT,SED —
58223-12020 Insulator, Center Floor Heat, NO.2
1977-08 → 1979-08 ended
TE31,37,51 USA —
58223-12030 note Insulator, Center Floor Heat, NO.2
1976-03 → 1976-08 ended
TE51 LB —
58223-12030 note Insulator, Center Floor Heat, NO.2
1976-08 → 1977-08 ended
TE51 LB —
58223-12030 note Insulator, Center Floor Heat, NO.2
1977-08 → 1979-08 ended
TE51 LB USA —
58368 — Insulator, Heat
58031-13020 Insulator, Heat
1974-08 → 1979-08 ended
TE38 —
58327-12030 Insulator, Heat
1976-03 → 1979-08 ended
KE50,TE51 LB —
58368A — Cushion(FOR INSULATOR HEAT)
90541-09151 Cushion(FOR INSULATOR HEAT)
1976-03 → 1979-08 ended
KE50,TE51 LB —
90950-01006 Cushion(FOR INSULATOR HEAT)
1974-08 → 1979-08 ended
TE38 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
