Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

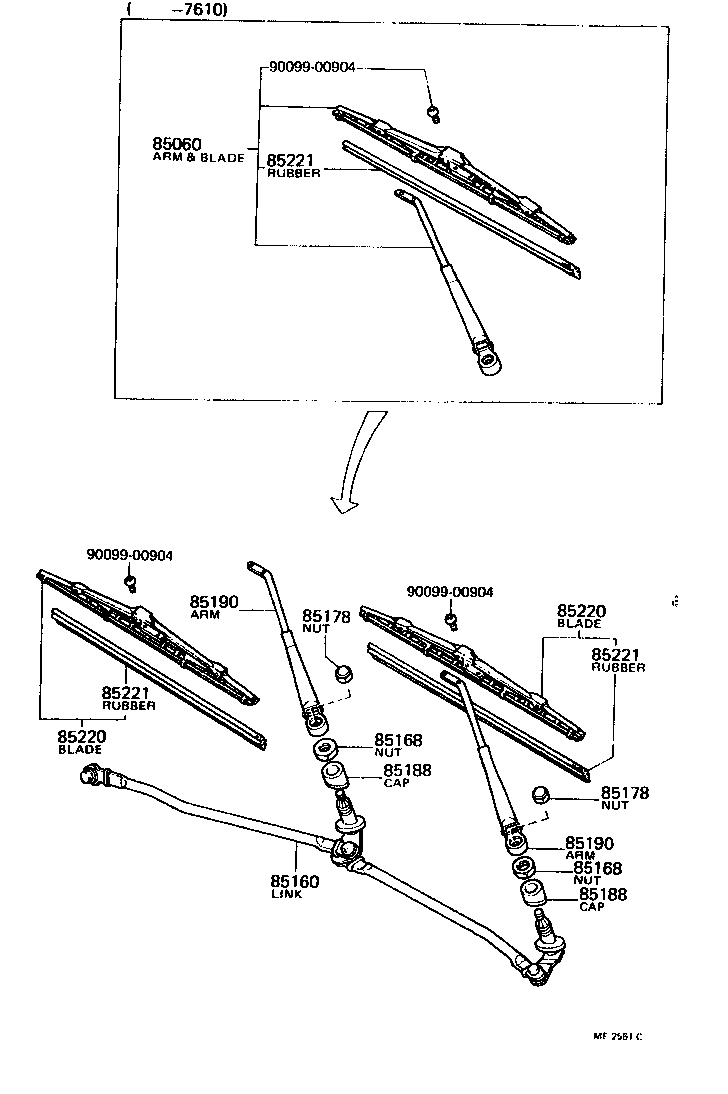

Exploded illustration ME2561C 9009900904 — not listed in this catalogue 85060 — ARM AND BLADE ASSY, WINDSHIELD WIPER (3 parts) 85221 — BLADE, WINDSHIELD WIPER (4 parts) 9009900904 — not listed in this catalogue 9009900904 — not listed in this catalogue 85190 — ARM ASSY, WINDSHIELD WIPER (13 parts) 85220 — BLADE ASSY, WINDSHIELD WIPER (5 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (6 parts) 85221 — BLADE, WINDSHIELD WIPER (4 parts) 85221 — BLADE, WINDSHIELD WIPER (4 parts) 85220 — BLADE ASSY, WINDSHIELD WIPER (5 parts) 85168 — NUT, WINDSHIELD WIPER LINK PIVOT (9 parts) 85188 — CAP, WINDSHIELD WIPER PIVOT, NO.1 (8 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (6 parts) 85190 — ARM ASSY, WINDSHIELD WIPER (13 parts) 85168 — NUT, WINDSHIELD WIPER LINK PIVOT (9 parts) 85160 — LINK ASSY, WINDSHIELD WIPER (15 parts) 85188 — CAP, WINDSHIELD WIPER PIVOT, NO.1 (8 parts)
ME2561C · 15 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
85060 — Arm And Blade Assy, Windshield Wiper
85060-12060 note Arm And Blade Assy, Windshield Wiper
1974-08 → 1976-10 ended
KE3#,TE3# —
85060-12140 Arm And Blade Assy, Windshield Wiper
1976-03 → 1976-10 ended
TE51 —
85060-12150 note Arm And Blade Assy, Windshield Wiper
1976-08 → 1976-10 ended
KE30,TE31 SPL —
85160 — Link Assy, Windshield Wiper
85160-12130 Link Assy, Windshield Wiper
1974-08 → 1977-08 ended
KE3#,TE3# —
85160-12130 note Link Assy, Windshield Wiper
1977-08 → 1978-02 ended
TE37;KE30,TE31,38 USA —
85160-12131 note Link Assy, Windshield Wiper
1978-02 → 1979-08 ended
KE30,TE3# USA —
85160-12140 note Link Assy, Windshield Wiper
1977-01 → 1977-08 ended
TE51 SR5 —
85160-12140 note Link Assy, Windshield Wiper
1977-08 → 1977-10 ended
TE51 USA —
85160-12200 note Link Assy, Windshield Wiper
1976-03 → 1977-01 ended
TE51 —
85160-12200 note Link Assy, Windshield Wiper
1977-01 → 1977-08 ended
KE50,TE51 DLX —
85160-12200 note Link Assy, Windshield Wiper
1977-08 → 1978-01 ended
TE51 USA —
85160-12201 note Link Assy, Windshield Wiper
1978-01 → 1979-08 ended
TE51 USA —
85160-12210 note Link Assy, Windshield Wiper
1975-09 → 1977-08 ended
KE3#,TE3# —
85160-12210 note Link Assy, Windshield Wiper
1977-08 → 1977-10 ended
TE3#,51 (DLX,SR5) USA —
85160-12210 note Link Assy, Windshield Wiper
1977-08 → 1977-10 ended
KE30,50,TE3#,51 CND —
85160-12210 note Link Assy, Windshield Wiper
1977-10 → 1978-02 ended
TE31 MTM;KE30,TE37,38;TE31 A40 (DLX,STD) —
85160-12211 note Link Assy, Windshield Wiper
1978-02 → 1979-08 ended
TE31 MTM;KE30,TE37,38;TE31 A40 SPL +3 —
85160-12220 note Link Assy, Windshield Wiper
1976-03 → 1979-08 ended
KE50,TE51 —
85168 — Nut, Windshield Wiper Link Pivot
85168-12180 note Nut, Windshield Wiper Link Pivot
1974-08 → 1977-01 ended
KE3#,TE3# —
85168-12180 note Nut, Windshield Wiper Link Pivot
1977-01 → 1977-08 ended
KE3#,50,TE3#,51 —
85168-12190 note Nut, Windshield Wiper Link Pivot
1977-01 → 1977-08 ended
TE51 SR5 —
85168-12190 note Nut, Windshield Wiper Link Pivot
1977-08 → 1977-10 ended
TE51 USA —
85186-12090 note Nut, Windshield Wiper Link Pivot
1974-08 → 1975-11 ended
KE3#,TE3# —
85186-12170 note Nut, Windshield Wiper Link Pivot
1976-08 → 1977-08 ended
KE30,TE31 SPL —
85186-12170 note Nut, Windshield Wiper Link Pivot
1977-08 → 1979-02 ended
KE30,50,TE3#,51 —
85186-12171 note Nut, Windshield Wiper Link Pivot
1979-02 → 1979-08 ended
KE30,50,TE3#,51 —
85186-12210 note Nut, Windshield Wiper Link Pivot
1975-11 → 1977-08 ended
KE3#,50,TE3#,51 —
85178 — Nut (FOR FRONT WIPER ARM SETTING)
90176-08005 note Nut (FOR FRONT WIPER ARM SETTING)
1975-02 → 1977-08 ended
KE3#,50,TE3#,51 —
90176-08008 Nut (FOR FRONT WIPER ARM SETTING)
1974-08 → 1975-02 ended
KE3#,TE3# —
90176-08019 note Nut (FOR FRONT WIPER ARM SETTING)
1976-08 → 1977-06 ended
KE30,TE31 SPL —
90176-08021 note Nut (FOR FRONT WIPER ARM SETTING)
1977-01 → 1977-08 ended
TE51 SR5 —
90179-08015 note Nut (FOR FRONT WIPER ARM SETTING)
1977-06 → 1977-08 ended
KE30,TE31 SPL —
90179-08015 note Nut (FOR FRONT WIPER ARM SETTING)
1977-08 → 1979-08 ended
KE30,50,TE3#,51 —
85188 — Cap, Windshield Wiper Pivot, NO.1
85179-12170 note Cap, Windshield Wiper Pivot, NO.1
1977-08 → 1979-08 ended
KE30,50,TE3#,51 —
85179-12170 note Cap, Windshield Wiper Pivot, NO.1
1976-08 → 1977-08 ended
KE30,TE31 SPL —
85179-12210 note Cap, Windshield Wiper Pivot, NO.1
1975-11 → 1977-08 ended
KE3#,50,TE3#,51 —
85179-20060 note Cap, Windshield Wiper Pivot, NO.1
1974-08 → 1975-11 ended
KE3#,TE3# —
85180-12180 note Cap, Windshield Wiper Pivot, NO.1
1977-01 → 1977-08 ended
KE3#,50,TE3#,51 —
85180-12180 note Cap, Windshield Wiper Pivot, NO.1
1974-08 → 1977-01 ended
KE3#,TE3# —
85180-12190 note Cap, Windshield Wiper Pivot, NO.1
1977-01 → 1977-08 ended
TE51 SR5 —
85180-12190 note Cap, Windshield Wiper Pivot, NO.1
1977-08 → 1977-10 ended
TE51 USA —
85190 — Arm Assy, Windshield Wiper
85190-12260 note Arm Assy, Windshield Wiper
1976-10 → 1977-08 ended
KE3#,TE3# —
85190-12290 note Arm Assy, Windshield Wiper
1977-01 → 1977-08 ended
KE50,TE51 —
85190-12320 note Arm Assy, Windshield Wiper
1976-10 → 1977-08 ended
KE50,TE51 —
85190-12330 note Arm Assy, Windshield Wiper
1976-10 → 1977-06 ended
KE30,TE31 SPL —
85190-12331 note Arm Assy, Windshield Wiper
1977-06 → 1977-08 ended
KE30,TE31 SPL —
85190-12331 note Arm Assy, Windshield Wiper
1977-08 → 1977-10 ended
KE30,TE3# —
85190-12350 note Arm Assy, Windshield Wiper
1977-01 → 1977-06 ended
TE51 SR5 —
85190-12351 note Arm Assy, Windshield Wiper
1977-06 → 1977-08 ended
TE51 SR5 —
85190-12351 note Arm Assy, Windshield Wiper
1977-08 → 1977-10 ended
KE50,TE51 —
85190-12400 note Arm Assy, Windshield Wiper
1977-10 → 1979-08 ended
KE30,TE3# —
85190-12400 note Arm Assy, Windshield Wiper
1977-11 → 1979-08 ended
KE50,TE51 —
85190-12410 note Arm Assy, Windshield Wiper
1977-10 → 1977-11 ended
KE50,TE51 —
85190-12410 note Arm Assy, Windshield Wiper
1977-11 → 1979-08 ended
KE50,TE51 —
85220 — Blade Assy, Windshield Wiper
85220-12180 note Blade Assy, Windshield Wiper
1977-01 → 1977-08 ended
TE51 SR5 —
85220-12190 note Blade Assy, Windshield Wiper
1976-10 → 1977-08 ended
KE30,TE31 SPL —
85220-12190 note Blade Assy, Windshield Wiper
1977-08 → 1977-10 ended
KE30,50,TE3#,51 —
85220-12260 note Blade Assy, Windshield Wiper
1977-10 → 1979-08 ended
KE30,50,TE3#,51 —
85220-20090 note Blade Assy, Windshield Wiper
1976-10 → 1977-08 ended
KE3#,50,TE3#,51 —
85221 — Blade, Windshield Wiper
85221-12010 Blade, Windshield Wiper
1977-01 → 1977-08 ended
TE51 SR5 —
85221-12070 Blade, Windshield Wiper
1977-10 → 1979-08 ended
KE30,50,TE3#,51 —
85221-14010 Blade, Windshield Wiper
1974-08 → 1977-08 ended
KE3#,50,TE3#,51 —
85221-20050 Blade, Windshield Wiper
1977-08 → 1977-10 ended
KE30,50,TE3#,51 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
