Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

33 part groups · 3 illustrations

Illustrations

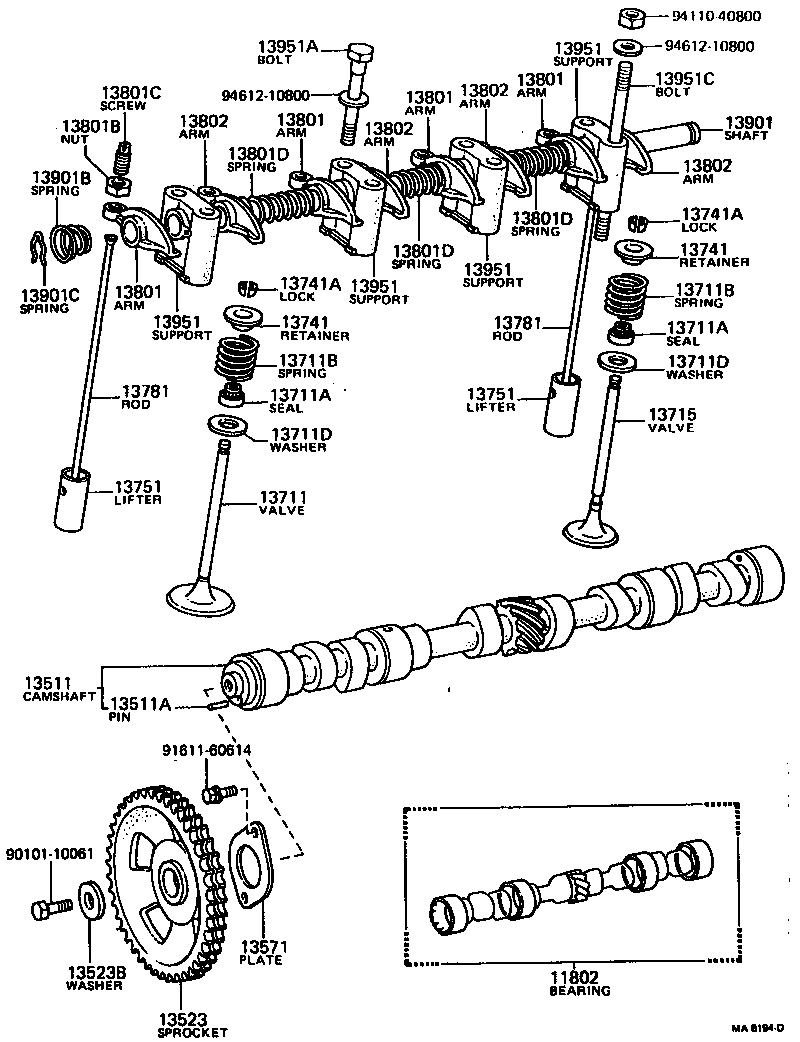

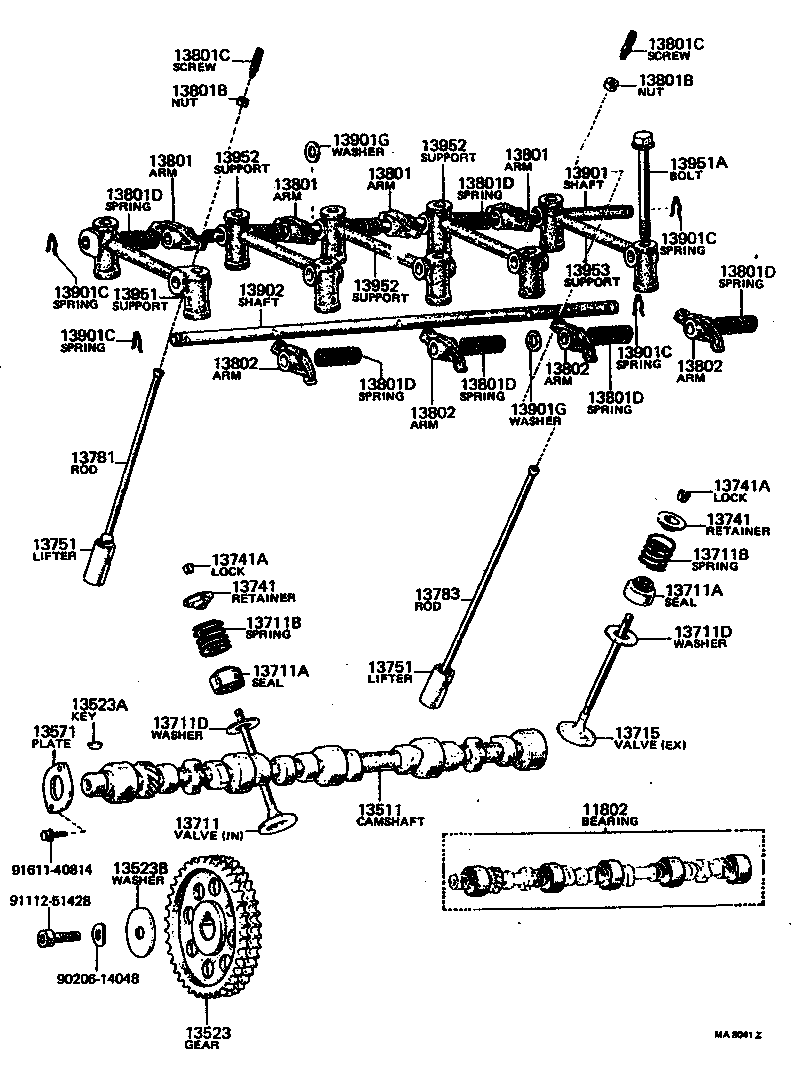

Figure MA1907A MA1907A 1974-08 → 1974-10 Figure MA8194D MA8194D 1974-10 → 1979-08 Figure MA8041Z MA8041Z 1974-08 → 1979-08

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13571 Plate, Camshaft Thrust
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13729 Shield, Valve Stem Oil
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13781 Rod, Valve Push
13783 Rod, Valve Push, NO.2
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13901B Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C Spring, Retainer(FOR VALVE ROCKER SHAFT)
13901G Washer, Rocker Shaft
13902 Shaft Sub-assy, Valve Rocker, NO.2
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951C Bolt, Stud(FOR ROCKER SUPPORT)
13952 Support, Valve Rocker, NO.2
13953 Support, Valve Rocker, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
