Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Chain

5 part groups · 2 illustrations

Illustrations

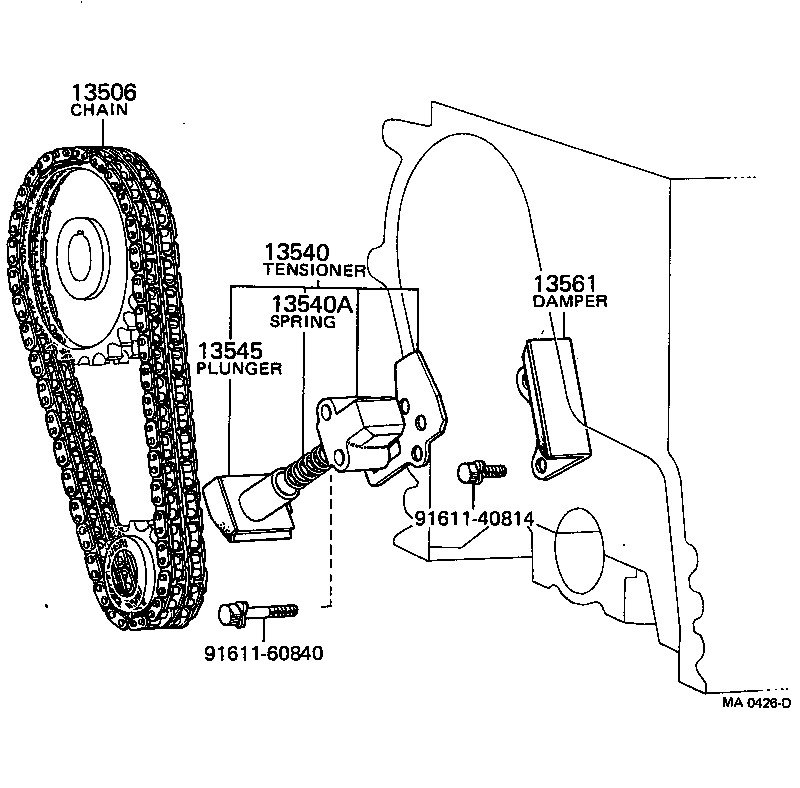

Figure MA8067 MA8067 1974-08 → 1979-08 Figure MA0426D MA0426D 1974-08 → 1979-08

Part groups

PNCDescription
13506 Chain Sub-assy
13540 Tensioner Assy, Chain, NO.1
13540A Spring, Compression(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
