Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 9 illustrations

Illustrations

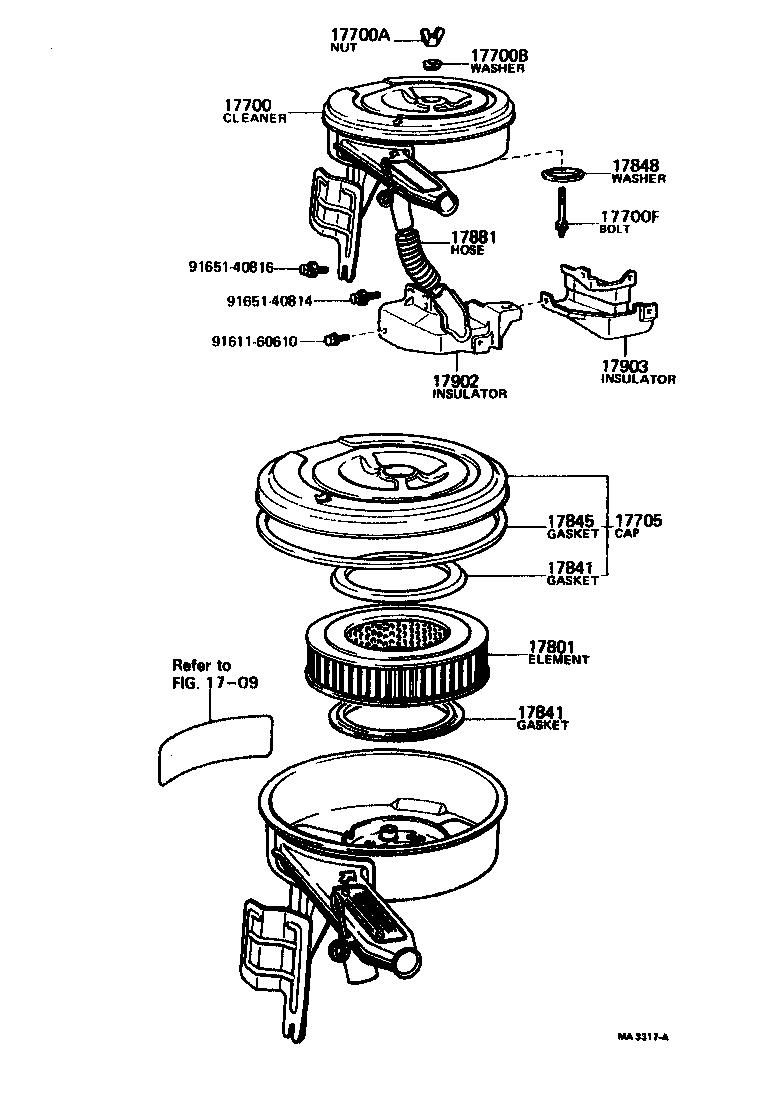

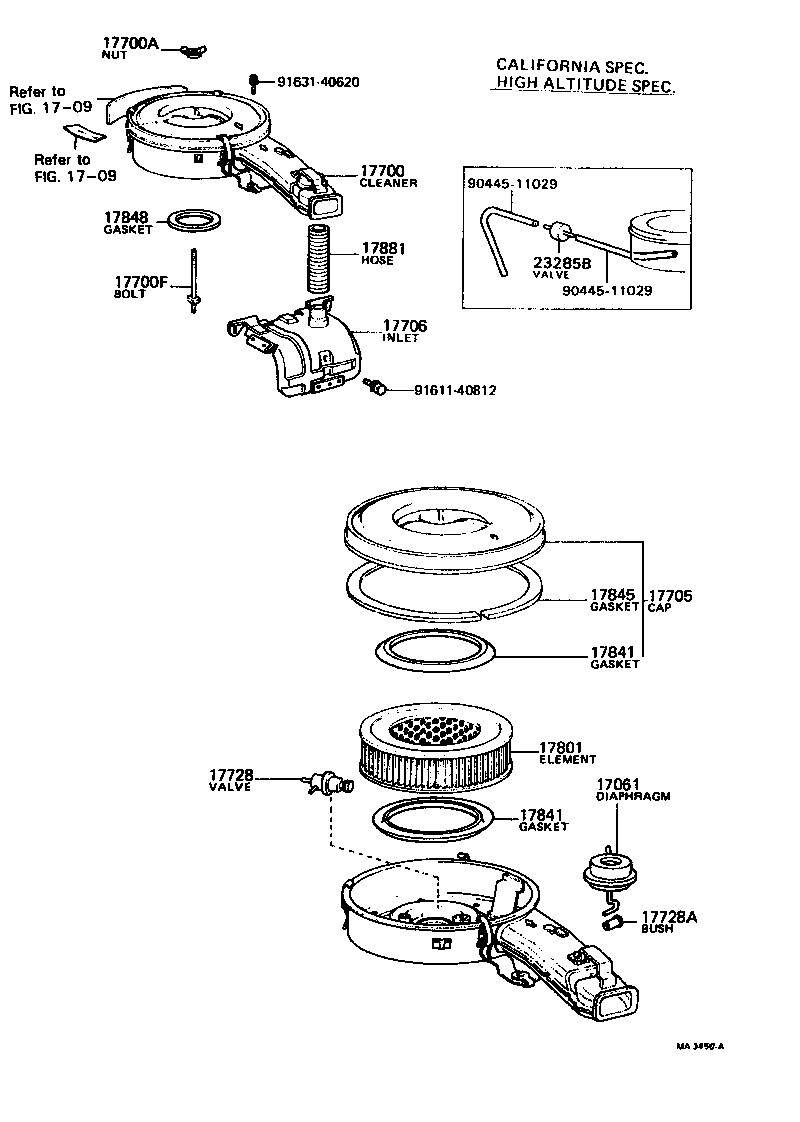

Figure MA1327B MA1327B 1974-08 → 1975-11 Figure MA2140D MA2140D 1975-11 → 1978-04 Figure MA3316B MA3316B 1978-04 → 1979-08 Figure MA3317A MA3317A 1978-04 → 1979-08 Figure MA8176B MA8176B 1974-08 → 1977-01 Figure MA1485B MA1485B 1974-08 → 1977-08 Figure MA3021C MA3021C 1977-08 → 1979-08 Figure MA3022B MA3022B 1977-08 → 1979-08 Figure MA3450A MA3450A 1978-08 → 1979-08

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17728A Bush
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
17908 Filter Sub-assy, Air Suction
17991 Case, Air Suction Filter
23285B Valve, Check, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
