Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

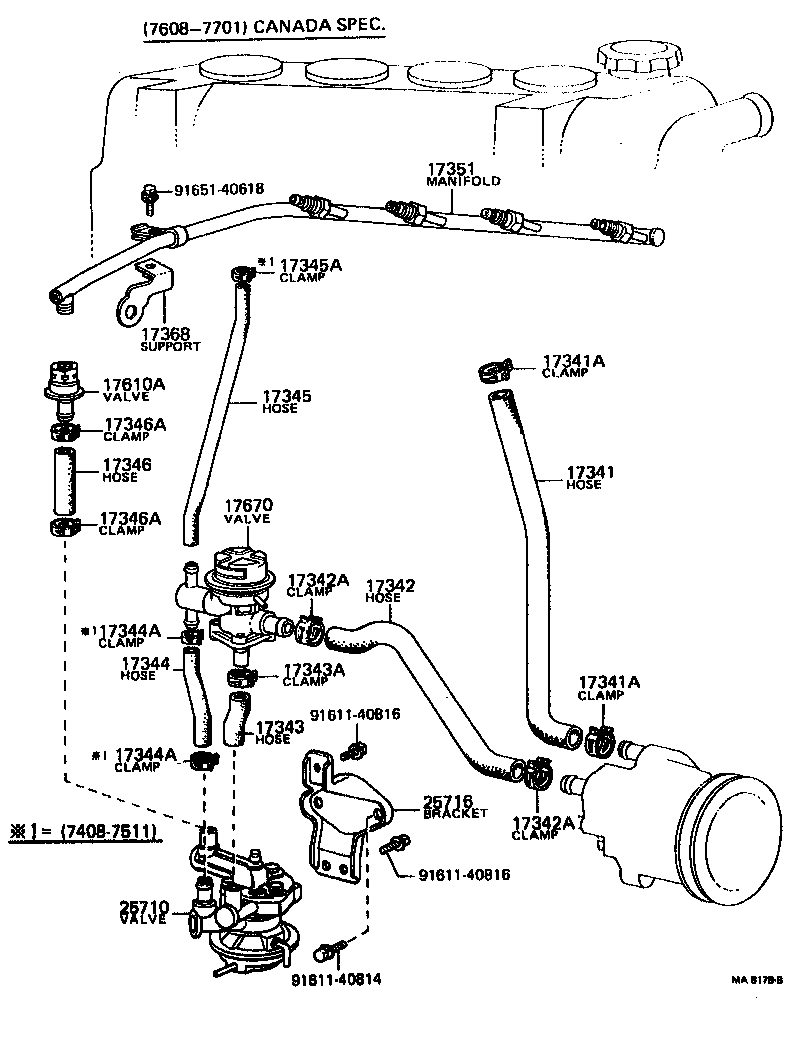

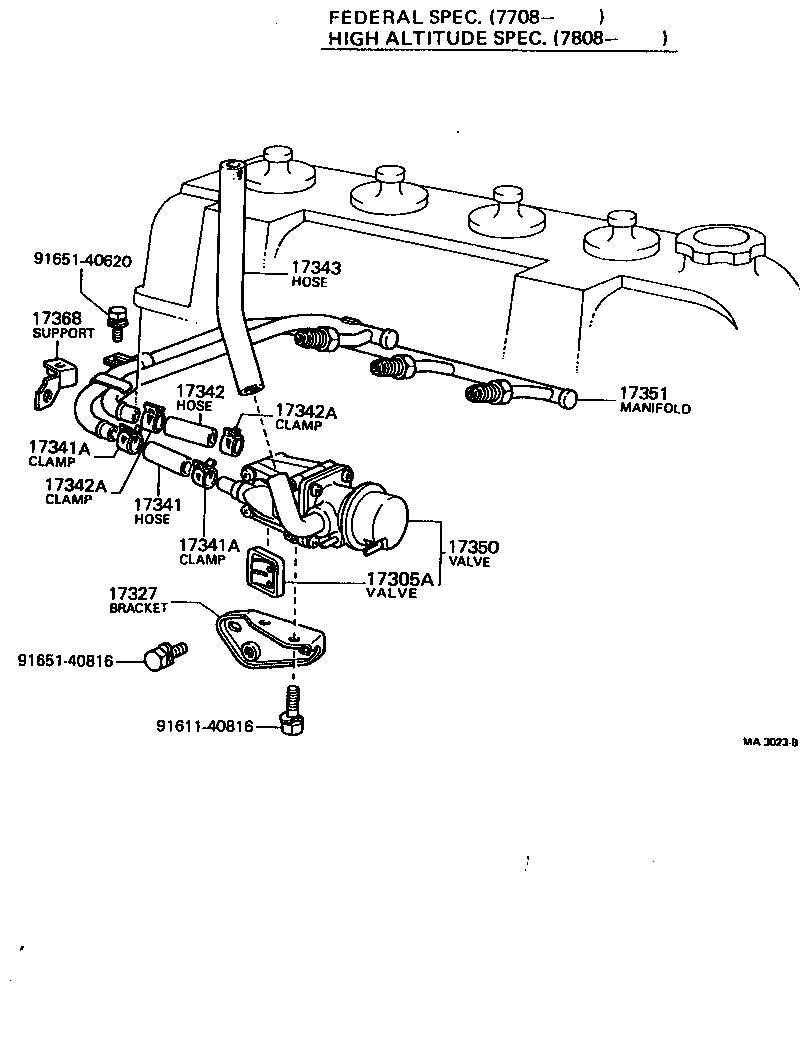

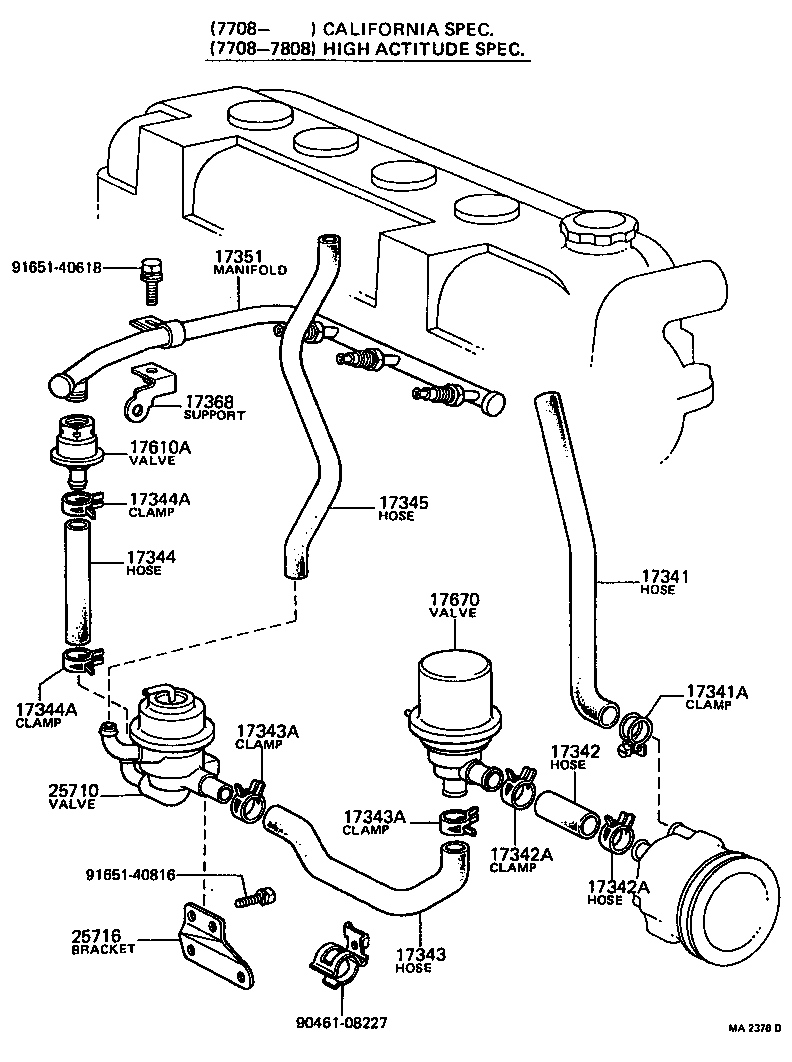

Manifold Air Injection System
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17305A | Valve Sub-assy, Reed |
| 17327 | Bracket, Reed Valve |
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341A | Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| 17342 | Hose, NO.2(FOR AIR INJECTION SYSTEM) |
| 17342A | Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) |
| 17343 | Hose, NO.3(FOR AIR INJECTION SYSTEM) |
| 17343A | Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3) |
| 17344 | Hose, NO.4(FOR AIR INJECTION SYSTEM) |
| 17344A | Clamp OR Clip, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4) |
| 17345 | Hose, NO.5(FOR AIR INJECTION SYSTEM) |
| 17345A | Clamp OR Clip, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5) |
| 17346 | Hose, NO.6(FOR AIR INJECTION SYSTEM) |
| 17346A | Clamp OR Clip, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6) |
| 17350 | Valve Assy, Reed |
| 17351 | Manifold, Air Injection |
| 17368 | Support, Air Tube |
| 17610A | Valve, Check(FOR AIR INJECTION SYSTEM) |
| 17670 | Valve Assy, Air By-pass |
| 17769A | Support, Air Cleaner(FOR AIR SUCTION SYSTEM) |
| 17980 | Filter Assy, Air Suction |
| 25710 | Valve Assy, Air Switching |
| 25716 | Bracket, Air Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
