Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 27 illustrations

Illustrations

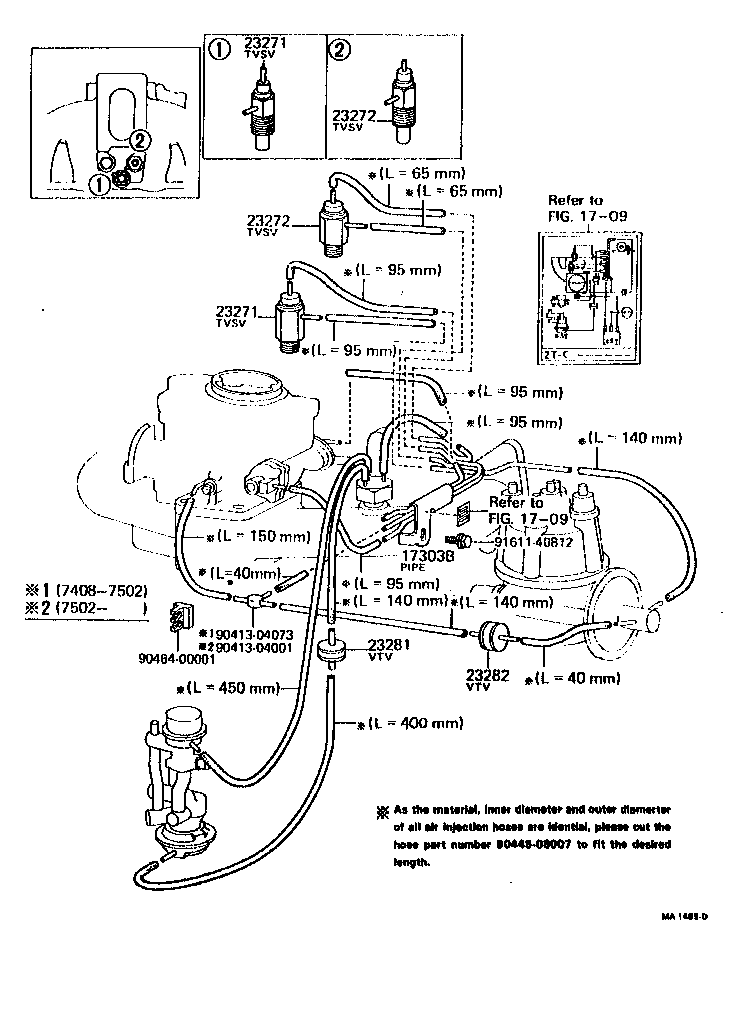

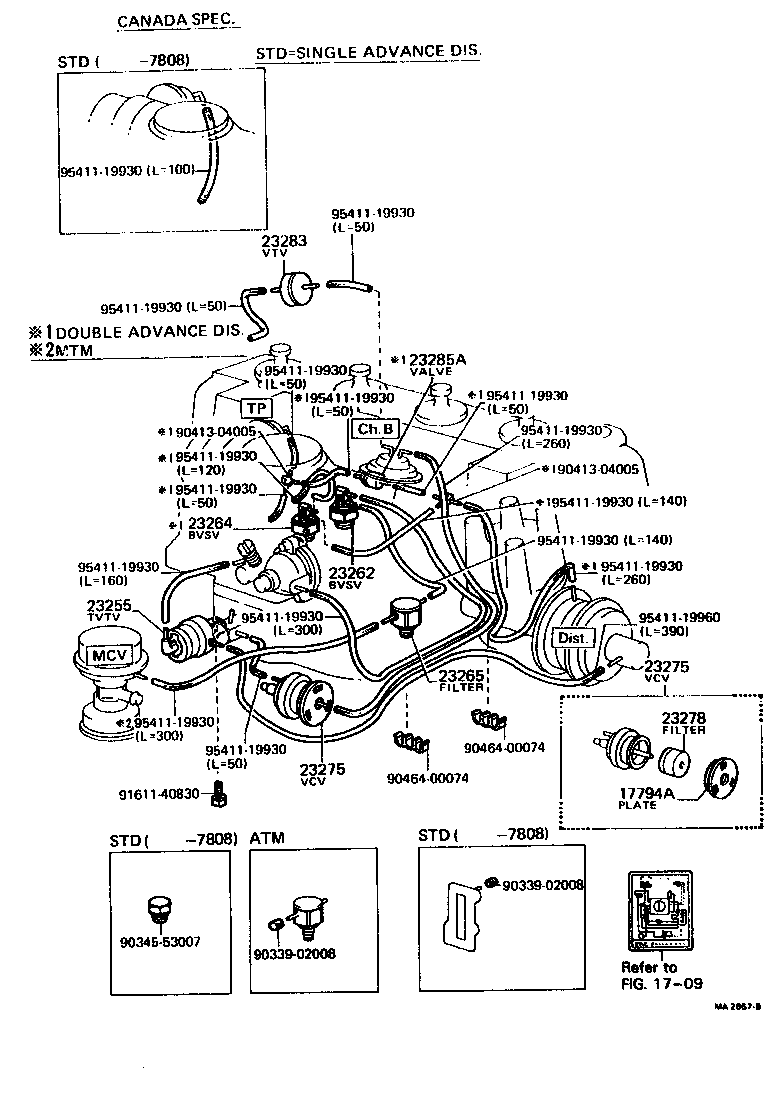

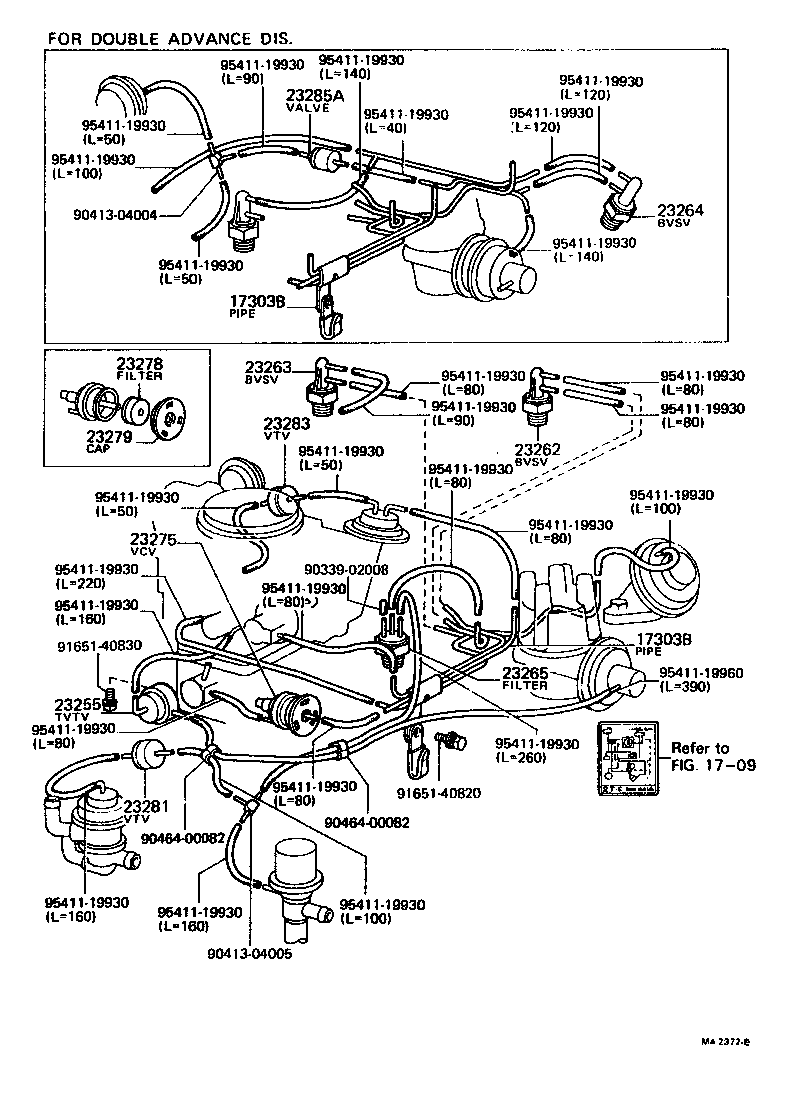

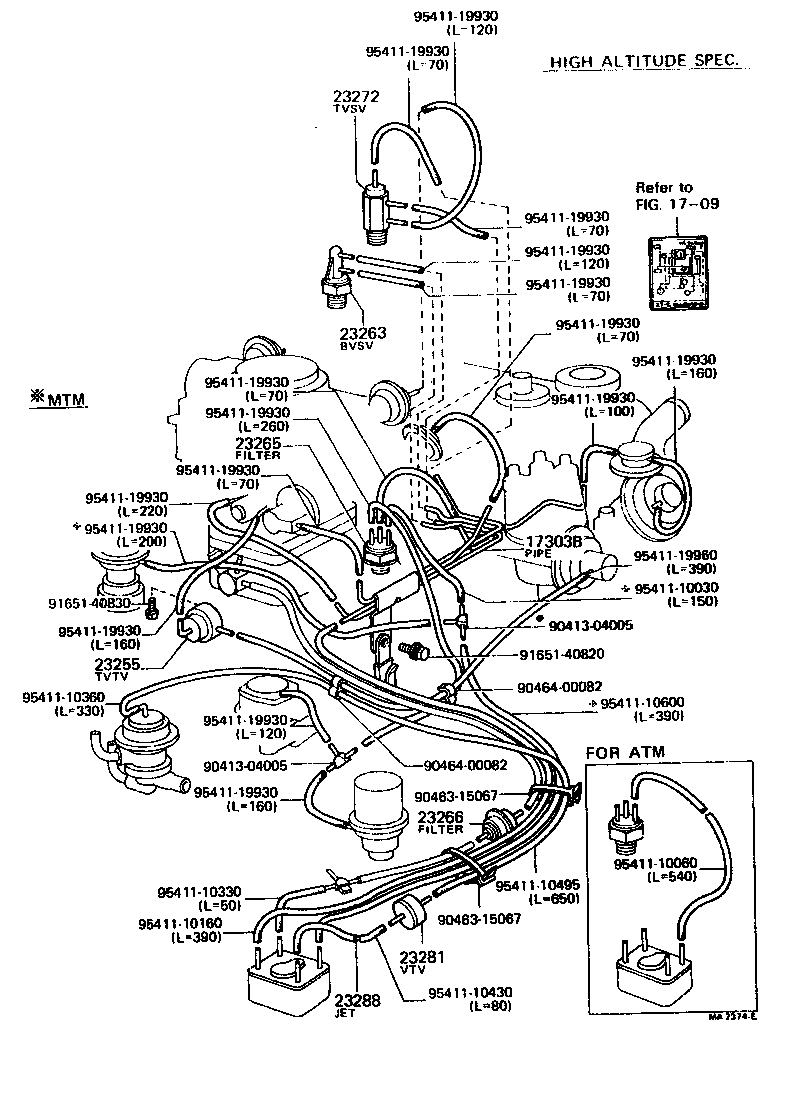

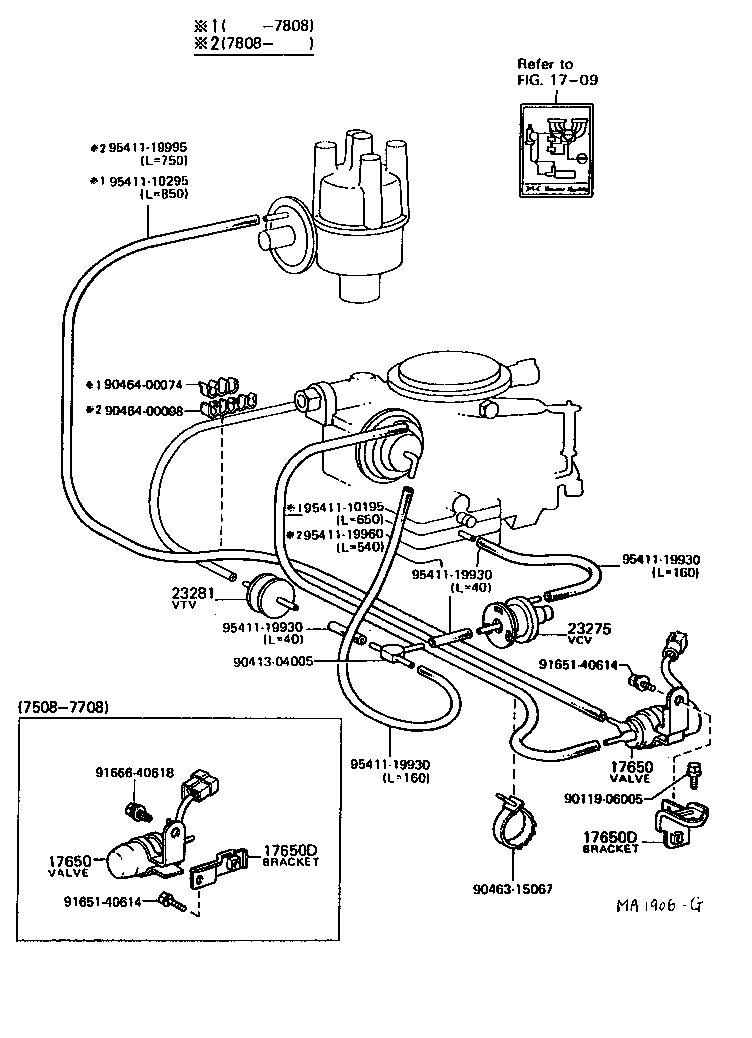

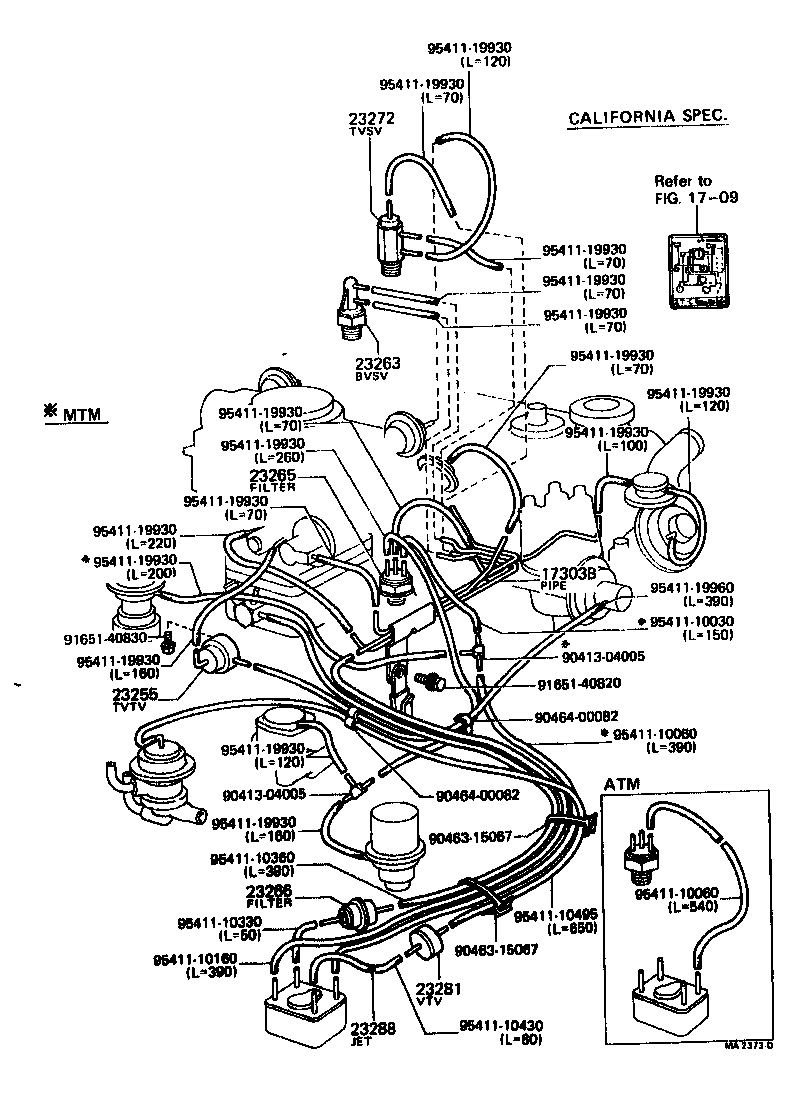

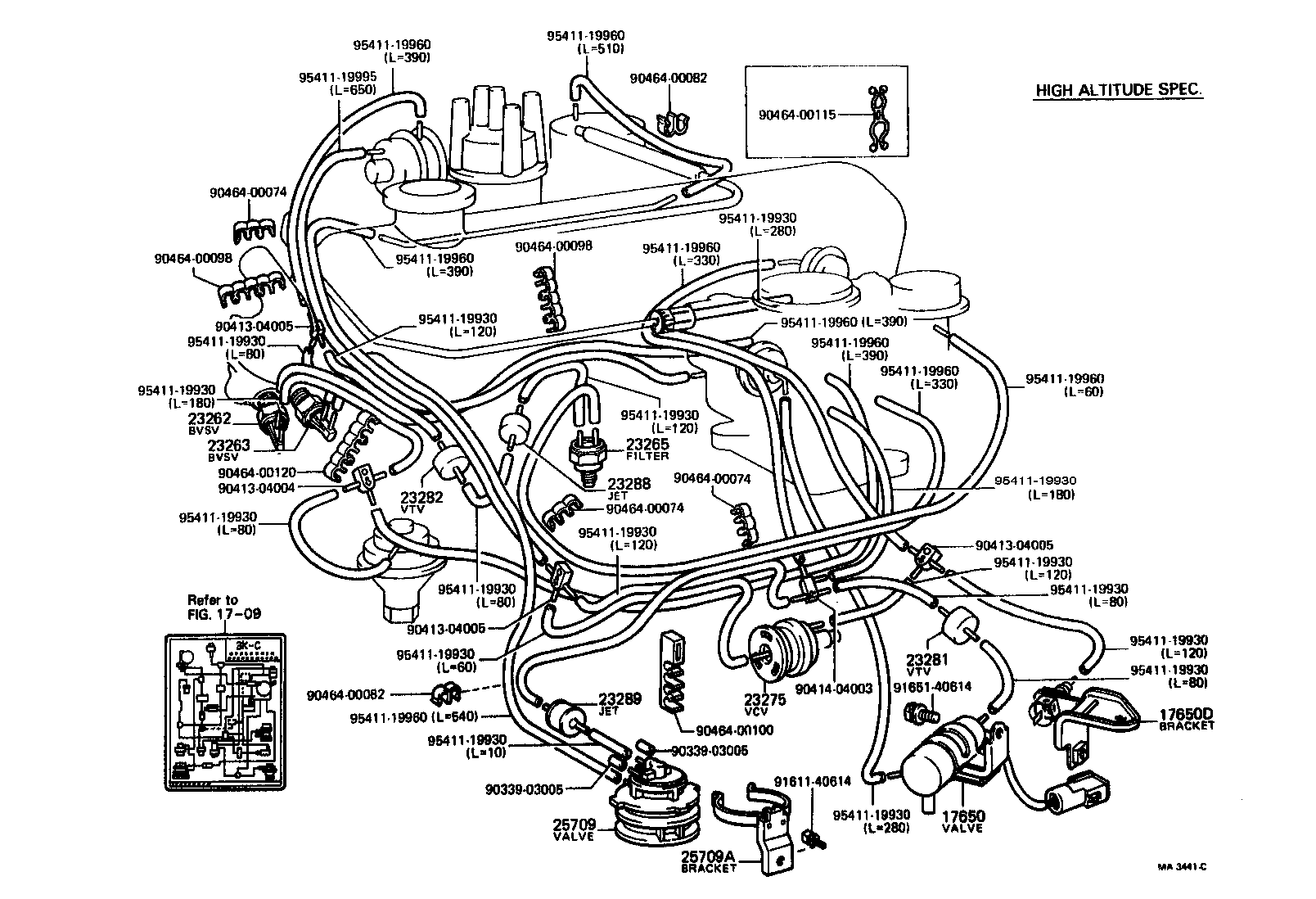

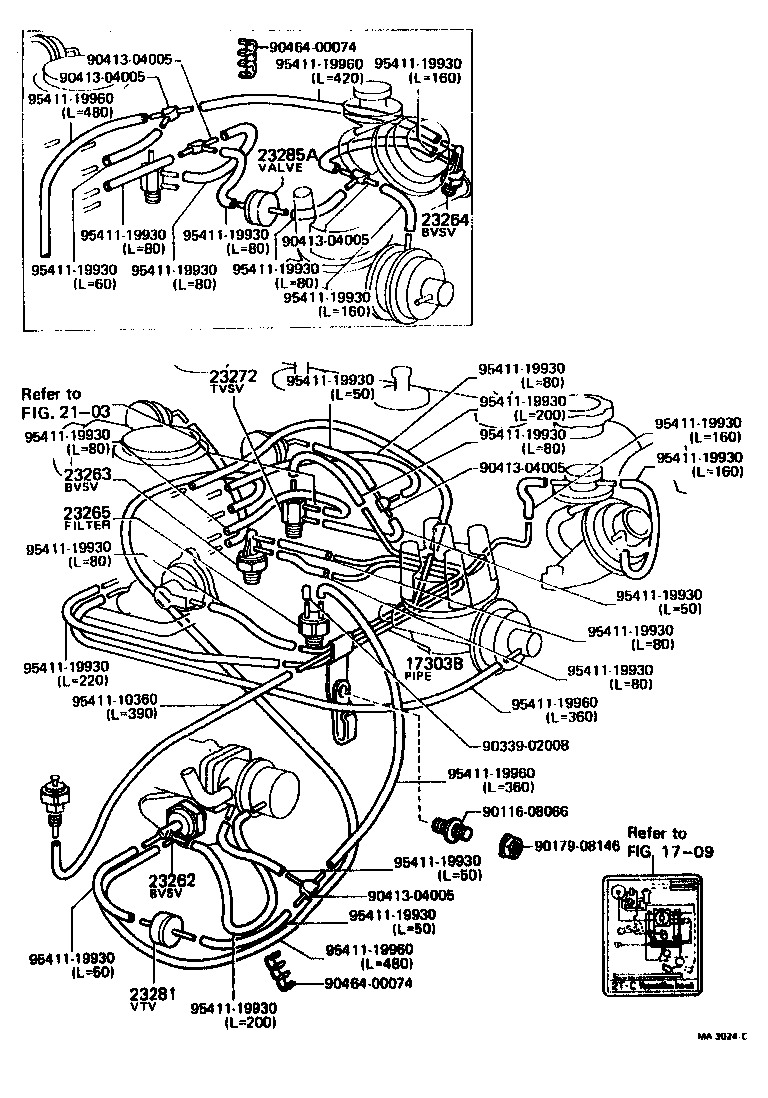

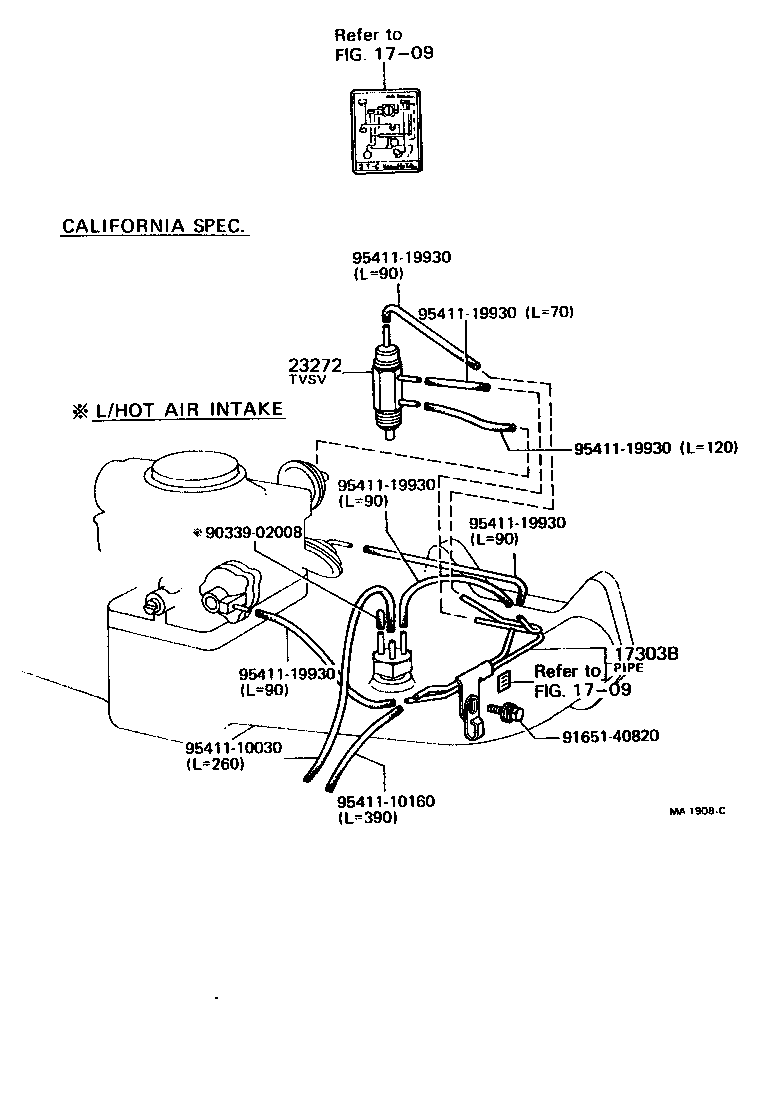

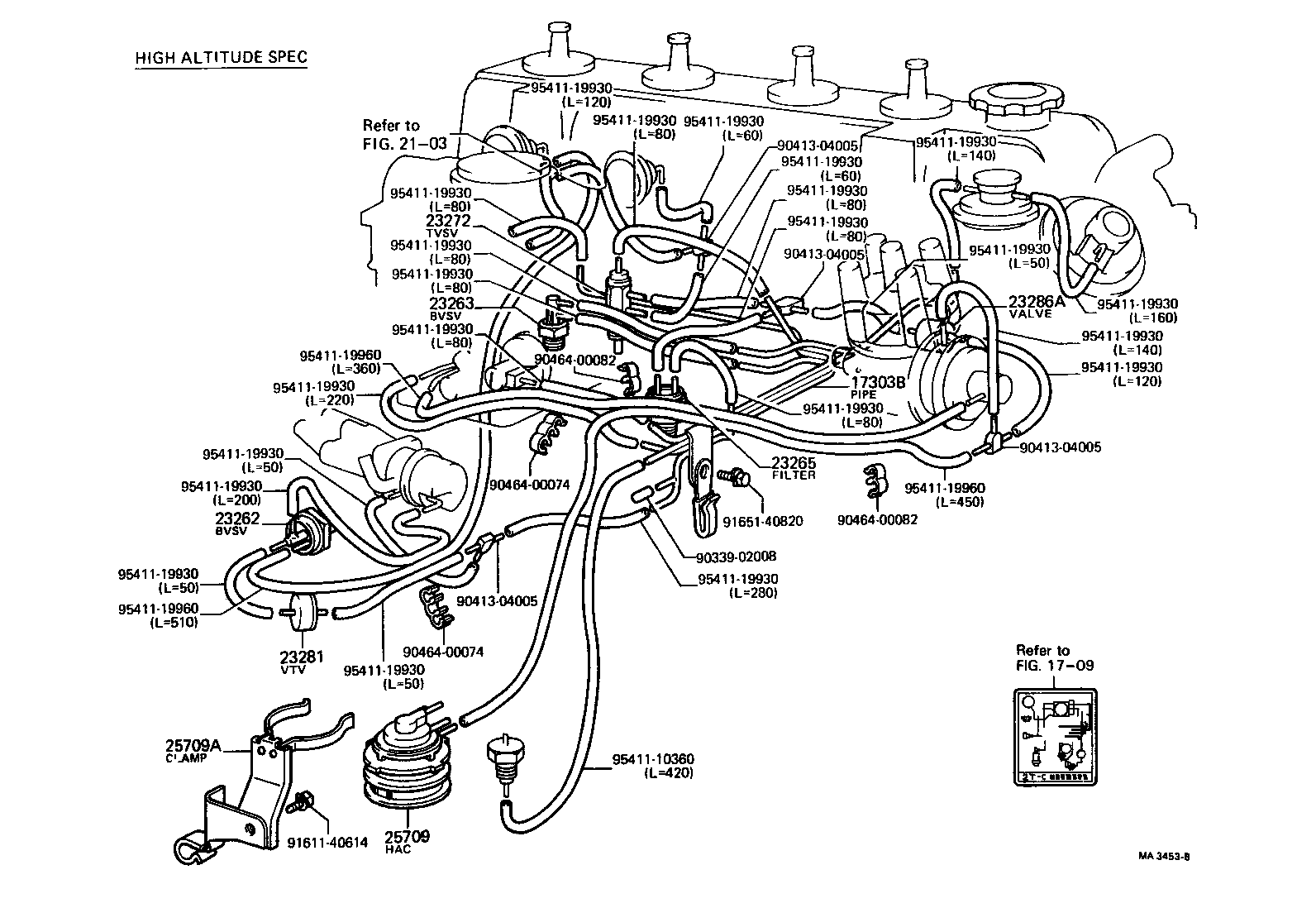

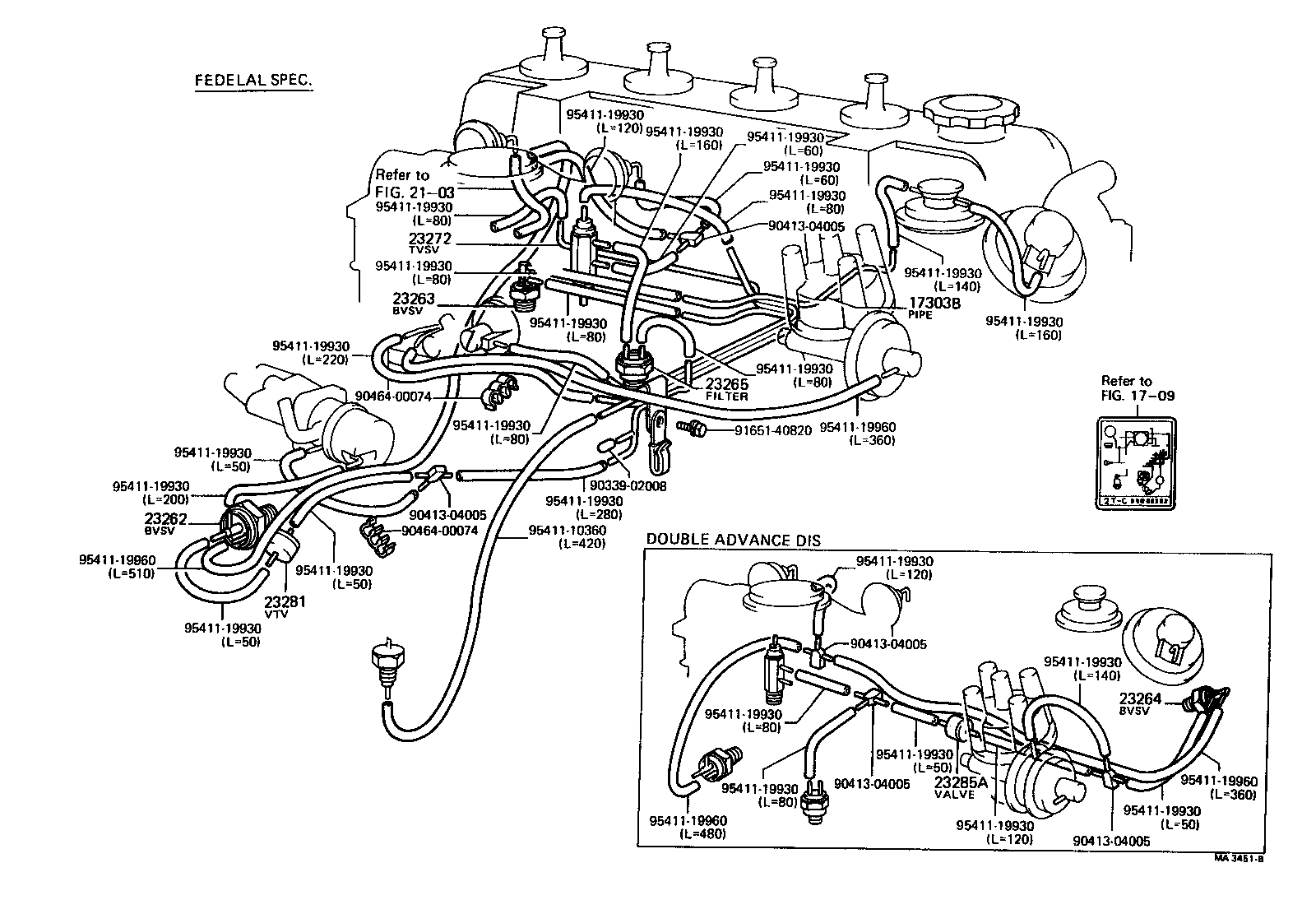

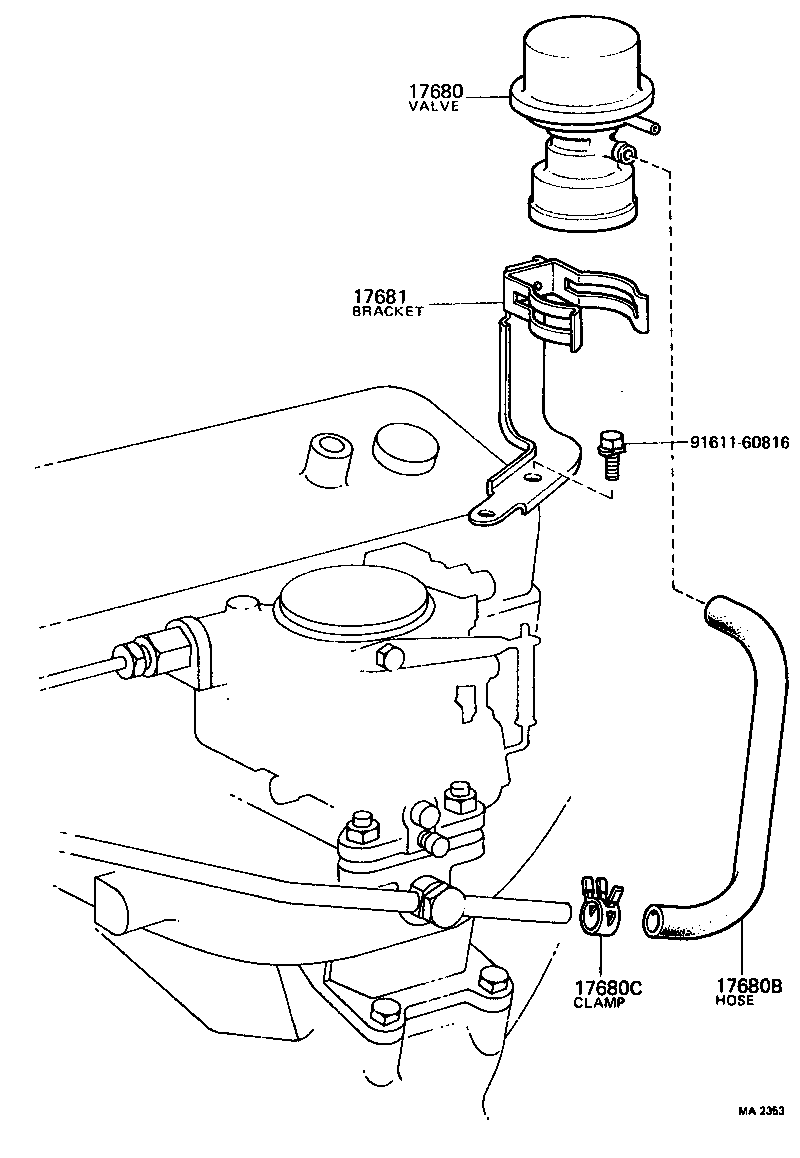

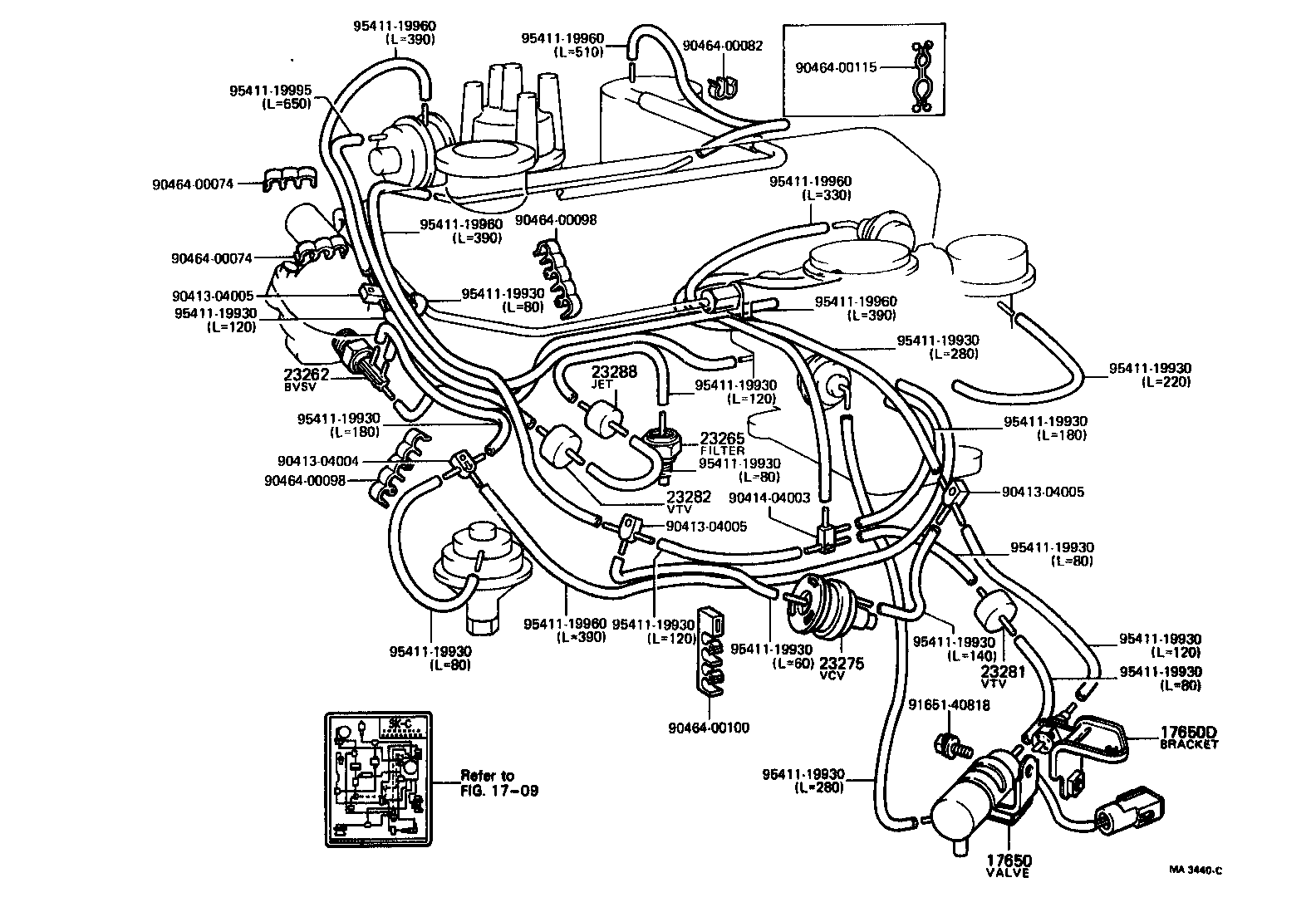

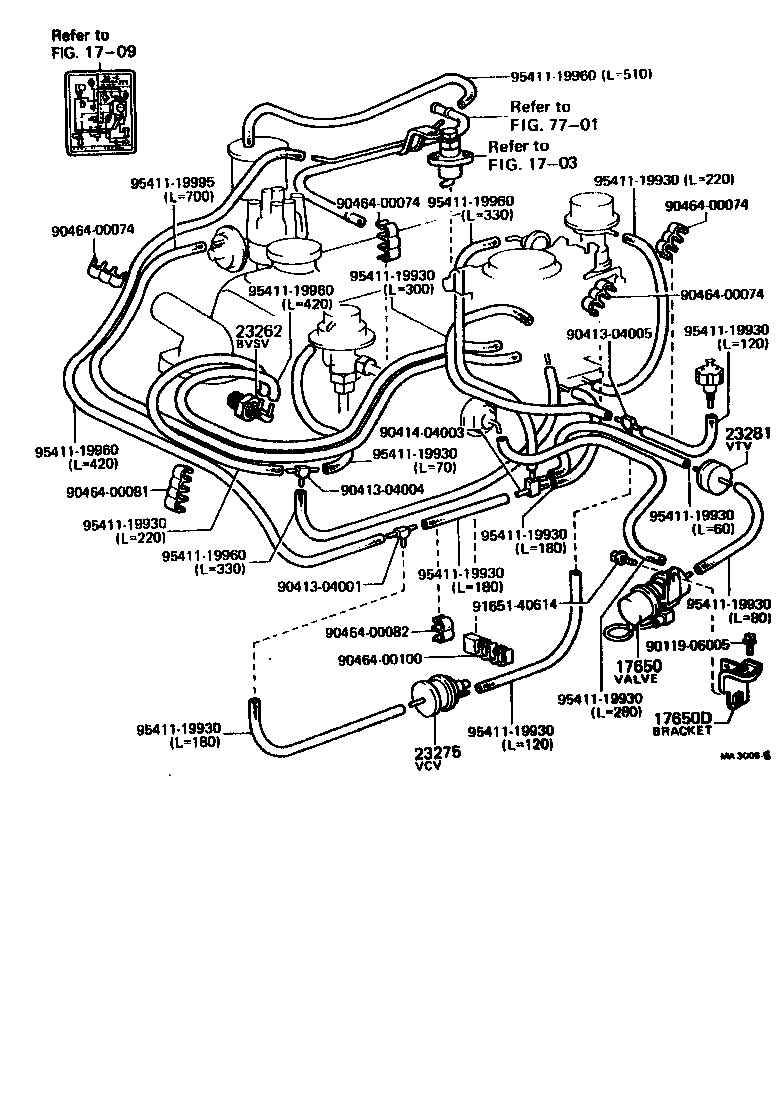

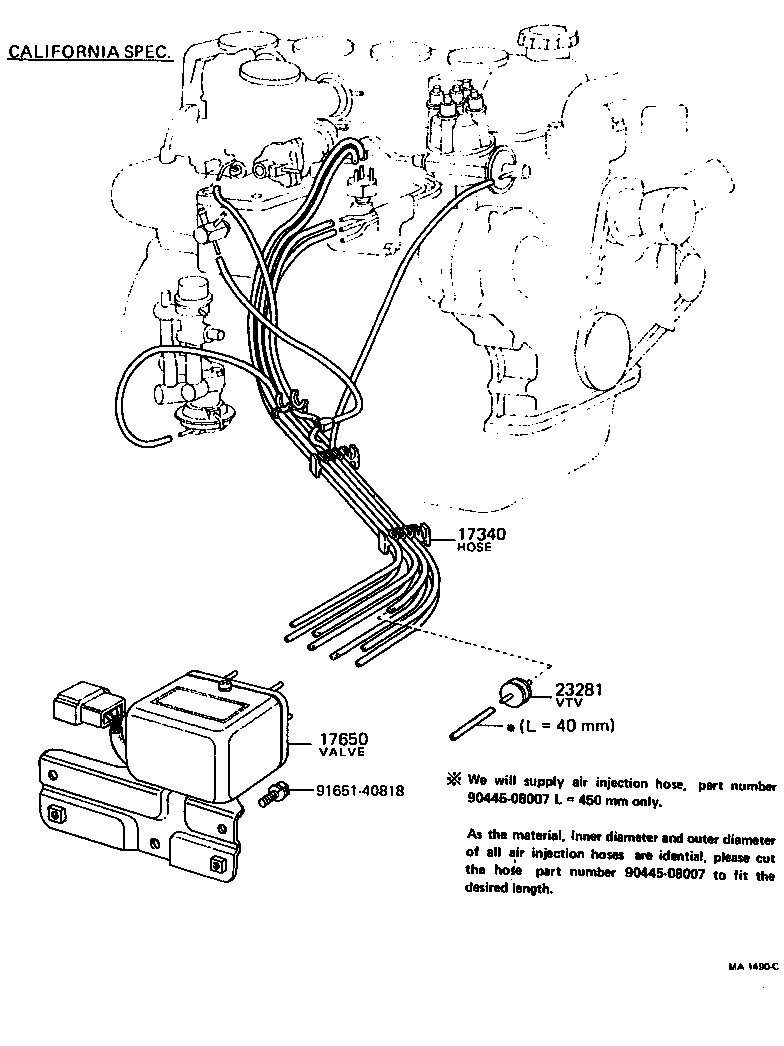

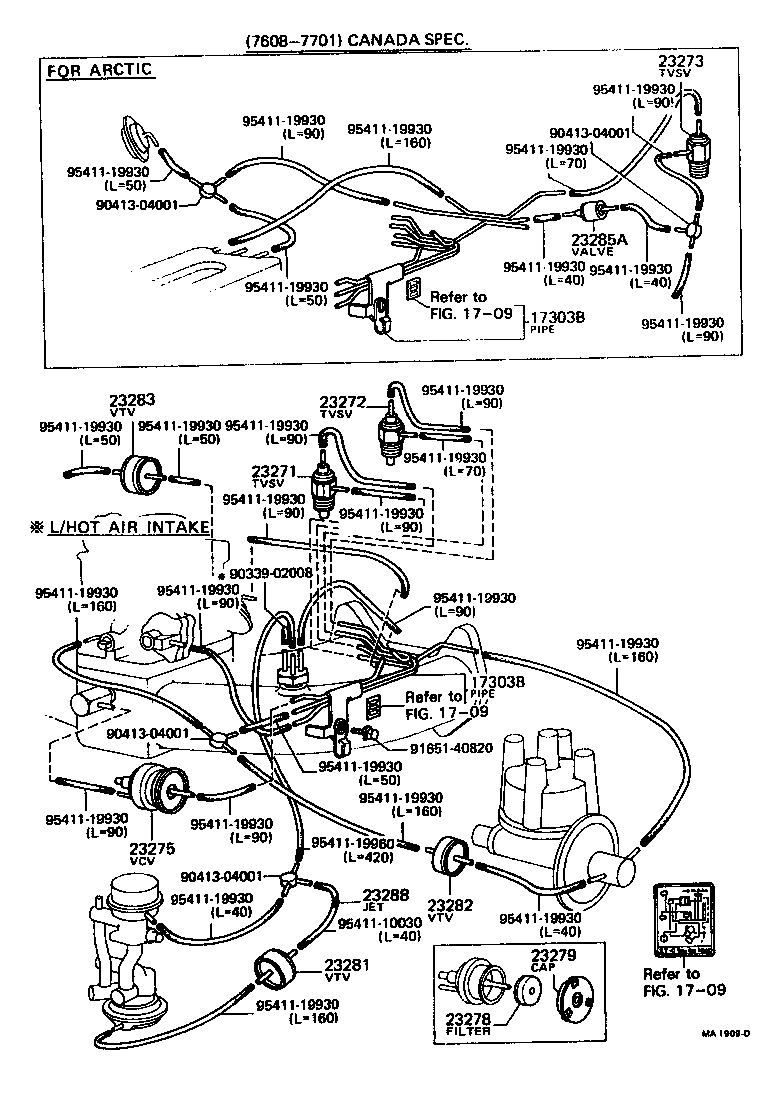

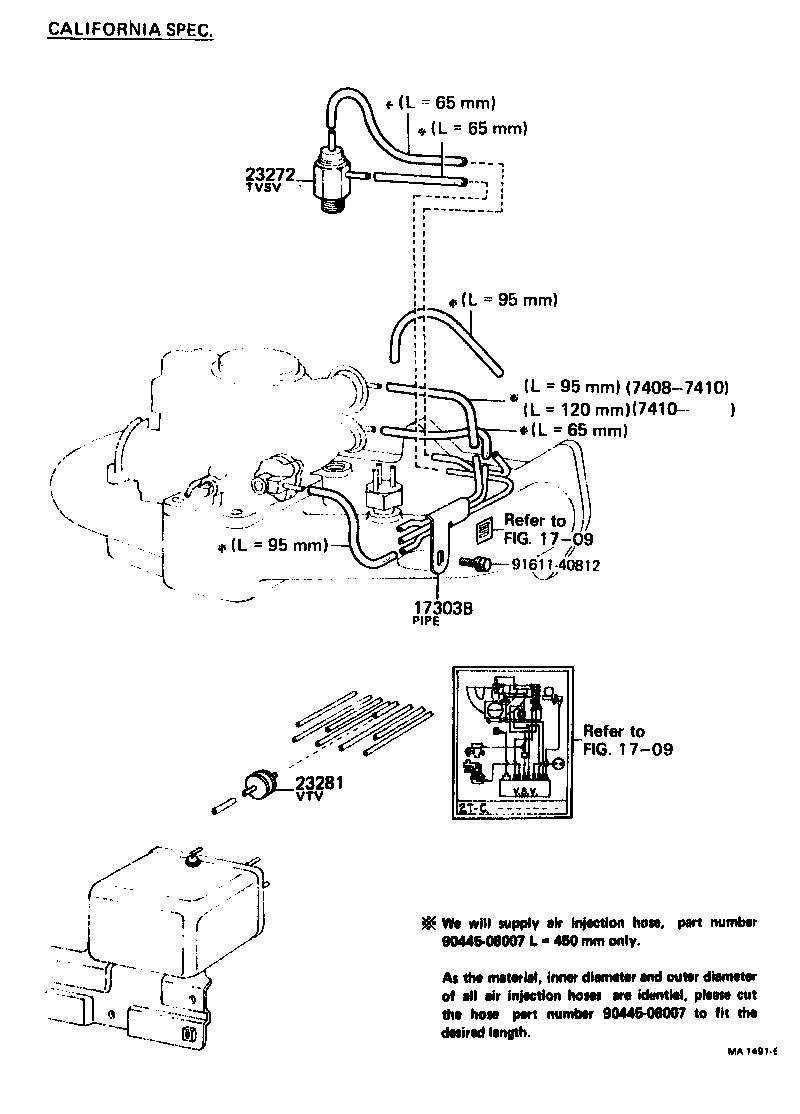

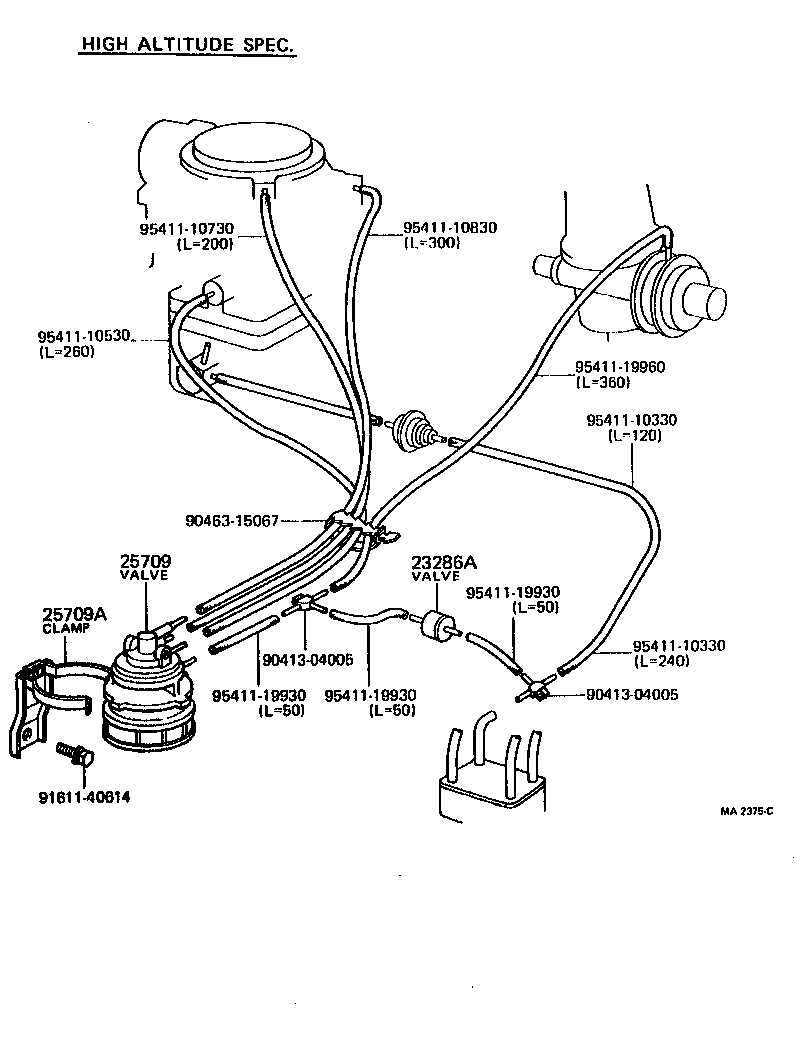

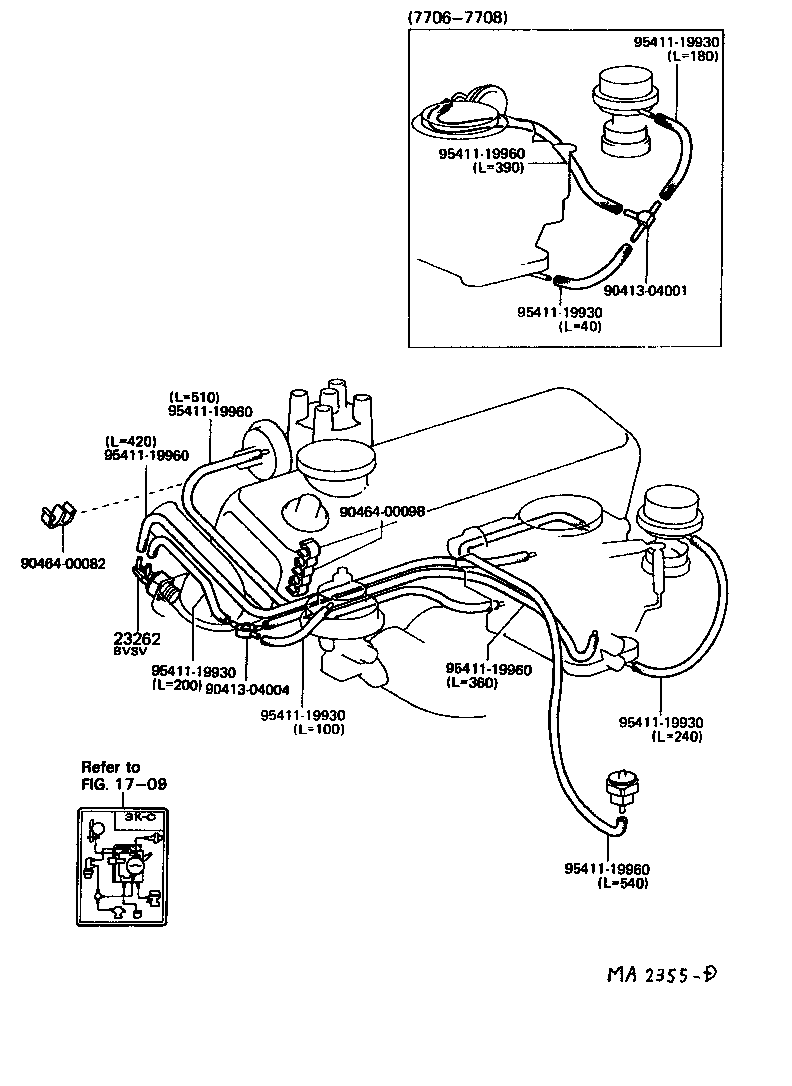

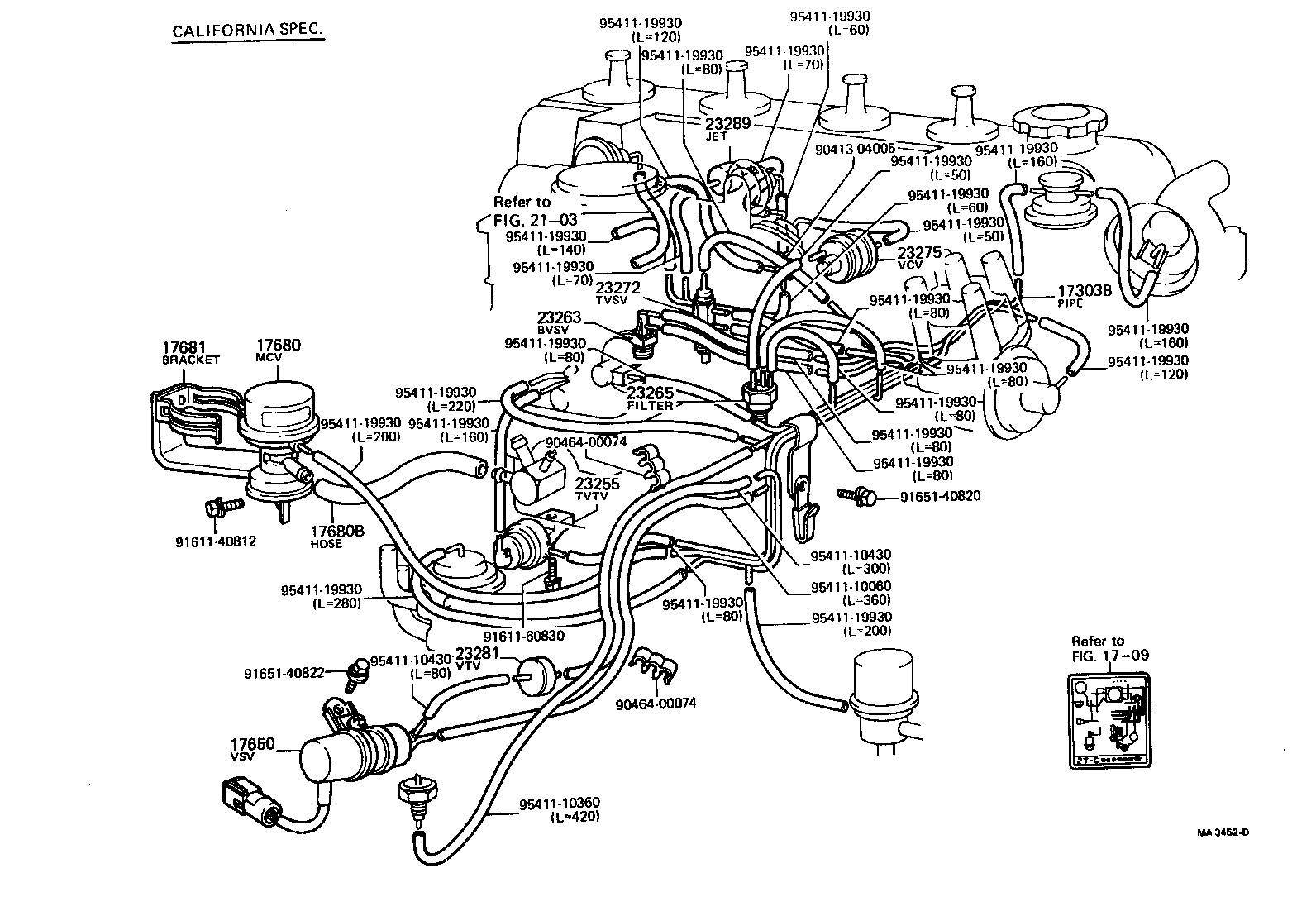

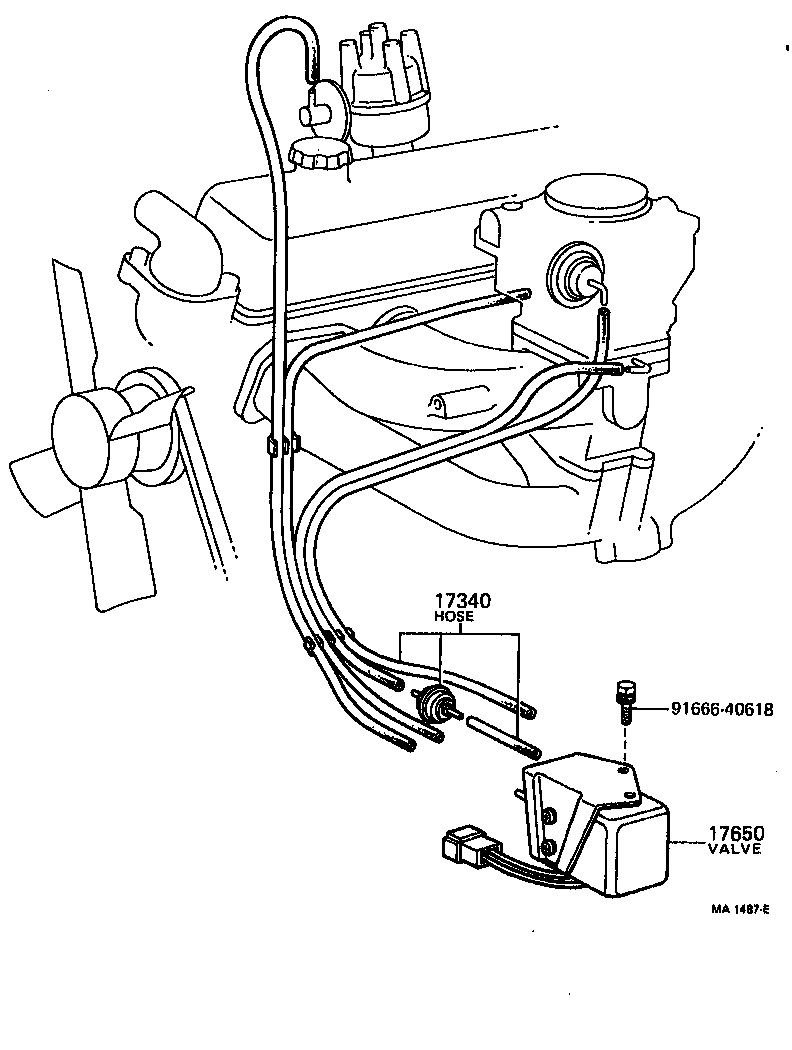

Figure MA9502 MA9502 1974-08 → 1979-08 Figure MA1487E MA1487E 1974-08 → 1975-08 Figure MA1906G MA1906G 1975-08 → 1977-08 Figure MA1906G MA1906G 1977-08 → 1979-08 Figure MA2355D MA2355D 1976-08 → 1977-08 Figure MA3006E MA3006E 1977-08 → 1978-08 Figure MA3440C MA3440C 1978-08 → 1979-08 Figure MA3441C MA3441C 1978-08 → 1979-08 Figure MA2353 MA2353 1976-08 → 1977-08 Figure MA2353 MA2353 1977-08 → 1979-08 Figure MA9502 MA9502 1974-08 → 1979-08 Figure MA1488B MA1488B 1974-08 → 1975-08 Figure MA1490C MA1490C 1974-08 → 1976-08 Figure MA2397B MA2397B 1976-08 → 1979-08 Figure MA1489D MA1489D 1974-08 → 1975-08 Figure MA1909D MA1909D 1975-08 → 1977-01 Figure MA2667B MA2667B 1977-01 → 1979-08 Figure MA2372E MA2372E 1976-08 → 1977-08 Figure MA3024C MA3024C 1977-08 → 1978-08 Figure MA1491E MA1491E 1974-08 → 1975-08 Figure MA1908C MA1908C 1975-08 → 1976-08 Figure MA2373D MA2373D 1976-08 → 1978-08 Figure MA2374E MA2374E 1976-08 → 1978-08 Figure MA2375C MA2375C 1976-08 → 1978-08 Figure MA3451B MA3451B 1978-08 → 1979-08 Figure MA3452D MA3452D 1978-08 → 1979-08 Figure MA3453B MA3453B 1978-08 → 1979-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17680C Clamp OR Clip(FOR MIXTURE CONTROL VALVE HOSE)
17681 Bracket, Mixture Control Valve
17794A Plate, Name
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23264 Valve, Bimetal Vacuum Switching, NO.3
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23273 Valve, Thermostatic Vacuum Switching, NO.3
23275 Valve, Vacuum Control, NO.1
23278 Filter(FOR VACUUM CONTROL VALVE)
23279 Cap(FOR VACUUM CONTROL VALVE)
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
23289 Jet, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
