Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

17 part groups · 5 illustrations

Illustrations

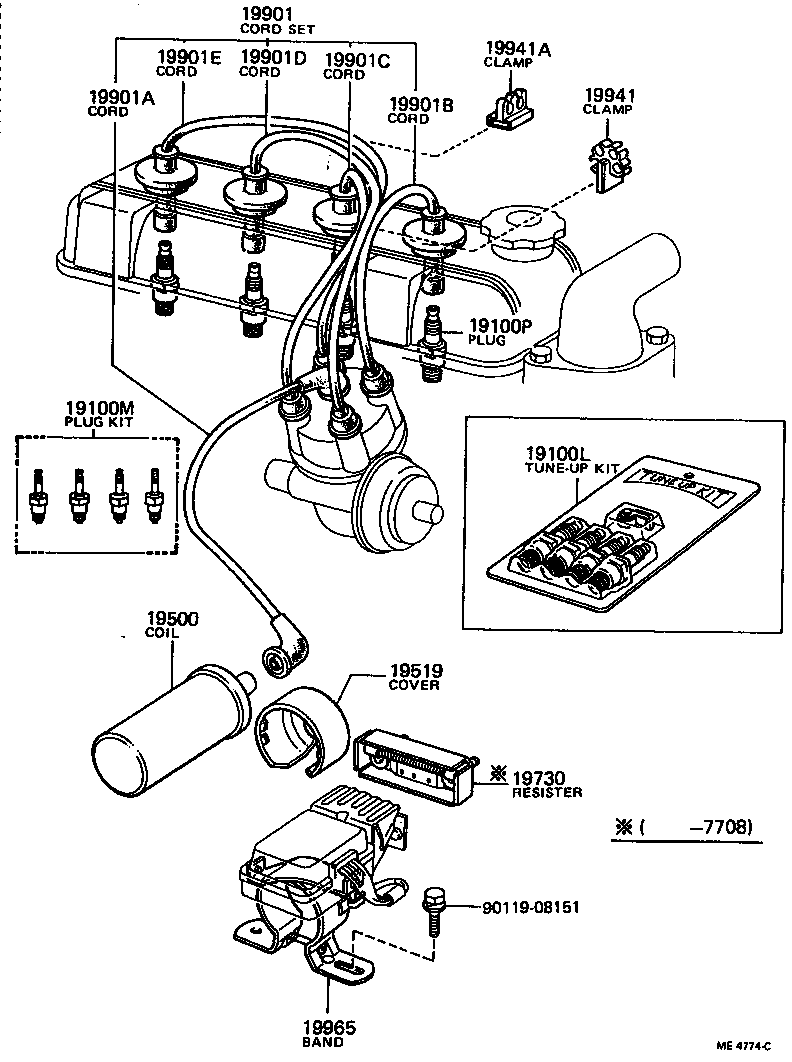

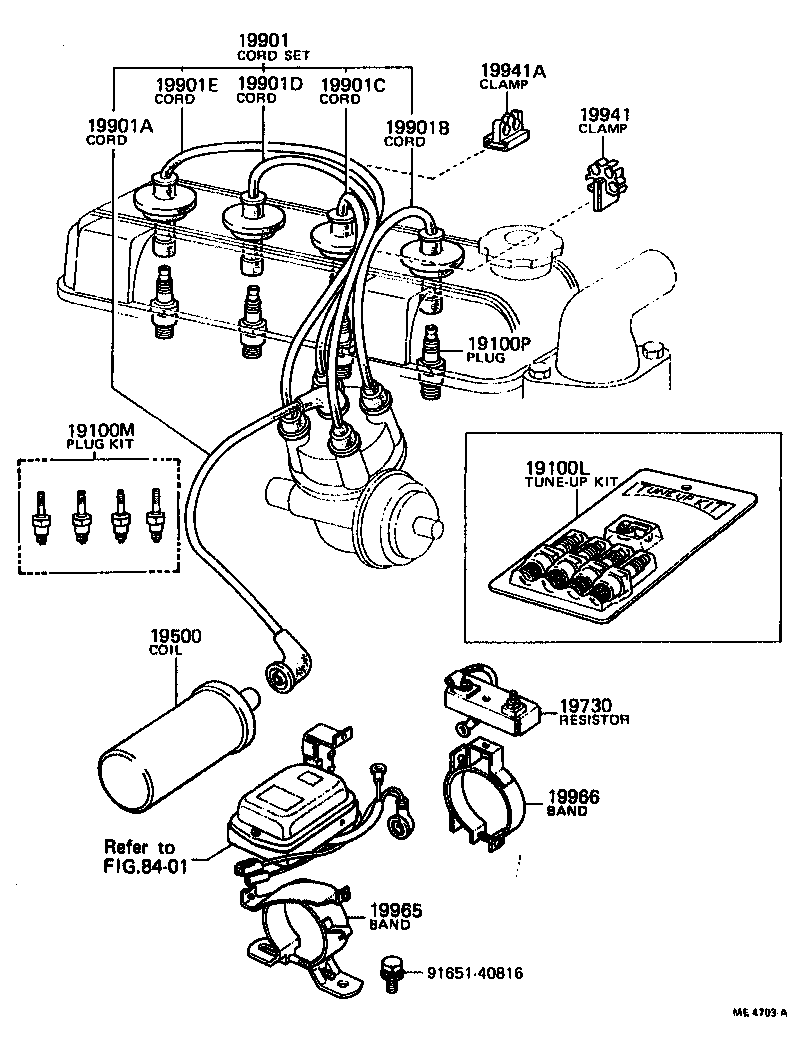

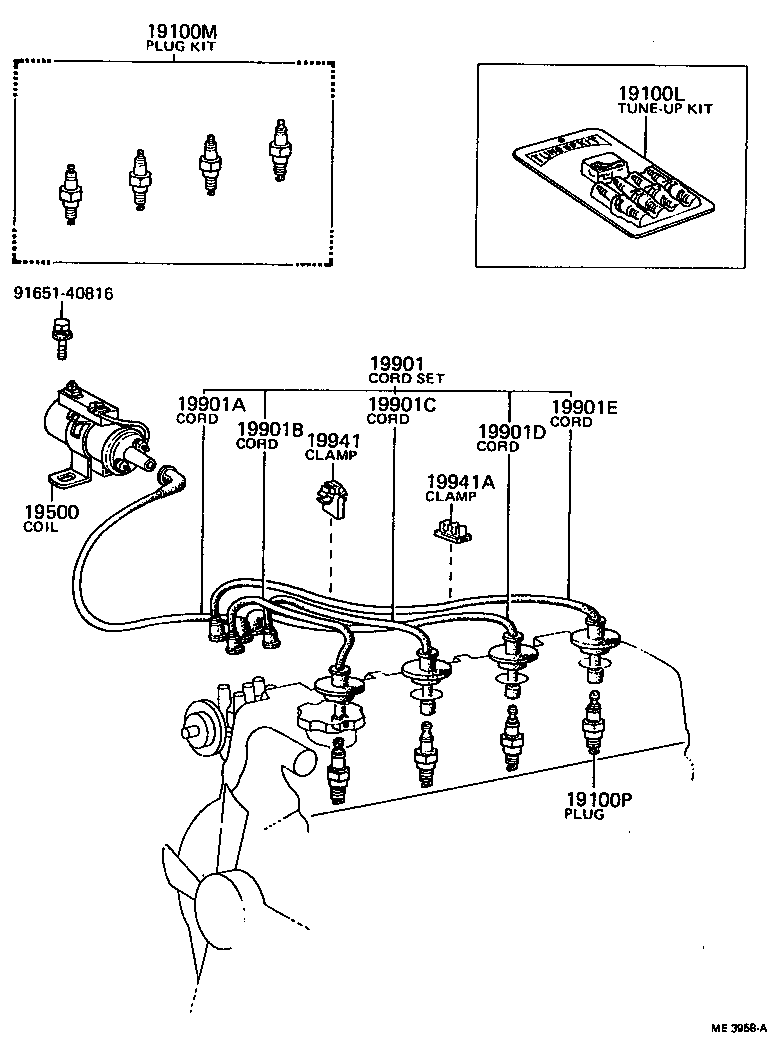

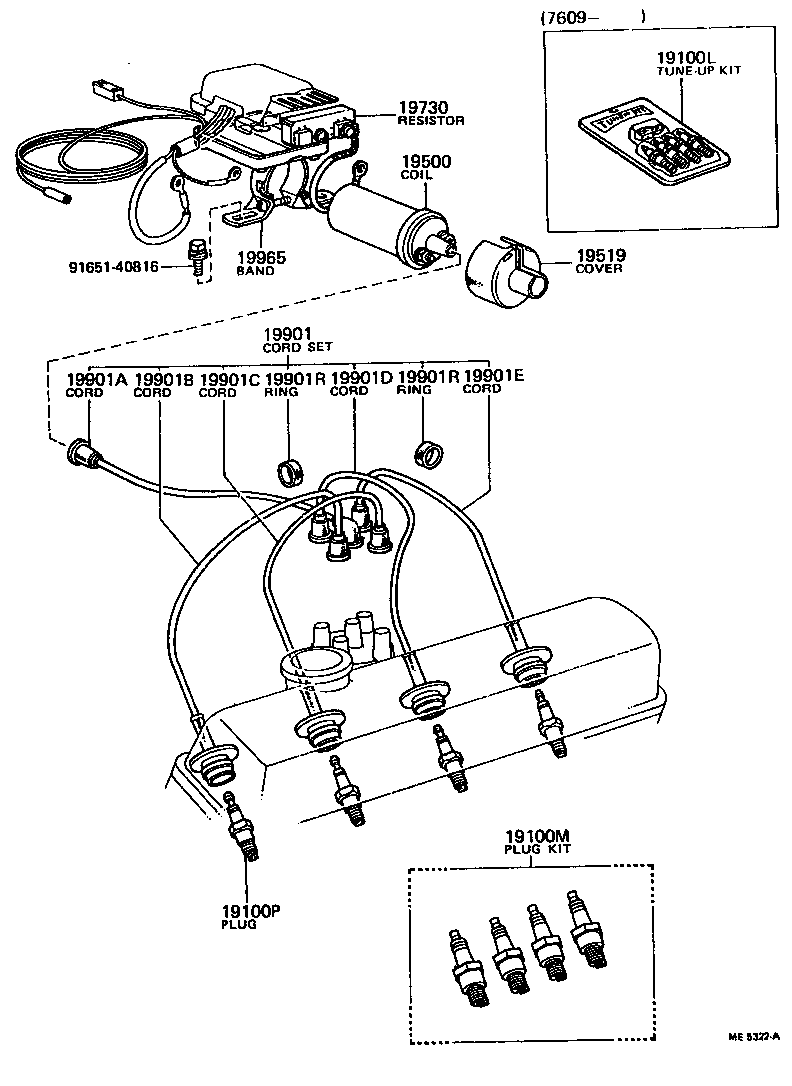

Figure ME3957F ME3957F 1974-08 → 1979-08 Figure ME5322A ME5322A 1976-08 → 1979-08 Figure ME3958A ME3958A 1974-08 → 1975-08 Figure ME4703A ME4703A 1975-08 → 1976-05 Figure ME4774C ME4774C 1976-05 → 1979-08

Part groups

PNCDescription
19100L Tune-up Kit
19100M Plug Kit, Spark
19100P Plug, Spark
19500 Coil Assy, Ignition
19519 Cover, Ignition Coil
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901R Ring, Rubber Spark Plug Resistive Cord
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19965 Band, Ignition Coil, NO.1
19966 Band, Ignition Coil, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
