Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

11 part groups · 4 illustrations

Illustrations

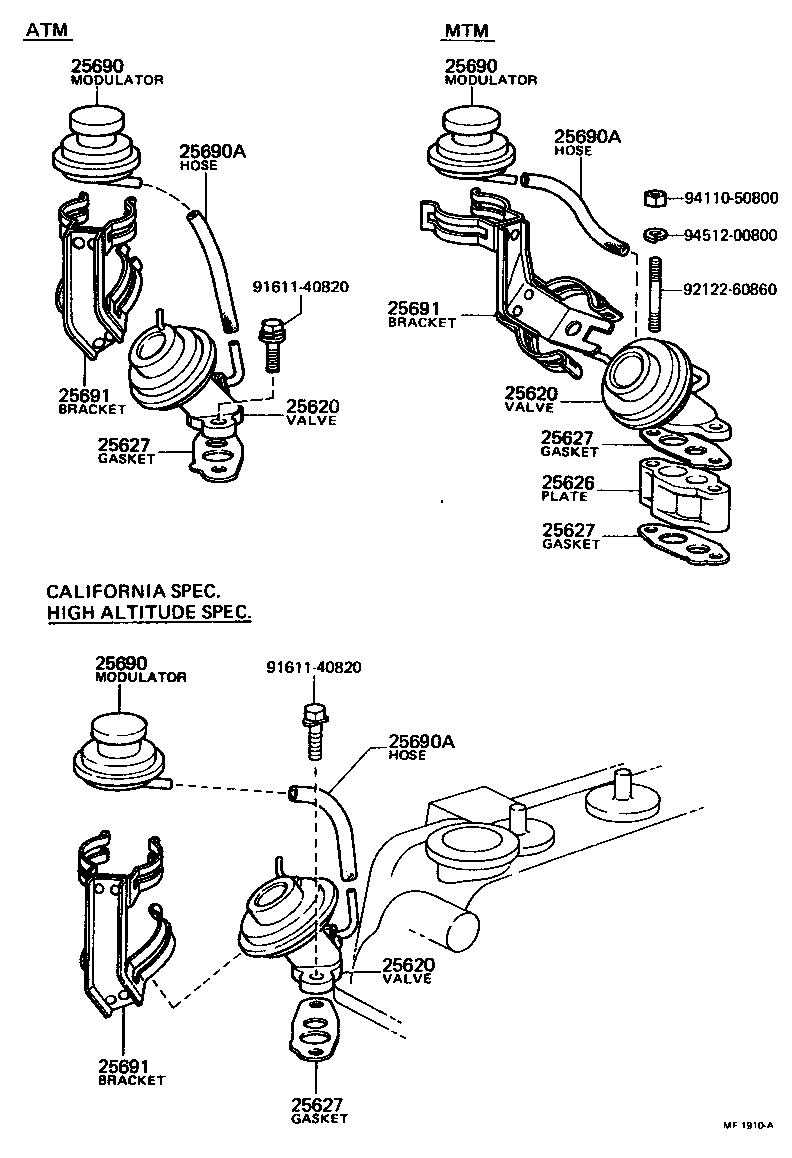

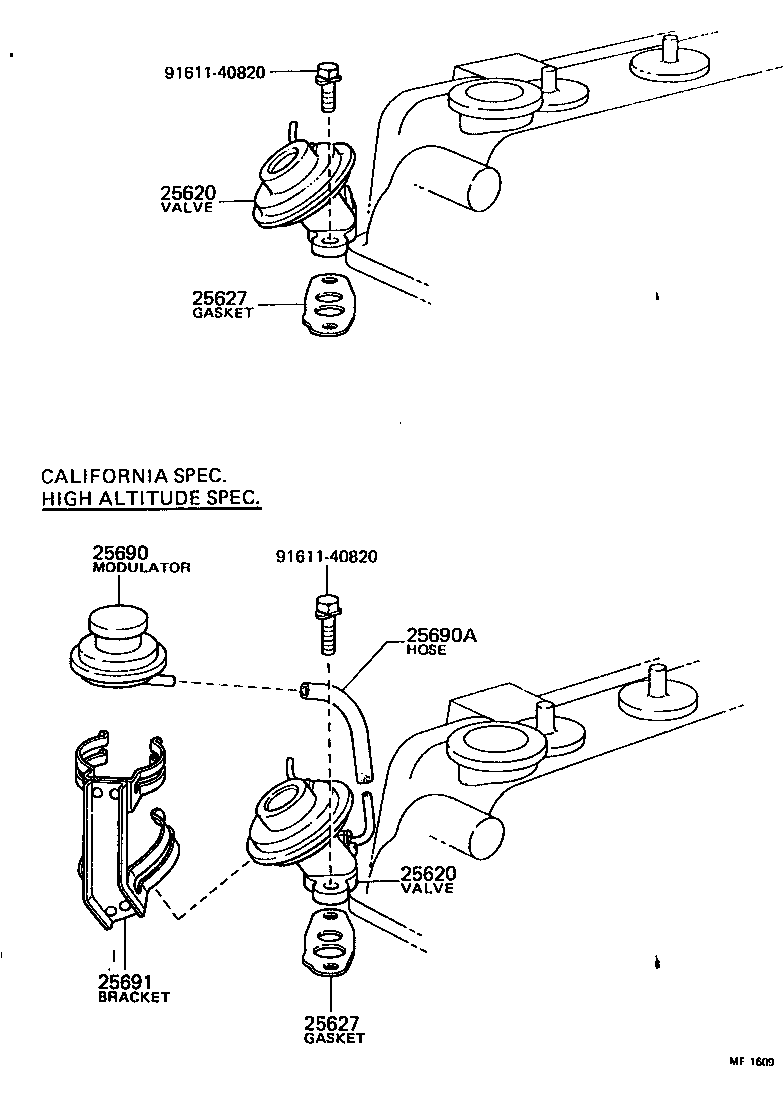

Figure MF1597B MF1597B 1976-08 → 1979-08 Figure MF1609 MF1609 1976-08 → 1977-08 Figure MF1910A MF1910A 1977-08 → 1978-08 Figure MF2068 MF2068 1978-08 → 1979-08

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25602 Pipe Sub-assy, Egr, NO.2
25602C Sleeve, Ball(FOR EGR PIPE, NO.2)
25602D Nut, Union(FOR EGR PIPE, NO.2)
25602F Union(FOR EGR PIPE, NO.2)
25620 Valve Assy, Egr
25626 Plate, Egr Orifice
25627 Gasket, Egr Valve
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
