Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

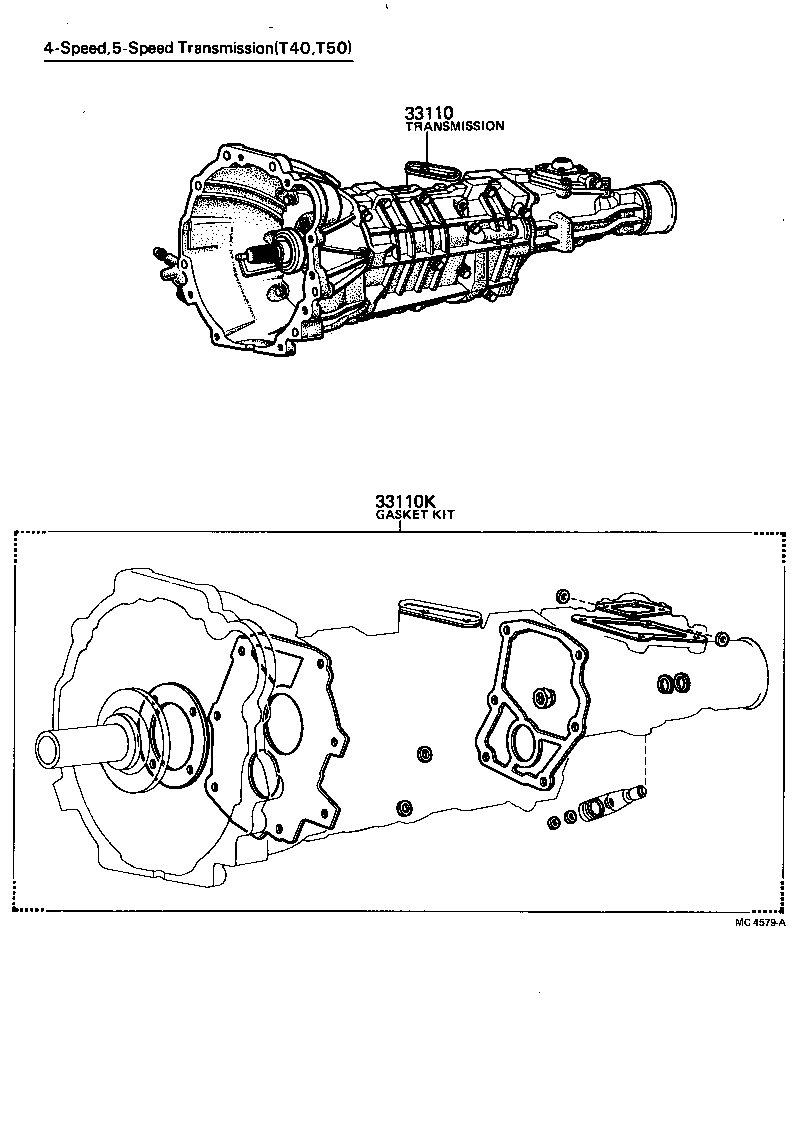

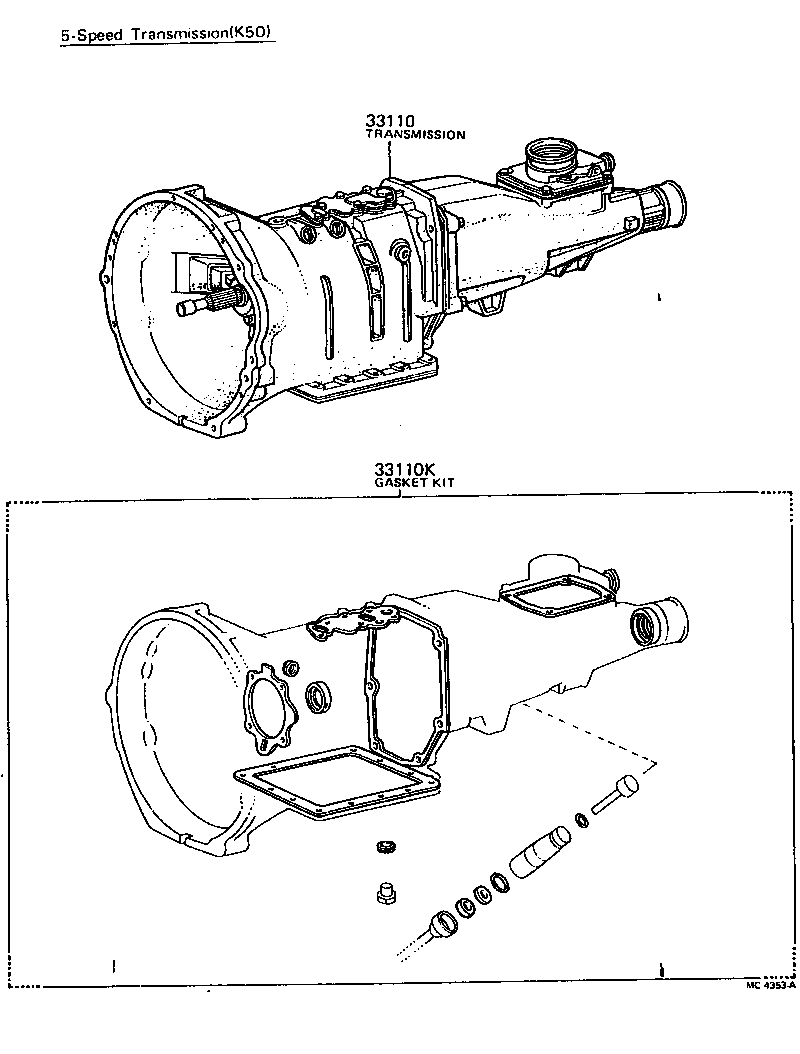

Figure MC4575A MC4575A 1974-08 → 1979-08 Figure MC4353A MC4353A 1976-08 → 1979-08 Figure MC4579A MC4579A 1974-08 → 1979-08

Part groups

PNCDescription
33110 Transmission Assy, Manual
33110K Gasket Kit, Manual Transmission Overhaul
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
