Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

12 part groups · 3 illustrations

Illustrations

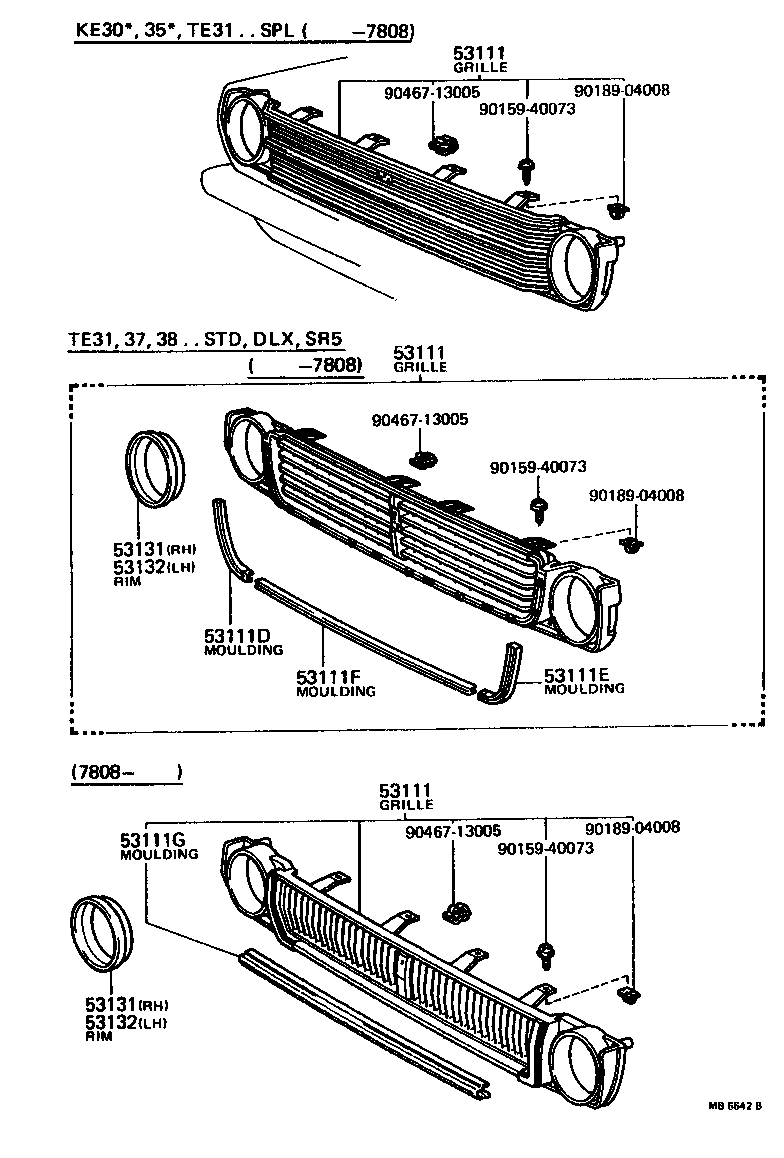

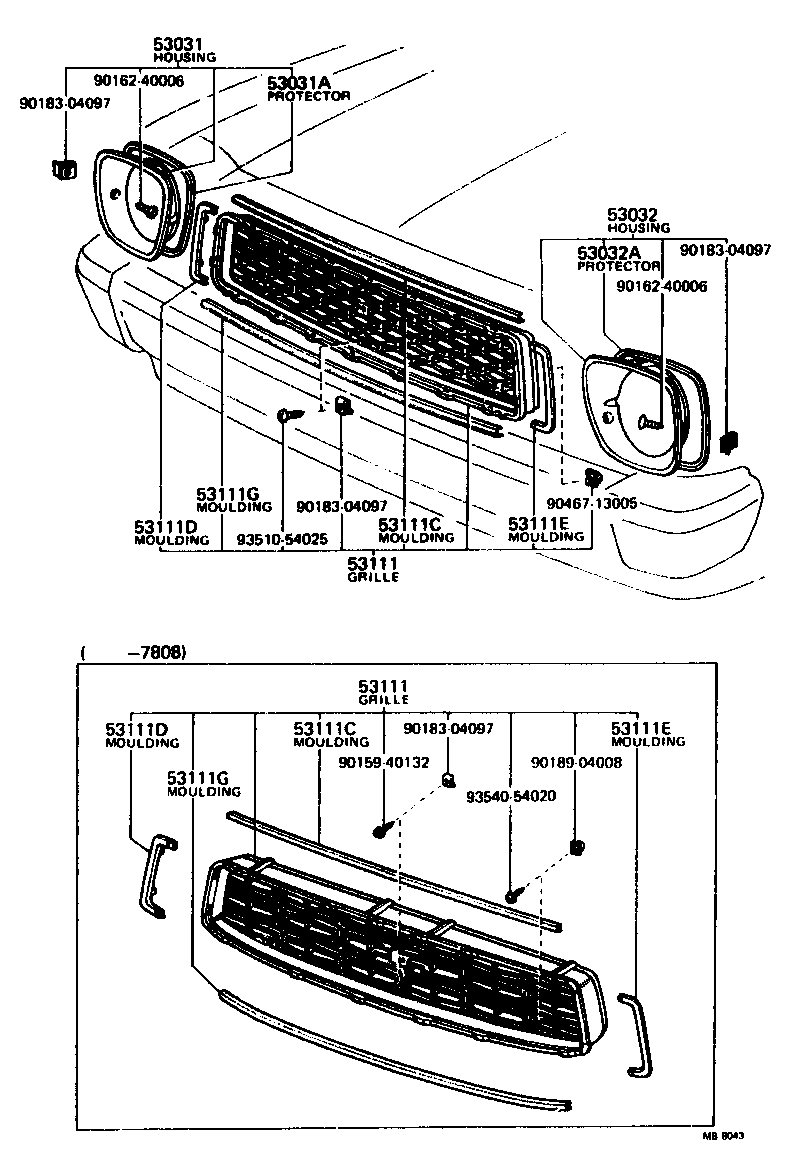

Figure MB6013A MB6013A 1974-08 → 1977-01 Figure MB6642B MB6642B 1977-01 → 1979-08 Figure MB8043 MB8043 1976-03 → 1979-08

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53031A Protector, Headlamp Door, RH
53032 Housing, Headlamp, LH
53032A Protector, Headlamp Door, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53111F Moulding, Radiator Grille, Center
53111G Moulding, Radiator Grille, Lower
53131 Rim, Headlamp, RH
53132 Rim, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
