Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

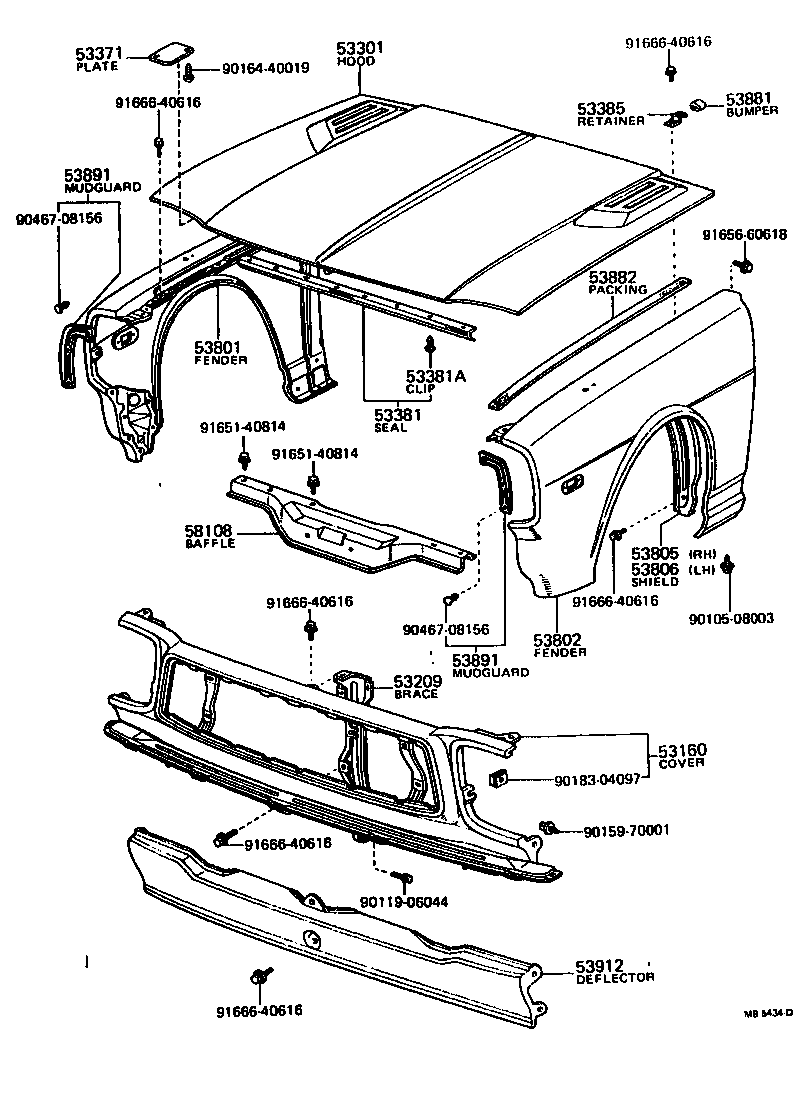

Hood & Front Fender
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53160 | Cover Assy, Radiator |
| 53209 | Brace Sub-assy, Hood Lock |
| 53301 | Hood Sub-assy |
| 53371 | Plate, Radio Interference Suppressive |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53385 | Retainer, Hood, Bumper |
| 53801 | Fender Sub-assy, Front RH |
| 53801C | Extension, Front Wing, RH |
| 53801E | Brace, Front Fender TO Apron, RH |
| 53802 | Fender Sub-assy, Front LH |
| 53802C | Extension, Front Wing, LH |
| 53802E | Brace, Front Fender TO Apron, LH |
| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |

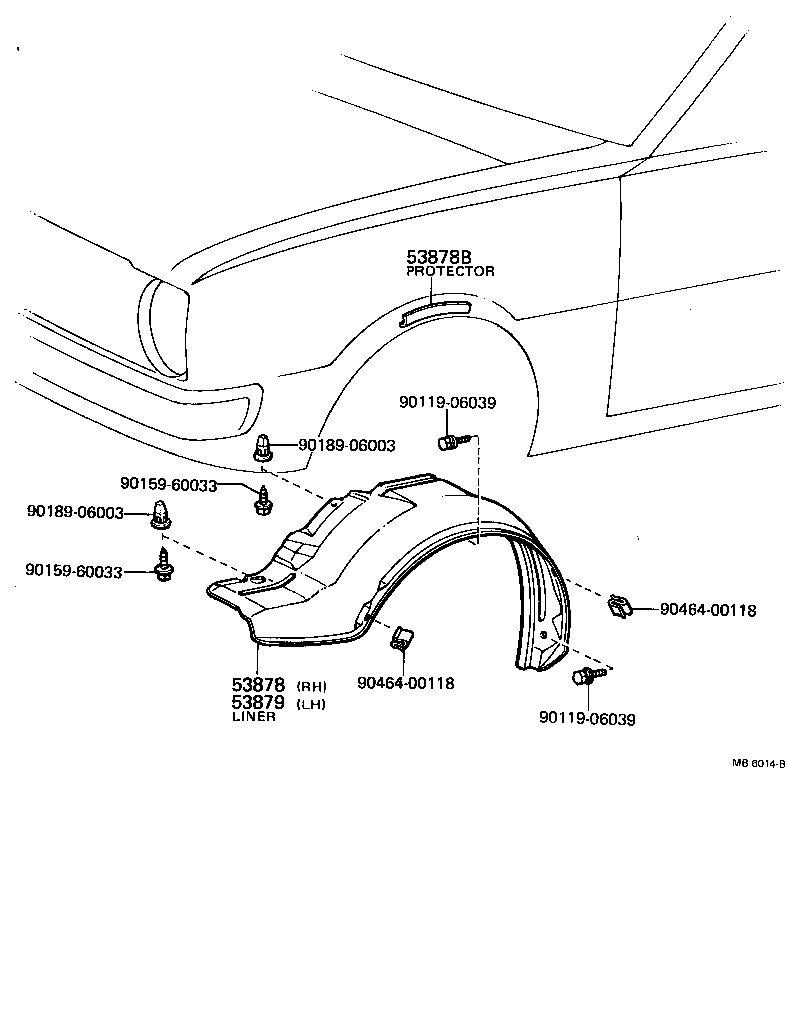

| 53878 | Liner, Front Fender, RH |
| 53878B | Protector, Front Fender Liner |
| 53879 | Liner, Front Fender, LH |
| 53881 | Bumper, Fender TO Hood |
| 53882 | Packing, Front Fender Main |
| 53891 | Mudguard, Front Fender TO Side Baffle |
| 53912 | Deflector, Front Bumper Stone |
| 58108 | Baffle Sub-assy, Radiator Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
