Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

17 part groups · 3 illustrations

Illustrations

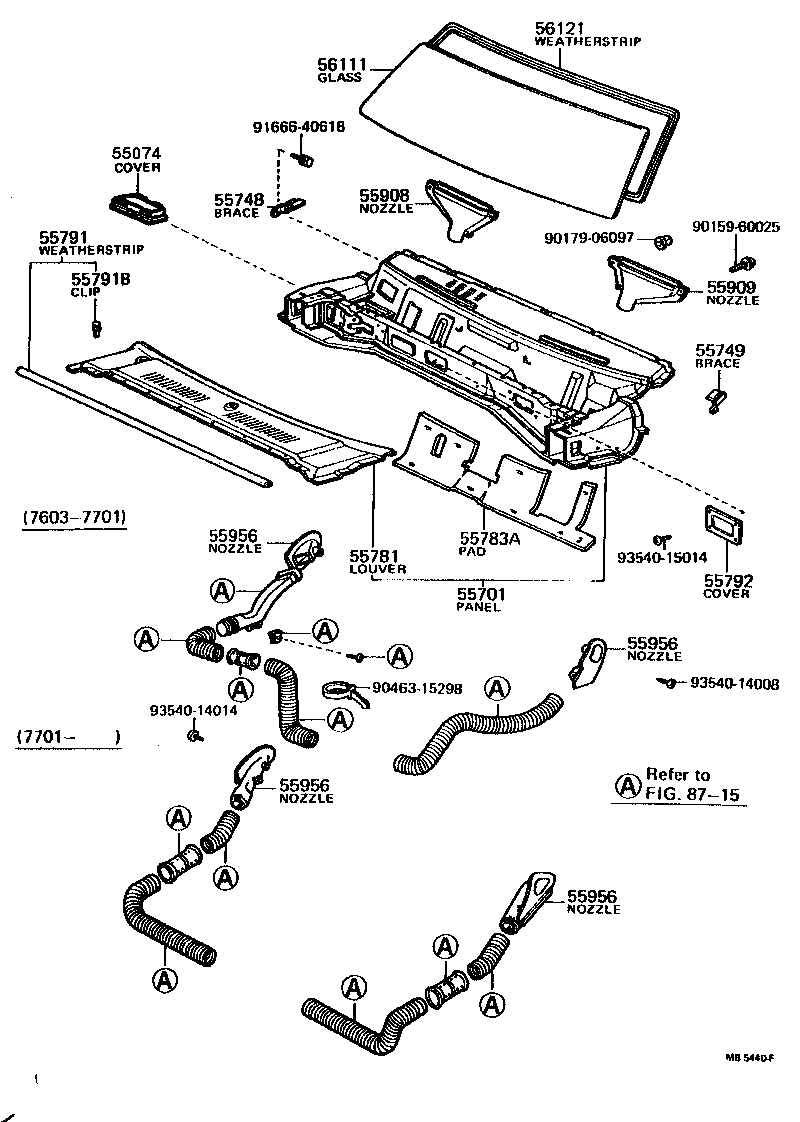

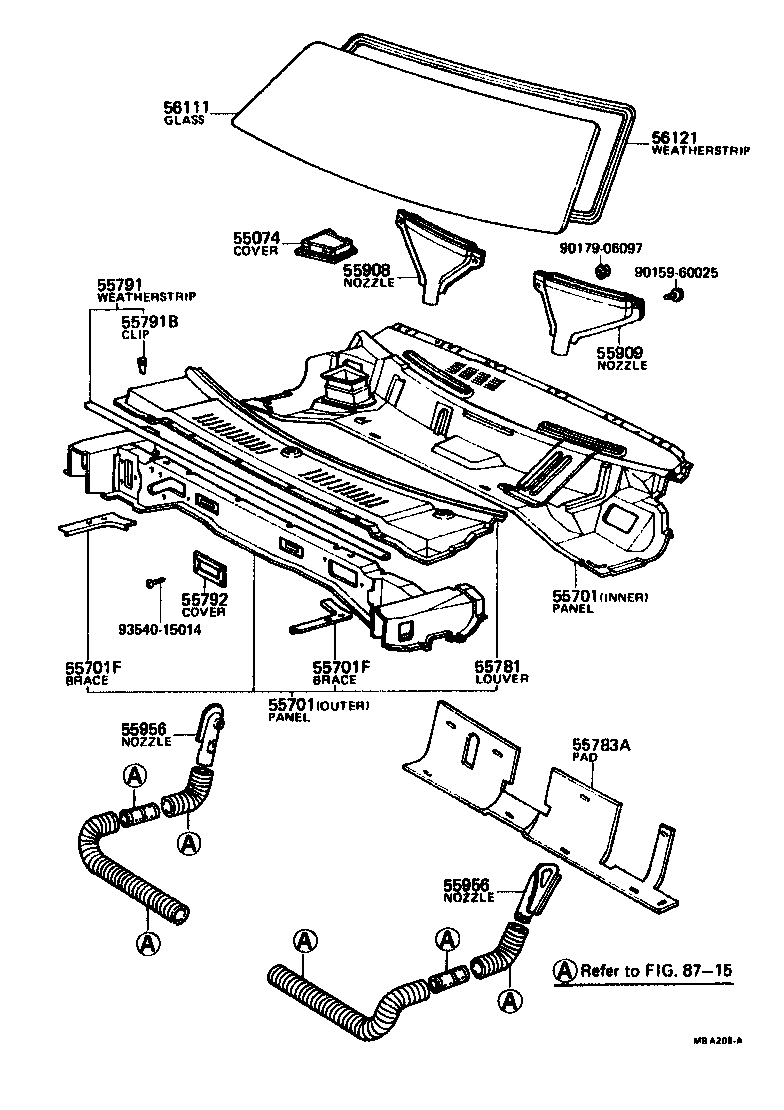

Figure MB9418F MB9418F 1974-08 → 1979-08 Figure MB5440F MB5440F 1976-03 → 1979-02 Figure MBA208A MBA208A 1979-02 → 1979-08

Part groups

PNCDescription
55073 Nozzle Sub-assy, Cowl Panel Water Extract
55073A Hose(FOR EXTRACT NOZZLE)
55074 Cover Sub-assy, Cowl Inner Heater Air
55701 Panel Sub-assy, Cowl
55701F Brace, Cowl Top TO Apron
55748 Brace, Cowl Top TO Pillar, RH
55749 Brace, Cowl Top TO Pillar, LH
55781 Louver, Cowl Ventilator
55783A Pad, Cowl Top Silencer
55791 Weatherstrip, Hood TO Cowl Top
55791B Clip(FOR HOOD TO COWL TOP WEATHERSTRIP)
55792 Cover, Wiper Motor Service Hole
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
55956 Nozzle, Side Defroster
56111 Glass, Windshield
56121 Weatherstrip, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
