Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

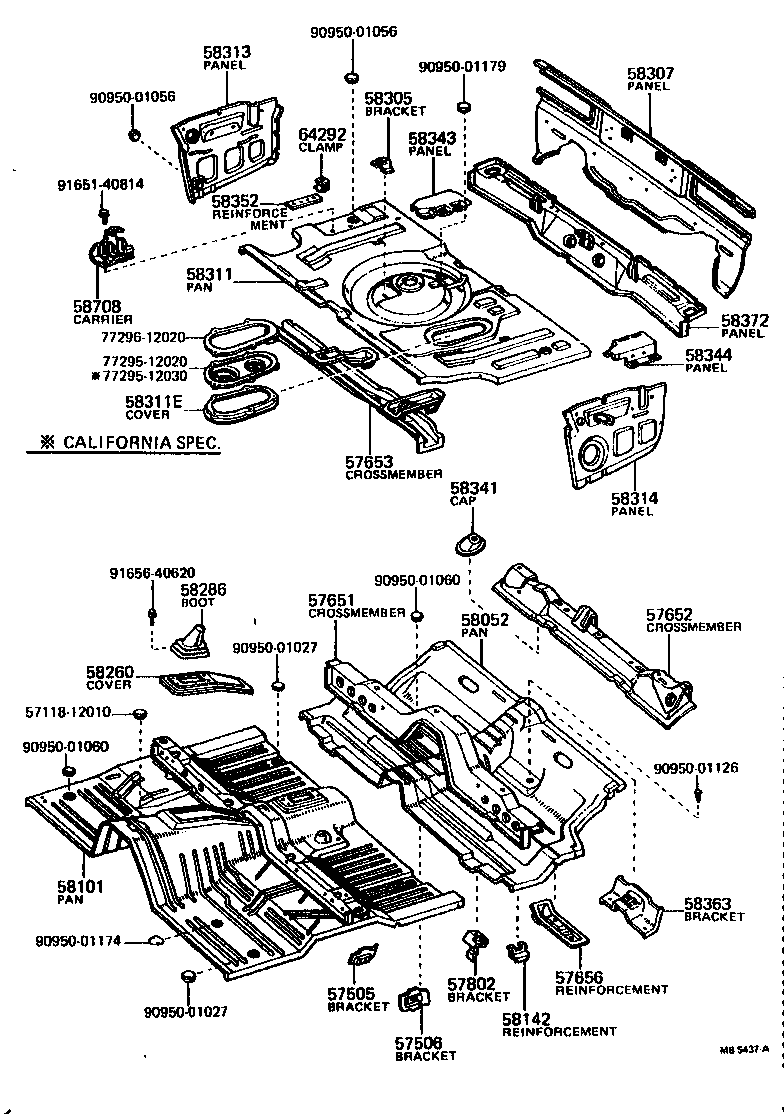

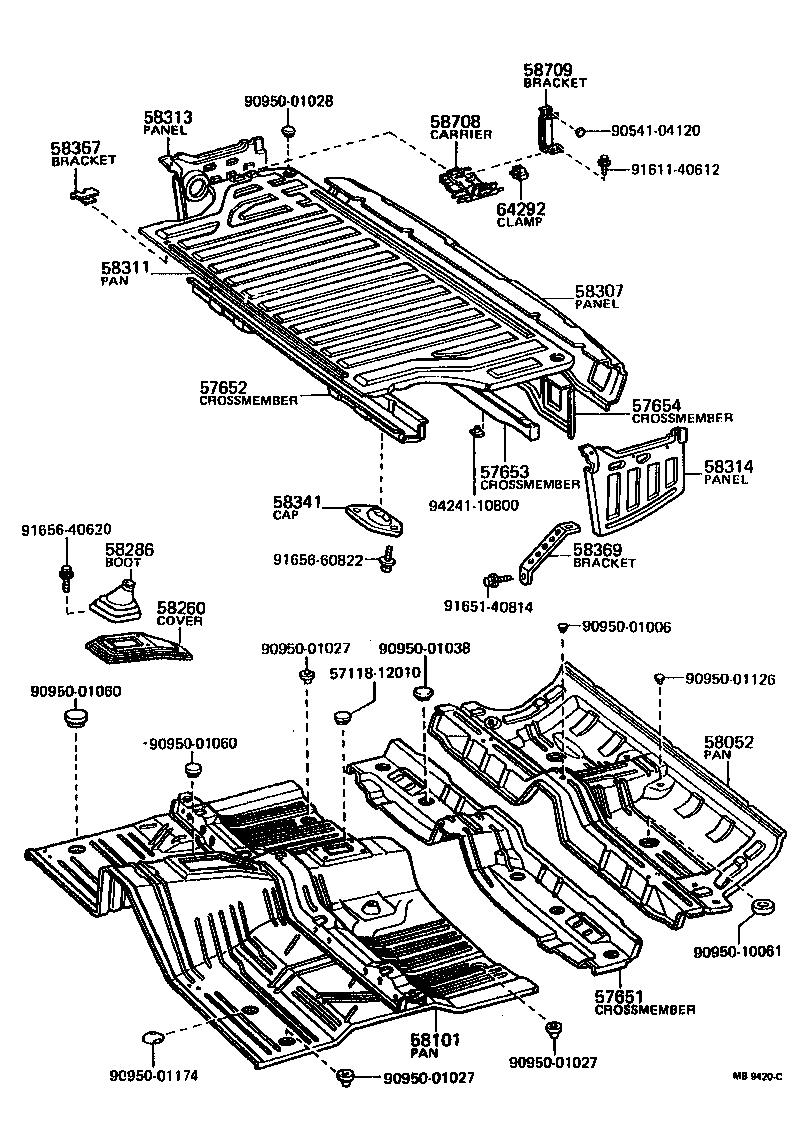

Floor Pan & Lower Back Panel
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57505 | Bracket Sub-assy, Parking Brake, NO.1 |
| 57506 | Bracket Sub-assy, Parking Brake, NO.2 |
| 57637 | Reinforcement, Rear Floor Side Member TO Wheel House, RH |
| 57638 | Reinforcement, Rear Floor Side Member TO Wheel House, LH |
| 57651 | Crossmember, Rear Floor, Front |
| 57652 | Crossmember, Rear Floor, NO.2 |
| 57653 | Member, Rear Floor Cross, NO.3 |
| 57654 | Member, Rear Floor Cross, NO.4 |
| 57656 | Reinforcement, Exhaust Pipe Hanger Support |
| 57675 | Bracket, Muffler Hanger Support, NO.1 |
| 57676 | Bracket, Muffler Hanger Support, NO.2 |
| 57802 | Bracket Sub-assy, Brake Tube, NO.1 |
| 58052 | Pan Sub-assy, Center Floor |
| 58101 | Pan Sub-assy, Front Floor |
| 58142 | Reinforcement, Floor Side Member TO Floor Pan |
| 58260 | Cover Assy, Transmission, Front |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58311E | Cover, Rear Floor Service Hole |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58341 | Cap, Rear Shock Absorber |
| 58343 | Panel, Rear Floor Side, Rear RH |
| 58344 | Panel, Rear Floor Side, Rear LH |
| 58352 | Reinforcement, Jack Clamp |
| 58361 | Reinforcement, Rear Floor Pan TO Body Lower Back, RH |
| 58362 | Reinforcement, Rear Floor Pan TO Body Lower Back, LH |
| 58363 | Bracket Sub-assy, Diff Carrier Bumper |
| 58367 | Bracket, Fuel Tube Clamp |
| 58369 | Bracket, Insulator Heat |
| 58372 | Panel, Body Lower Back, Inner |
| 58708 | Carrier Sub-assy, Jack |
| 58709 | Bracket Sub-assy, Jack Clamp |
| 64292 | Clamp, Jack Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
