Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

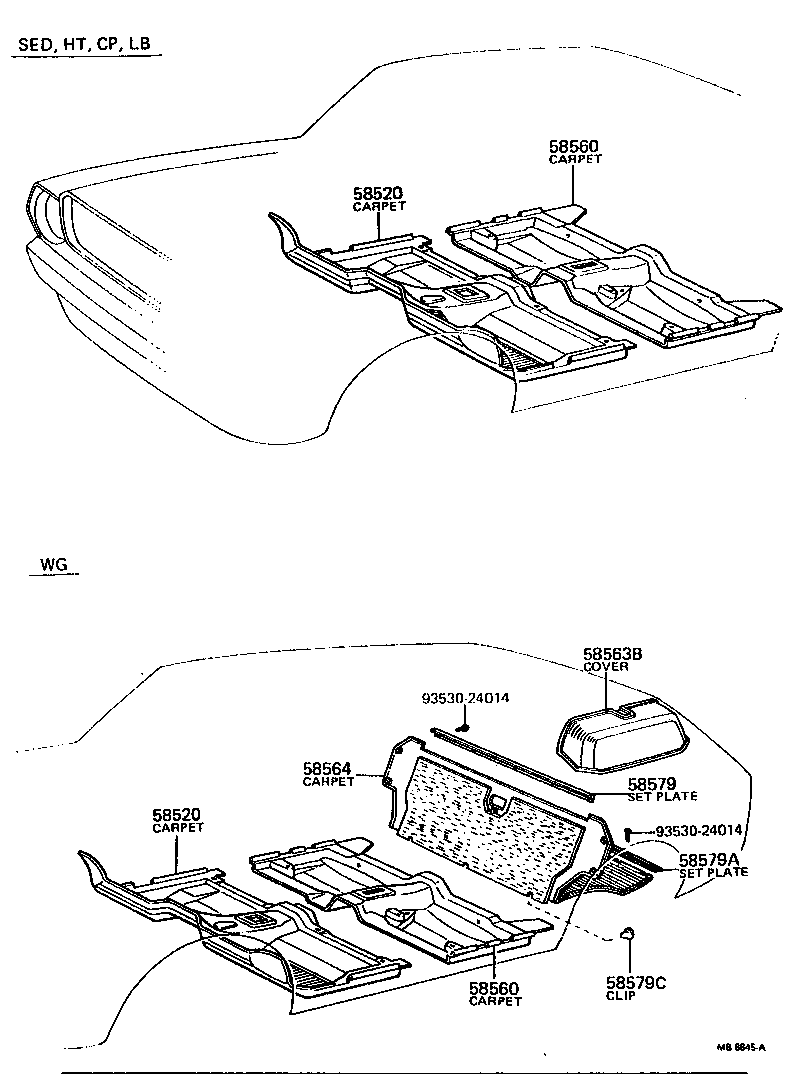

Figure MB9422C MB9422C 1974-08 → 1977-01 Figure MB6645A MB6645A 1977-01 → 1979-08

Part groups

PNCDescription
58520 Carpet Assy, Front Floor
58541 Hook, Male, NO.1(FOR CARPET)
58560 Carpet Assy, Floor, Rear
58563B Cover, Jack
58564 Carpet, Rear Floor
58579 Set Plate, Rear Floor Carpet, NO.1
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
