Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 4 illustrations

Illustrations

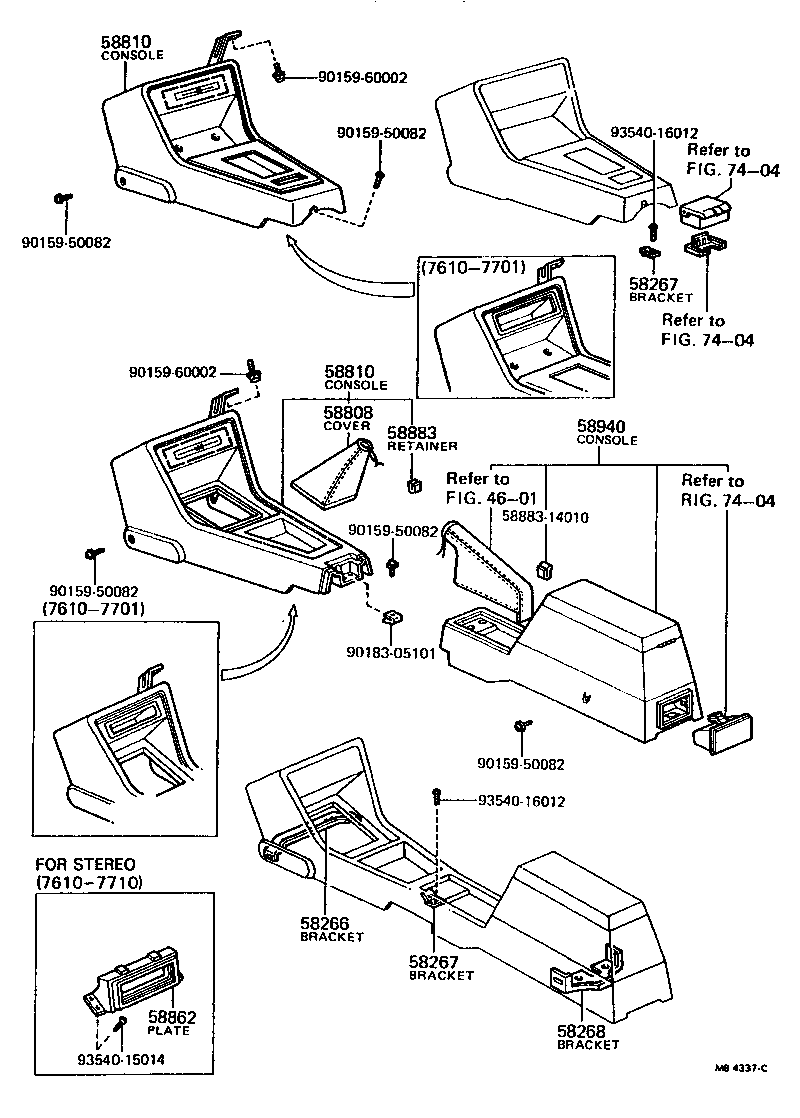

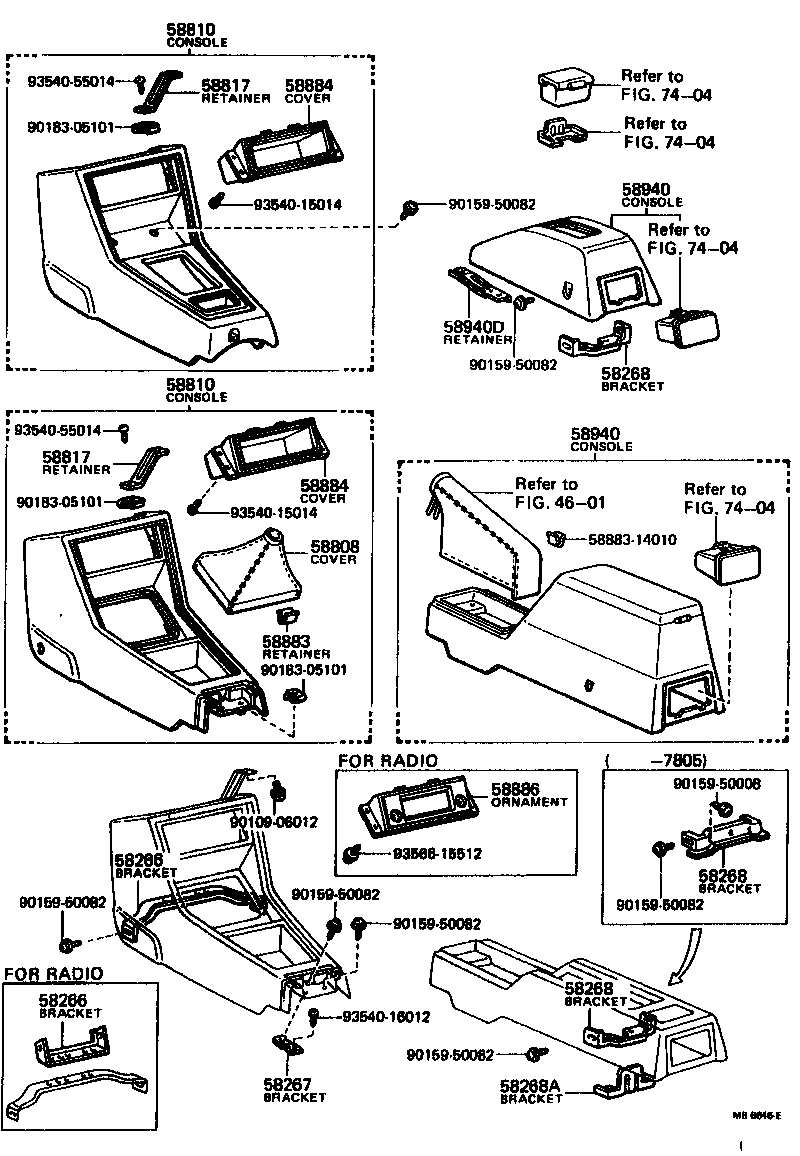

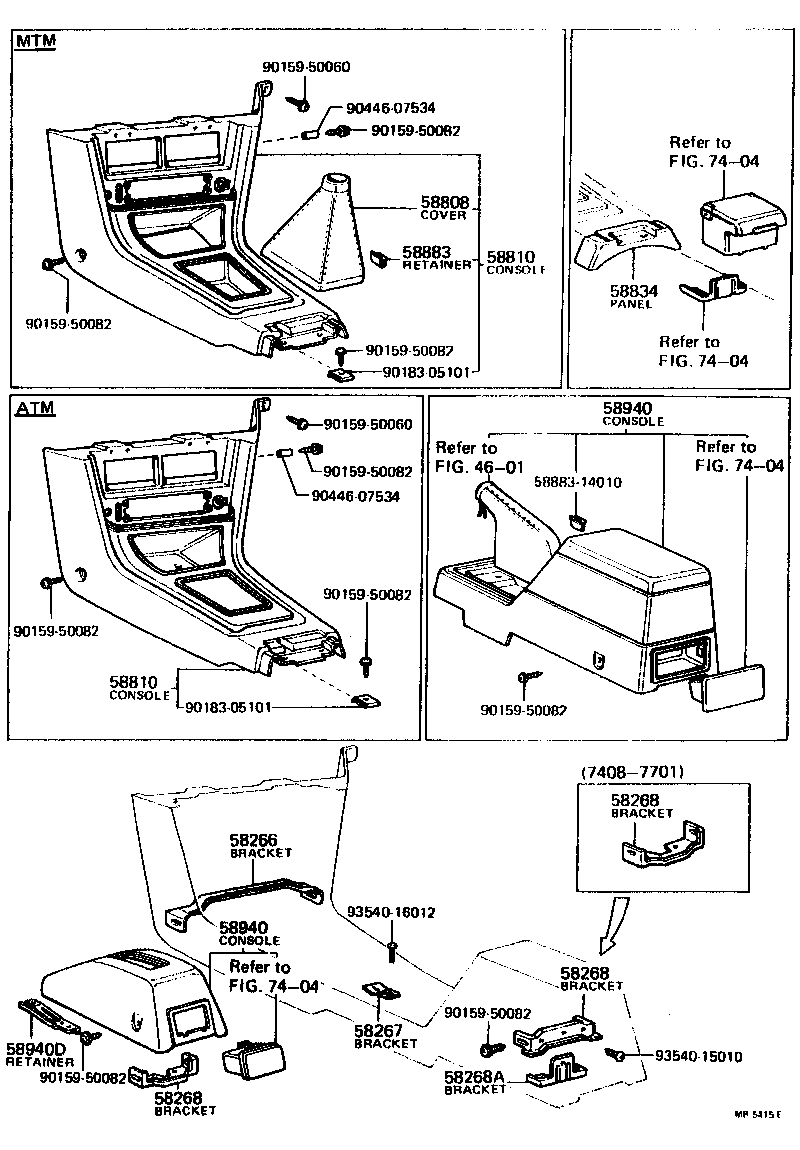

Figure MB4336A MB4336A 1974-08 → 1977-01 Figure MB4337C MB4337C 1974-08 → 1977-01 Figure MB6646E MB6646E 1977-01 → 1979-08 Figure MB5415E MB5415E 1976-03 → 1979-08

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58268A Bracket, Console Box Support, NO.2
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58817 Retainer, Console Panel
58834 Panel, Console End
58862 Plate, Console Finish
58883 Retainer, Shifting Hole Cover
58884 Cover, Stereo Opening
58886 Ornament, Radio Tuner
58934 Ornament, Over Head Console
58940 Console Assy, Rear
58940D Retainer, Parking Brake Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
