Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

10 part groups · 4 illustrations

Illustrations

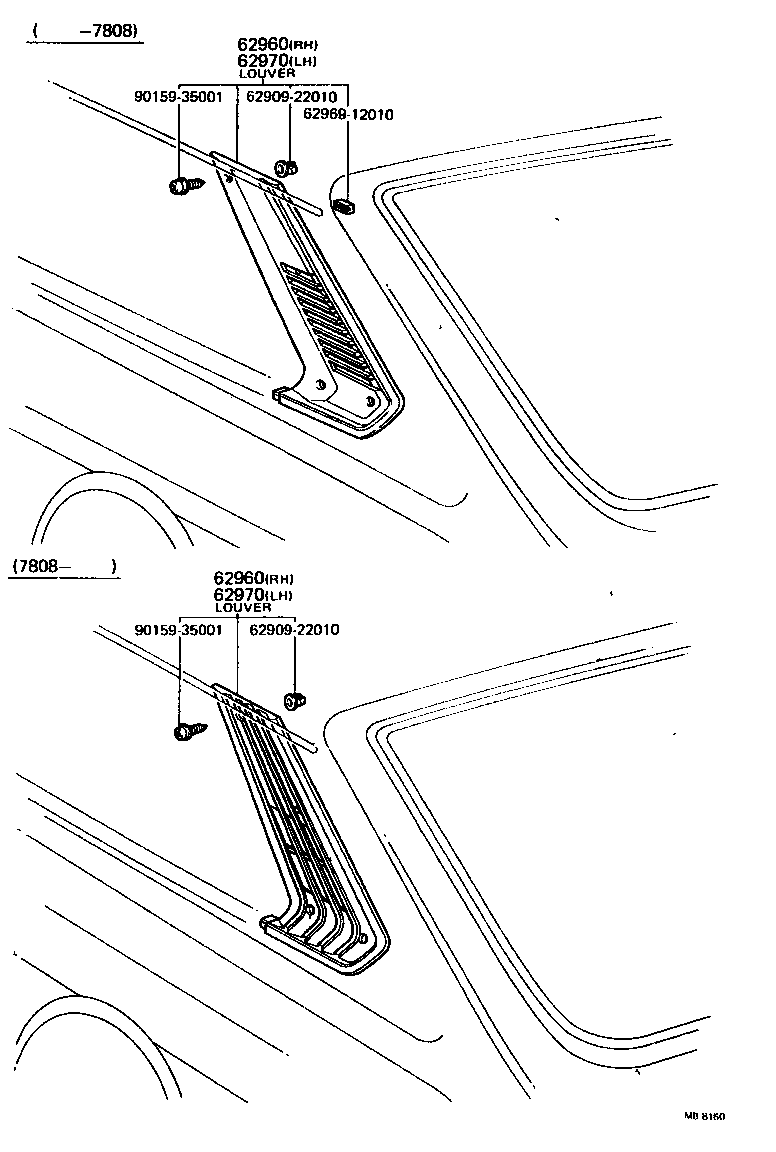

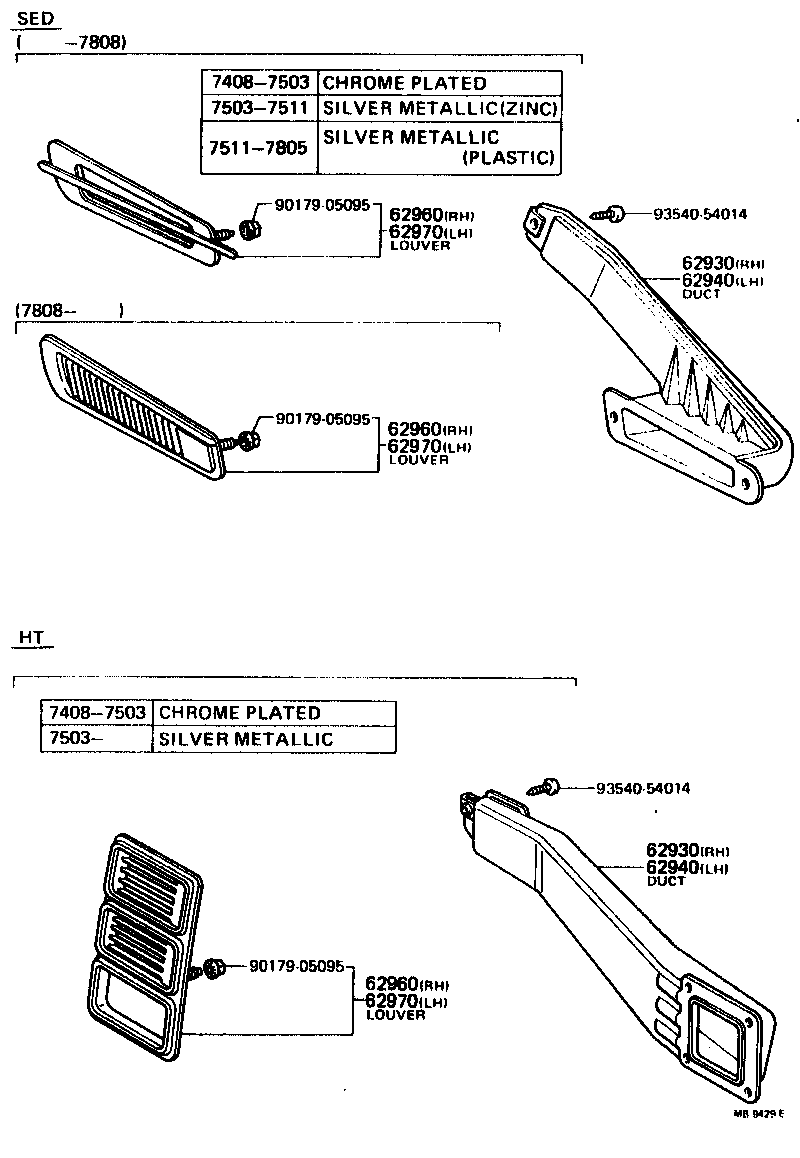

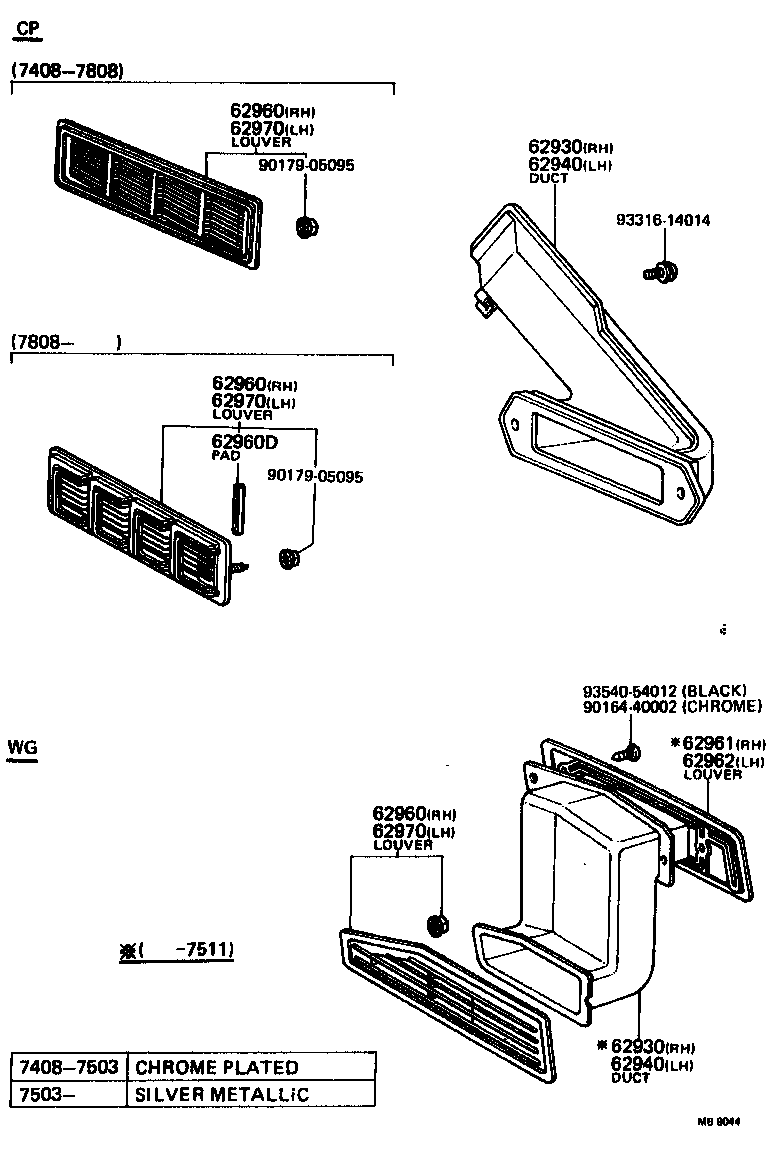

Figure MB6019A MB6019A 1976-08 → 1979-08 Figure MB9429E MB9429E 1974-08 → 1979-08 Figure MB8044 MB8044 1976-03 → 1979-08 Figure MB8160 MB8160 1976-03 → 1979-08

Part groups

PNCDescription
62930 Duct Assy, Roof Side Vent, RH
62940 Duct Assy, Roof Side Vent, LH
62941 Retainer, Roof Side Vent Duct, RH
62960 Louver Assy, Roof Side Vent, RH
62960D Pad, NO.1(FOR ROOF SIDE VENT LOUVER)
62961 Louver, Roof Side Vent Inlet, RH
62962 Louver, Roof Side Vent Inlet, LH
62970 Louver Assy, Roof Side Vent, LH
62998 Cover Sub-assy, Quarter Vent Hole
62998A Cover, Quarter Vent Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
