Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

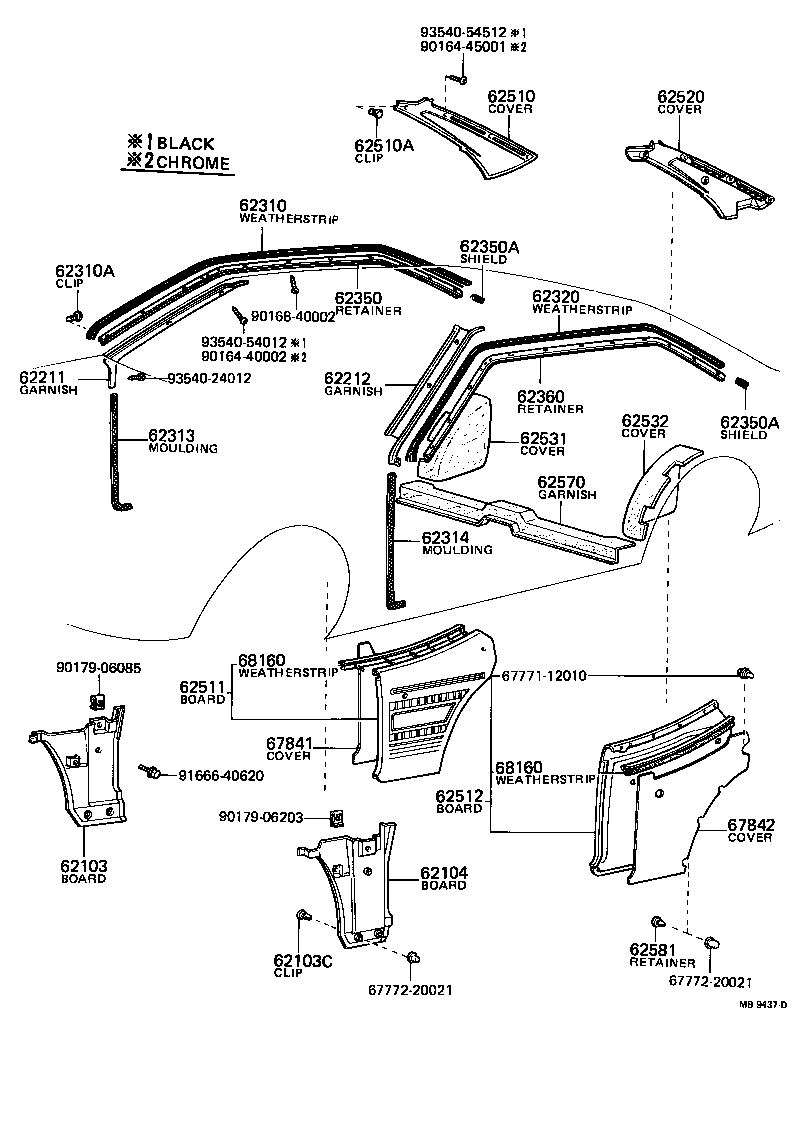

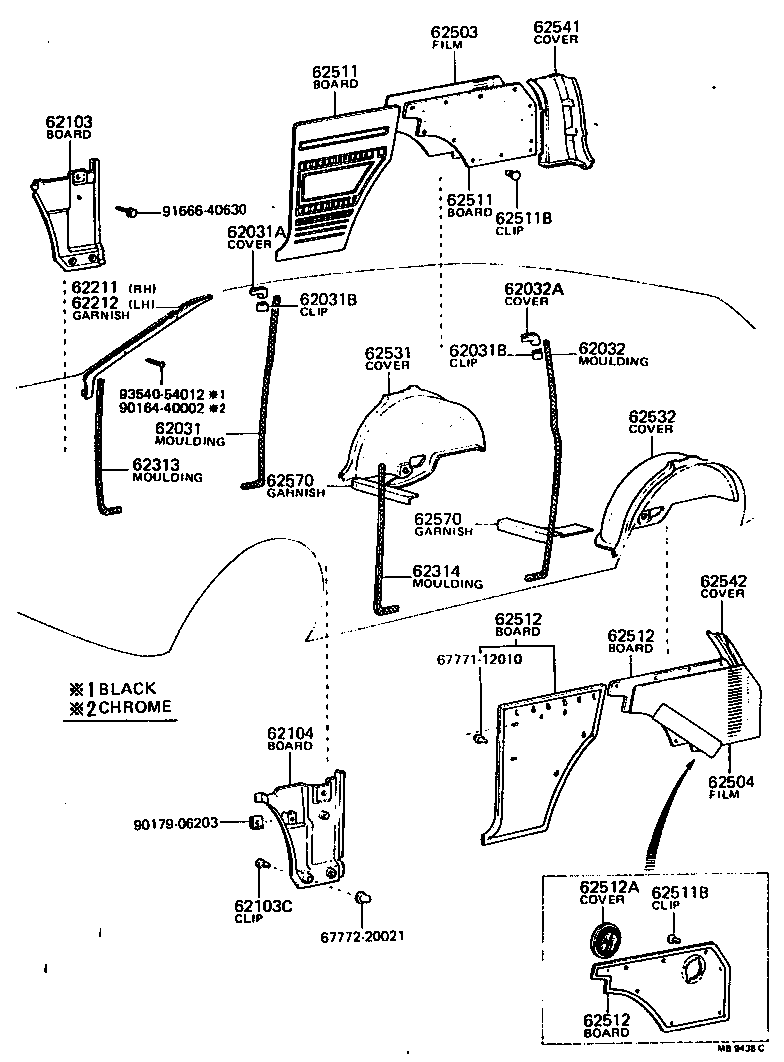

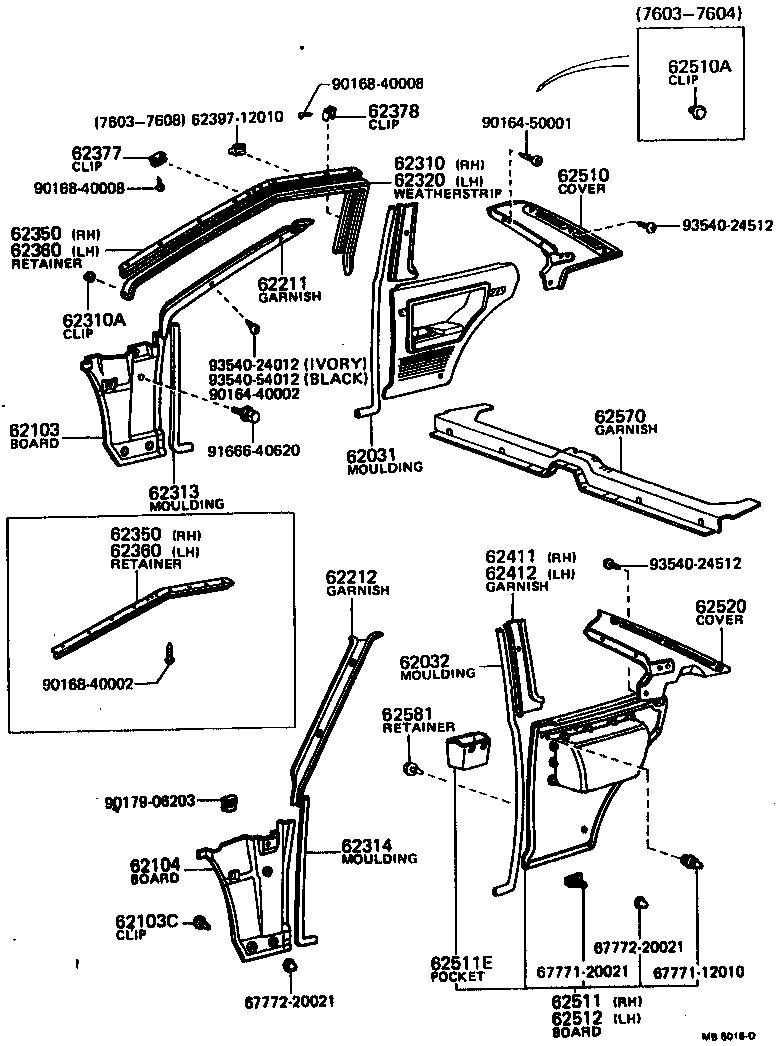

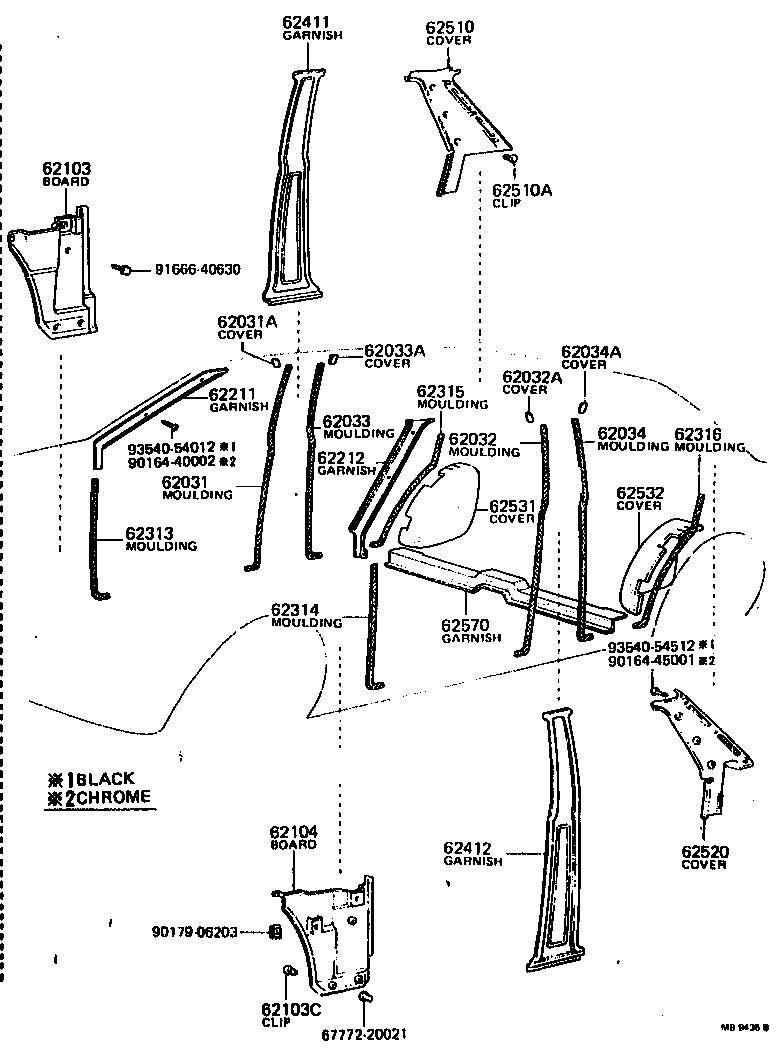

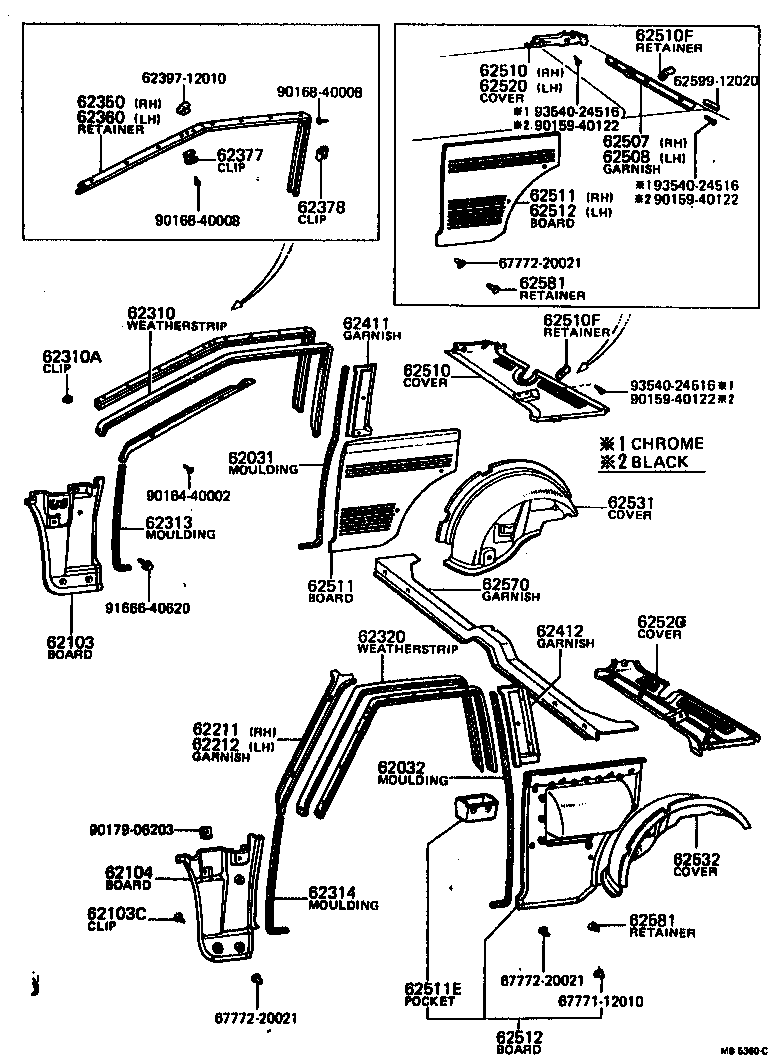

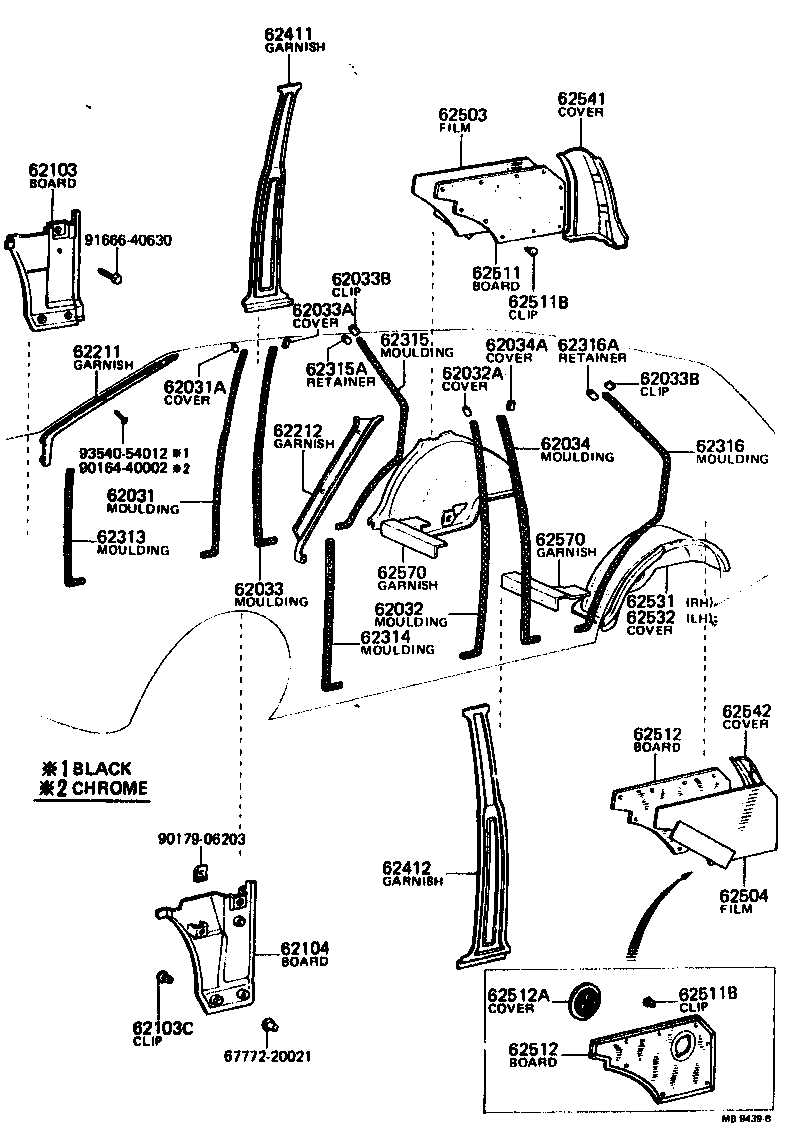

Inside Trim Board & Door Opening Trim Moulding
54 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 62031 | Moulding Sub-assy, Front Door Opening Trim, RH |
| 62031A | Cover, Front Door Opening, RH |
| 62031B | Clip, Front Door Opening Trim |
| 62032 | Moulding Sub-assy, Front Door Opening Trim, LH |
| 62032A | Cover, Front Door Opening, LH |
| 62033 | Moulding Sub-assy, Rear Door Opening Trim, RH |
| 62033A | Cover, Rear Door Opening, RH |
| 62033B | Clip, Rear Door Opening Trim |
| 62034 | Moulding Sub-assy,Rear Door Opening Trim, LH |
| 62034A | Cover, Rear Door Opening, LH |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62315A | Retainer, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62316A | Retainer, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62350 | Retainer Assy, Roof Side Rail Weatherstrip Front, RH |
| 62350A | Shield, Quarter Window Quarter |
| 62360 | Retainer Assy, Roof Side Rail Weatherstrip Front, LH |
| 62377 | Clip, Door Window Glass |
| 62378 | Clip, Door Window Glass |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62503 | Film Sub-assy, Quarter Inside Panel, RH |
| 62504 | Film Sub-assy, Quarter Inside Panel, LH |
| 62507 | Garnish Sub-assy, Rear Body Pillar, RH |
| 62508 | Garnish Sub-assy, Rear Body Pillar, LH |
| 62510 | Cover Assy, Back Window Side Garnish, RH |
| 62510A | Clip, Back Window Side Garnish Cover |
| 62510E | Clip(FOR QUARTER WINDOW LOCK) |
| 62510F | Retainer, Roof Side Garnish |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511E | Pocket, Quarter Trim |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512A | Cover, Quarter Trim Washer |
| 62520 | Cover Assy, Back Window Side Garnish, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62541 | Cover, Quarter Pillar Upper Garnish, RH |
| 62542 | Cover, Quarter Pillar Upper Garnish, LH |
| 62570 | Garnish Assy, Center Floor Crossmember |
| 62581 | Retainer, Quarter Trim |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 68160 | Weatherstrip Assy, Rear Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
