Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

7 part groups · 2 illustrations

Illustrations

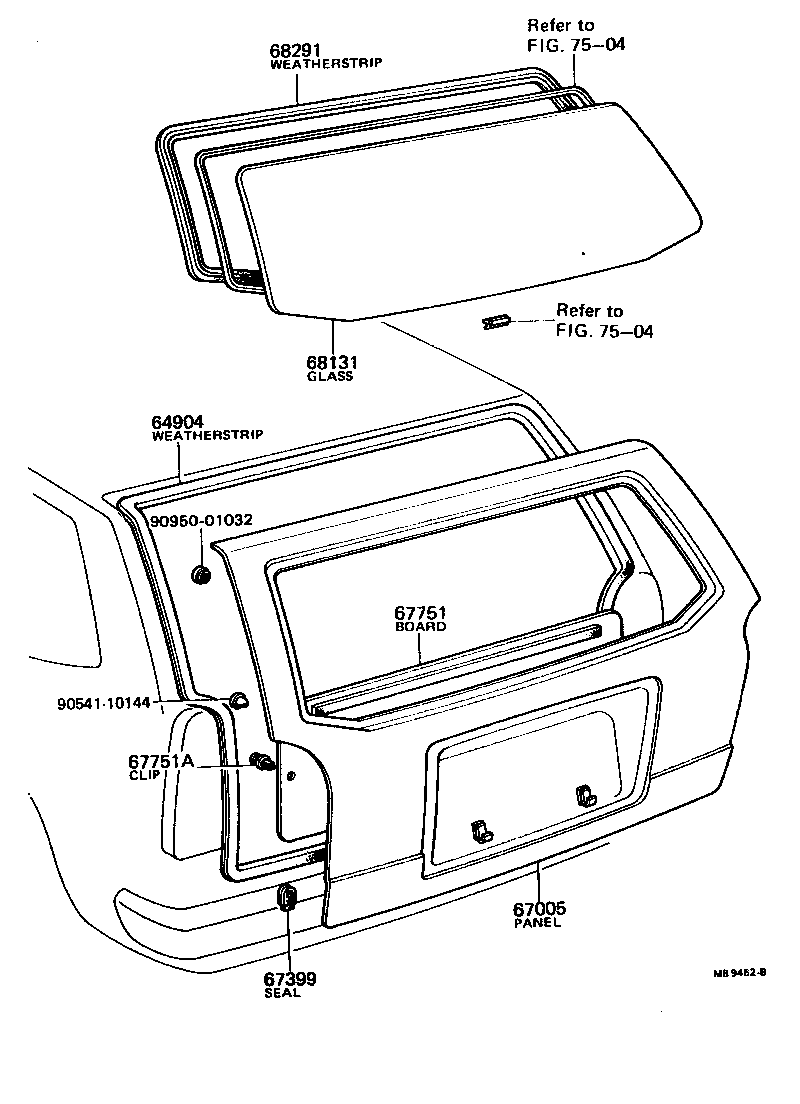

Figure MB5419A MB5419A 1976-03 → 1979-08 Figure MB9452B MB9452B 1974-08 → 1979-08

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
67005 Panel Sub-assy, Back Door
67399 Seal, Back Door Drain Hole Dust
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
