Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

30 part groups · 2 illustrations

Illustrations

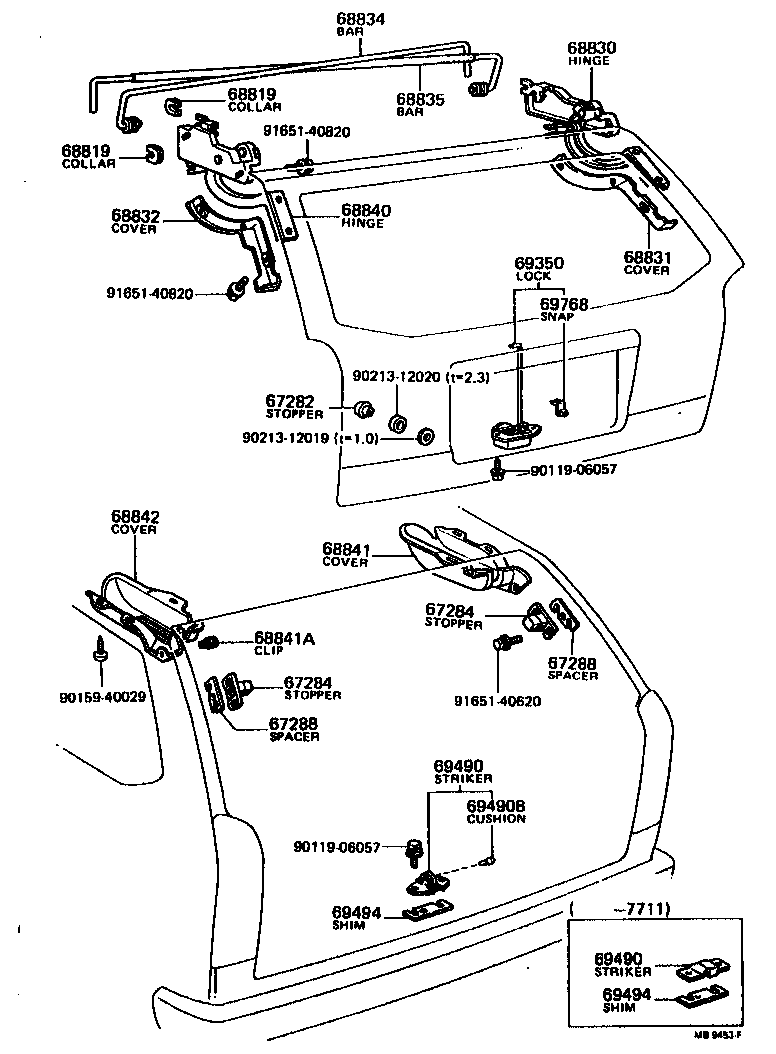

Figure MB5420C MB5420C 1976-03 → 1979-08 Figure MB9453F MB9453F 1974-08 → 1979-08

Part groups

PNCDescription
67282 Stopper, Back Door, NO.1
67284 Stopper, Back Door, NO.2
67288 Spacer, Back Door Side Stopper, Upper
68606 Lever Sub-assy, Back Door Lock Open
68606A Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
68607 Cable Sub-assy, Back Door Lock Control
68607A Clamp, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68607B Clamp, NO.2(FOR BACK DOOR LOCK CONTROL CABLE)
68819 Collar, Torsion Bar Support, NO.1
68830 Hinge Assy, Back Door, RH
68831 Cover, Back Door Hinge Upper, RH
68832 Cover, Back Door Hinge Upper, LH
68834 Bar, Back Door Torsion, RH
68835 Bar, Back Door Torsion, LH
68838 Pad, Back Door Hinge, NO.1
68839 Pad, Back Door Hinge, NO.2
68840 Hinge Assy, Back Door, LH
68841 Cover, Torsion Bar, RH
68841A Clip(FOR TORSION BAR COVER)
68842 Cover, Torsion Bar, LH
68970 Stay Assy, Back Door, RH
68977 Bracket, Back Door Stay
68980 Stay Assy, Back Door
69350 Lock Assy, Back Door
69350A Spring(FOR BACK DOOR LOCK)
69490 Striker Assy, Back Door Lock
69490A Spring(FOR BACK DOOR LOCK STRIKER)
69490B Cushion(FOR BACK DOOR LOCK STRIKER)
69494 Shim, Back Door Lock Striker
69768 Snap, Back Door Lock Control Link
