Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

18 part groups · 2 illustrations

Illustrations

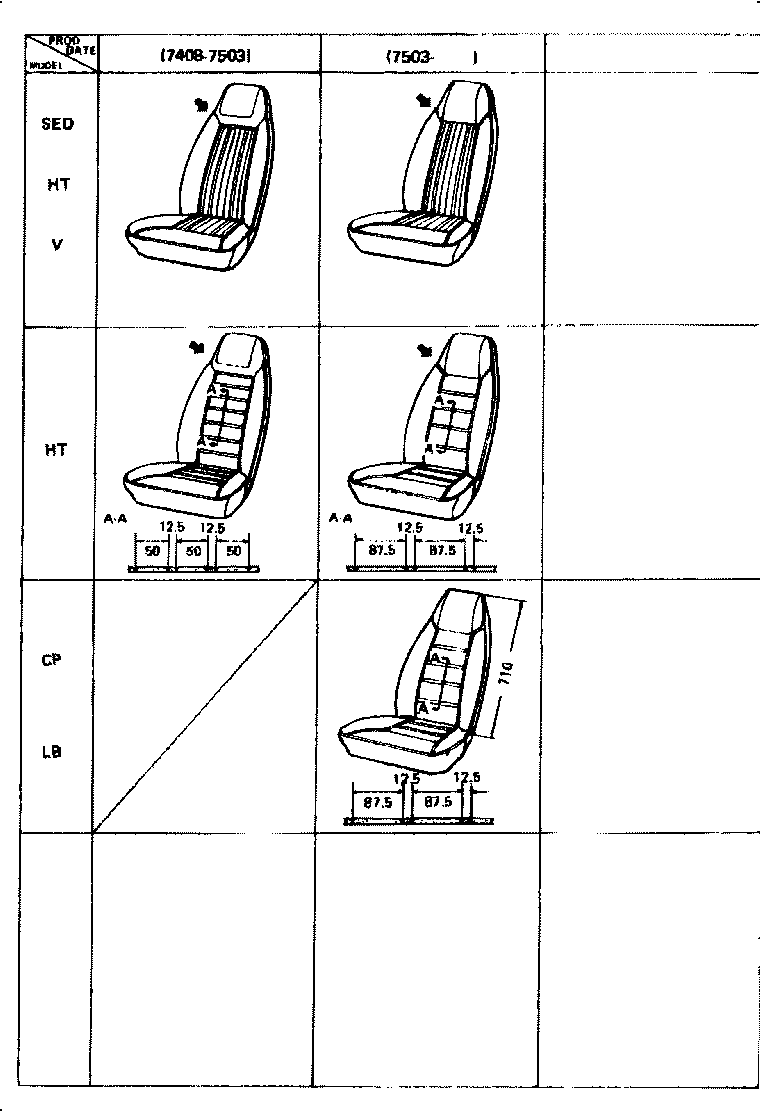

Figure MB9456F MB9456F 1974-08 → 1979-08 Figure 717038 717038 1974-08 → 1977-01

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71812 Clip (FOR FRONT SEAT CUSHION COVER)
72246 Lever, Seat Track Lock Open, LH
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72524A Block, Seat Belt Guide
72553 Cover, Reclining Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
