Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

13 part groups · 5 illustrations

Illustrations

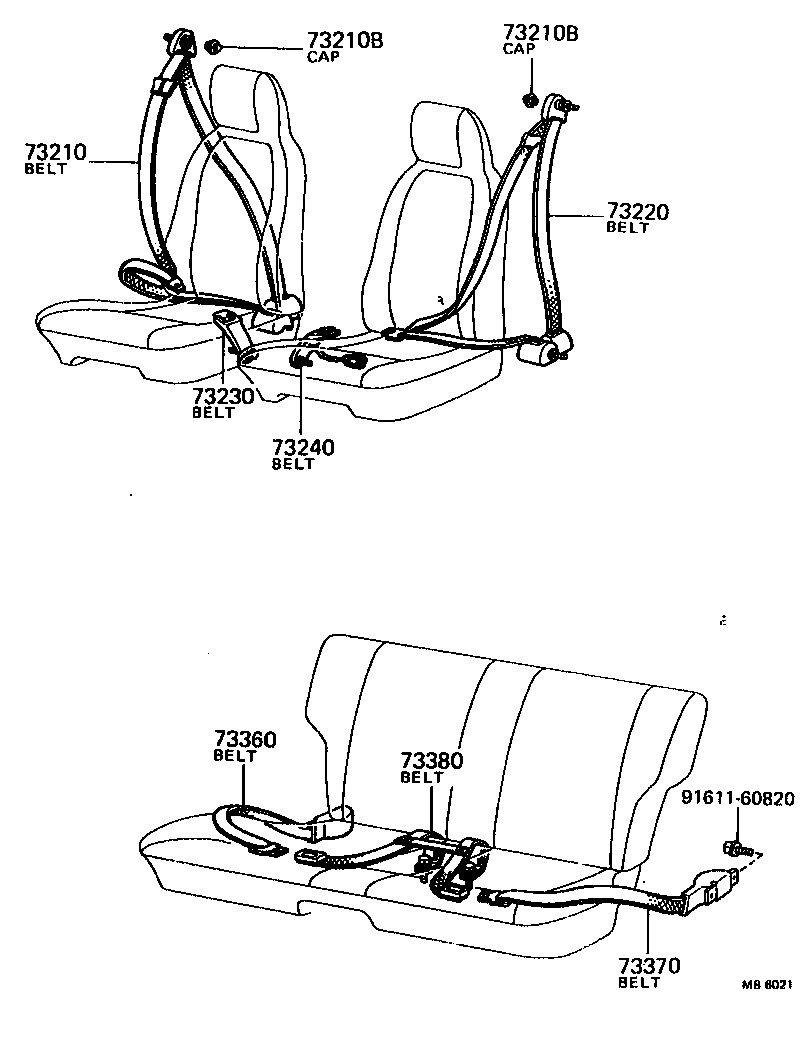

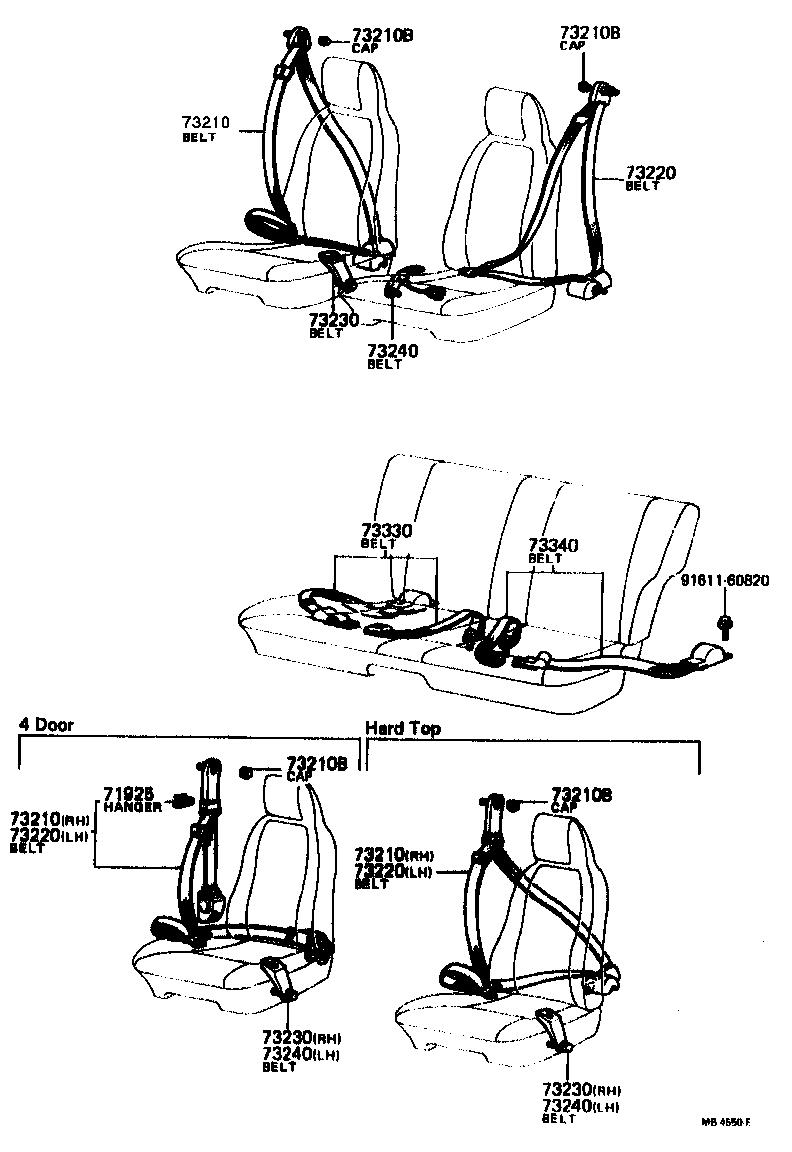

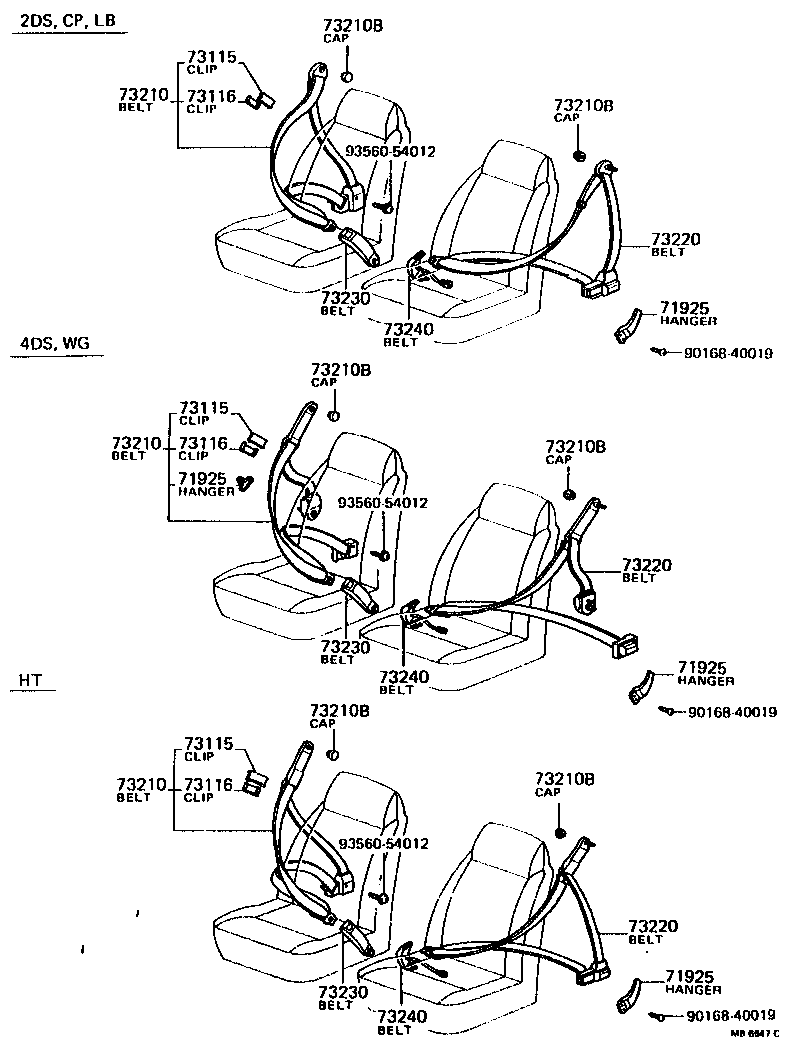

Figure MB4350C MB4350C 1974-08 → 1975-05 Figure MB4550E MB4550E 1975-05 → 1977-01 Figure MB6021 MB6021 1976-03 → 1977-01 Figure MB6647C MB6647C 1977-01 → 1979-08 Figure MB6648 MB6648 1977-01 → 1979-08

Part groups

PNCDescription
71925 Hanger, Seat Belt
73115 Clip, Belt Comfort NO.1
73116 Clip, Belt Comfort, NO.2
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
