Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

18 part groups · 5 illustrations

Illustrations

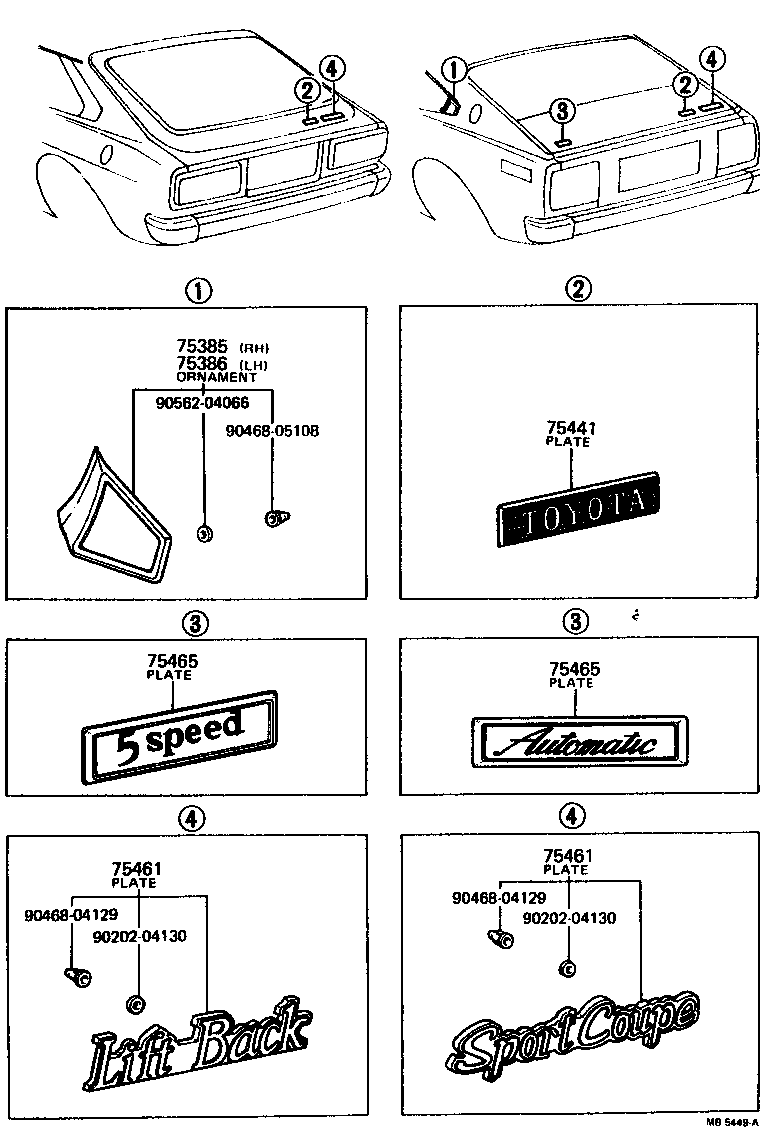

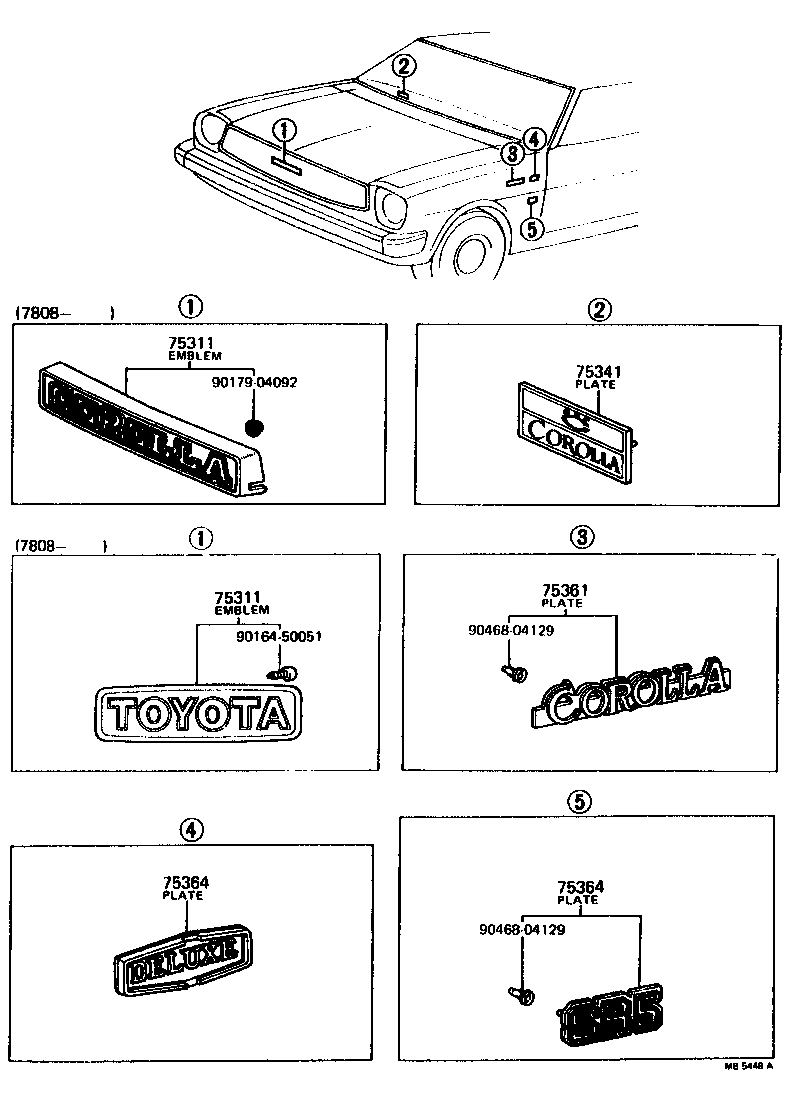

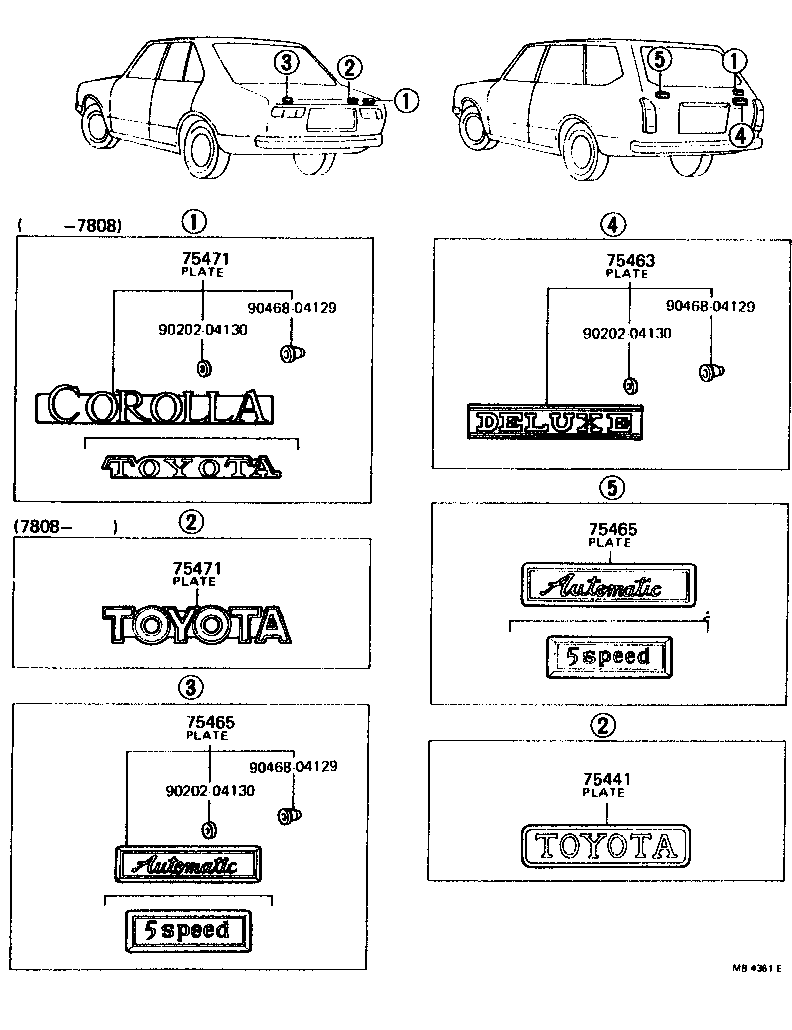

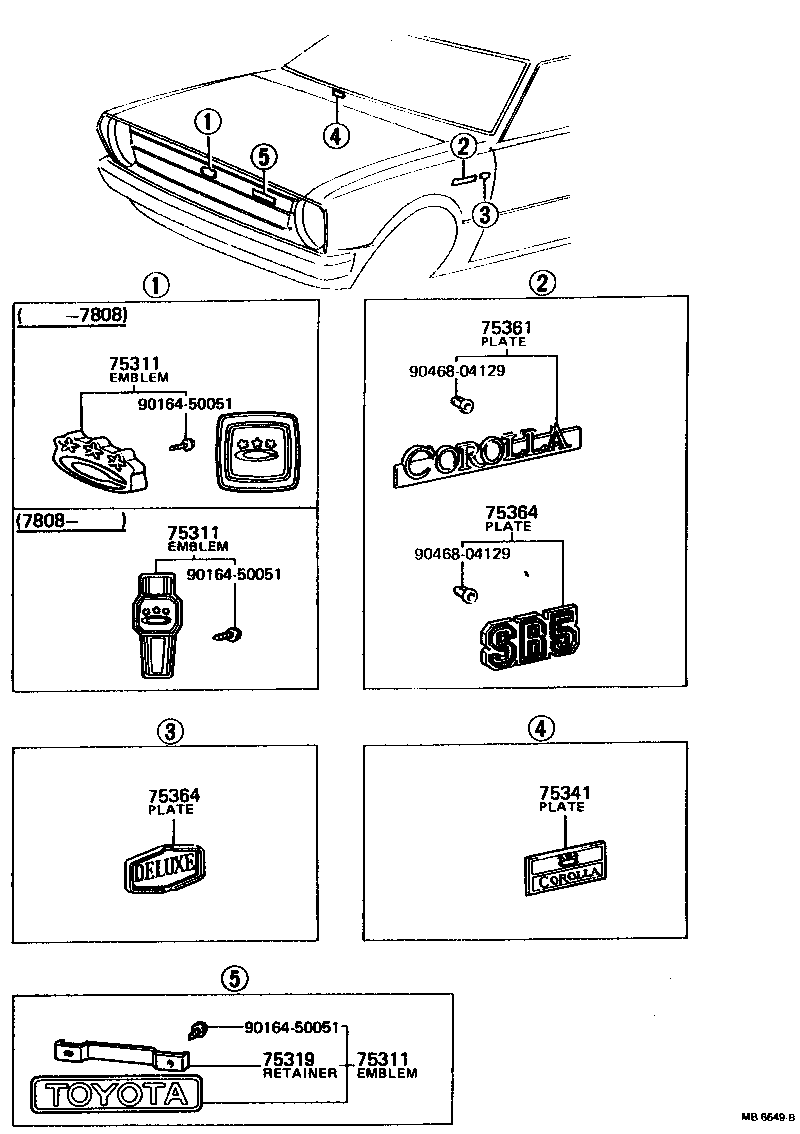

Figure MB4360C MB4360C 1974-08 → 1977-01 Figure MB6649B MB6649B 1977-01 → 1979-08 Figure MB4361E MB4361E 1974-08 → 1979-08 Figure MB5448A MB5448A 1976-03 → 1979-08 Figure MB5449A MB5449A 1976-03 → 1979-08

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75319 Retainer, Radiator Grille (OR FRONT PANEL) Name
75335 Ornament, Hood Relief, RH
75336 Ornament, Hood Relief, LH
75337 Plate, Hood Relief Ornament Lower, RH
75338 Plate, Hood Relief Ornament Lower, LH
75341 Plate, Instrument Panel Name, NO.1
75347 Channel, Hood Relief Ornament Drip, RH
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75385 Ornament, Roof Side, RH
75386 Ornament, Roof Side, LH
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75471 Plate, Rear Body Name, NO.1(MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
