Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wooden Grain Panel & Moulding

24 part groups · 2 illustrations

Illustrations

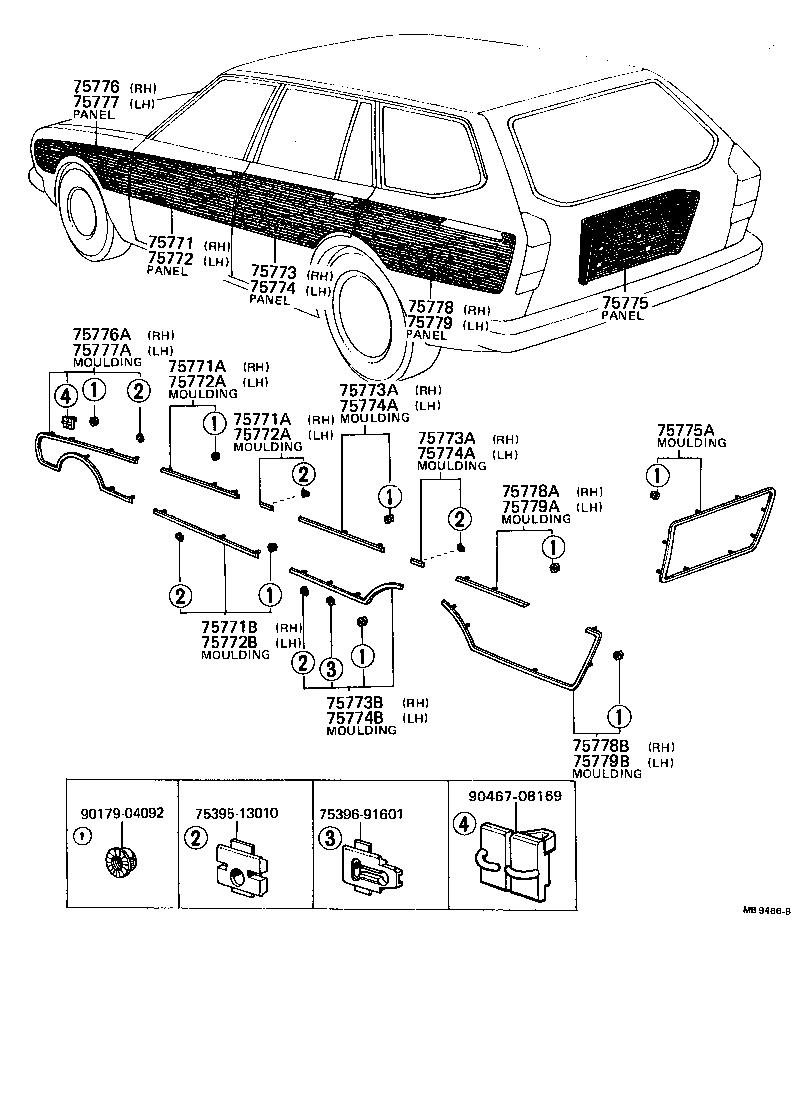

Figure MB9465 MB9465 1974-08 → 1976-08 Figure MB9466B MB9466B 1976-08 → 1979-08

Part groups

PNCDescription
75771 Panel, Front Door Outer Side Finish, RH
75771A Moulding, Front Door Outer Side Finish Panel, RH NO.1
75771B Moulding, Front Door Outer Side Finish Panel, RH NO.2
75772 Panel, Front Door Outer Side Finish, LH
75772A Moulding, Front Door Outer Side Finish Panel, LH NO.1
75772B Moulding, Front Door Outer Side Finish Panel, LH NO.2
75773 Panel, Rear Door Outer Side Finish, RH
75773A Moulding, Rear Door Outer Side Finish Panel, RH NO.1
75773B Moulding, Rear Door Outer Side Finish Panel, RH NO.2
75774 Panel, Rear Door Outer Side Finish, LH
75774A Moulding, Rear Door Outer Side Finish Panel, LH NO.1
75774B Moulding, Rear Door Outer Side Finish Panel, LH NO.2
75775 Panel, Back Door Outer Side Finish
75775A Moulding, Back Door Outer Side Finish Panel, NO.1
75776 Panel, Front Fender Outer Side Finish, RH
75776A Moulding, Front Fender Outer Side Finish Panel, RH NO.1
75777 Panel, Front Fender Outer Side Finish, LH
75777A Moulding, Front Fender Outer Side Finish Panel, LH NO.1
75778 Panel, Quarter Panel Outside Finish, RH
75778A Moulding, Quarter Panel Outside Finish Panel, RH NO.1
75778B Moulding, Quarter Panel Outside Finish Panel, RH NO.2
75779 Panel, Quarter Panel Outer Side Finish, LH
75779A Moulding, Quarter Panel Outer Side Finish Panel, LH NO.1
75779B Moulding, Quarter Panel Outer Side Finish Panel, LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
