Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Marker Lamp

11 part groups · 2 illustrations

Illustrations

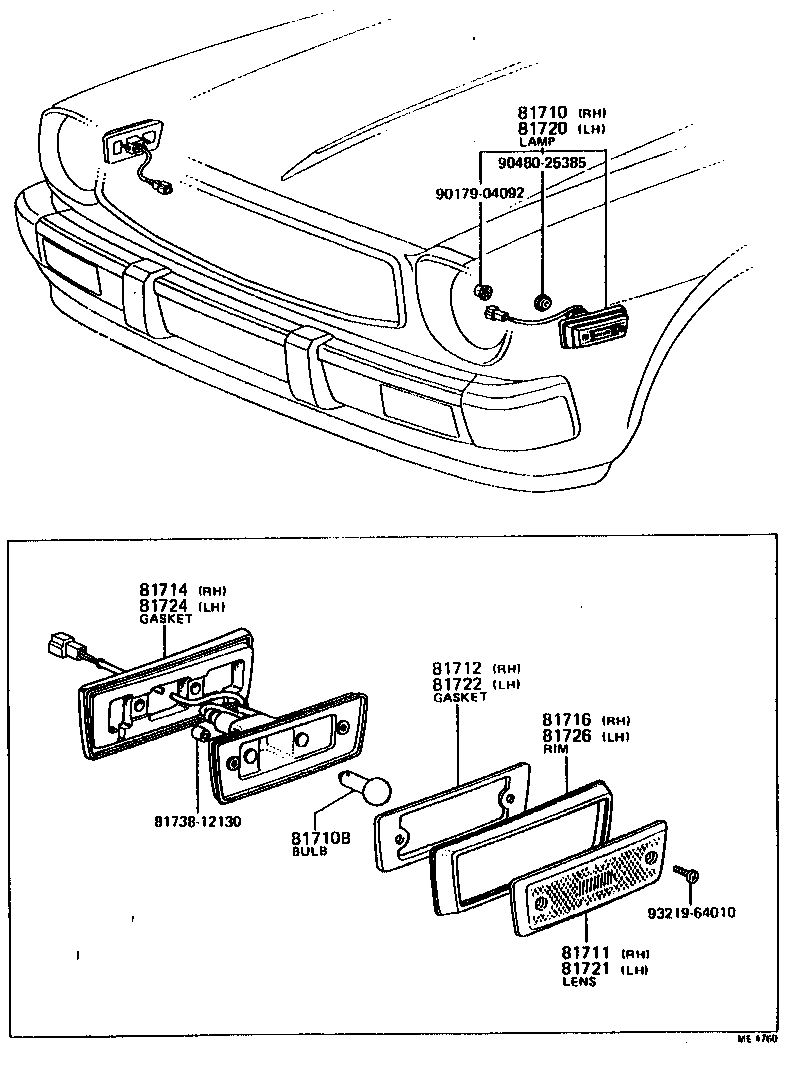

Figure ME3297B ME3297B 1974-08 → 1979-08 Figure ME4760 ME4760 1976-03 → 1979-08

Part groups

PNCDescription
81710 Lamp Assy, Front Marker, RH
81710B Bulb, Front Marker Lamp
81711 Lens, Front Marker Lamp, RH
81712 Gasket, Front Marker Lamp Lens, RH
81714 Gasket, Front Marker Lamp Body, RH
81716 Rim, Front Marker Lamp, RH
81720 Lamp Assy, Front Marker, LH
81721 Lens, Front Marker Lamp, LH
81722 Gasket, Front Marker Lamp Lens, LH
81724 Gasket, Front Marker Lamp Body, LH
81726 Rim, Front Marker Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
