Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05
Wiring & Clamp

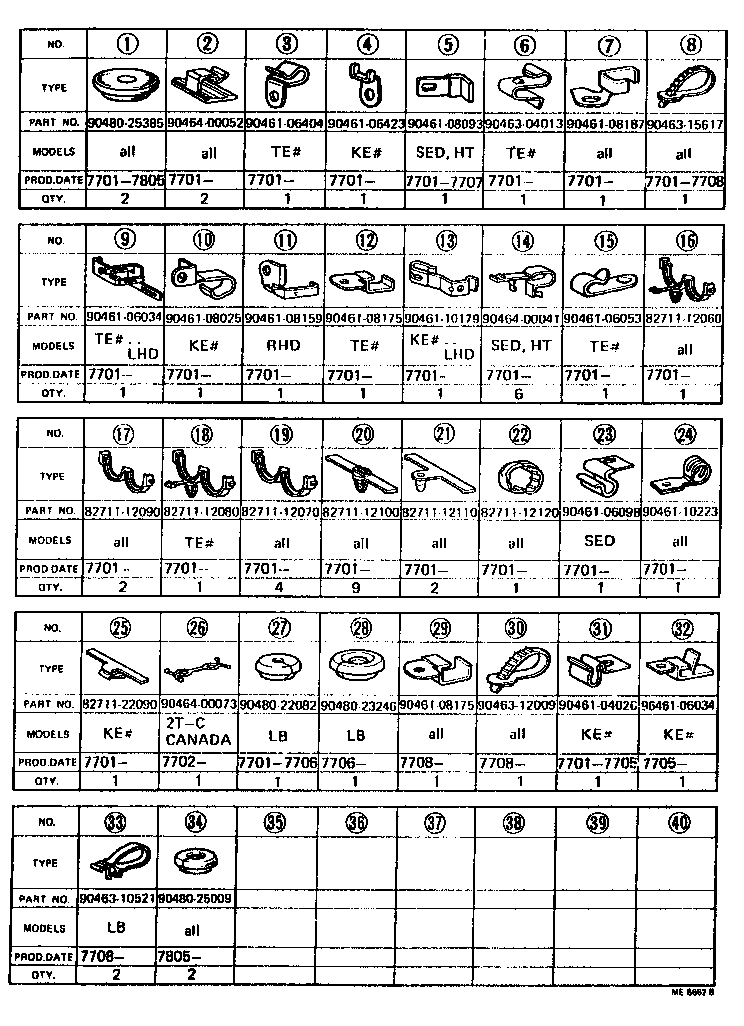

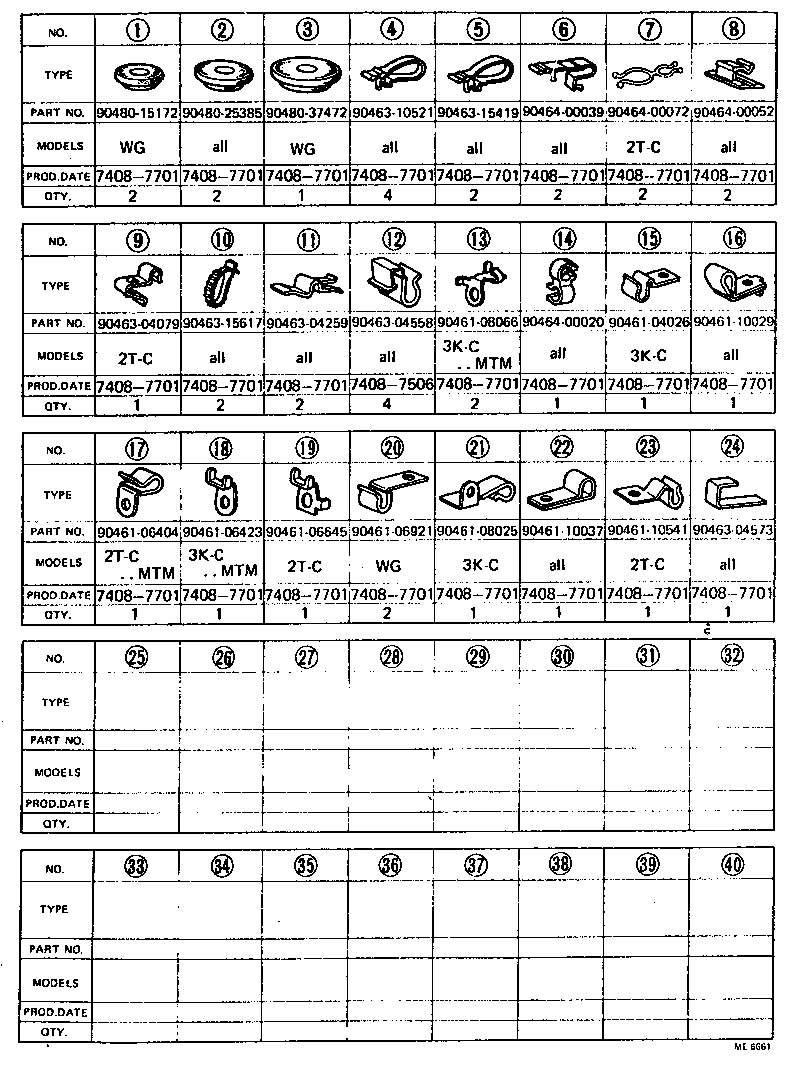

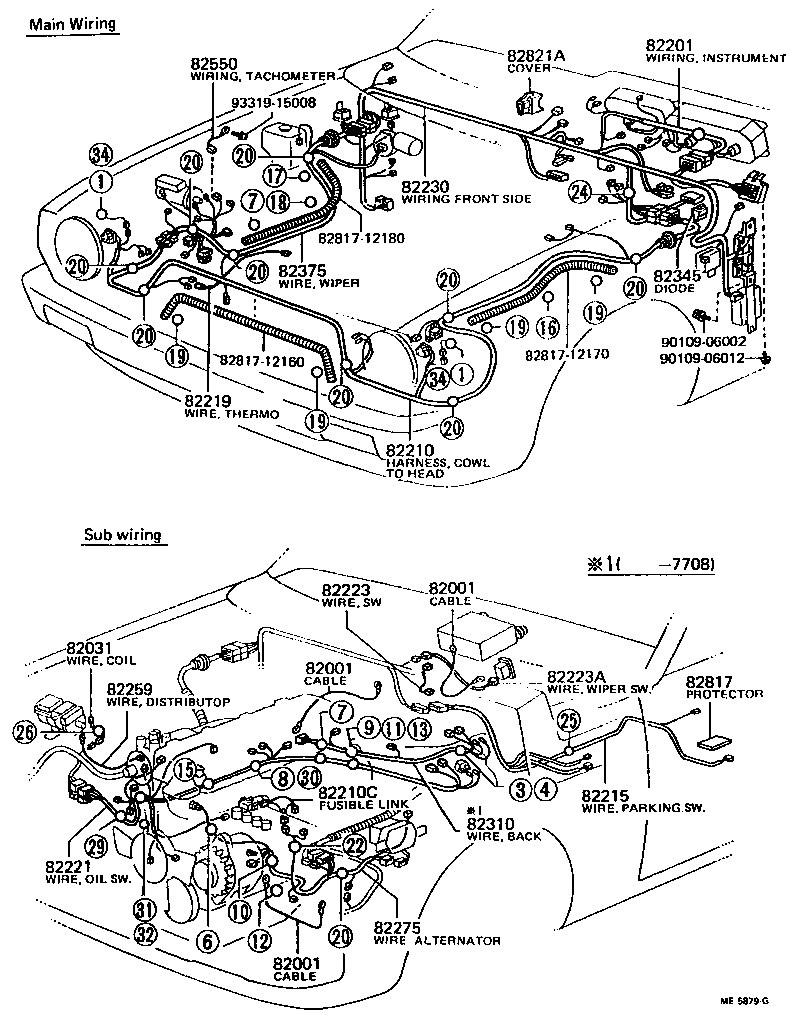

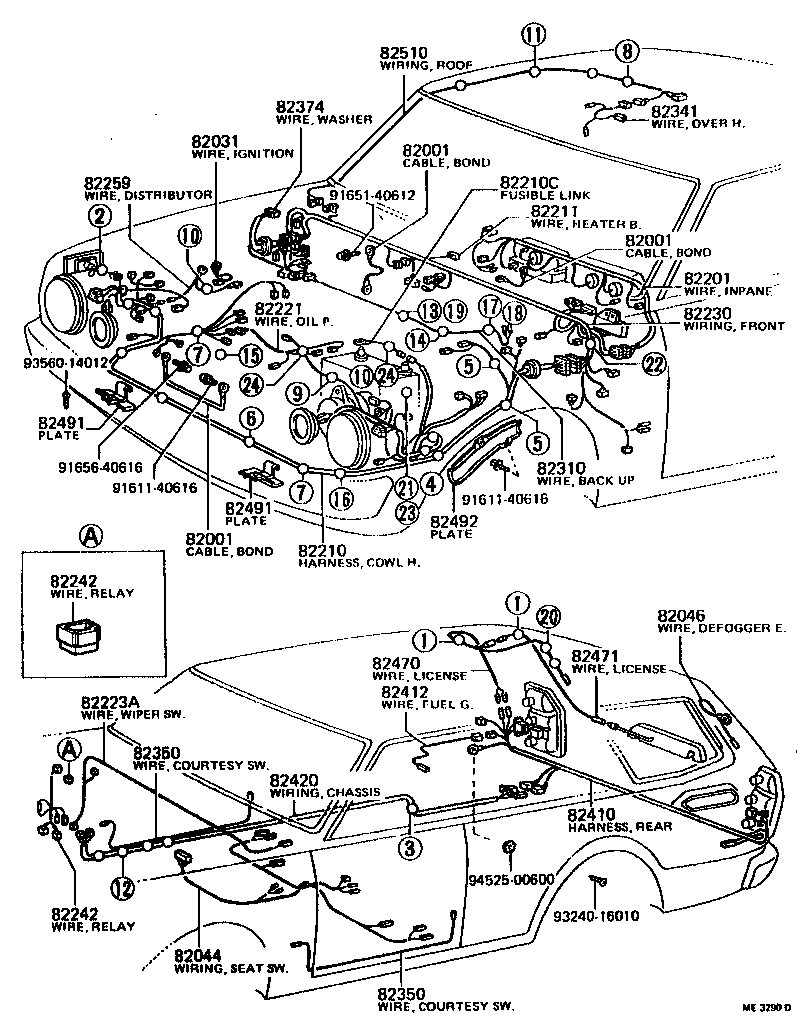

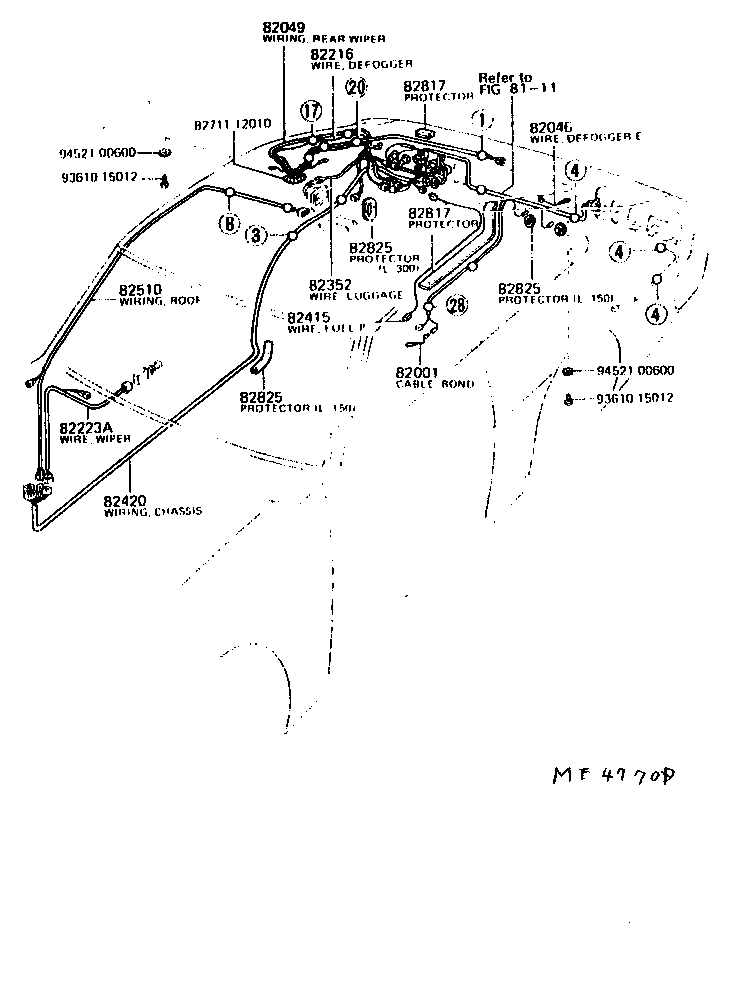

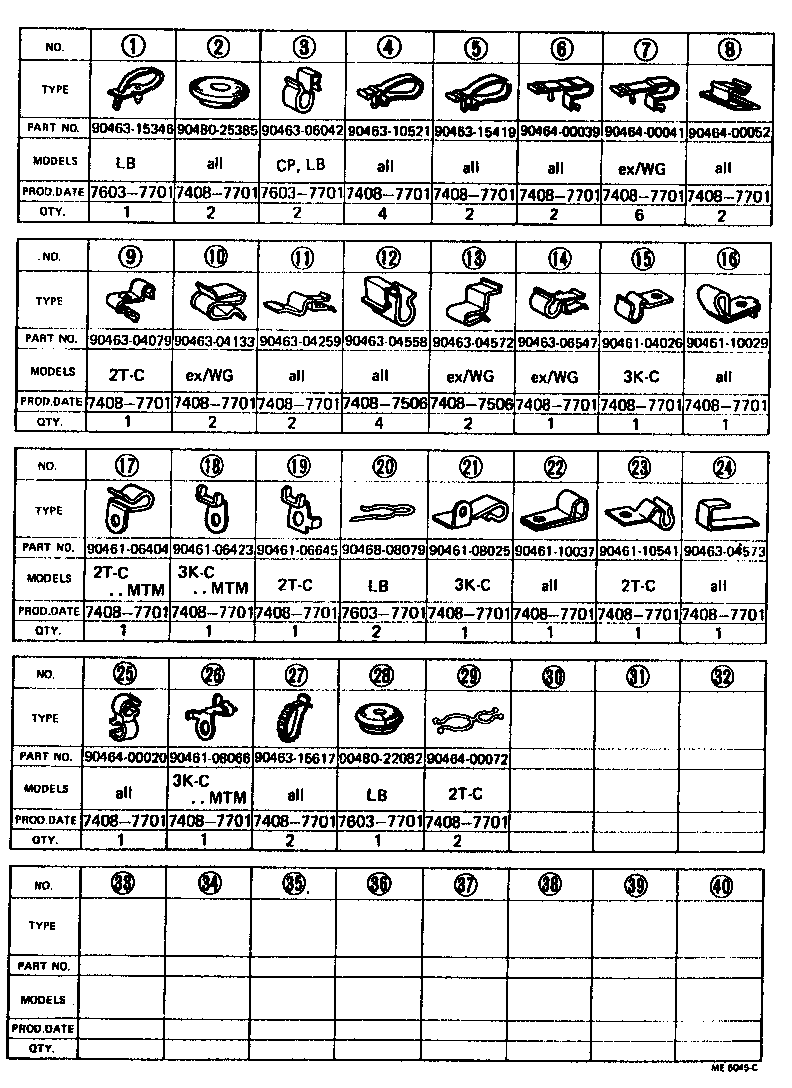

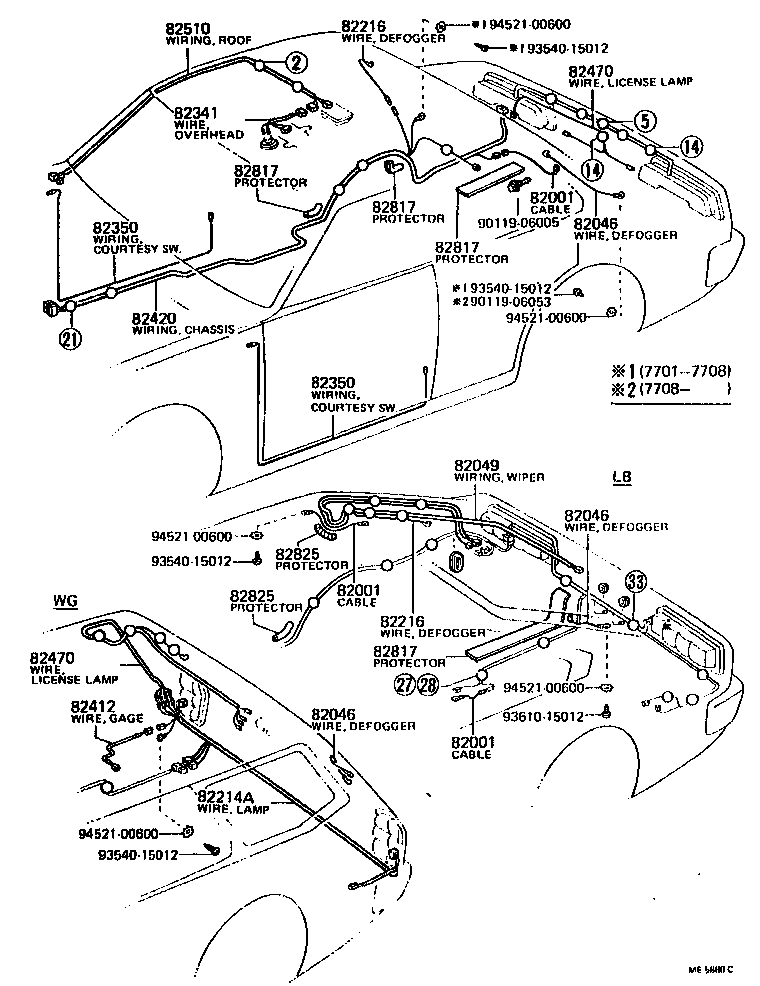

41 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82031 | Wire Sub-assy, Ignition Coil |
| 82044 | Wiring Sub-assy, Seat Switch |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82049 | Wiring Sub-assy, Rear Wiper |
| 82201 | Wiring Sub-assy, Instrument Panel |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82211 | Wire, Heater Blower Fan Switch |
| 82214A | Wire, Lamp |
| 82215 | Wire, Parking Brake Lamp Switch |
| 82216 | Wire, Rear Window Defogger |
| 82219 | Wire, Thermo Sensor |
| 82221 | Wire, Oil Pressure Switch |
| 82223 | Wire, Switch |
| 82223A | Wire, Rear Wiper Switch |
| 82230 | Wiring Assy, Front Side |
| 82242 | Wire, Lamp Failure Indicator Relay |
| 82250 | Wiring Assy, TO Generator |
| 82259 | Wire, Distributor |
| 82275 | Wire, Alternator |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82341 | Wire, Over Head Console |
| 82345 | Diode |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82352 | Wire, Luggage Compartment Lamp |
| 82374 | Wire, Washer |
| 82375 | Wire, Wiper Switch |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82412 | Wire, Fuel Gage |
| 82415 | Wire, Fuel Pump |
| 82420 | Wiring Assy, Chassis |
| 82470 | Wire Assy, License Lamp Feed |
| 82471 | Wire, License Lamp Feed, NO.2 |
| 82491 | Plate, Wiring Harness Protector, NO.1 |
| 82492 | Plate, Wiring Harness Protector, NO.2 |
| 82510 | Wiring Assy, Roof |
| 82550 | Wiring Assy, Tachometer |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82821A | Cover, Connector |
| 82825 | Protector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
