Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 4 illustrations

Illustrations

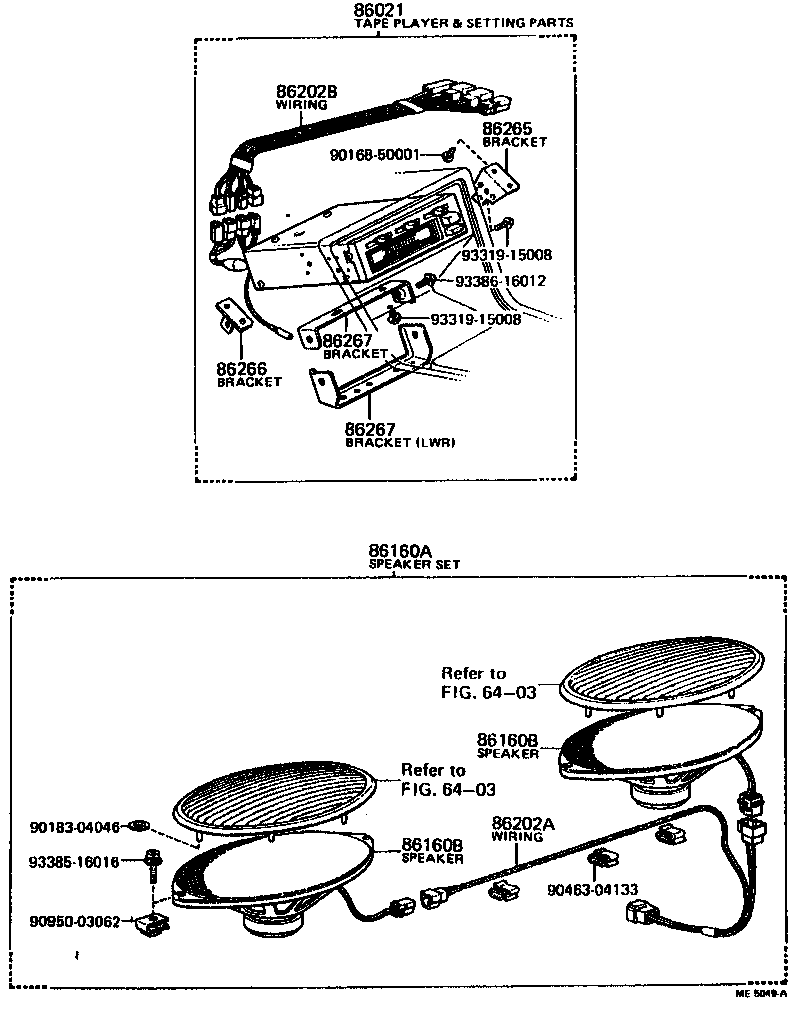

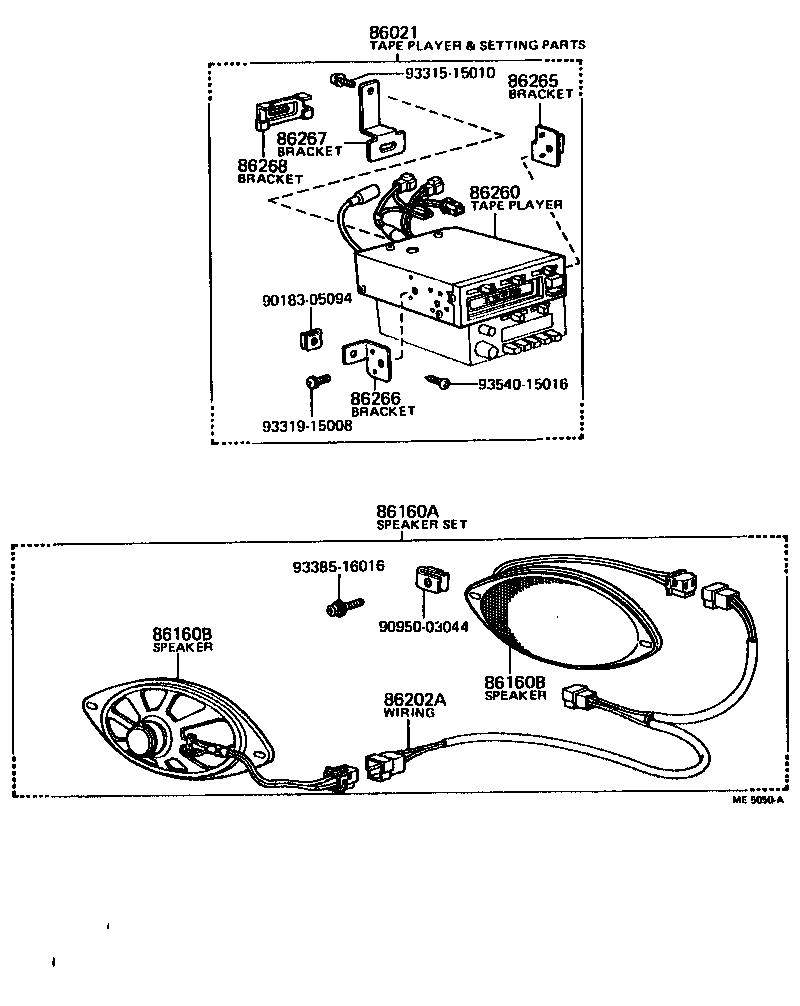

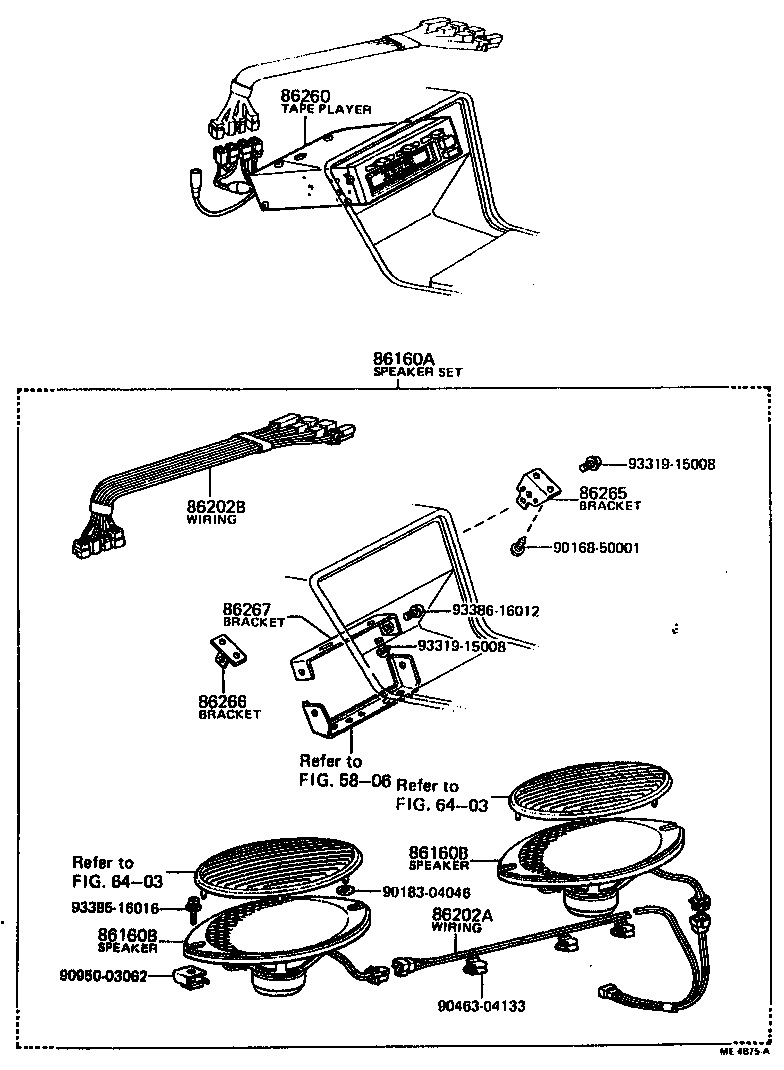

Figure ME4955A ME4955A 1974-08 → 1977-01 Figure ME5049A ME5049A 1974-08 → 1974-10 Figure ME4875A ME4875A 1974-10 → 1977-01 Figure ME5050A ME5050A 1976-03 → 1977-01

Part groups

PNCDescription
86021 Tape Player And Setting Parts Set
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86202A Wire, Speaker, NO.2
86202B Wire, Tape Player
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86268 Bracket, Tape Player, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
