Toyota Corolla

1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

2 part groups · 4 illustrations

Illustrations

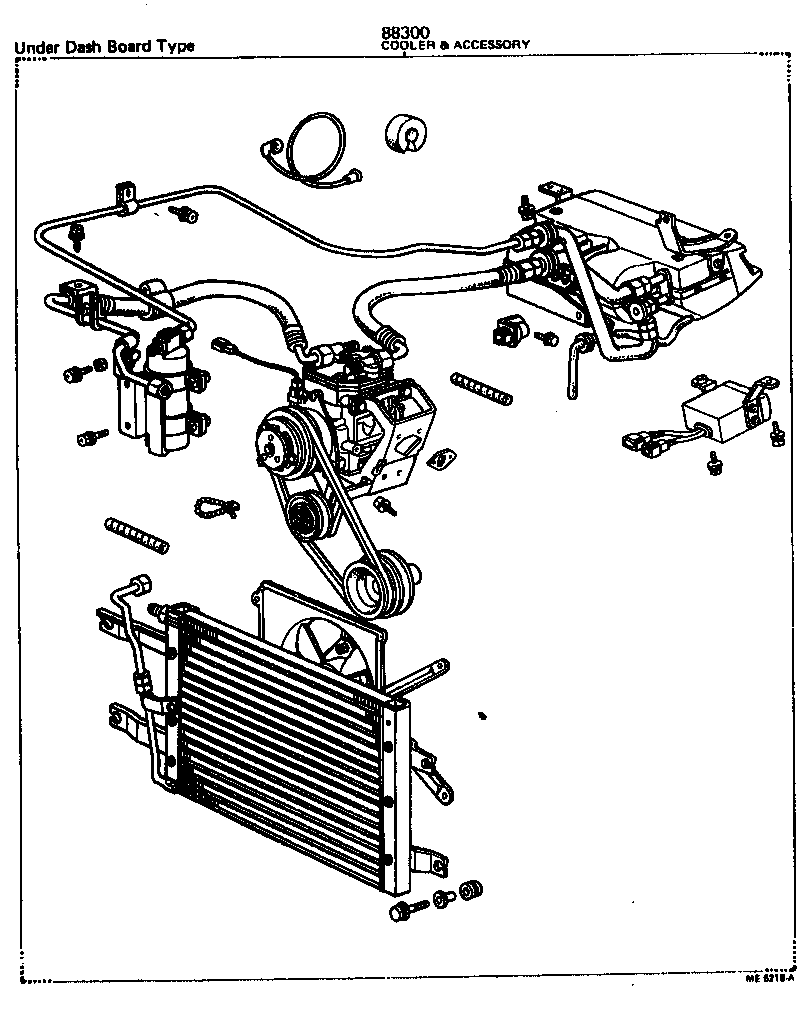

Figure ME4472 ME4472 1974-08 → 1977-01 Figure ME3998B ME3998B 1974-08 → 1979-08 Figure ME3998B ME3998B 1977-08 → 1979-08 Figure ME6218A ME6218A 1976-08 → 1977-08

Part groups

PNCDescription
87100 Heater And Accessory Assy
88300 Cooler & Accessory Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
