Toyota Corolla
1974-08 → 1979-08 · chassis KE3#,50,TE3#,51 · catalogue 161430 · United States
Discontinued model
Data version 1985-05

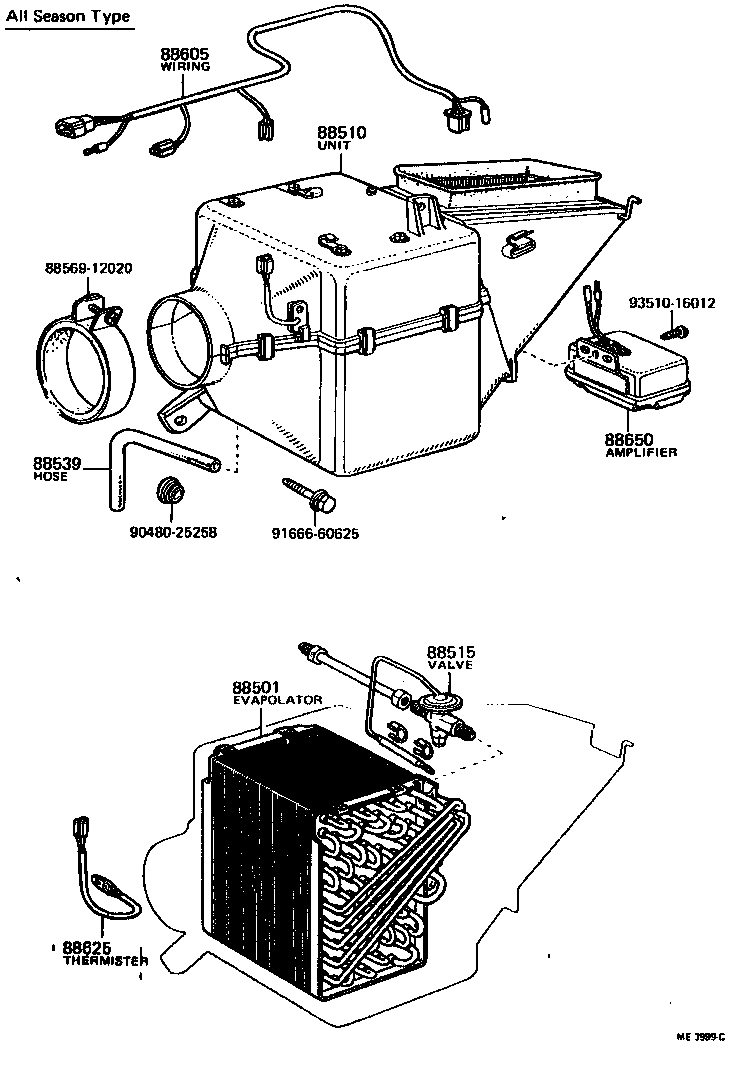

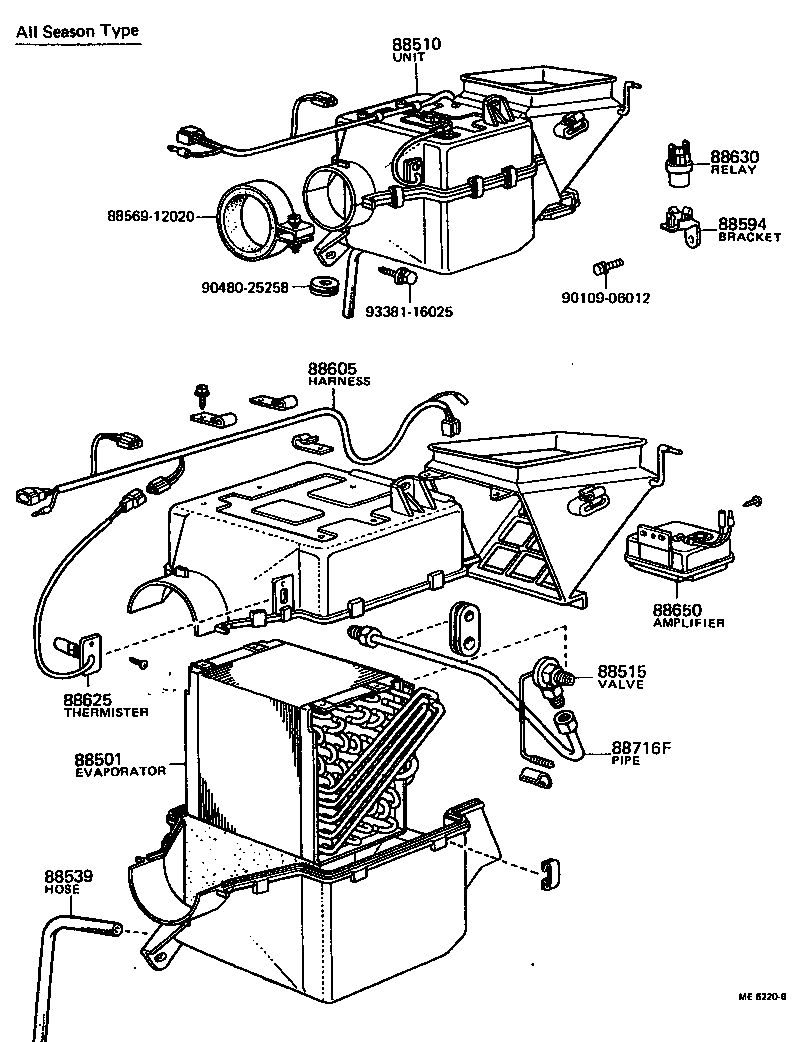

Heating & Air Conditioning - Cooler Unit
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88306 | Motor Sub-assy, Cooler Blower, NO.1 |
| 88361 | Fan, Cooler Blower, NO.1 |
| 88371 | Fan, Cooler Blower, NO.2 |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88536A | Bracket, Cooling Unit, NO.2 |
| 88536B | Bracket, Cooling Unit, NO.3 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539A | Wire, Drain Hose(FOR COOLER) |
| 88539B | Connector, Cooler Drain Hose |
| 88570 | Grille Sub-assy, Cooler Air Outlet |
| 88594 | Bracket, Cooler Relay |
| 88600 | Control Assy, Air Conditioner |
| 88601F | Bracket, Cooler Control Switch |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88630 | Relay Assy, Cooler |
| 88635 | Resistor, Cooler Unit Blower |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
