Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 7 illustrations

Illustrations

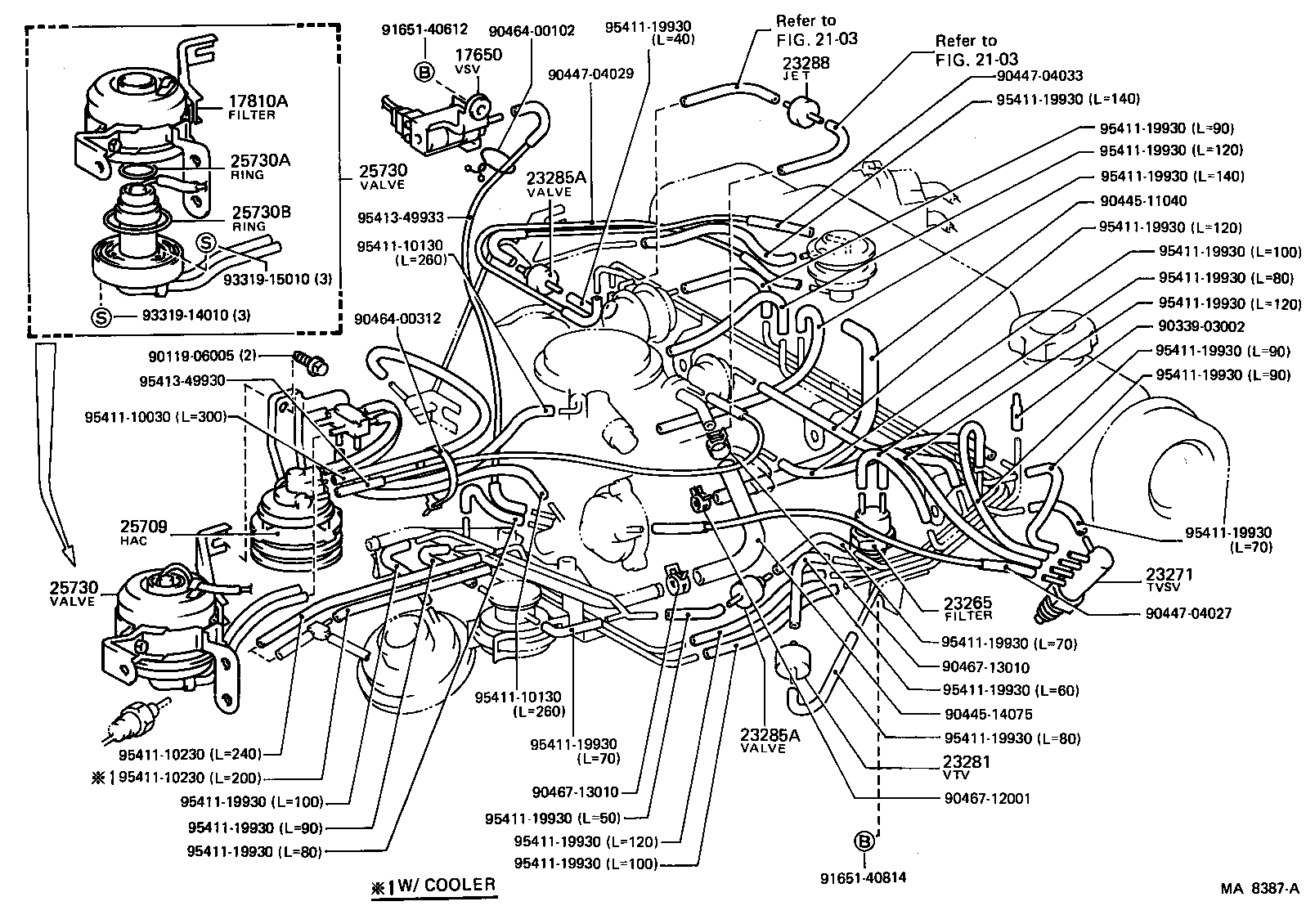

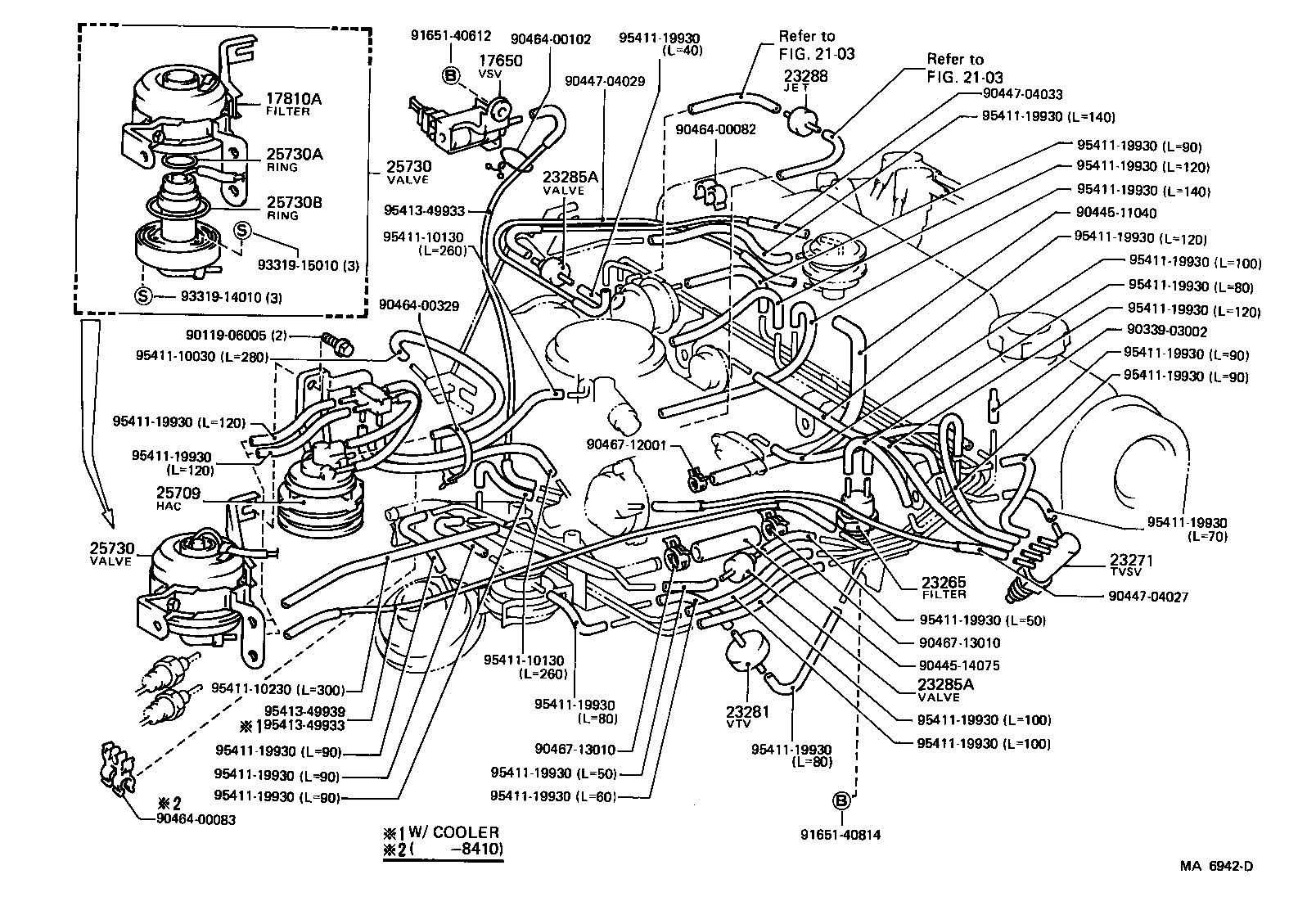

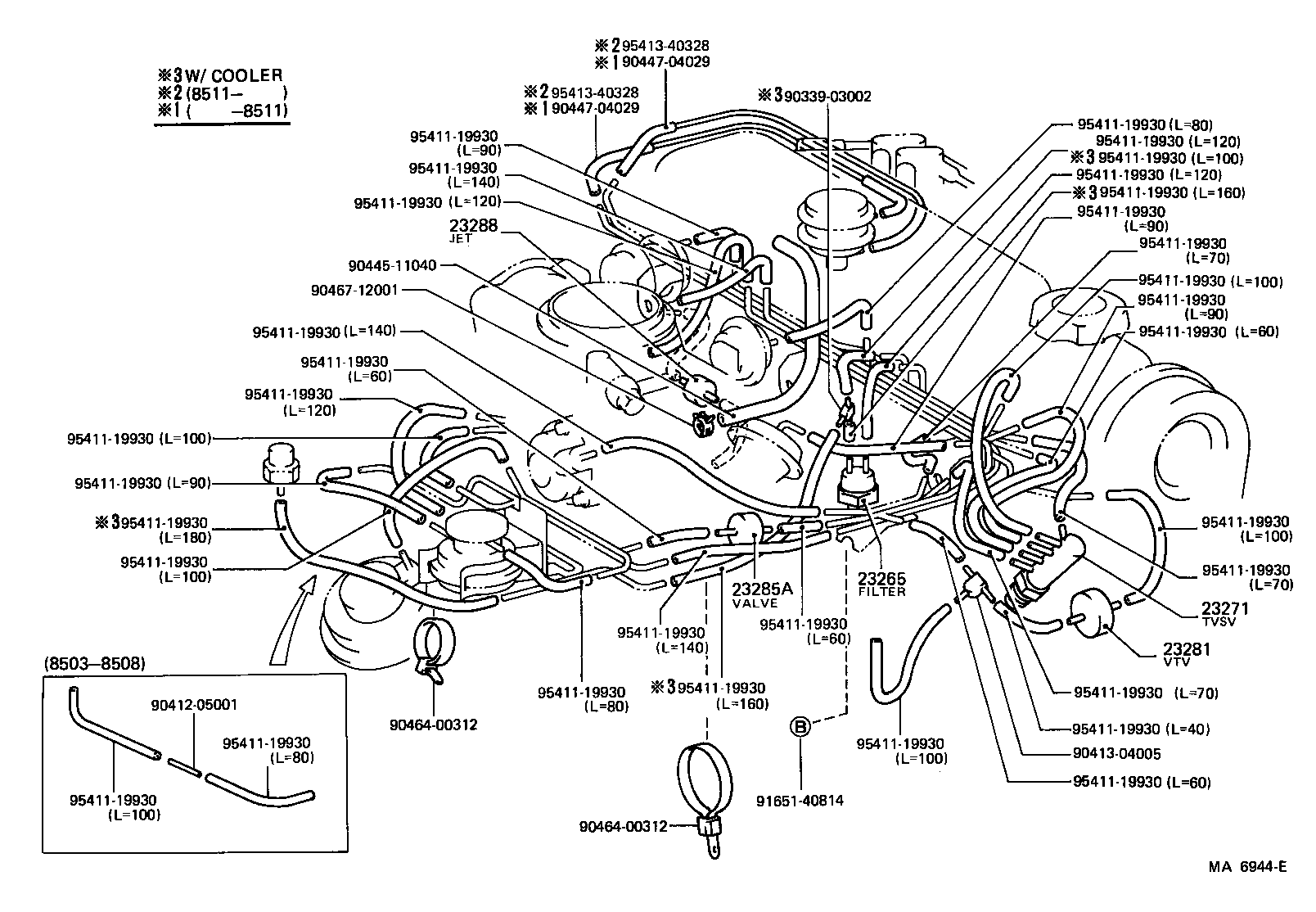

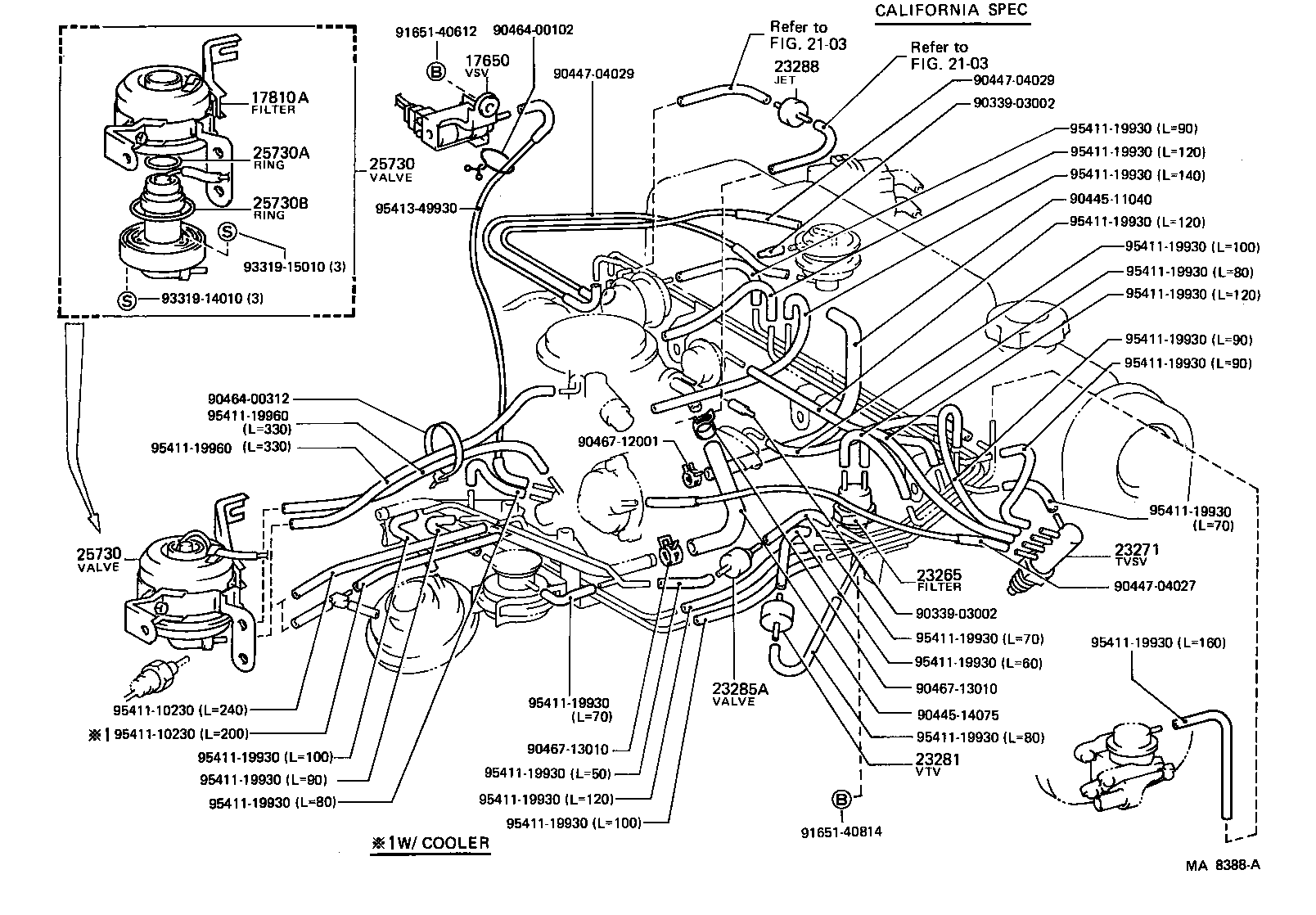

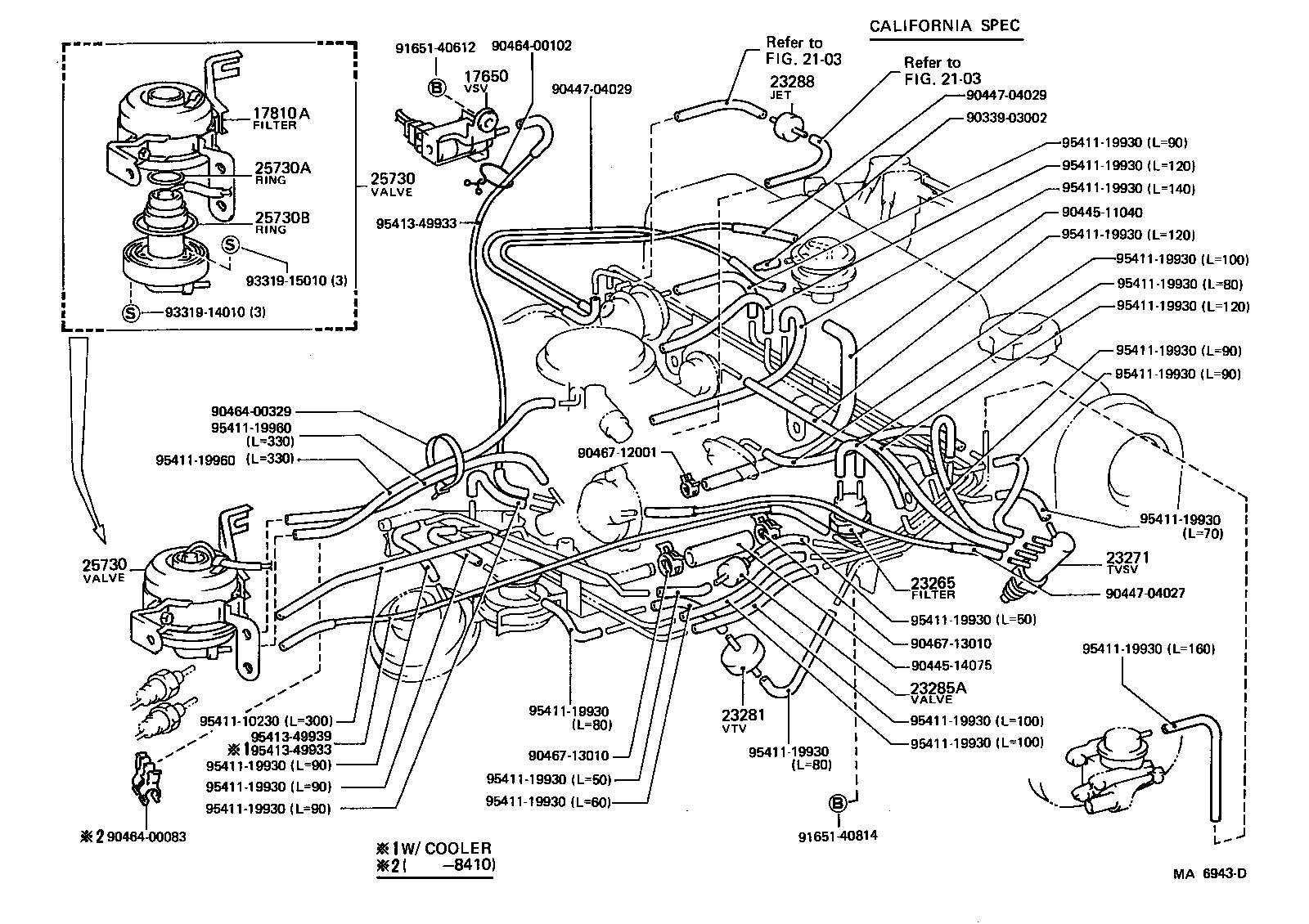

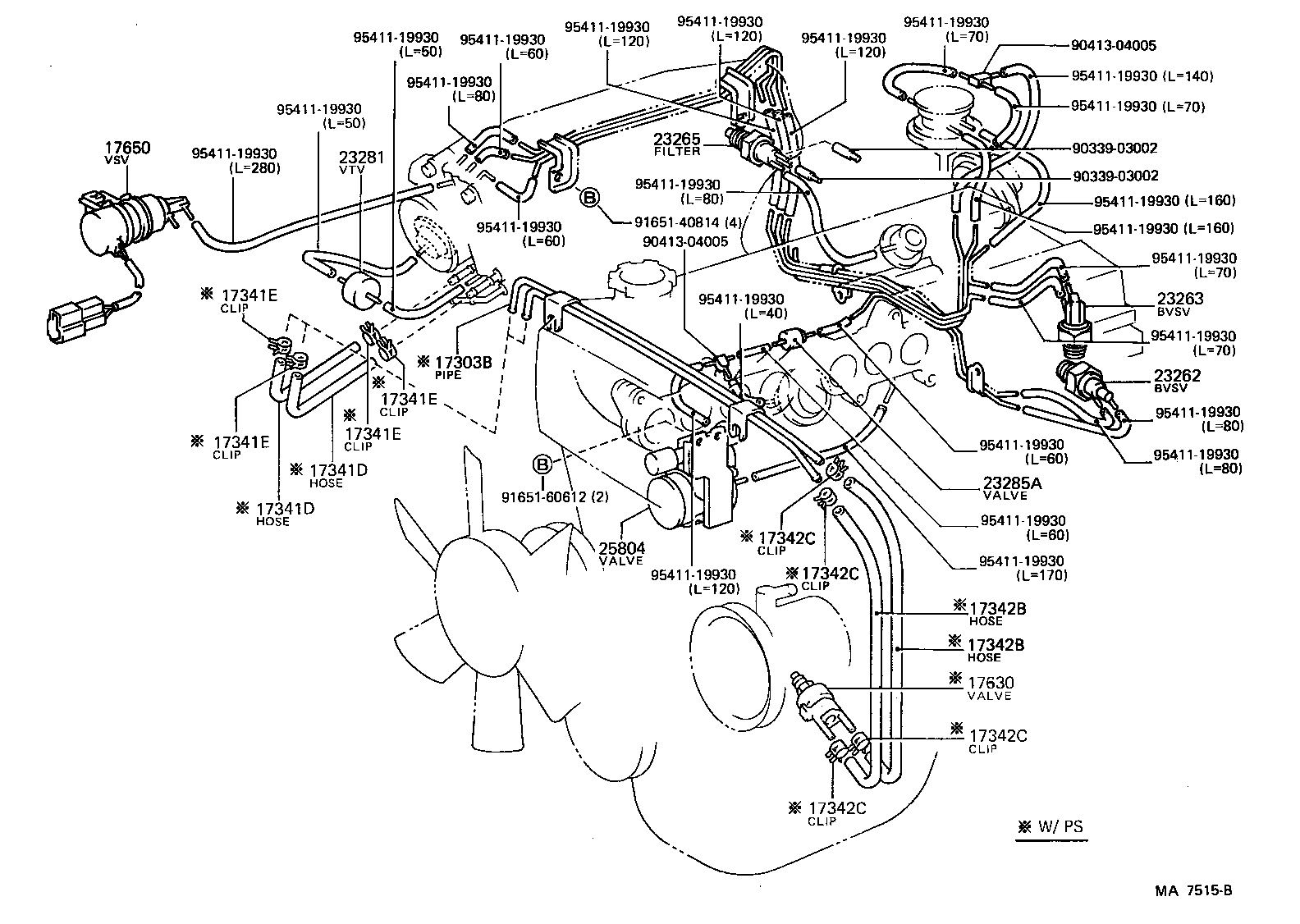

Figure MA9504A MA9504A 1983-08 → — Figure MA6942D MA6942D 1983-08 → 1985-08 Figure MA8387A MA8387A 1985-08 → — Figure MA6943D MA6943D 1983-08 → 1985-08 Figure MA8388A MA8388A 1985-08 → — Figure MA6944E MA6944E 1983-08 → — Figure MA7515B MA7515B 1984-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
