Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

29 part groups · 3 illustrations

Illustrations

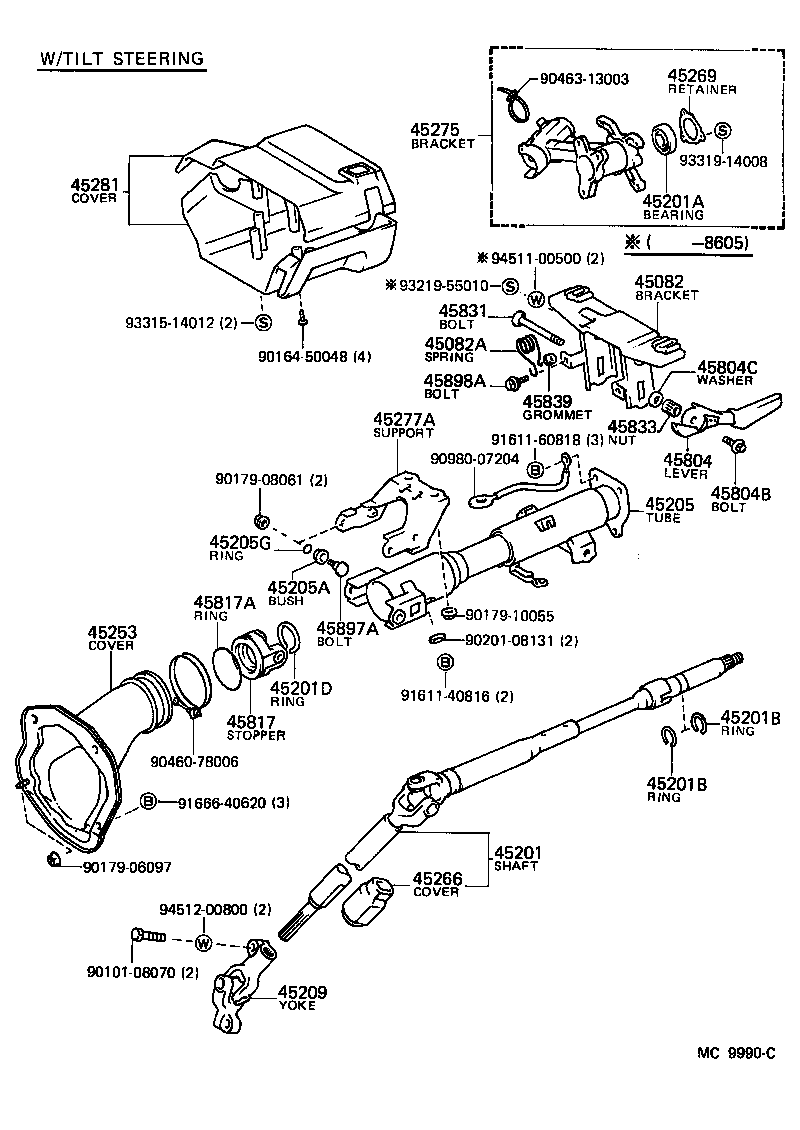

Figure MC9989B MC9989B 1983-08 → — Figure MC9990C MC9990C 1983-08 → 1985-08 Figure MC9990C MC9990C 1985-08 → —

Part groups

PNCDescription
45082 Bracket Sub-assy, Break Away W/Capsule
45082A Spring, Torsion(FOR TILT STEERING RETURN)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45205G Ring, O(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45253 Cover, Steering Column Hole
45266 Cover, Steering Intermediate Shaft Dust
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45277A Support, Tilt Steering
45281 Housing, Steering Column
45804 Lever Sub-assy, Steering Tilt
45804B Bolt(FOR STEERING TILT LEVER)
45804C Washer, Plate(FOR STEERING TILT LEVER)
45817 Stopper, Steering Shaft Thrust
45817A Ring, O(FOR STEERING SHAFT THRUST STOPPER)
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45839 Grommet, Return Spring
45874C Protector, Steering Column, NO.1
45874D Cushion(FOR STEERING COLUMN PROTECTOR)
45881A Protector, Steering Column, NO.2
45897A Bolt, Tilt Steering Pawl Set
45898A Bolt, Return Spring Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
