Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

20 part groups · 7 illustrations

Illustrations

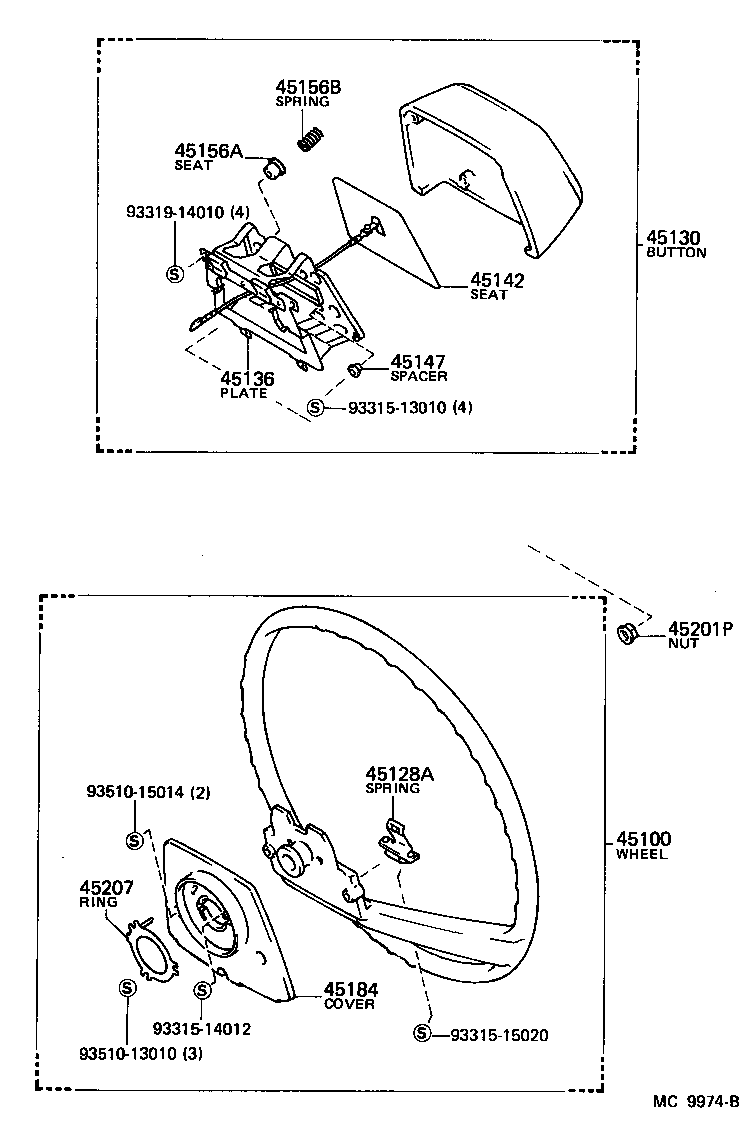

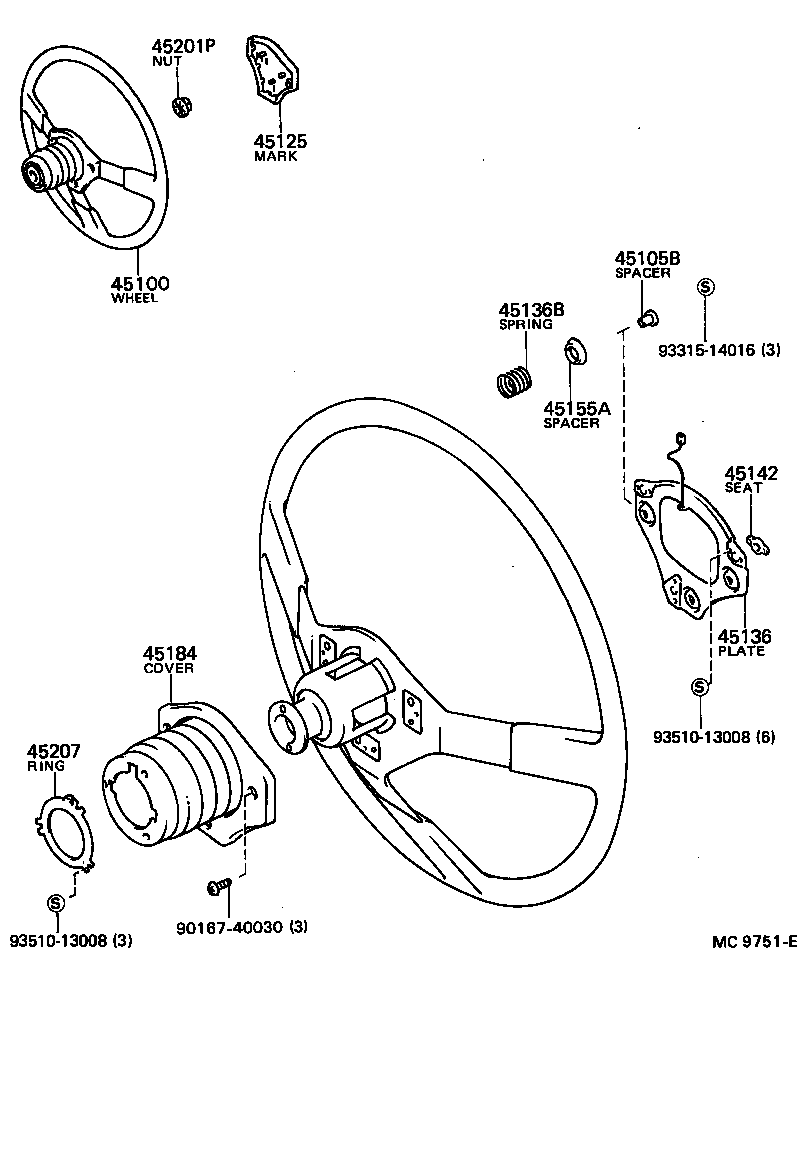

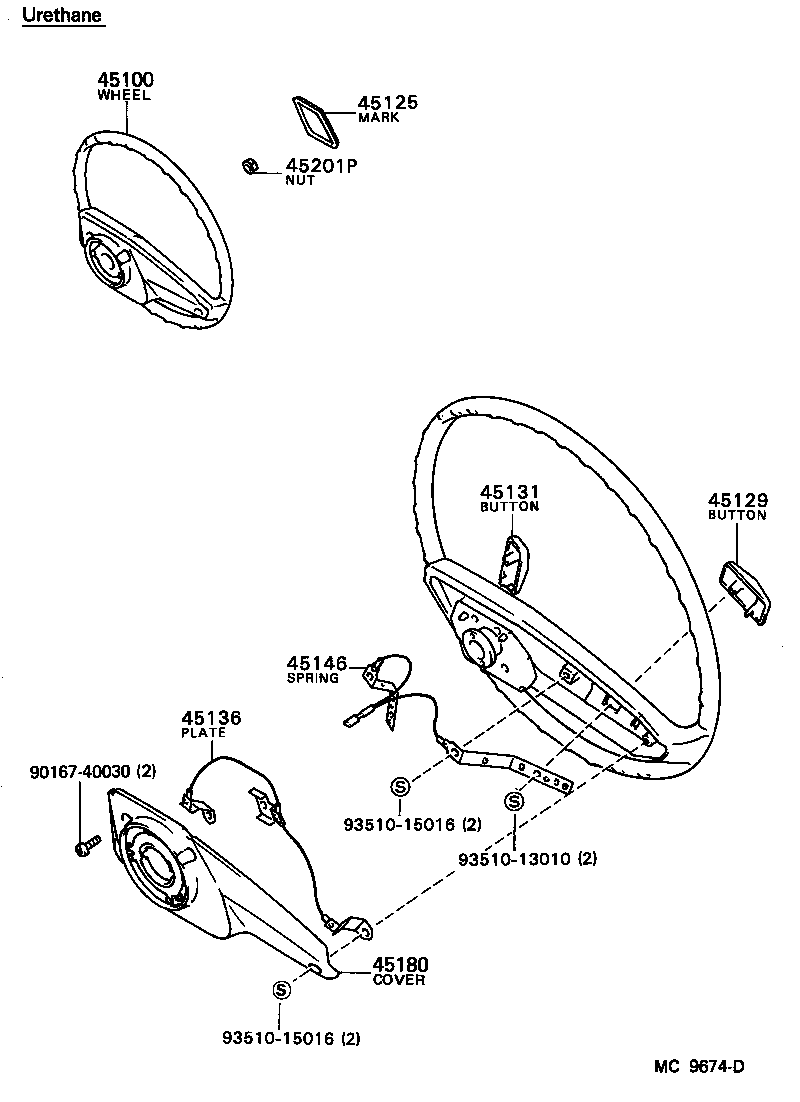

Figure MC9973B MC9973B 1983-08 → — Figure MC9974B MC9974B 1983-08 → 1985-08 Figure MC9974B MC9974B 1985-08 → — Figure MCC033 MCC033 1985-08 → — Figure MC9674D MC9674D 1983-08 → — Figure MC9751E MC9751E 1983-08 → 1984-08 Figure MC9751E MC9751E 1984-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45127 Insert, Horn Button, Upper NO.1
45128A Spring, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45147 Spacer, Horn Button
45155A Spacer, Horn Contact
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
