Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

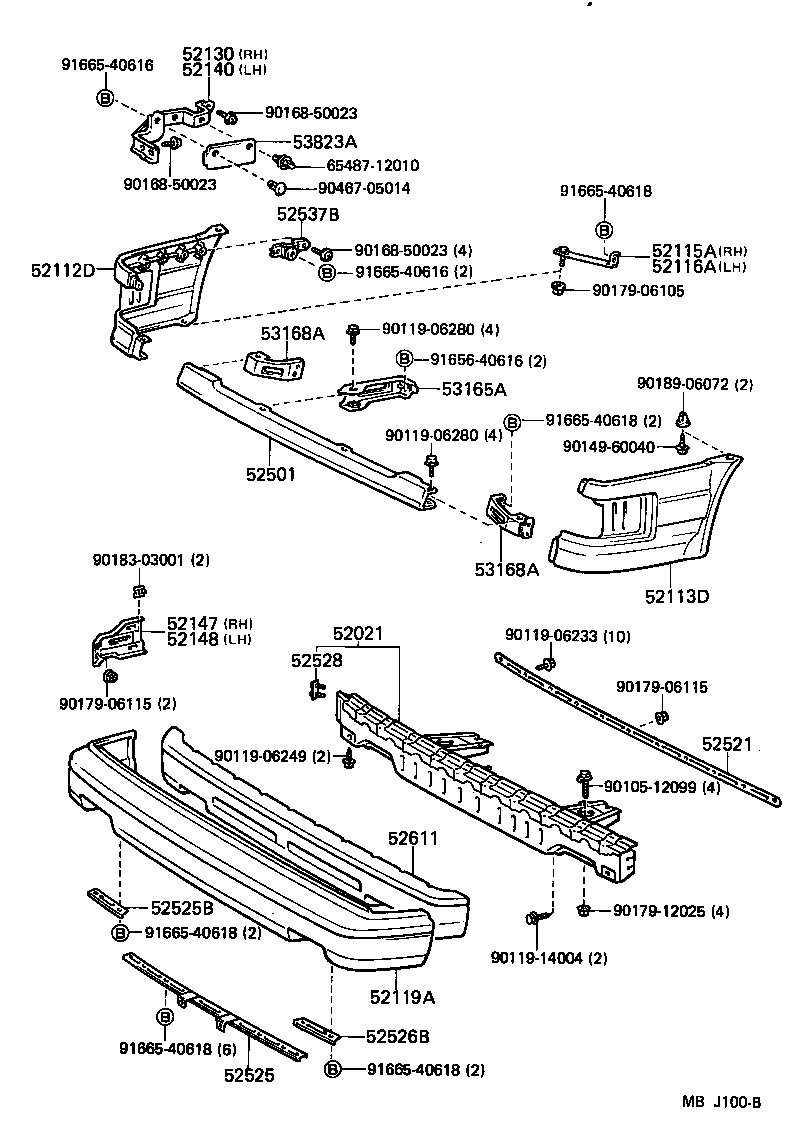

Figure MBF335E MBF335E 1983-08 → 1985-08 Figure MBJ100B MBJ100B 1985-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52145B Bracket, Front Bumper Side Mounting
52147 Support, Front Bumper, RH
52148 Support, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52537B Support, Front Bumper Side NO.2
52611 Absorber, Front Bumper Energy
52671 Extension, Front Bumper Arm
53165A Bracket, Front Bumper Stone Deflector, NO.1
53168A Bracket, Front Bumper Stone Deflector, NO.2
53823A Protector, Front Side Panel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
