Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

13 part groups · 2 illustrations

Illustrations

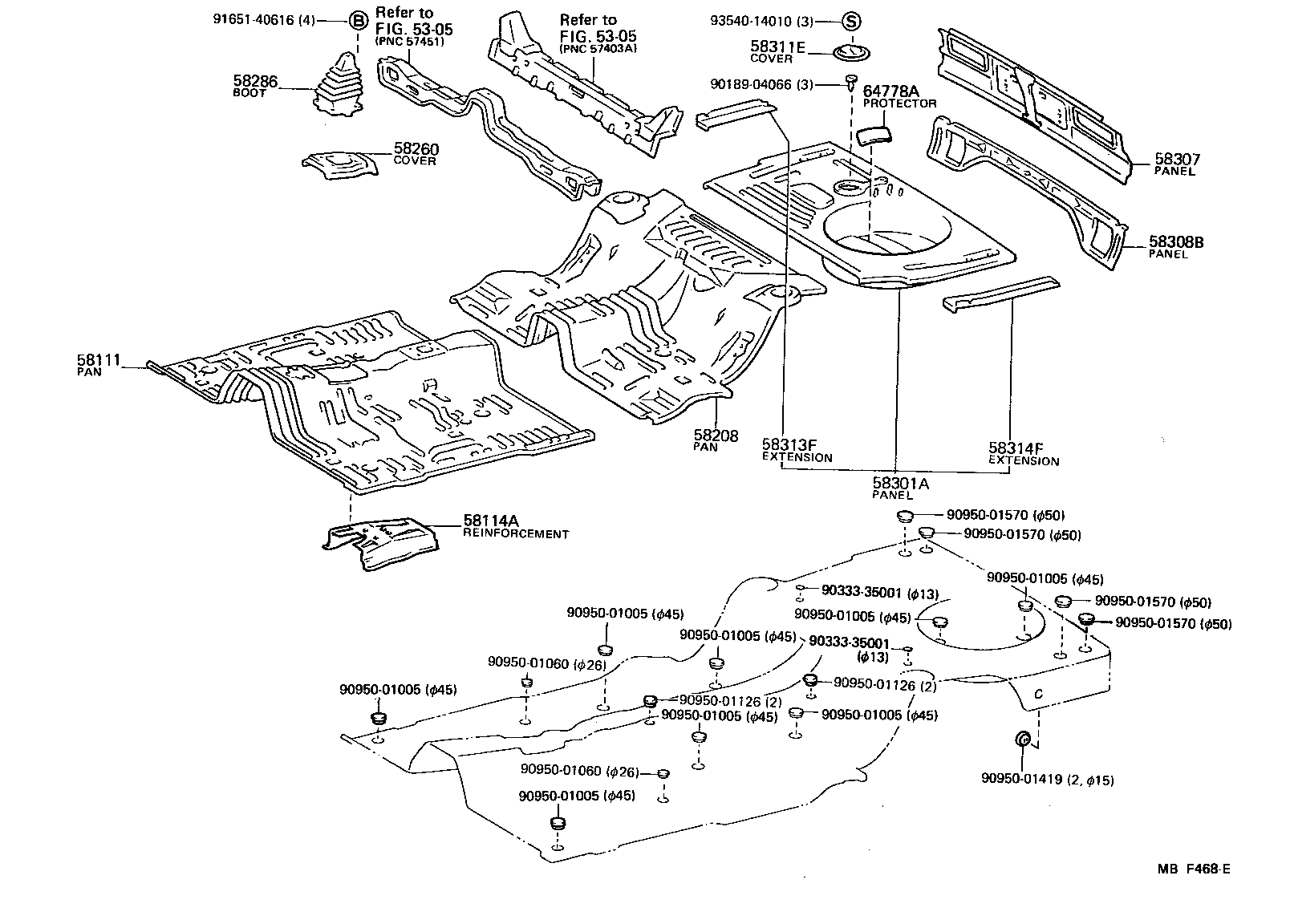

Figure MBF467E MBF467E 1983-08 → — Figure MBF468E MBF468E 1983-08 → —

Part groups

PNCDescription
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58208 Pan, Center Floor
58260 Cover Assy, Transmission, Front
58286 Boot, Shift & Select Lever, NO.1
58301A Panel Sub-assy, Rear Floor
58307 Panel Sub-assy, Body Lower Back
58308B Panel Sub-assy, Rear Valance
58311E Cover, Rear Floor Service Hole
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58794 Carrier, Jack
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
