Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

10 part groups · 3 illustrations

Illustrations

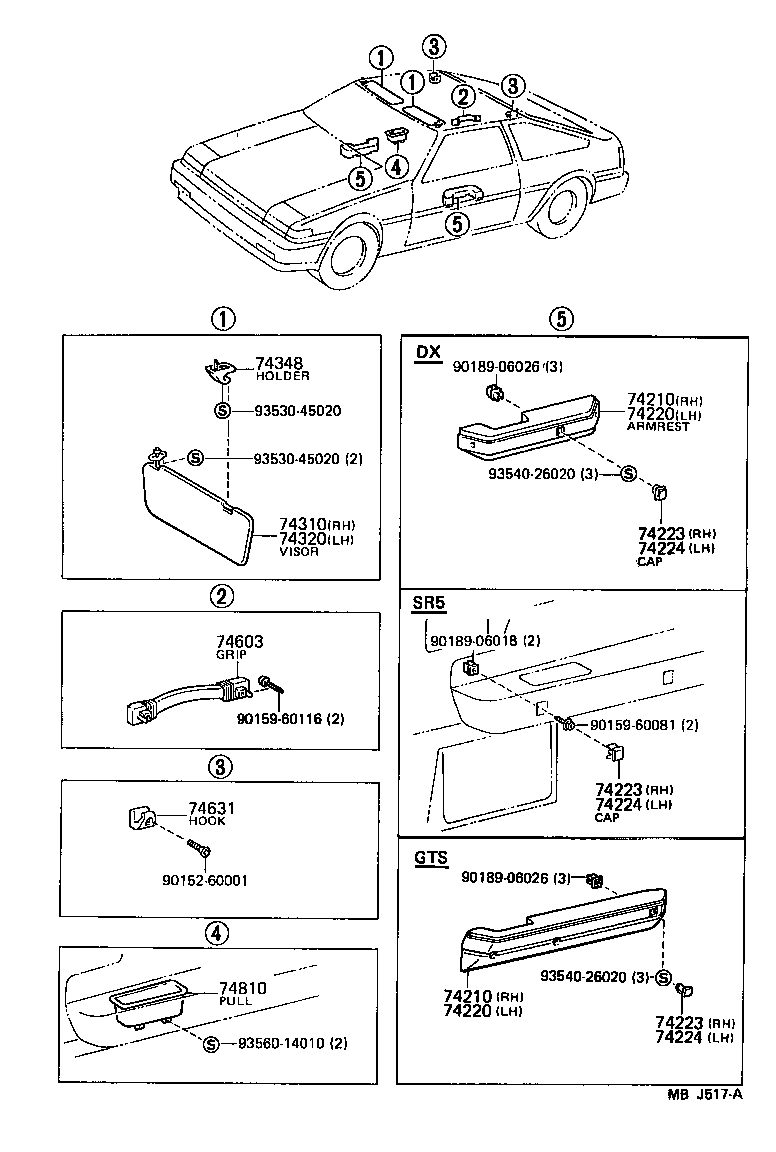

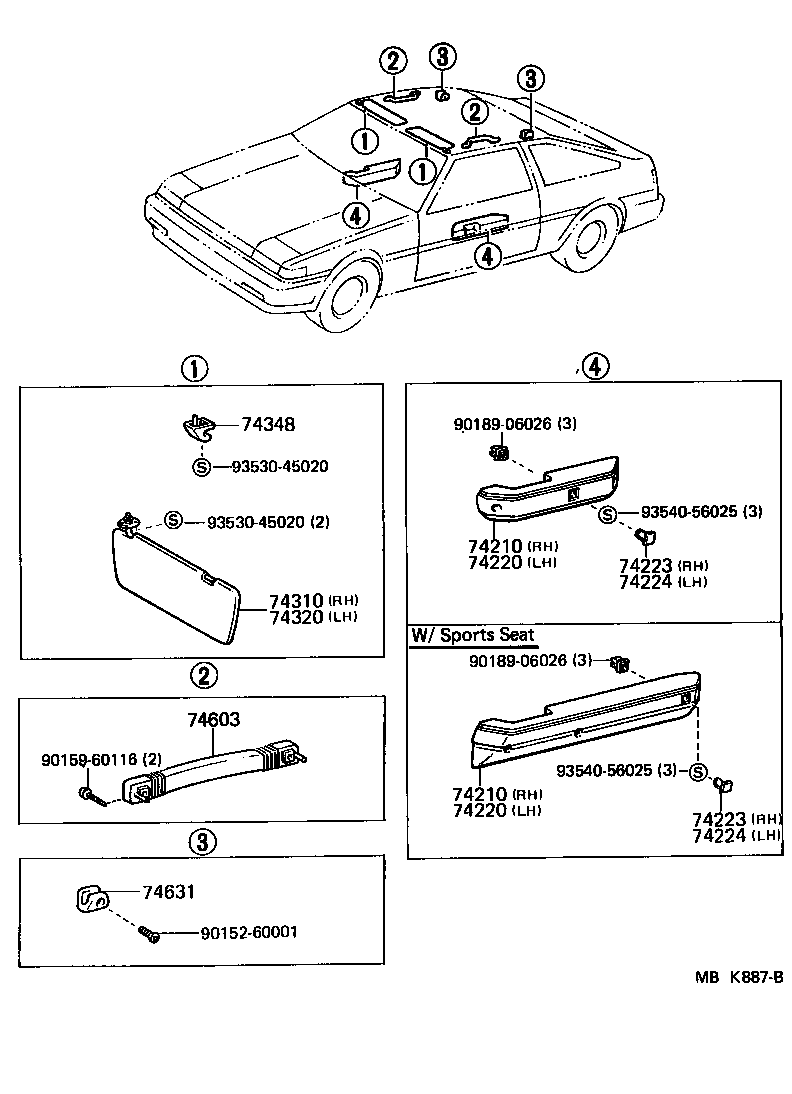

Figure MBF486B MBF486B 1983-08 → 1985-08 Figure MBJ517A MBJ517A 1985-08 → 1986-08 Figure MBK887B MBK887B 1986-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74631 Hook, Coat, A
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
