Toyota Corolla CP

1983-08 → 1987-07 · chassis AE86 · catalogue 161450 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

9 part groups · 2 illustrations

Illustrations

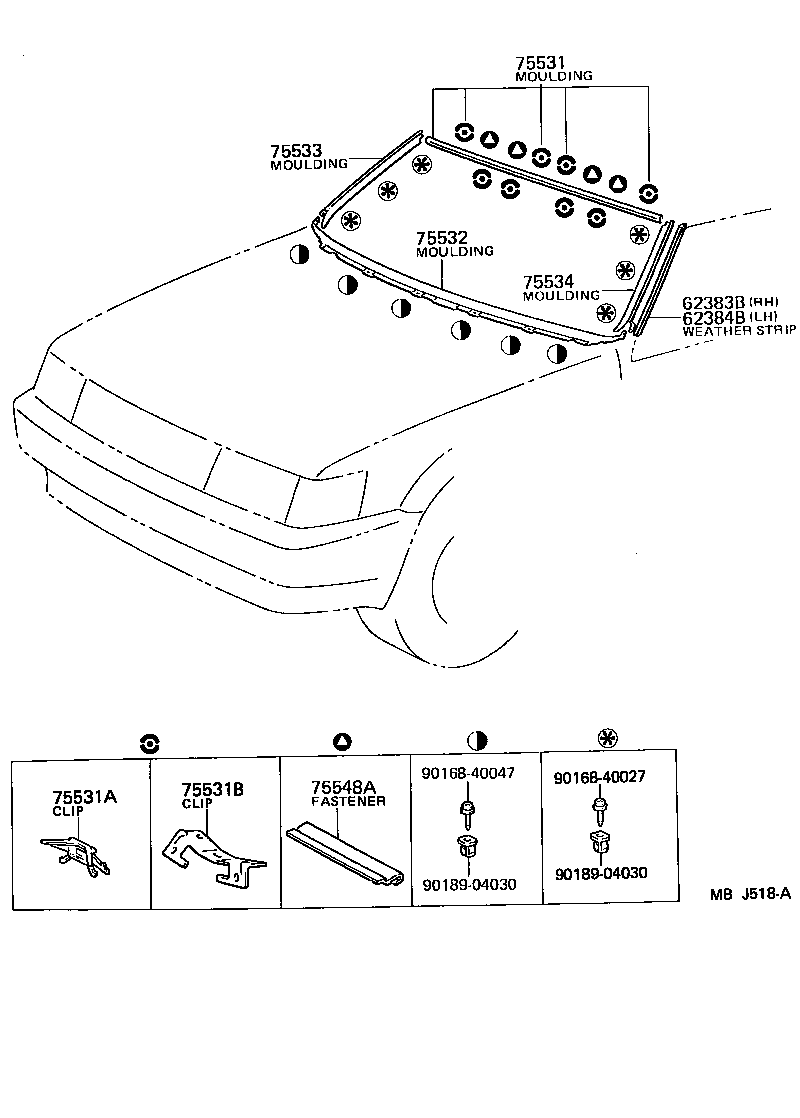

Figure MBK533 MBK533 1983-08 → 1985-08 Figure MBJ518A MBJ518A 1985-08 → —

Part groups

PNCDescription
62383B Weatherstrip, Roof Side Rail, RH
62384B Weatherstrip, Roof Side Rail, LH
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75531B Clip, Windshield Moulding Set, NO.2
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75548A Fastener, Windshield Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
